2007 FIAT GRANDE PUNTO navigation system

The innovating Windows Mobile™-based Telematic
Solution for the car
CONTENTS
OVERVIEW .............................................................................. 3
The hands-free kit .................................................................... 3
Message reader......................................................................... 5
Media player ............................................................................. 6
The navigation system ............................................................ 6
Road safety ............................................................................... 7
DISPLAY AND BUTTONS ON THE STEERING
WHEEL....................................................................................... 8
HANDS-FREE KIT QUICK REFERENCE GUIDE.............11
Prepare your mobile phone phonebook ............................ 11
Try out the voice commands ............................................... 12
Pair your mobile phone ......................................................... 12
Make a phone call .................................................................... 13
MESSAGE READER QUICK REFERENCE GUIDE............ 14
MEDIA PLAYER QUICK REFERENCE GUIDE ................ 14
NAVIGATION SYSTEM QUICK REFERENCE GUIDE .. 15
HOW TO USE Blue&Me™ Nav...................................... 15
Steering wheel controls ......................................................... 15
Voice commands ..................................................................... 16
Display ....................................................................................... 18
Audio ......................................................................................... 19
Blue&Me™ Navfunction menu ....................................... 19
HANDS-FREE KIT FUNCTIONS......................................... 20
Making a phone call ................................................................. 21
Incoming calls ........................................................................... 24
Managing phone calls .............................................................. 25
Conference call function ........................................................ 25
MESSAGE READER FUNCTIONS....................................... 26How to read the last SMS text received............................. 26
Inbox........................................................................................... 27
Managing messages................................................................... 27
Deleting all messages............................................................... 28
Signal types................................................................................. 28
MEDIA PLAYER FUNCTIONS ............................................ 29
How to connect the USB device to Blue&Me™ Nav.. 29
How to manage the media library ....................................... 29
- Selection by folder ............................................................... 30
- Selection by artist ................................................................. 31
- Selection by genre ................................................................ 31
- Selection by album ............................................................... 32
- Selection by playlist .............................................................. 32
Playing audio tracks ................................................................ 33
- Shuffle playback of the whole media library..................... 33
- Now playing (track data) .................................................... 33
- Audio play .............................................................................. 33
- Pause ....................................................................................... 33
- Play ........................................................................................... 33
- Stop ......................................................................................... 34
- Next track .............................................................................. 34
- Previous track ....................................................................... 34
- Changing audio source ........................................................ 34
Practical hints for using the media player............................ 34
- Scrolling .................................................................................. 34
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 1

- Organizing media files .......................................................... 35
- Building the media library on Blue&Me™ Nav.......... 35
- Building playlists for Blue&Me™ Nav.......................... 35
FUNCTIONS OF THE NAVIGATION SYSTEM.............. 36
- Navigation display ................................................................. 36
- Voice messages ..................................................................... 36
Start navigation ........................................................................ 37
- New destination ................................................................... 38
- Procedure for entering destination TOWN/CITY ....... 39
- Operation for steering wheel keys during input
of TOWN/CITY name ........................................................ 39
- Points of interest .................................................................. 41
- Resume navigation................................................................. 43
- Arrival information................................................................ 43
- Stop navigation ...................................................................... 44
- Recent destinations .............................................................. 44
- Navigation settings ............................................................... 45
- Vehicle position .................................................................... 47
- Route simulation ................................................................... 47
SETTINGS FUNCTIONS....................................................... 48
Pairing a mobile phone ........................................................... 48
Managing user data .................................................................. 51
Managing updates .................................................................... 54
- Updating Blue&Me™ Nav.............................................. 54
- Pausing the update ............................................................... 55
- Using the phone during the updating procedure ........... 56
- Resuming the update ........................................................... 56
Advanced options ................................................................... 57
- Accessing the device ID ....................................................... 57
- Changing the GPRS code .................................................... 57
Media player settings .............................................................. 58
- Autoplay ................................................................................. 58
- Shuffle ...................................................................................... 59- Loop ........................................................................................ 59
Exit the settings menu ............................................................ 60
Blue&Me™ NavSUPPORTED MOBILE PHONES ..... 60
Mobile phones with Bluetooth
®wireless technology...... 60
- “Pull” phones
(phonebook automatically downloaded) ......................... 61
- “Push” phones
(phonebook not automatically downloaded) ................. 61
- Mobile phones with message reader................................. 61
- List of Blue&Me™ Navsupported mobile phones ... 62
Supported USB memory devices ......................................... 64
- USB memory devices ........................................................... 64
- Supported digital audio files ............................................... 64
- Supported playlist formats................................................... 65
VOICE COMMANDS (KEYWORDS) - SUMMARY ...... 66
Always available voice commands......................................... 66
Hands-free phone kit voice commands............................... 67
Message reader voice commands......................................... 69
Media player voice commands............................................... 70
Navigation system voice command ..................................... 73
Settings function voice commands........................................ 75
TROUBLESHOOTING........................................................... 76
Hands-free kit .......................................................................... 76
- General - display screen ...................................................... 76
- Phone-specific: Audiovox
®/Orange®................................. 83
- Phone-specific: Motorola®.................................................. 84
- Phone-specific: Nokia®........................................................ 86
- Phone-specific: Sony-Ericsson®.......................................... 89
Message reader......................................................................... 91
Media player .............................................................................. 93
Navigation system ................................................................... 97
PERSONAL DATA PROTECTION .................................... 99
SYSTEM SOFTWARE USE NOTICE .................................. 100
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 2

33
With this system you can also play your
favourite music stored on USB device and
select tracks and playback modes with
both voice commands or buttons on the
steering wheel.
THE HANDS-FREE KIT
The basic characteristic of this hands-free
kit is voice recognition with Bluetooth
®
wireless technology. With this system you
can make and receive calls safely and se-
curely using either voice commands or
buttons on the steering wheel under what-
ever driving condition without having to
take your eyes off the road or removing
your hands from the steering wheel, as re-
quired by current law regulations.
Bluetooth
®wireless technology enables
wireless connection between your mobile
phone and the hands-free kit installed on
your car. To use the hands-free kit, you need a
Bluetooth
®wireless technology enabled
mobile phone. This hands-free kit gives
you the possibility of interacting vocally
with your mobile phone while driving,
even if your mobile device does not fea-
ture this capability. You can also interact
with your mobile phone manually and vi-
sually using the steering wheel controls
and the instrument panel multifunction dis-
play.
For further details on the mobile phones
supported by Blue&Me™ Nav, refer to
section Blue&Me™ NavSUPPORTED
MOBILE PHONES.
To get started with Blue&Me™ Nav
hands-free kit with voice recognition, you
have to simply pair your Bluetooth
®
wireless technology enabled mobile phone
with the system.
Pairing is an operation that has to be made
only once.
Hands-free kit with Bluetooth®wireless technology,
message reader, media player and navigation system
OVERVIEW
Fiat Blue&Me™ Navbased on Windows
Mobile™ is a personal telematic system that
allows the use of communication, enter-
tainment and navigation applications specif-
ically designed for in-car use.
The Blue&Me™ Navsystem installed on
your car offers handsfree, text message read-
er, multimedia player and navigation system
functions and is ready for the addition of fur-
ther services due to become available in the
future.
The Blue&Me™ Navsystem, fully inte-
gral with voice commands, buttons on the
steering wheel and multifunction display
messages, gives you the possibility of in-
teracting with your Bluetooth
®wireless
technology mobile phone (even if you
keep it in your pocket or bag) without hav-
ing to take your eyes off the road or re-
moving your hands from the steering
wheel. To use voice commands you are
not required to train the voice recognition
system to recognize your voice. This im-
plies that the system is nearly equally per-
forming with different persons, i.e.: the
voice recognition system is of the “speak-
er independent” type.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 3

66
MEDIA PLAYER
With the Blue&Me™ Navmedia player
you can play, via the car sound system, the
digital audio files stored on a USB device by
simply connecting it to the USB port lo-
cated in the car.
In this way, while you are driving you can
play your favourite personal music collec-
tions.
The media player enables the following op-
erations:
❒Digital audio playback- you can play
all your digital audio files (.mp3, .wma,
.wav) or play a customized playlist (.m3u
or .wplformat).
❒Audio file selection by category-
you can play all audio files of a certain
category, e.g.: album, artist or genre.
❒Playback options- while playing tracks
you can select the following options: Play,
Stop, Next track, Previous track, Shuffle and
Loop track.Note
The media player does not support audio
files compressed with other formats (e.g.:
.aac) and DRM (Digital Right Management)
protected audio files. Non-supported au-
dio files that may be present on the USB
device will be ignored.
To use the media player, you have to sim-
ply connect (directly or by an extension
lead) your USB device to the car USB
port. Turning the ignition key to MAR,
Blue&Me™ Navwill start building your
media library. At the end of this operation
you can surf the whole library and scroll
its categories as required using the but-
tons on the steering wheel or voice com-
mands. Blue&Me™ Navwill then play
your selection via the car sound system.
THE NAVIGATION SYSTEM
The Blue&Me™ Navnavigation system
allows you to reach a required location
quickly and safely. You will be taken to
your destination by means of voice mes-
sages and pictogram instructions shown
on a the vehicle’s reconfigurable multi-
function display.The navigation system allows you to:
❒Enter a new destination- you can
enter the address of a desired destina-
tion, specifying the name of the desti-
nation street with the house number or
simply the town/city centre.
❒Navigate to a point of interest–
you can call up as a final destination a
point of interest selected from a cate-
gory list (e.g. hotels, restaurants, air-
ports, railway stations, authorised
workshops, etc.).
❒Trip information - Blue&Me™
Navis able to provide estimated time
of arrival and distance to a preset des-
tination. It also allows you to display
your car’s position (latitude, longitude
and number of GPS satellites received).
❒Recent destinations– you may
choose one of the destinations recent-
ly preset, stored by the system in a spe-
cial list.
❒Navigation settings– you can set
your preferences for the route type,
e.g. motorways, toll-roads or ferries.
❒Route simulation - Blue&Me™
Navallows you to simulate the type of
route to your set destination in ad-
vance.

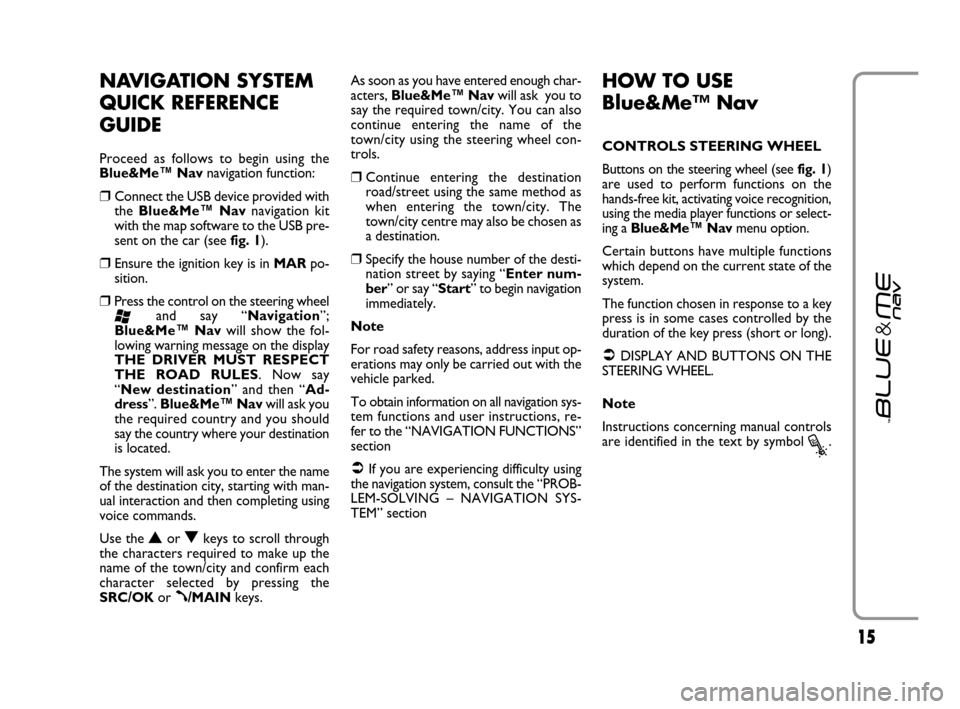

603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 6

1515
NAVIGATION SYSTEM
QUICK REFERENCE
GUIDE
Proceed as follows to begin using the
Blue&Me™ Navnavigation function:
❒Connect the USB device provided with
the Blue&Me™ Navnavigation kit
with the map software to the USB pre-
sent on the car (see fig. 1).
❒Ensure the ignition key is in MARpo-
sition.
❒Press the control on the steering wheel
‘and say “Navigation”;
Blue&Me™ Navwill show the fol-
lowing warning message on the display
THE DRIVER MUST RESPECT
THE ROAD RULES. Now say
“New destination” and then “Ad-
dress”. Blue&Me™ Navwill ask you
the required country and you should
say the country where your destination
is located.
The system will ask you to enter the name
of the destination city, starting with man-
ual interaction and then completing using
voice commands.
Use the
Nor Okeys to scroll through
the characters required to make up the
name of the town/city and confirm each
character selected by pressing the
SRC/OKor
ß/MAINkeys.As soon as you have entered enough char-
acters, Blue&Me™ Navwill ask you to
say the required town/city. You can also
continue entering the name of the
town/city using the steering wheel con-
trols.
❒Continue entering the destination
road/street using the same method as
when entering the town/city. The
town/city centre may also be chosen as
a destination.
❒Specify the house number of the desti-
nation street by saying “Enter num-
ber” or say “Start” to begin navigation
immediately.
Note
For road safety reasons, address input op-
erations may only be carried out with the
vehicle parked.
To obtain information on all navigation sys-
tem functions and user instructions, re-
fer to the “NAVIGATION FUNCTIONS”
section
If you are experiencing difficulty using
the navigation system, consult the “PROB-
LEM-SOLVING – NAVIGATION SYS-
TEM” section
HOW TO USE
Blue&Me™ Nav
CONTROLS STEERING WHEEL
Buttons on the steering wheel (see fig. 1)
are used to perform functions on the
hands-free kit, activating voice recognition,
using the media player functions or select-
ing a Blue&Me™ Navmenu option.
Certain buttons have multiple functions
which depend on the current state of the
system.
The function chosen in response to a key
press is in some cases controlled by the
duration of the key press (short or long).
DISPLAY AND BUTTONS ON THE
STEERING WHEEL.
Note
Instructions concerning manual controls
are identified in the text by symbol
?.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 15

2020
HANDS-FREE KIT
FUNCTIONS
Blue&Me™ Navlets you make and re-
ceive phone calls on your Bluetooth®
wireless technology-enabled mobile phone
using voice commands (keywords) or
steering wheel buttons.
By using voice commands, you can make
calls to people in your phonebook by pro-
nouncing their first and/or last name, or
you can make phone calls to numbers not
stored in your phonebook by pronounc-
ing the digits of the phone number or call
the last message sender.
By using steering wheel buttons, you can
make phone calls to people in your phone-
book or call history list by selecting the as-
sociated item in the LAST CALLSor
PHONEBOOKsubmenus.
In addition, you can use other calling fea-
tures such as responding to incoming calls,
redial, callback, call waiting, read a mes-
sage or delete it.
If you encounter difficulties with any of
the voice recognition operations, consult
section HANDS-FREE KIT - TROU-
BLESHOOTING.
❒MESSAGE READER- This submenu
enables to read the last message re-
ceived, to call the message sender or to
delete the last message received. It
is possible to store up to 20 received
messages in the dedicated inbox and to
play them later, to call the message
sender or to delete the messages.
It is possible to select notification sig-
nals for the arrival of a new SMS text.
❒MEDIA PLAYER- this submenu al-
lows to scroll the digital audio tracks in
the library by folder, artist, genre, al-
bum or by playlist. This sub-menu is to
be used to select and play tracks.
❒NAVIGATION- this submenu gives
access to Blue&Me™ Navnavigation
functions.
You can enter a new destination, use
a recent destination, alter the naviga-
tion settings, gain access to informa-
tion on the vehicle’s GPS position or
simulate a previously calculated route.
❒SETTINGS- this submenu allows you
to perform tasks such as managing your
phonebook entries, creating a pairing
relationship, or setting a connection ID.Launching the Main Menu
To launch the Blue&Me™ NavMain
Menu, press
ß/MAIN, you can then in-
teract with the system through the buttons
on the steering wheel.
Navigating the menu options
To navigate through the items in a menu,
press
NorO.
When the number of characters in a dis-
play message is too long for the allowable
number of display characters, the text in
the display message will be cut to fit the
display size.
To select the option shown on the display,
press SRC/OKor
ß/MAIN.
To quit the selected option or to exit a
submenu, press
&/ /ESC.
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 20

36
FUNCTIONS OF THE
NAVIGATION SYSTEM
Blue&Me™ Navleads you to your cho-
sen destination quickly and safely by means
of its navigation function by means of voice
synthesis and pictograms that appear on a
reconfigurable multifunction display on the
control panel. The navigation system al-
lows you to navigate towards a destina-
tion address, to call up programmed des-
tinations or points of interest (e.g.: hotels,
restaurants, chemists, airports, railway sta-
tions, authorised workshops etc.). The
car’s position is determined by the GPS
(Global Position System), by processing
signals from GPS satellites and the car’s
odometric signals. Blue&Me™ Navus-
es digital mapping data preloaded onto
your USB device to lead you to your de-
sired destination by the best possible
route from your current location.Notes
❒GPS reception is difficult under trees,
among tall buildings, in covered car-
parks, in tunnels and in any place where
the satellite aerial reception may be hin-
dered.
❒The Blue&Me™ Navnavigator takes
a few minutes to determine the car’s
new position if the car is moved with
the system turned off (e.g. after trans-
porting the car on a ferry).
❒If the vehicle battery is disconnected,
the GPS takes about 15 minutes to ac-
tivate.
❒The system is equipped with a self-cal-
ibration function that needs to oper-
ate for about 100 km when the system
is first turned on or if the tyres are
changed. During this stage, the position
could be calculated with less accuracy.
❒Under continuous conditions of low
wheel grip (e.g. when skidding on ice),
the system may temporarily record an
inaccurate position.
Navigation display
On the control panel reconfigurable mul-
tifunction display (see fig. 3), the ma-
noeuvres to be carried out (right turn, left
turn, drive round round-about, go straight
on or change direction) are displayed by
means of pictograms.The display also indicates the name of the
current street and the distance to the next
turn-off. The name shown near the turn-
off is that of the street where the ma-
noeuvre is to be carried out.
A– Navigation pictogram
B– Distance to the next turn-off
C– Street name
Voice messages
The voice messages issued by the system
recommend all manoeuvres to be carried
in plenty of time: in particular, advance
warning of the manoeuvre to be carried
out is given, followed by detailed instruc-
tions on when to carry out the manoeu-
vre.
To repeat the last voice message, press
the
‘key and say “Next maneuver”.
The instructions provided by
Blue&Me™ Nav do not ex-
onerate the driver from full responsi-
bility for any manoeuvres carried out
in traffic while driving the car and for
respecting the highway code and oth-
er road traffic regulations. Responsi-
bility for road safety always lies with
the driver of the car under all circum-
stances.
WARNING
fig. 3F0M0373m
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 36

38
New destination
The NEW DESTINATIONmenu al-
lows you to enter a destination in various
ways:
❒ADDRESS: set the address by choos-
ing a town/city centre or the required
street;
❒POINTS OF INTEREST: select a
point of interest from the relevant sub-
menu.
Address
Use this menu to enter the address of
your required destination, indicating the
country, the town/city, the name of the
road/street and the house number.
?
To enter an address using manual in-
teraction:
Activate the main Menu, select the
NAVIGATIONoption and then
press SRC/OKor
ß/MAIN.
Select the NEW DESTINATION
option by pressing SRC/OKor
ß/MAIN.
Select ADDRESSand then press
SRC/OKor
ß/MAIN.
}Or use voice interaction by pressing
‘and saying “Navigation”. Once
the system message has finished, say
“New destination” and then “Ad-
dress”.
Blue&Me™ Navstarts by asking
your to select the required country
name.
Before anything else, the system de-
termines which countries are pre-
loaded on your USB device. If the
maps for only one country are pre-
sent, this will be set as the destina-
tion country.Use the “
N” or “O” keys to select the
required country and press SRC/OKor
ß/MAINto confirm.
}Using voice interaction, say the re-
quired country. Blue&Me™ Nav
will ask you to confirm the select-
ed country by means of a voice
message.
Notes:
❒In order to select the country, the USB
device containing the maps must be in-
serted in the USB port on the car.
❒If several countries are loaded on your
USB device, Blue&Me™ Navwill
show a list of countries in alphabetical
order on the multifunction display. If
the system is able to detect the GPS po-
sition of the car, the country where you
are located will be shown at the head
of the list.
After selecting the country, Blue&Me™
Navwill ask you to enter the destination
town/city by means of the steering wheel
control and voice interaction.For road safety reasons, it is
only possible to enter a new
destination with the car at a stand-
still.
WARNING
603_83_390 Punto C3 GB 19-06-2007 11:21 Pagina 38
