2007 FIAT 600 Owners Manual

24GETTING TO KNOW YOUR CAR
The car is fitted with an
electronic braking device
(EBD). The >and x
warning light will come on at the
same time when the engine is
running to indicate that there is
an EBD system failure. In this
case violent braking may be ac-
companied by early rear wheel
locking with the possibility of
skidding. Drive the car extremely
carefully to the nearest Fiat Deal-
ership to have the system
checked. Warning light >alone,
with the engine running,
normally indicates a fault
in the ABS system only. In this
case, the braking system is still
efficient, though without the
anti-locking device. Under these
conditions, performance of the
EBD system may be reduced.
Also in this case, you are advised
to go immediately to the nearest
Fiat Dealership, driving in such a
way to avoid sharp braking to
have the system checked. FUEL RESERVE
(amber)
When there are about 7
litres of fuel left in the tank.
K
001-069 Seicento GB 22-11-2007 10:49 Pagina 24

25GETTING TO KNOW YOUR CAR
PASSENGER SIDE
AIRBAG OFF
(amber)
The warning light will come on when
the passenger side airbag is switched
off.
The light will flash when the engine
is started: this signals the airbag is be-
ing activated and not a fault.
F
Warning light Findi-
cates also warning light
¬failure. This is indi-
cated by intermittent flashing,
over 4 seconds, of warning light
F. In this event, warning light
¬could be not up to indicate re-
straint system failures, if any.
Stop the car and contact Fiat
Dealership to have the system
checked.1. Fixed light- warning of a fuel
feed/ignition system failure which may
increase emissions in exhaust or cause
possible drops in performance, poor
handling and high consumption.
In such conditions, you can continue
driving but you should not tax the en-
gine and you should moderate the
speed. Prolonged use with the warn-
ing light on can cause damage. Con-
tact a Fiat Dealershipas soon as
possible.
The warning light will go out when
the failure disappears. In any case, the
system will store the error.
2. Flashing- warning that the catal-
yser can be damaged (see
EOBD SYSTEM
in this chapter).
If the warning light starts flashing, re-
lease the accelerator pedal and slow
the engine until the warning light stops
flashing. Continue driving at moderate
speed, preventing the warning light
from coming on again. Contact a Fiat
Dealershipas soon as possible. ENGINE CONTROL
SYSTEM FAILURE
(EOBD) (amber)
In normal conditions, the warning
light will come on when the ignition
key is turned to MARand should go
out as soon as the engine is started.
The initial lighting up shows that the
warning light is working properly.
If the warning light either stays on or
comes on while travelling:
U
001-069 Seicento GB 22-11-2007 10:49 Pagina 25

26GETTING TO KNOW YOUR CAR
HANDBRAKE
ENGAGED / LOW
BRAKE FLUID
LEVEL (red)
In three cases:
1.When the handbrake is engaged.
2.When the brake fluid level falls
below the minimum
3. With the
>warning light to in-
dicate an EBDelectronic brake force
corrector failure.
x
If the xwarning light
comes on when travel-
ling, check whether the
handbrake is engaged. If the
warning light stays on and the
handbrake is not engaged, stop
immediately and contact a Fiat
Dealership.
Contact a Fiat Dealer-
ship as soon as possible if
the
Uwarning light ei-
ther does not come on when the
key is turned to MAR or comes
on, with fixed or flashing light,
when travelling.
FIAT CODE
(amber)
The warning light will
come on the three cases when the
key is at MAR:
1.Single flash - indicates that the
key code has been recognised. The
engine can be started.
2.Fixed light - the key code has not
been recognised. Follow the emer-
gency procedure to start the engine
(see
IN AN EMERGENCY).
3.Flashing light - indicates that the
car is not protected by the immo-
biliser system. The engine can how-
ever be started.
¢
001-069 Seicento GB 22-11-2007 10:49 Pagina 26

27GETTING TO KNOW YOUR CAR
If the ¬warning light
does not turn on when
turning the ignition key
to MAR or if it stays on when
travelling, this could indicate a
failure in safety retaining sys-
tems; under this condition air
bags or pretensioners could not
trigger in the event of collision
or, in a restricted number of
cases, they could trigger acci-
dentally. Stop the car and con-
tact Fiat Dealership to have the
system checked immediately.AIRBAG FAILURE
(red)
This warning light is
found in cars fitting two airbags (dri-
ver’s side and passenger’s side) and in
cars fitting an electronic driver’s side
airbag system. The warning light will
come on to indicate a system failure.
û
BATTERY NOT
RECHARGING
PROPERLY (red)
When there is a fault in the current
generating system.
When the key is turned to MAR the
light comes on but should go out the
moment the engine is started.
w
001-069 Seicento GB 22-11-2007 10:49 Pagina 27

ENGINE COOLANT
TOO HOT
(Red)
Turning the ignition key to MARthe
warning light turns on, but it should
go off after four seconds.
If it turns on when travelling, stop
the car, leaving the engine on and
slightly accelerated to further activate
the circulation of the coolant fluid.
If the warning light does not go off
within the next 2 or 3 minutes, stop
the engine and contact Fiat Deal-
ership.
u
ENGINE OIL
PRESSURE TOO
LOW (red)
When the engine oil pressure drops
under the normal value.
When the key is turned to MAR,
the warning light should come on but
should go out as soon as the engine is
started.
A delay in the light going out is ac-
ceptable only when the engine is
idling.
If the engine has been taxed heavily,
the light might flash when idling but
should go out on accelerating slightly.
If the warning light
comes on while the car is
moving, stop the engine
and contact a Fiat Dealership.
v
28GETTING TO KNOW YOUR CAR
ELECTRICAL
POWER STEERING
FAILURE (red)
In the following two cases:
1- When the power steering elec-
trical motor is overheated by repeat-
ed, complete steering. In this case,
hold the steering wheel still and wait
for the light to go out.
2- When there is an electrical
power steering system failure.
When the key is turned to MARthe
warning light should come on for ap-
proximately four seconds only. If the
warning lights stays on, the power
steering system will not be working.
The effort on the steering wheel will
increase without compromising steer-
ability. Contact a Fiat Dealership.
g
001-069 Seicento GB 22-11-2007 10:49 Pagina 28

29GETTING TO KNOW YOUR CAR
INDIVIDUAL
SETTINGS
FRONT SEATS
All adjustments must be
made when the car is sta-
tionary.
fig. 25
P4Q00005
Moving the seat backwards
or forwards
Lift the lever A-fig. 25and push the
seat forwards or backwards. You are
in the correct position for driving
when your hands are resting on the
steering wheel rim and your arms are
slightly bent. Once you have let go of
the lever, check that the
seat is firmly locked in
the runners by trying to move it
back and forth.
Failure to lock the seat in place
could result in the seat moving
suddenly and dangerously.
001-069 Seicento GB 22-11-2007 10:49 Pagina 29

30GETTING TO KNOW YOUR CAR
Rear seats fig. 28
Two fixed head restraints are pro-
vided for the rear seats.
Press the two buttons to remove.
Remember that the
head restraints should be
adjusted to support the
back of your head and not your
neck. Only if they are in this po-
sition will they be able to provide
effective protection in the event
of a rear-end shunt.
fig. 28
P4Q01012
fig. 26
P4Q00006
HEAD RESTRAINTS
Front seats fig. 27
The height of the front head re-
straints can be adjusted.
To adjust:
– press button Aand move the head
restraint vertically to the required po-
sition;
– after adjusting, release the button
and make sure that the head restraint
is locked in position by moving it up
and down.
fig. 27
P4Q01011
Adjusting the reclining seat
back
Turn knob B-fig. 26.
001-069 Seicento GB 22-11-2007 10:49 Pagina 30

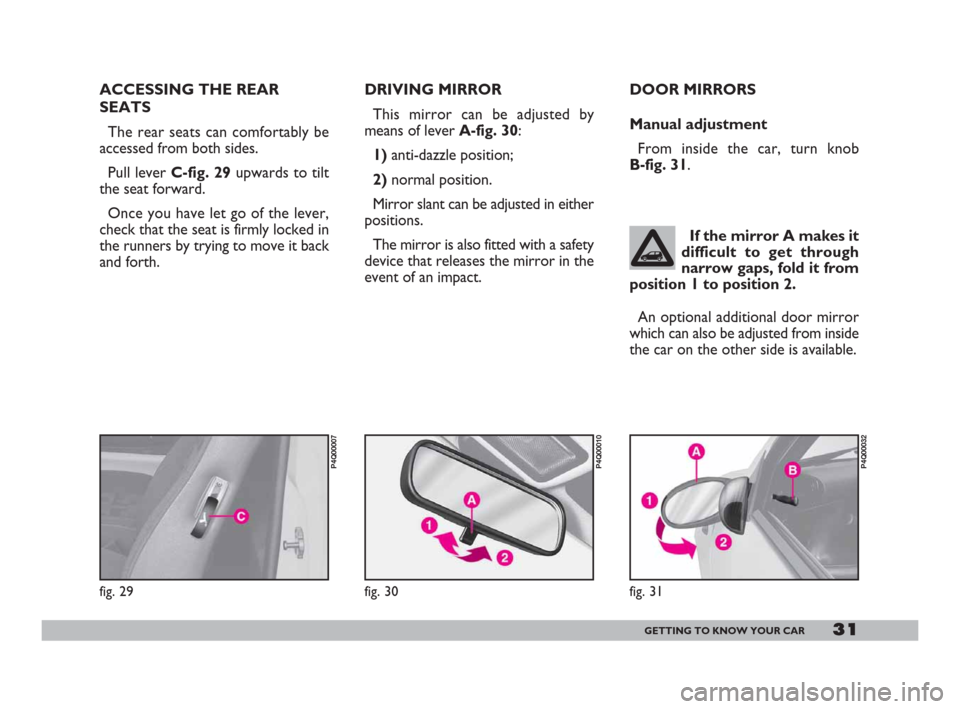

31GETTING TO KNOW YOUR CAR
DRIVING MIRROR
This mirror can be adjusted by
means of lever A-fig. 30:
1)anti-dazzle position;
2)normal position.
Mirror slant can be adjusted in either
positions.
The mirror is also fitted with a safety
device that releases the mirror in the
event of an impact.
fig. 30
P4Q00010
fig. 29
P4Q00007
ACCESSING THE REAR
SEATS
The rear seats can comfortably be
accessed from both sides.
Pull lever C-fig. 29upwards to tilt
the seat forward.
Once you have let go of the lever,
check that the seat is firmly locked in
the runners by trying to move it back
and forth. DOOR MIRRORS
Manual adjustment
From inside the car, turn knob
B-fig. 31.
fig. 31
P4Q00032
If the mirror A makes it
difficult to get through
narrow gaps, fold it from
position 1 to position 2.
An optional additional door mirror
which can also be adjusted from inside
the car on the other side is available.
001-069 Seicento GB 22-11-2007 10:49 Pagina 31
