The rear seat belts shall
be worn as shown in
fig. 4. Fig. 5 shows wrong
seat belt fastening, not to be fol-
lowed.
Remember that in the
case of violent collision,
back seat passengers not
wearing seat belts also represent
a serious danger to the front pas-
sengers.In order to ensure that the correct
tabs are fitted into the corresponding
buckle, the tabs of the side belt and the
buckle of the centre seat (only ab-
dominal) are incompatible.
8GETTING TO KNOW YOUR CAR
CENTRAL REAR SEAT
For versions /markets where ap-
plicable the centre seat, if any, is
fitted with lap belt with two an-
chor points.
fig. 4
P4Q01074
fig. 5
P4Q01075
001-069 Seicento GB 22-11-2007 10:49 Pagina 8

9GETTING TO KNOW YOUR CAR
fig. 6
P4Q00018

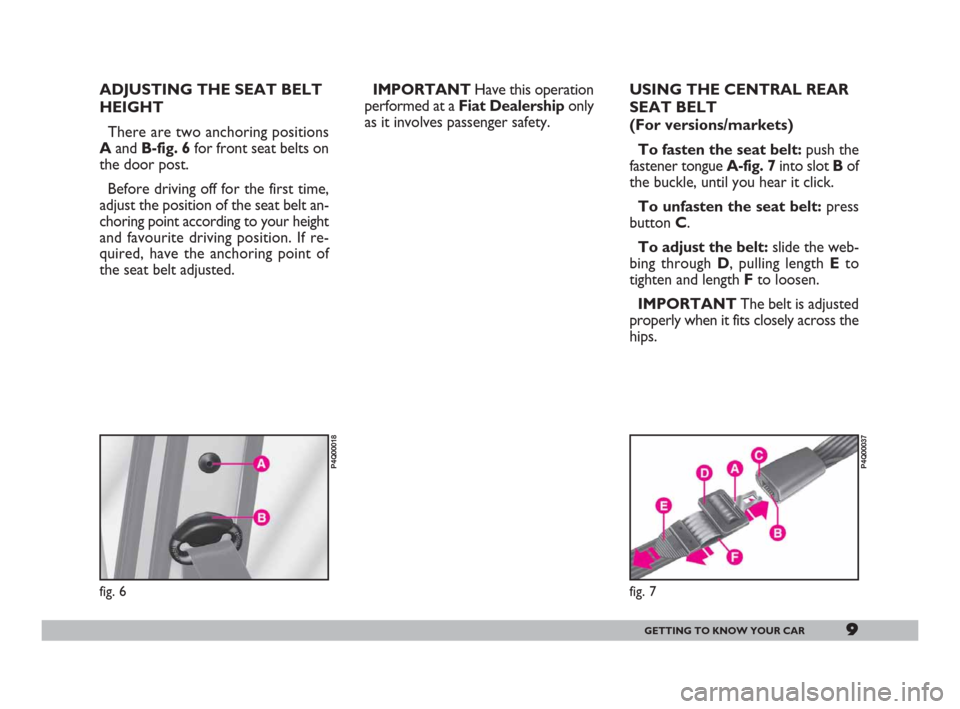

ADJUSTING THE SEAT BELT
HEIGHT
There are two anchoring positions
A and B-fig. 6 for front seat belts on
the door post.
Before driving off for the first time,
adjust the position of the seat belt an-
choring point according to your height
and favourite driving position. If re-
quired, have the anchoring point of
the seat belt adjusted.USING THE CENTRAL REAR
SEAT BELT
(For versions/markets)
To fasten the seat belt:push the
fastener tongue A-fig. 7into slot Bof
the buckle, until you hear it click.
To unfasten the seat belt:press
button C.
To adjust the belt:slide the web-
bing through D, pulling length Eto
tighten and length Fto loosen.
IMPORTANTThe belt is adjusted
properly when it fits closely across the
hips.
fig. 7
P4Q00037
IMPORTANT Have this operation
performed at a Fiat Dealership only
as it involves passenger safety.
001-069 Seicento GB 22-11-2007 10:49 Pagina 9

10GETTING TO KNOW YOUR CAR
AIRBAGPRETENSIONERS
AND
CLOCK SPRING2019
07
2018 2017
01 02 03 04 05 06
08 09 10 11 122015
07
2014 2013
01 02 03 04 05 06
08 09 10 11 12
ATTENZIONE:
CAUTION:
ACHTUNG: ATTENTION:
fig. 7a
P4Q00226
Operations which lead
to knocks, vibrations or
localised heating (over
100°C for a maximum of 6
hours) in the area around the
pretensioners may cause damage
or trigger them. These devices
are not affected by vibrations
caused by irregularities of the
road surface or low obstacles
such as kerbs, etc. Contact a Fiat
Dealership for any assistance.A small amount of smoke may be
produced. This smoke is in no way
toxic and presents no fire hazard.
The pretensioner does not require
any maintenance or greasing. Anything
that modifies its original conditions in-
validates its efficiency. If due to unusual
natural events (floods, sea storms,
etc.) the device has been affected by
water and mud, it must necessarily be
replaced.
The pretensioner can
only be used once.
After a collision that has
triggered it, have it replaced at
a Fiat Dealership. The validity of
the device is written on the plate
located on the front left door
post. The pretensioners should
be replaced at a Fiat Dealership
as this date approaches.PRETENSIONERS
In order to make the safety belt pro-
tective action even more efficient, ve-
hicle is equipped with pretensioners
on driver side and on front passenger
side (if car is equipped with passen-
ger side air bag option), that, in case
of a violent front crash, recall the safe-
ty belt by a few cm, thus ensuring
proper adherence of safety belt to pas-
senger body, before the retaining ac-
tion starts.
The seat belt locks to indicate that
the device has intervened; the seat belt
cannot be drawn back up even when
guiding it manually.
IMPORTANTTo obtain the high-
est degree of protection from the ac-
tion of the pretensioning device, wear
the seat belt keeping it firmly close to
the chest and pelvis.
001-069 Seicento GB 22-11-2007 10:49 Pagina 10

11GETTING TO KNOW YOUR CAR
If the belt has been sub-
jected to heavy stress, for
example after an acci-
dent, it should be changed com-
pletely together with the an-
chors, anchor fastening screws
and the pretensioners. In fact,
even if the belt has no visible de-
fects, it could have lost its re-
silience.
fig. 8
P4Q00038
For maximum safety,
keep the back of your
seat upright, lean back
into it and make sure the seat
belt fits closely across your chest
and hips.
Make sure that the seat belts of
the front and rear passengers are
fastened at all times! You in-
crease the risk of serious injury
or death in a collision if you
travel with the belts unfastened.
The belt should not be
twisted, make sure that it
is taut and adheres to the
passenger’s body. The upper part
should pass over the shoulder
and cross the chest diagonally.
The lower part should adhere to
the pelvis and to the abdomen of
the passenger, to prevent the
risk of slipping forwards, fig. 8.
Do not use any objects (pegs,
stoppers, etc.) to keep the belts
away from the body.Under no circumstances
should the components
of the pretensioner be
tampered with or removed. Any
operation should be carried out
by qualified and authorised per-
sonnel. Always contact a Fiat

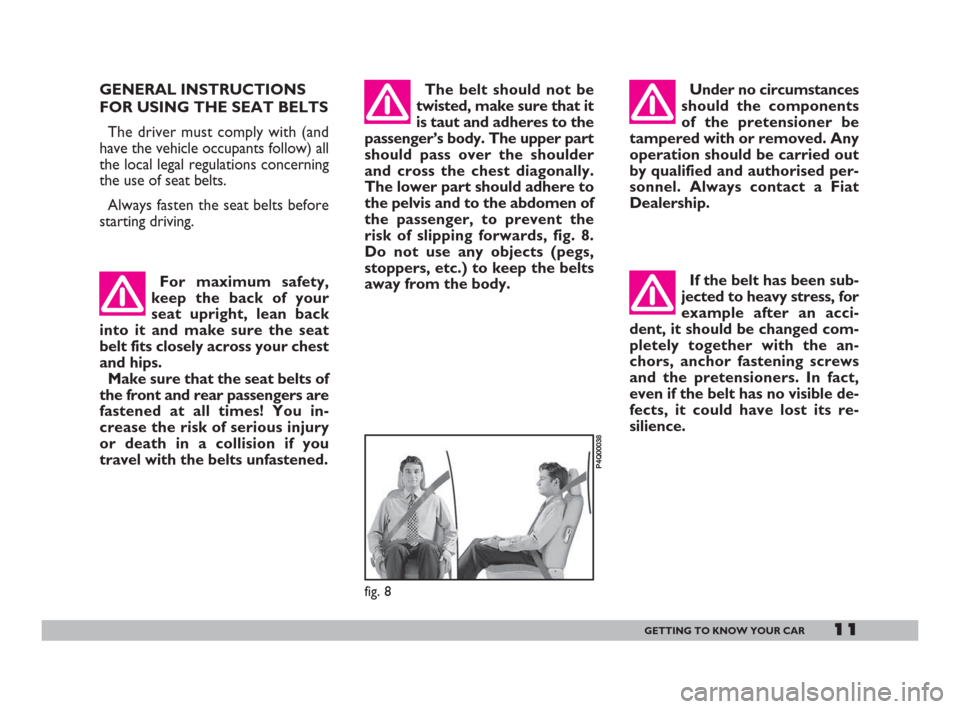

Dealership.GENERAL INSTRUCTIONS
FOR USING THE SEAT BELTS
The driver must comply with (and
have the vehicle occupants follow) all
the local legal regulations concerning
the use of seat belts.
Always fasten the seat belts before
starting driving.
001-069 Seicento GB 22-11-2007 10:49 Pagina 11

12GETTING TO KNOW YOUR CAR

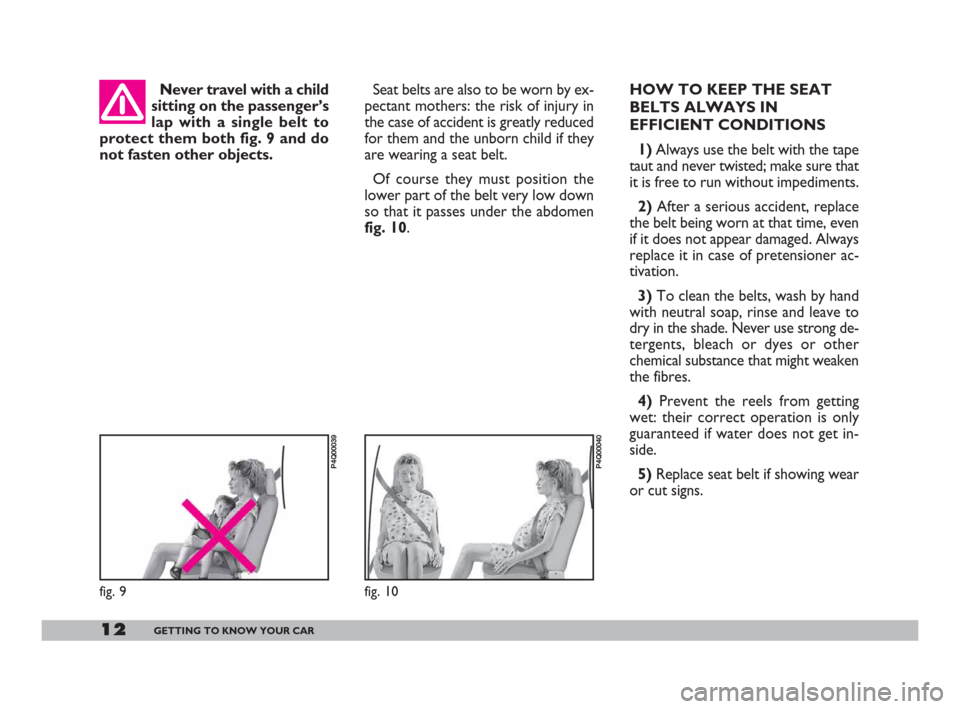

Seat belts are also to be worn by ex-
pectant mothers: the risk of injury in
the case of accident is greatly reduced
for them and the unborn child if they
are wearing a seat belt.
Of course they must position the
lower part of the belt very low down
so that it passes under the abdomen
fig. 10.
fig. 10
P4Q00040
Never travel with a child
sitting on the passenger’s
lap with a single belt to
protect them both fig. 9 and do
not fasten other objects.
fig. 9
P4Q00039
HOW TO KEEP THE SEAT
BELTS ALWAYS IN
EFFICIENT CONDITIONS
1)Always use the belt with the tape
taut and never twisted; make sure that
it is free to run without impediments.
2)After a serious accident, replace
the belt being worn at that time, even
if it does not appear damaged. Always
replace it in case of pretensioner ac-
tivation.
3)To clean the belts, wash by hand
with neutral soap, rinse and leave to
dry in the shade. Never use strong de-
tergents, bleach or dyes or other
chemical substance that might weaken
the fibres.
4)Prevent the reels from getting
wet: their correct operation is only
guaranteed if water does not get in-
side.
5)Replace seat belt if showing wear
or cut signs.
001-069 Seicento GB 22-11-2007 10:49 Pagina 12

13GETTING TO KNOW YOUR CAR
fig. 11
F0C1076b

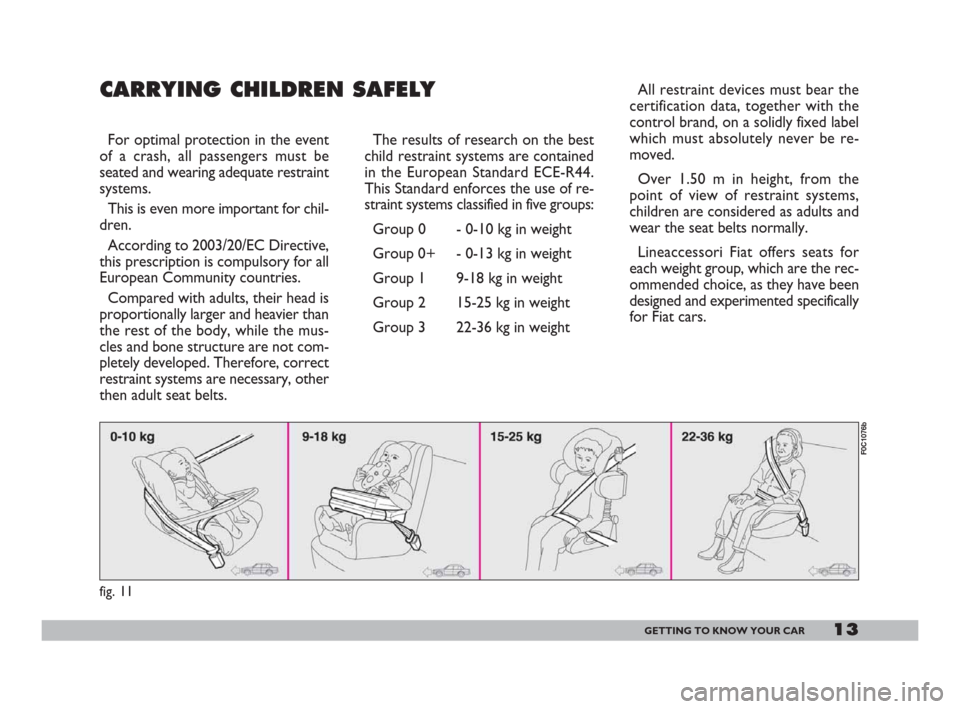

CARRYING CHILDREN SAFELY
For optimal protection in the event
of a crash, all passengers must be
seated and wearing adequate restraint
systems.
This is even more important for chil-
dren.
According to 2003/20/EC Directive,
this prescription is compulsory for all
European Community countries.
Compared with adults, their head is
proportionally larger and heavier than
the rest of the body, while the mus-
cles and bone structure are not com-
pletely developed. Therefore, correct
restraint systems are necessary, other
then adult seat belts.The results of research on the best
child restraint systems are contained
in the European Standard ECE-R44.
This Standard enforces the use of re-
straint systems classified in five groups:
Group 0 - 0-10 kg in weight
Group 0+ - 0-13 kg in weight
Group 1 9-18 kg in weight
Group 2 15-25 kg in weight
Group 3 22-36 kg in weightAll restraint devices must bear the
certification data, together with the
control brand, on a solidly fixed label
which must absolutely never be re-
moved.
Over 1.50 m in height, from the
point of view of restraint systems,
children are considered as adults and
wear the seat belts normally.
Lineaccessori Fiat offers seats for
each weight group, which are the rec-
ommended choice, as they have been
designed and experimented specifically
for Fiat cars.
001-069 Seicento GB 22-11-2007 10:49 Pagina 13

14GETTING TO KNOW YOUR CAR
fig. 12
P4Q01077
The figure is only an ex-
ample for mounting. At-
tain to the instructions
for fastening which must be en-
closed with the specific child re-
straint system you are using.
GROUPS 0 and 0+
Babies up to 13 kg must be carried
facing backwards on a cradle seat,
which, supporting the head, does not
induce stress on the neck in the event
of sharp deceleration.
The cradle is restrained by the car
seat belts, as shown infig. 12and in
turn it must restrain the child with its
own belts. SERIOUS DANGER: Never place cradle child’s seats on
the front passenger seat of cars fitted with passenger’s
air bag. The air bag activation could cause serious injuries,
even mortal. You are advised to carry children always on the rear seats,
as this is the most protected position in the case of a crash. In any case,
children’s seats must absolutely not be fitted on the front seat of cars
with passenger’s air bag, which during inflation could cause serious in-
jury, even mortal, regardless of the seriousness of the crash that trig-
gered it. Children may be placed on the front seat of cars fitted with
passenger’s air bag deactivation. In this case, it is absolutely necessary
to check the warning light
Fon the cluster to make sure that deacti-
vation has actually taken place (see paragraph “Passenger’s front air
bag” at item “Front air bags”). The front passenger’s seat shall be ad-
justed in the most backward position to prevent any contact between
child’s seat and dashboard.
001-069 Seicento GB 22-11-2007 10:49 Pagina 14

15GETTING TO KNOW YOUR CAR
fig. 13
P4Q01078
The figure is only an ex-
ample for mounting. At-
tain to the instructions
for fastening which must be en-
closed with the specific child re-
straint system you are using.

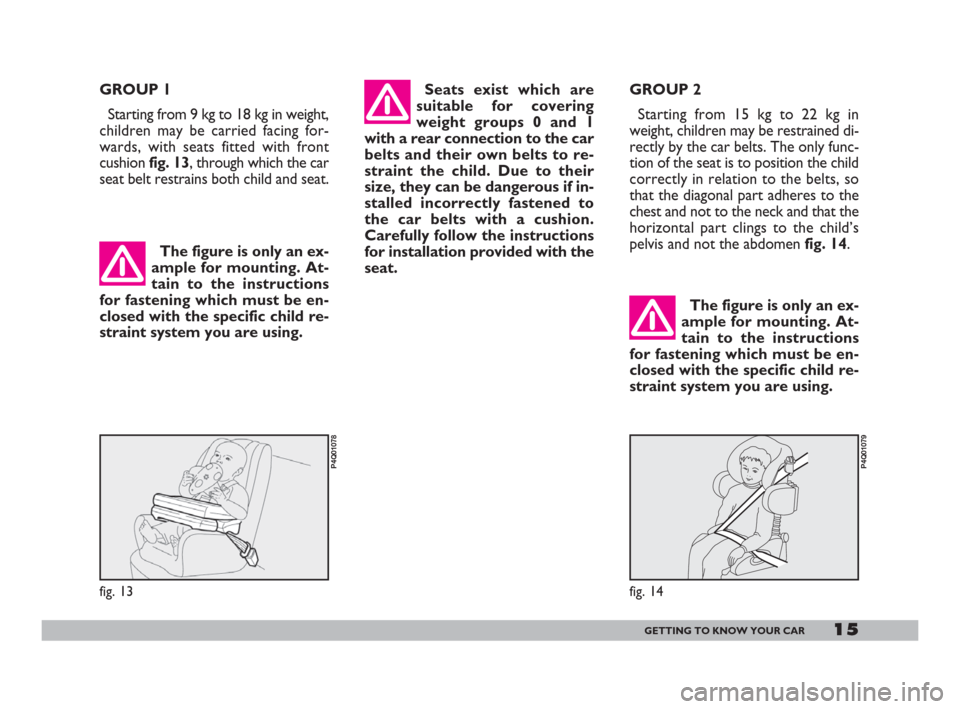

GROUP 1
Starting from 9 kg to 18 kg in weight,
children may be carried facing for-
wards, with seats fitted with front
cushion fig. 13, through which the car
seat belt restrains both child and seat.Seats exist which are
suitable for covering
weight groups 0 and 1
with a rear connection to the car
belts and their own belts to re-
straint the child. Due to their
size, they can be dangerous if in-
stalled incorrectly fastened to
the car belts with a cushion.
Carefully follow the instructions
for installation provided with the
seat.
fig. 14
P4Q01079
The figure is only an ex-
ample for mounting. At-
tain to the instructions
for fastening which must be en-
closed with the specific child re-
straint system you are using.
GROUP 2
Starting from 15 kg to 22 kg in
weight, children may be restrained di-
rectly by the car belts. The only func-
tion of the seat is to position the child
correctly in relation to the belts, so
that the diagonal part adheres to the
chest and not to the neck and that the
horizontal part clings to the child’s
pelvis and not the abdomen fig. 14.
