2007 DODGE POWER WAGON Owners Manual

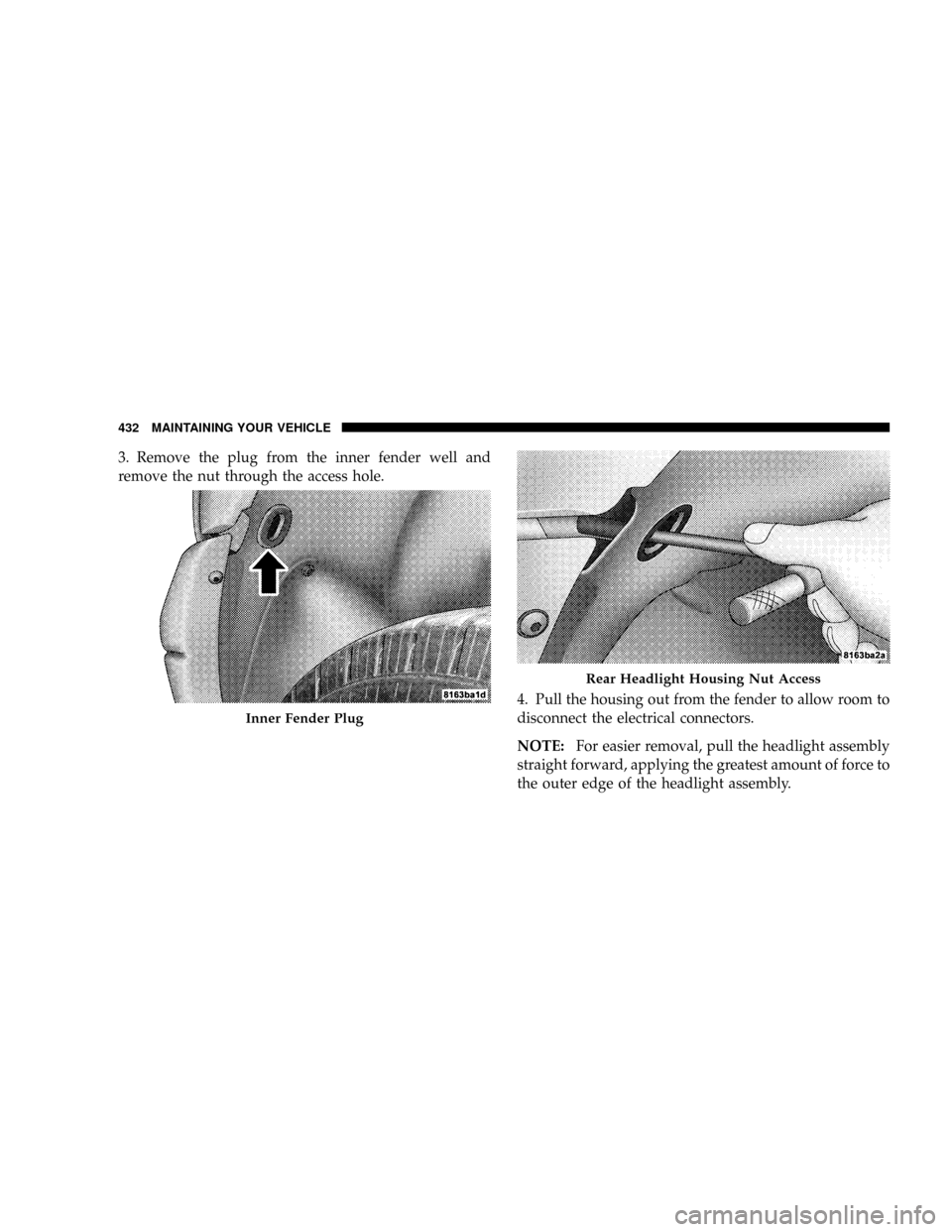

3. Remove the plug from the inner fender well and
remove the nut through the access hole.
4. Pull the housing out from the fender to allow room to
disconnect the electrical connectors.
NOTE:For easier removal, pull the headlight assembly
straight forward, applying the greatest amount of force to
the outer edge of the headlight assembly.
Inner Fender Plug
Rear Headlight Housing Nut Access
432 MAINTAINING YOUR VEHICLE

5. Unlock and pull connector straight from the base of
the headlight halogen bulb.
6. Twist connector on the side marker/turn signal/park
light bulb
1¤4turn and remove connector and bulb from
housing.
Headlight RemovalBulb Removal
MAINTAINING YOUR VEHICLE 433
7

7. Remove housing from vehicle with headlight halogen
bulb in housing.
8. Twist the headlight halogen bulb
1¤4turn and remove
headlight bulb from the housing.
9. Replace headlight or side marker/turn signal/park
light bulb. Do not touch the headlight halogen bulb.
10. Reverse procedure for installation of bulbs and hous-
ing.
Tail, Stop, Turn and Backup Lights
1. Remove the two (2) screws that pass through the bed
sheetmetal.
Removing the Two (2) Screws
434 MAINTAINING YOUR VEHICLE

2. Pull the housing straight out from the body, with a
quick motion, to separate the housing from the body. If
not pulled straight, locators may be damaged.3. Rotate the bulb socket counterclockwise to remove
from the housing.
Pulling Housing From Body
Rotating Bulb Socket From Housing
MAINTAINING YOUR VEHICLE 435
7

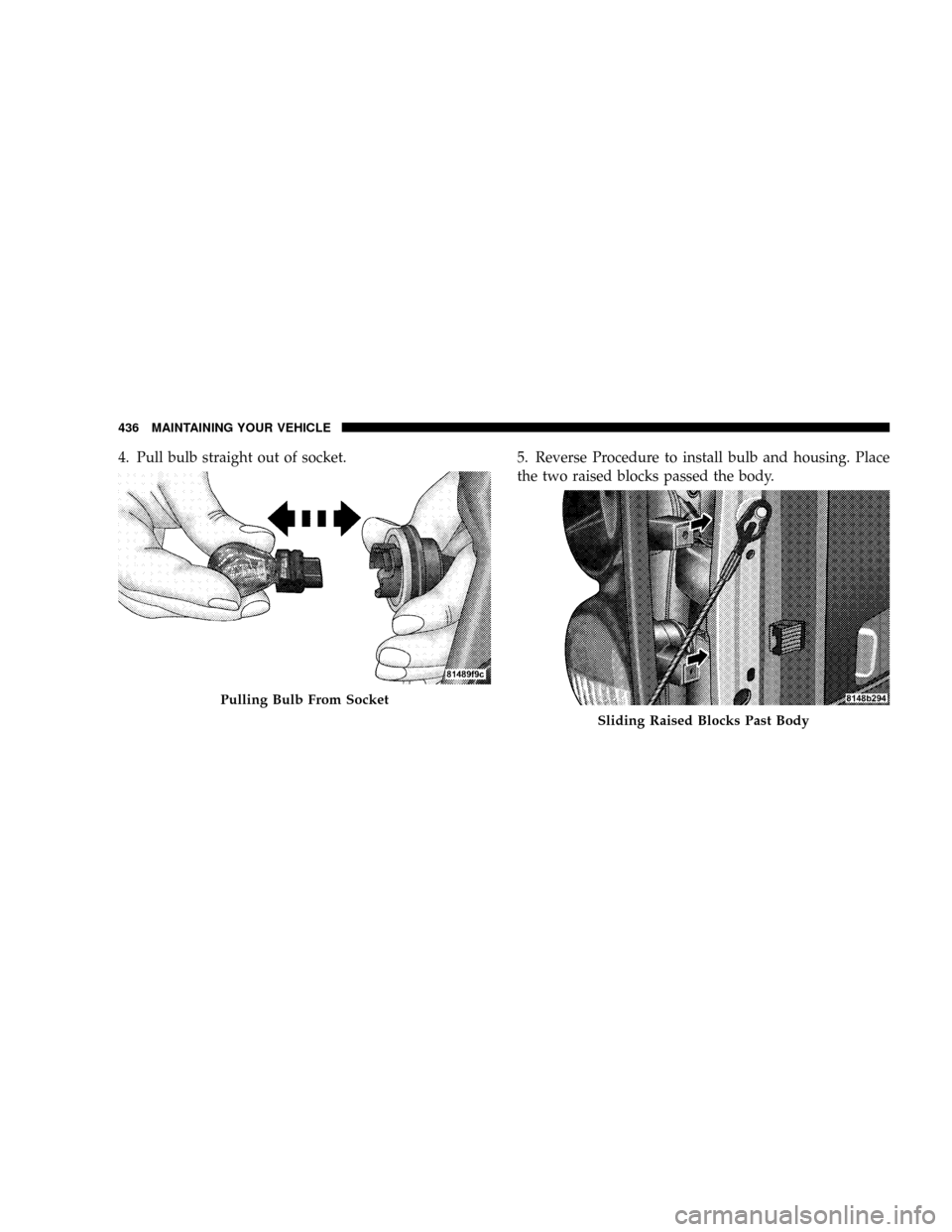

4. Pull bulb straight out of socket. 5. Reverse Procedure to install bulb and housing. Place
the two raised blocks passed the body.
Pulling Bulb From Socket
Sliding Raised Blocks Past Body
436 MAINTAINING YOUR VEHICLE

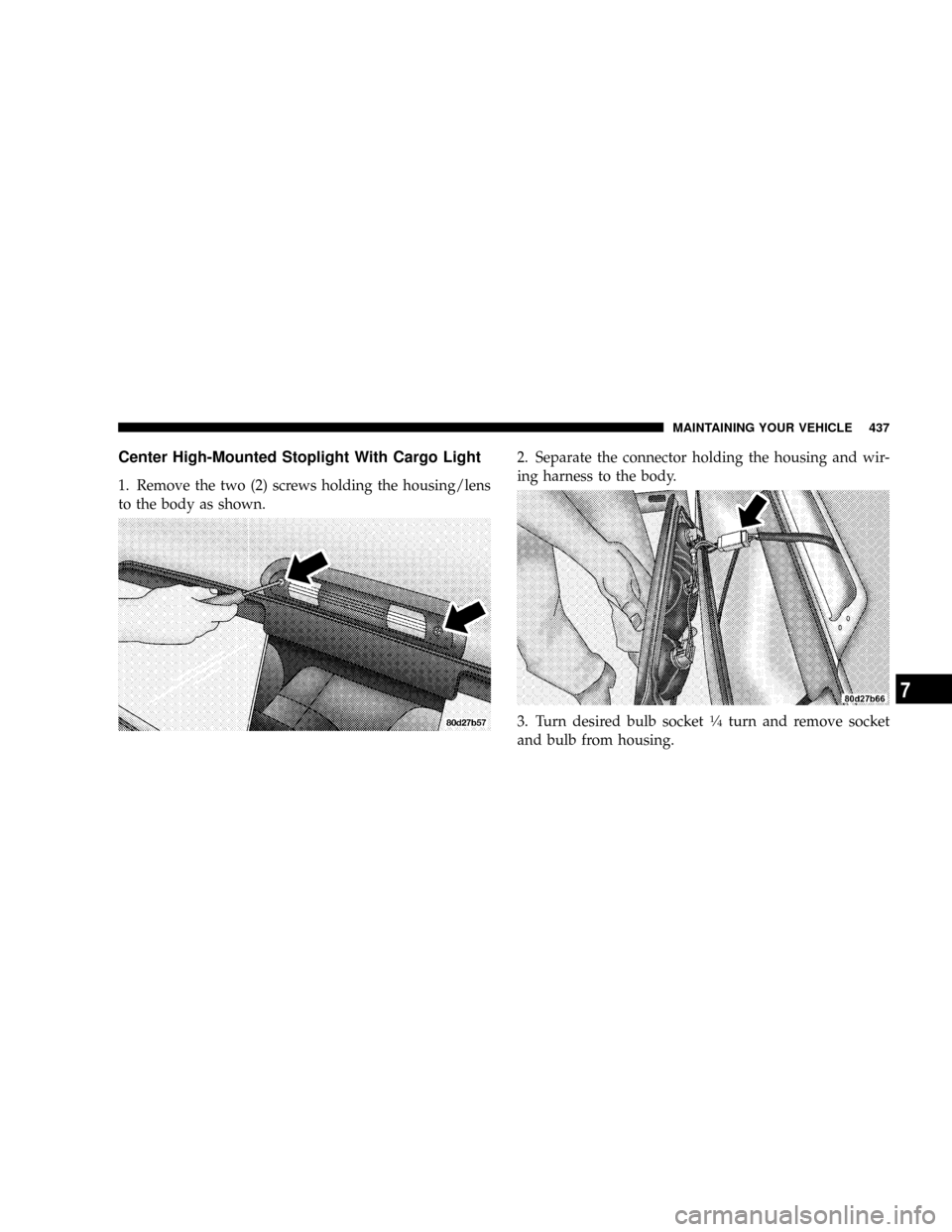

Center High-Mounted Stoplight With Cargo Light
1. Remove the two (2) screws holding the housing/lens
to the body as shown.2. Separate the connector holding the housing and wir-
ing harness to the body.
3. Turn desired bulb socket
1¤4turn and remove socket
and bulb from housing.
MAINTAINING YOUR VEHICLE 437
7

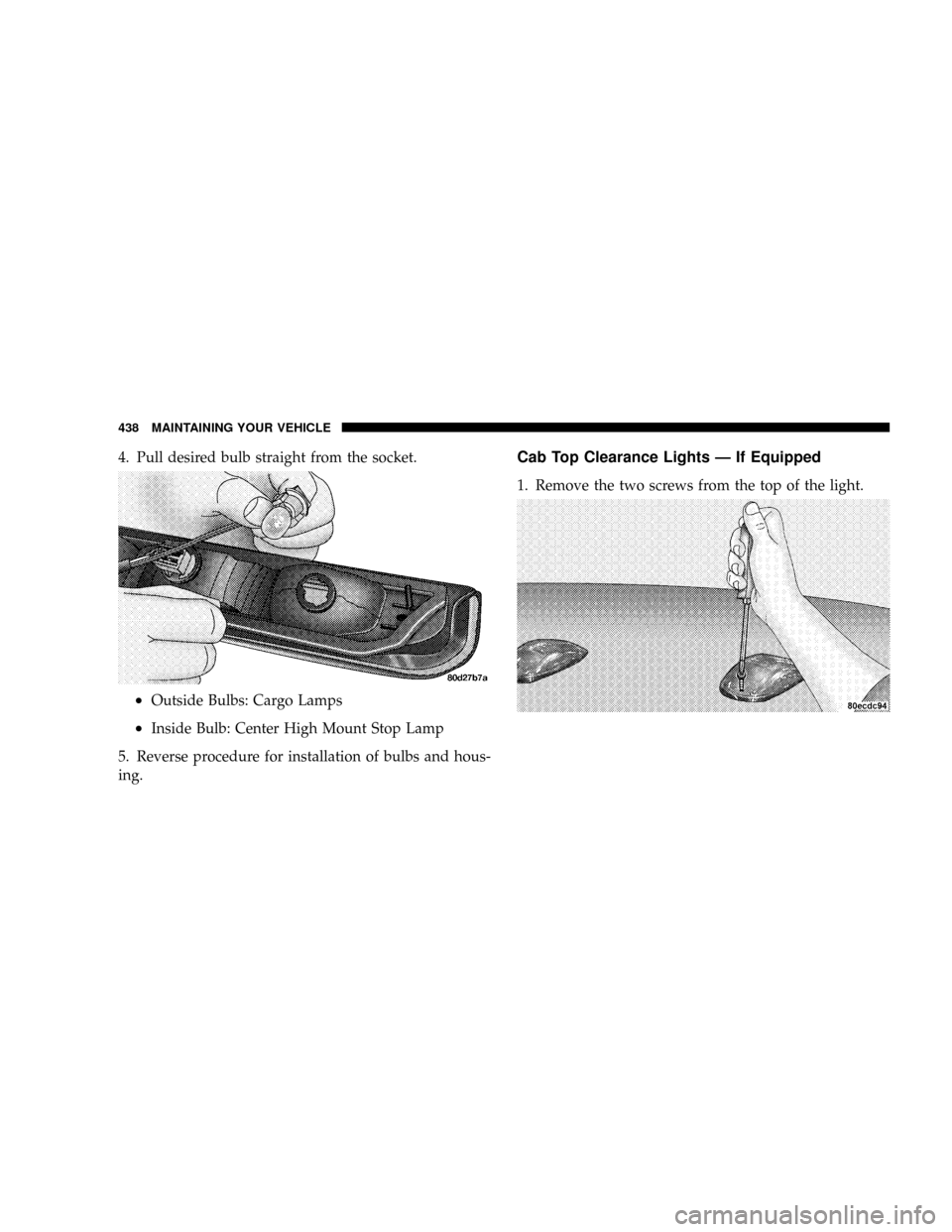

4. Pull desired bulb straight from the socket.
²Outside Bulbs: Cargo Lamps
²Inside Bulb: Center High Mount Stop Lamp
5. Reverse procedure for installation of bulbs and hous-
ing.
Cab Top Clearance Lights Ð If Equipped
1. Remove the two screws from the top of the light.
438 MAINTAINING YOUR VEHICLE

2. Rotate the socket1¤4turn and pull it from the light
assembly.3. Pull the bulb straight from it's socket and replace.
MAINTAINING YOUR VEHICLE 439
7
