Axle Locker System
Dodge Power Wagons are equipped with electronically
locking front and rear axles. Locking the axles provides
greater traction in severe low traction conditions or in
rock climbing environments where one wheel is likely to
not be in contact with the ground.
CAUTION!
Do not lock the front or rear axle on hard surfaced
roads. The ability to steer the vehicle is reduced and
damage to the drivetrain may occur when the axles
are locked on hard surfaced roads.
CAUTION!
Do not try to lock the rear axle if the vehicle is stuck
and the tires are spinning. You can damage driv-
etrain components. Lock the rear axle before at-
tempting situations or navigating terrain, which
could possibly cause the vehicle to become stuck.
The locking axles are controlled by the axle locker switch
located on the center console.
264 STARTING AND OPERATING

The switch has three positions, AXLE UNLOCK, REAR
LOCK, and FRONT/REAR. Under normal driving con-
ditions the switch should be left in the AXLE UNLOCK
position. In the AXLE UNLOCK position, the front andrear axles are unlocked. In the REAR LOCK position, the
rear axle is locked. In the FRONT/REAR position, the
front and rear axles are locked.
NOTE:Even when the axles are in the AXLE UNLOCK
position, the limited slip differential in the rear axle still
provides torque biasing capability for moderate low
traction environments.
During the command to lock the axle, the indicator light
will flash until the axle is locked. After the lock command
has been successfully executed, the light will remain on
solid.
To lock the rear axle, place the vehicle in 4LO by
following the procedure in Four Wheel Drive Operation,
located in this section of the manual. Move the axle
locker switch position to REAR LOCK while traveling
less than 3 MPH (5 KM/H). The RR indicator light will
remain on when the rear axle is locked.
Rotary Locking Axle Switch
STARTING AND OPERATING 265
5

NOTE:Left to right wheel speed difference may be
necessary to allow the axle to fully lock. If the indicator
light is flashing after placing the switch in the REAR
LOCK or FRONT/REAR position, drive the vehicle in a
turn or on loose gravel to expedite the locking action.
WARNING!
Do not use the locked axle position for normal
driving. A locked front axle is intended for off-road
driving only. Locking the front axle during on-road
driving will reduce the steering ability. This could
cause an accident and you may be seriously injured.
To lock the front axle move the axle locker switch to
FRONT/REAR while travelingless than 3 MPH (5
KM/H). The indicator light will be solid when the front
axle is locked.NOTE:The rear axle must be locked before the front
axle will lock.
To unlock the front axle move the axle locker switch to
REAR LOCK. The FRONT/REAR indicator light will go
out when the axle is unlocked.
NOTE:The axle lockers could be torque locked due to
side to side loads on the axle. Driving slowly while
turning the steering wheel from a left hand turn to a right
hand turn or driving in reverse for a short distance may
be required to release the torque lock and unlock the
axles.
To unlock the rear axle move the axle locker switch to
AXLE UNLOCK. The REAR LOCK indicator light will go
out when the rear axle is unlocked.
266 STARTING AND OPERATING

Stabilizer/Sway Bar System
Power Wagon vehicles are equipped with an electronic
disconnecting stabilizer/sway bar. This system allows
greater front suspension travel in off-road situations.
This system is controlled by the electronic control sway
bar switch located on the instrument panel.The switch has two positions, on-road and off-road. The
system is normally in on-road mode, indicated by a solid
green light. The stabilizer/sway bar should remain in
on-road mode during normal driving conditions.
WARNING!
Do not disconnect the stabilizer bar and drive on
hard surfaced roads or at speeds above 18 MPH, you
may lose control of the vehicle, which could result in
serious injury. The front stabilizer bar enhances
vehicle stability and is necessary for maintaining
control of the vehicle. The system monitors vehicle
speed and will attempt to reconnect the stabilizer bar
at speeds over 18 MPH. This is indicated by a
flashing off road light and solid on road light. Once
vehicle speed is reduced below 14 MPH the system
will once again attempt to return to off road mode.
Electronic Control Sway Bar Switch
STARTING AND OPERATING 267
5

To disconnect the stabilizer/sway bar, shift to either 4HI
or 4LO as shown in Four Wheel Drive Operation and
press the top of the stabilizer/sway bar button to obtain
the off-road position. The amber indicator light will flash
until the stabilizer/sway bar has been fully disconnected.
NOTE:The stabilizer/sway bar may be torque locked
due to left and right suspension height differences. This
condition is due to driving surface differences or vehicle
loading. In order for the stabilizer/sway bar to
disconnect/reconnect, the right and left halves of the bar
must be aligned. This alignment may require that the
vehicle be driven onto level ground or rocked from side
to side.
To return to on-road mode press the bottom of the
stabilizer/sway bar button.WARNING!
If stabilizer/sway bar will not return to on-road
mode, vehicle stability is greatly reduced. Do not
attempt to drive vehicle over 18 mph (29 km/h).
Driving faster than 18 mph (29 km/h) may cause loss
of control of the vehicle, which could result in
serious injury. Contact your local service center for
assistance.
POWER WAGON ± SAFE OFF-ROAD DRIVING
Off-Road Driving Tips and Vehicle Characteristics
The Power Wagon has excellent on and off-road capabili-
ties. These off-road capabilities will allow you to explore
those wilderness trails where few travel, providing a
source of exciting and satisfying recreation. Before you
venture out you should contact your local governmental
agency to determine what are the designated off-road
268 STARTING AND OPERATING

vehicle (ORV) trails or recreation areas. You should
always tread lightly and only use established roads, trails
or ORV recreational areas. The National Forest Service,
Bureau of Land Management or local Department of
Natural Resources are a wealth of information and usu-
ally have maps with marked trails.
Ramp Travel Index (RTI)
The ramp travel index is the distance, in inches, that you
can drive your vehicle with one wheel on a 20-degree
ramp without lifting any other wheel off the ground. This
distance up the ramp divided by the wheelbase of the
vehicle and multiplied by 1000 is the RTI. The Power
Wagon has an RTI of 655, which means you can articulate
one front wheel 32 inches in the air while the other three
wheels remain in contact with the ground.
High Mobility Characteristics
The Power Wagon has high off-road mobility character-
istics with an approach angle A= 35 degrees, a break-over
angle B= 25.5 degrees, a running ground clearance C=
14.5 inches, a departure angle D= 26.5 degrees, an axle to
ground clearance E= 8.4 inches front/E= 8.25 rear and
has a ramp travel index (with the smart bar in off-road
mode) of 655. Also the Power Wagon has a grade-ability
of a 60% (31 degree) slope.
STARTING AND OPERATING 269
5

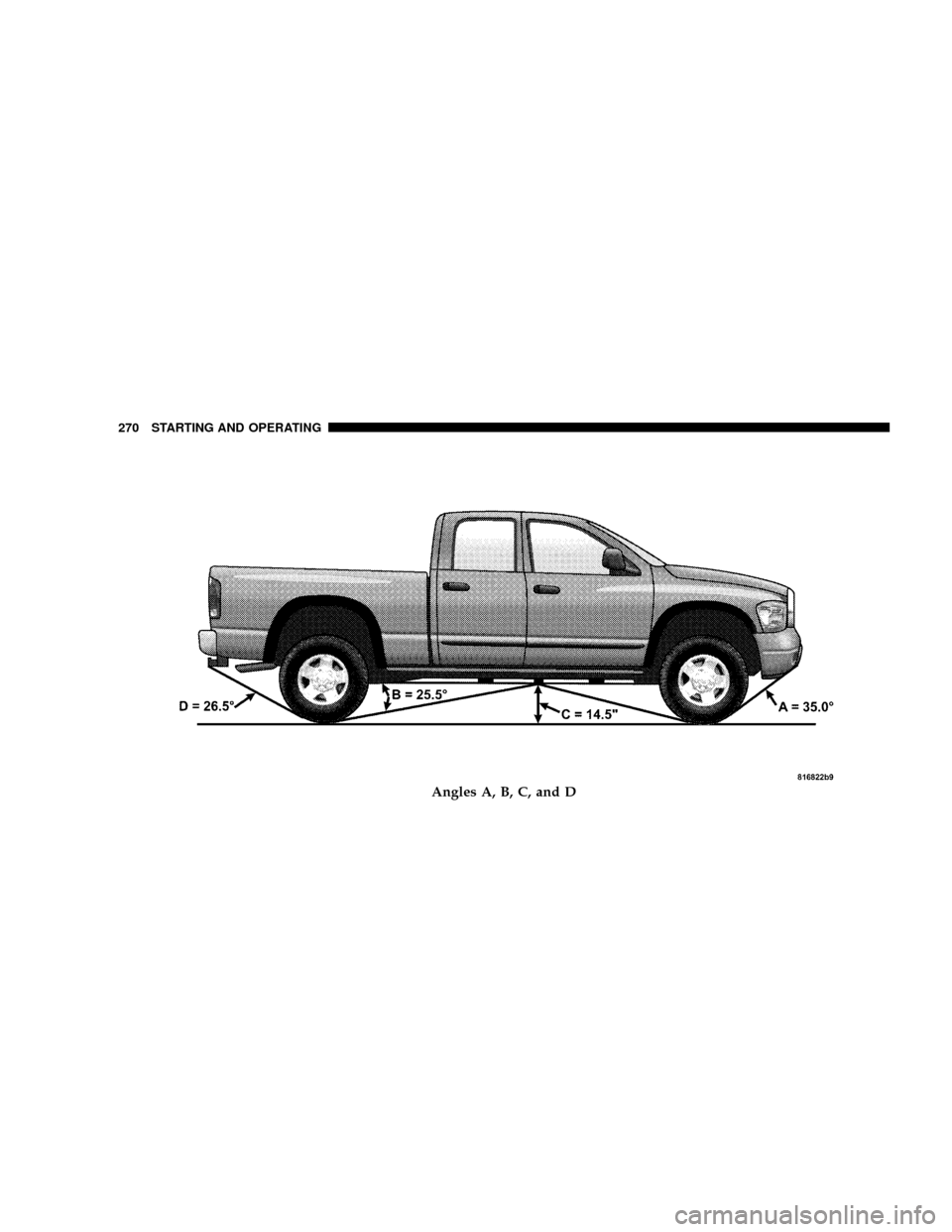

Angles A, B, C, and D
270 STARTING AND OPERATING

Water Fording Characteristics
Water fording characteristic is the vehicle's ability to
cross a body of still water, where the powertrain and
drivetrain are safe from water ingestion. The Power
Wagon has high water fording characteristics with the
ability to cross a pool of water, without stopping, 24
inches deep at a maximum speed of 10 mph and a pool of
Front and Rear (Shown) Differential Height E
Water Fording
STARTING AND OPERATING 271
5
