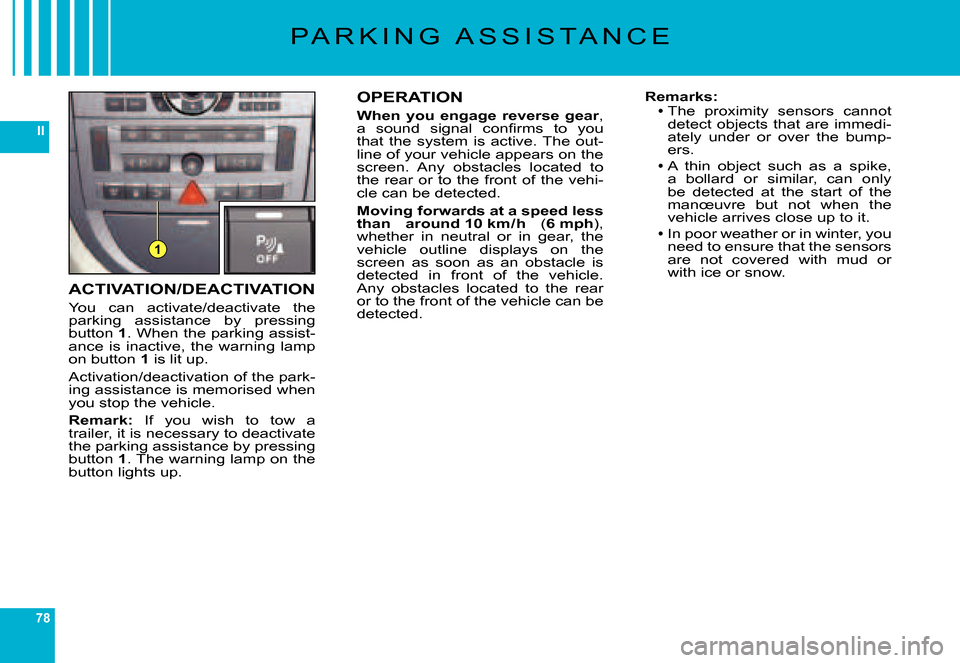

ACTIVATION/DEACTIVATION
You can activate/deactivate the parking assistance by pressing button 1. When the parking assist-ance is inactive, the warning lamp on button 1 is lit up.
Activation/deactivation of the park-ing assistance is memorised when you stop the vehicle.
Remark: If you wish to tow a trailer, it is necessary to deactivate the parking assistance by pressing button 1. The warning lamp on the button lights up.
OPERATION
When you engage reverse gear, a s o u n d s i g n a l c o n fi r m s t o y o u that the system is active. The out-line of your vehicle appears on the screen. Any obstacles located to the rear or to the front of the vehi-cle can be detected.
Moving forwards at a speed less than around 10km / h (6mph ) , whether in neutral or in gear, the vehicle outline displays on the screen as soon as an obstacle is detected in front of the vehicle. Any obstacles located to the rear or to the front of the vehicle can be detected.
Remarks:The proximity sensors cannot detect objects that are immedi-ately under or over the bump-ers.
A thin object such as a spike, Aa bollard or similar, can only be detected at the start of the manœuvre but not when the vehicle arrives close up to it.In poor weather or in winter, you need to ensure that the sensors are not covered with mud or with ice or snow.
90
III
5
6
7
A U T O M A T I C A I R C O N D I T I O N I N G
5. FRONT DEMISTING - DEICING
Press button 5 for rapid clear windows. The warning lamp comes on. This system controls the air condi- t i o n i n g , t h e a i r fl o w a n d t h e e n t r y o f a i r f r o m o u t s i d e . I t sends the ventilation towards the windscreen and side windows.
A press on the 1 button returns you to “AUTO” mode.
6. REAR DEMISTING - DEICING
Press button 6, with the engine running, to start a rapid deicing or demisting of the rear screen and rear view mirrors. The warning lamp comes on.
This mode stops automatically as a function of the out-side temperature. It can be paused by pressing again on button 6 or by stopping the engine.
In the latter case, demisting will resume when the engine is switched on again.Note: The heated rear screen operates independently of the automatic air conditioning.
7. AIR RECIRCULATION – ENTRY OF AIR FROM OUTSIDE
Press successively on button 7 to select air entry mode. The corresponding warning lamp lights up:Recirculation of air inside the cabinThis mode is for excluding unpleasant odours or smoke coming from outside. It should be cancelled as soon as possible to re-allow fresh air into the cabin and thus prevent misting.
Entry of air from outside“AUTO” mode is deactivated.
Note: T o r e t u r n t o “AUTO T o r e t u r n t o “ T o r e t u r n t o “ ” m o d e , p r e s s b u t t o n 7 for 7a third time, or button 1.
