Page 5 of 216
I
8
IN BRIEF
68
85
36-38
72
55114
INTERIOR
Audio and communication sys-tems
This equipment utilises the latest tech-nology: MP3 compatible RD4 radio, RT3 hands free kit, Bluetooth®RD4 radio, RD4 radio, tele-®
phone radio with navigation, JBL au-dio system.
Speed limiter
This driving assistance device allows you to select a maximum speed that you do not wish to exceed.
Cruise control
This system allows you to automati-cally maintain the vehicle speed at the value programmed by the driver, with-out the need to press the accelerator.
The automatic gearbox
This device provides you with optimum driving conditions by combining a fully automatic mode, along with two spe- c i fi c p r o g r a m m e s , a s w e l l a s a m a n u a l mode.
Automatic air condition-ing
This air conditioning system ensures comfort and a suf- fi c i e n t c i r c u l a t i o n o f a i r i n t h e cabin.
Electric parking brake
The electric parking brake combines automatic locking when the engine is stopped, and automatic unlocking when accelerating (devices a cti- v a t e d b y d e f a u l t ) .Note: Manual locking/unlocking is possible.
Head-up display
This device projects a range of impor- t a n t i n f o r m a t i o n i n t o t h e d r i v e r ' s fi e l d o f vision. In this way, the driver does not need to take his eyes off the road.
Page 54 of 216
57
II
1432
C
A
B
BB
BD
1 - Outside temperature2 - Display zone3 - Date4 - Time
When the outside temperature is between +3 °C and –3 °C, the t e m p e r a t u r e d i s p l a y fl a s h e s ( r i s k o f i c e ) .Note: The outside temperature displayed may be higher than the actual temperature if the vehicle is stationary in bright sunlight.
The driver is advised not to oper-ate the controls described below while the vehicle is moving.
CONTROLSA Access to the “Main menu” of the display.B Scroll through display menus.C Selection in the menus of the function chosen or value to modify.D Cancellation of the operation or return to the previous display.
M U L T I F U N C T I O N D I S P L A Y S
C O L O U R S C R E E N C
Main Menu
Press on button A to bring up the “Main menu” of the multifunc-tion display. This menu gives you access to the following functions:
Radio mono CD
See chapter “RDS Audio Compact Disc system”.
Trip computer
For:Entering the distance to the destination.Access to the log of alerts (recall of the alerts signalled previously.
Access to the status of func-tions, for example automatic lighting of headlamps, ESP, windscreen wipe.
Page 58 of 216
61
II
124
35
C
A
B
BB
BD
M U L T I F U N C T I O N D I S P L A Y S
N A V I D R I V E C O L O U R D I S P L A Y
1 - Outside temperature.2 - Folder.3 - Date.4 - Telephone.5 - Time.
When the outside temperature is between +3 °C and –3 °C, the t e m p e r a t u r e d i s p l a y fl a s h e s ( r i s k o f i c e ) .Note: The outside temperature displayed may be higher than the actual temperature if the vehicle is stationary in bright sunlight.
The driver is advised not to oper-ate the controls described below while the vehicle is moving.
CONTROLSA Access to the “Main menu” of the display.B Scroll through display menus.C Selection in the menus of the function chosen or value to modify.Scroll through display menus.
D Cancellation of the operation or return to the previous display.
Main Menu
Press on button A to bring up the “Main menu” of the multifunc-tion display. This menu gives you access to the following functions:
Air conditioning
Refer to the explanations given in the section « Auto-matic air conditioning ».
T r a f fi c i n f o r m a t i o n
See NaviDrive instruc-tions.
N a v i g a t i o n - T r a f fi c information
See NaviDrive instruc-tions.
Audio
See NaviDrive instruc-tions.
Telephone and telematic services
See NaviDrive instruc-tions.
C o n fi g u r a t i o n, to activate/deactivate the guide-me-home lighting, automatic lighting of headlamps etc. as well as to adjust the var- i o u s p a r a m e t e r s ( t i m e , d a t e e t c . ) . See NaviDrive instructions.
Map
See NaviDrive instruc-tions.
Video
See NaviDrive instruc-tions.
Vehicle diagnosis
See NaviDrive instruc-tions.
Page 75 of 216
77
II
Proximity sensors are located in the front and rear bumpers of your vehi-cle.
If you are manœuvring either forwards or in reverse gear, at a speed less than approx. 10 km / h (6 mph ) , t h e y i n f o r m y o u o f t h e p r e s e n c e o f a n obstacle located within their zone of detection by means of: A sound signal emitted by the front or rear loudspeakers.A
Display of the outline of your vehicle with shading corresponding t o the area where an obstacle is detected.
As the vehicle approaches the obstacle, the sound signal tells you the posi-tion of the obstacle according to whether the sound is coming from the front LH or RH or the rear LH or RH loudspeakers.Note: The sound volume of your audio equipment reduces automatically when a signal is being emitted.
Page 104 of 216
106
IIIAB
C

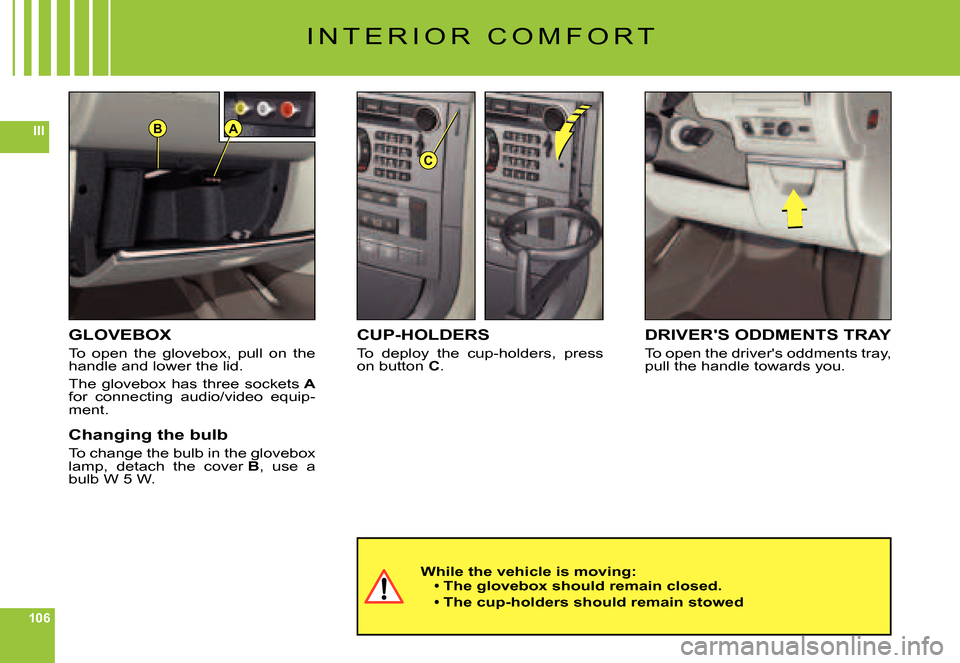

I N T E R I O R C O M F O R T
GLOVEBOX
To open the glovebox, pull on the handle and lower the lid.
The glovebox has three sockets Afor connecting audio/video equip-ment.
Changing the bulb
To change the bulb in the glovebox lamp, detach the cover B, use a bulb W 5 W.
CUP-HOLDERS
To deploy the cup-holders, press on button C.
DRIVER'S ODDMENTS TRAY
To open the driver's oddments tray, pull the handle towards you.
While the vehicle is moving:The glovebox should remain closed.
The cup-holders should remain stowed
Page 113 of 216
115
IV

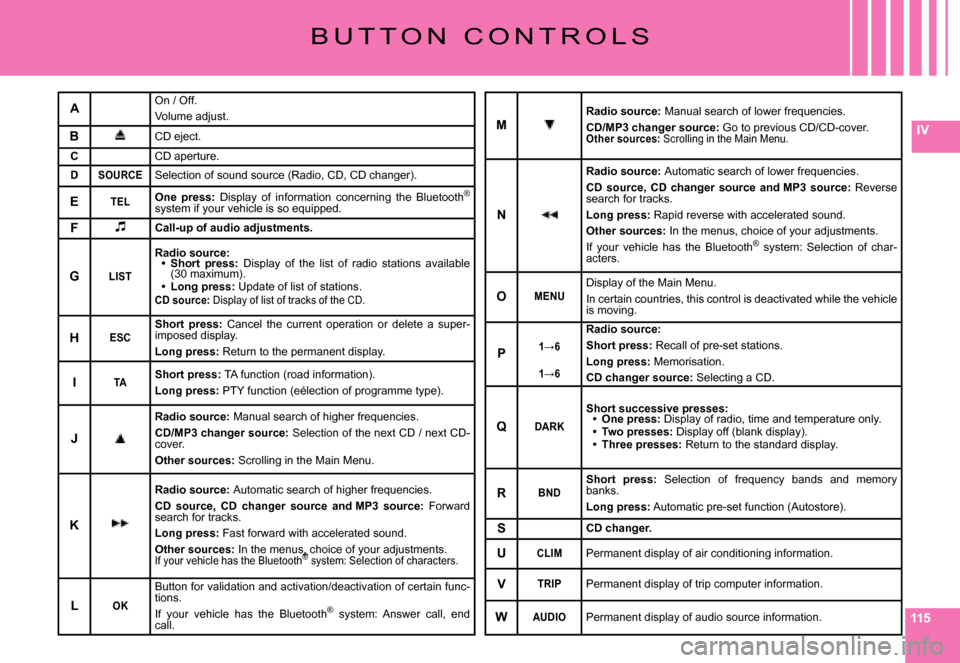

AOn / Off.Volume adjust.
BCD eject.
CCD aperture.
DSOURCE S e l e c t i o n o f s o u n d s o u r c e ( R a d i o , C D , C D c h a n g e r ) .
ETELOne press: Display of information concerning the Bluetooth®system if your vehicle is so equipped.
FCall-up of audio adjustments.
GLIST
Radio source:Short press: Display of the list of radio stations available ( 3 0 m a x i m u m ) . Display
Long press: Update of list of stations.CD source: Display of list of tracks of the CD.
Page 115 of 216
117
IV
ON / OFF
With the key in Drive position M, press on control A to switch the radio on or off.Note:If the radio was on the last time Ifyou switched off the ignition, it will resume automatically when you switch on the ignition again. You will not have to press on control A.
After switching off the ignition, Afteryou can still operate the audio system even without the igni- t i o n k e y b e i n g p r e s e n t . S i m p l y press on button A. The system will turn itself off after approx.30minutes.
ANTI-THEFT SYSTEM
This radio is coded in such a way as to function only on your particu-lar vehicle. It would be unusable if installed on any other vehicle.Note: The anti-theft system is automatic and requires no action on your part.
Page 118 of 216
120
IV
USING THE RDS (RADIO DATA SYSTEM) FUNCTION ON FM
The majority of FM radio stations use the RDS system. The radio in your vehicle has this system,.
The RDS system enables these stations to transmit non-audible data in addition to the broadcasting of their programmes. The data pro-vides access to various functions described in this chapter, such as: display of the station name, inter- m i t t e n t t r a f fi c i n f o r m a t i o n fl a s h e s or automatic scanning of stations. This enables you to continue lis-tening to your chosen radio station, regardless of the different frequen-cies it uses in the regions through which you are travelling.
SCANNING OF RDS STA-TIONS
Your radio keeps the best possible reception by continuously looks for any other frequencies on which the selected radio station is broadcast, automatically choosing the fre-quency offering the best reception (if the station broadcasts on more than one transmitter or frequency.
R D S S Y S T E M
ACTIVATION/DEACTIVATION OF THE RDS FUNCTIONS
The RDS functions can be accessed via the following two menus:Main menu (press button O ) .
AUDIO menu (press button L ) .
To activate/deactivate the functions RDS1. Press button O.2. Select the AUDIO icon using buttons J or M.3. C o n fi r m y o u r c h o i c e w i t h a press on button L.4. Select the sub-menu for the FM waveband, via but-tons J or M . C o n fi r m y o u r choice with a press on button L.5. Select scanning for RDS sta-tions, via buttons J or M.6. Validate your choice with a press on button L.7. Using control L, select/deselect to activate/deactivate the func-tion.8. Validate your choice by select-ing “OK” on the display.
