Page 110 of 216
112
III
5
4
4
1
3
2
6
1 P u l l s t r a p ( s p a r e w h e e l s t o w a g e ) .2 Boot lamp.To change the bulb, detach the cover and use a bulb W 5 W.
3 Elastic straps.4 1 2 V a c c e s s o r i e s s o c k e t ( f u n c t i o n s w i t h t h e i g n i t i o n s w i t c h e d o n ) .5 Boot lateral net.6 Changer for 6 CDs.
B O O T
Page 122 of 216
124
IV
CD CHANGER
This equipment S ( i f p r e s e n t ) i s l o c a t e d in the vehicle boot and comprises a magazine that holds up to 6 CDs.
TO INSERT/REMOVE A CD1. Remove the magazine from the CD changerOpen the sliding door of the CD changer.Press on the “EJECT” button to eject the magazine partially.
Remove the magazine carefully.
Close the sliding door.2. Removing a compartmentTake out just one drawer at a time.
3. Inserting/removing a CDInsert a single CD, printed side sertupwards. Otherwise the CD changer will not operate.
Pull out the CD by pulling on the part that is showing.
4. Repositioning the compartment R e fi t t h e d r a w e r b y p u s h i n g i t i n t o the magazine. Do not push directly on the CD.
5. Repositioning the magazineOpen the sliding door.
Hold the magazine, narrow side towards the opening of the CD changer.
Push the magazine gently into the aperture of the changer until there is a click.
Reclose the sliding door to prevent entry of dust or of foreign bodies.
Page 135 of 216
138
V
A
D
C
B
BATTERY LOCATION AND ACCESS
The battery is located in the boot under the left hand wing trim. To access the battery, rotate the pin o n t h e fl a p b y a 1 / 4 .
CHANGING THE BATTERY ( C o n t a c t a C I T R O Ë N d e a l e r ) .1. Release the two pins on each side at the back of the boot, and remove t h e b o o t fl o o r .2. O n e a c h s i d e t r i m , r e l e a s e t h e t w o fi x i n g p i n s A.3. Undo the two screws B on each side and remove the sill embellisher.4. On the side trim close to the battery, release the pin D.5. Separate the side trim close to the battery, pulling hard to free the other fi x i n g p o i n t s .6. unclip the boot lamp C.7. Disconnect both battery terminals.8. Release the battery from its support.9. Remove the battery.
Before changing or repairing the battery, open all four windows.
If you have to unlock your vehicle with the key because of a problem with the battery, any opening/closing of a door with the window closed may seriously damage the glass to the point of breaking it.
1 2 V B A T T E R Y
Page 136 of 216
139
V
STARTING THE ENGINE AFTER DISCONNECTING AND RECONNECTING THE BATTERY1. Turn the ignition key.2. Wait approximately 1 minute before operating the starter in order to allow the electronic systems to re-initialise.
After the battery has been disconnected for a lengthy period o f time, it may be necessary to re-initialise the following functions:The anti-pinch on the windows.
The anti-pinch on the sun roof.
The m u l t i f u n c t i o n d i s p l a y p a r a m e t e r s ( d a t e , t i m e , l a n g u a g e , u n i t s o f d i s t a n c e a n d o f t e m p e r a t u r e ) .The Radio stations.
The NaviDrive. See NaviDrive instructions.
IMPORTANT
In the event of a battery failure, and if the boot is closed, it is then necessary to feed an electrical supply to your vehicle. See following page.
Page 138 of 216
141
V
F2 F9 F6 F5 F1 F7 F4 F3 F10 F8 F13 F12 F14F17
SH
F11 F15
G29 G30 G31 G32
G33 G34 G35
G36 G38 G40 G37 G39
Replacement fuses
and pliers A
FUSEBOXES
There are two fuseboxes under the dashboard, one in the engine compartment and another in the boot under the left hand wing trim.
Dashboard fuses
To access the fuses under the dashboard, open the glovebox and then detach the stowage cover.
GoodBadPliers A
Box B
Box C
REPLACING A FUSE
Before replacing a fuse, you should ascertain the cause of the fault and have it remedied. The numbers of the fuses are indicated on the fusebox.
Replace the fuse that has blown with one of the same rating (same colour).
Use the special pliers A p l a c e d o n t h e fl a p c l o s e t o t h e f u s e b o x e s . T h e fl a p a l s o h a s s p a r e f u s e s a v a i l a b l e .
F U S E S
D A S H B O A R D
Page 140 of 216
143
V
T A B L E O F F U S E S
Ref.RatingFunction
F 1––
F 2––
F 35 AAirbags
F 410 ABraking system – Active bonnet – Cruise contol / speed limiter – Photochromic rear view mirror – Diagnostic socket – Multifunction screen inclination motor
F 530 AFront window – Sun roof
F 630 ARear window
F 75 ASun visor lighting – Glove box lighting – Interior lamps – Rear cigar-lighter
F 820 A C o n t r o l s a t t h e s t e e r i n g w h e e l – D i s p l a y – O p e n i n g o f w i n d o w s ( M i c r o - d e s c e n t ) – A l a r m – R a d i o
F 930 AFront cigar-lighter
F 1015 ABoot relay unit – Trailer relay unit
F 1115 ASteering lock
F 1215 A D r i v e r ’ s a n d f r o n t p a s s e n g e r ’ s s e a t b e l t w a r n i n g l a m p – O p e n i n g o f w i n d o w s ( M i c r o - d e s c e n t ) – E l e c t r i c s e a t s – P a r k i n g assistance – Audio system JBL
F 135 AActive bonnet – Rain and brightness sensor – Windscreen wiper – Engine relay unit supply
F 1415 ALane Departure Warning System – Air conditioning – Instrument pa nel – Head-up display – Airbags – Bluetooth® (Hands-® f r e e k i t ) – B H I r e l a y
F 1530 ACentral locking – Child safety
F 16SHUNT–
F 1740 AVentilation
DASHBOARD FUSES (BOX C)

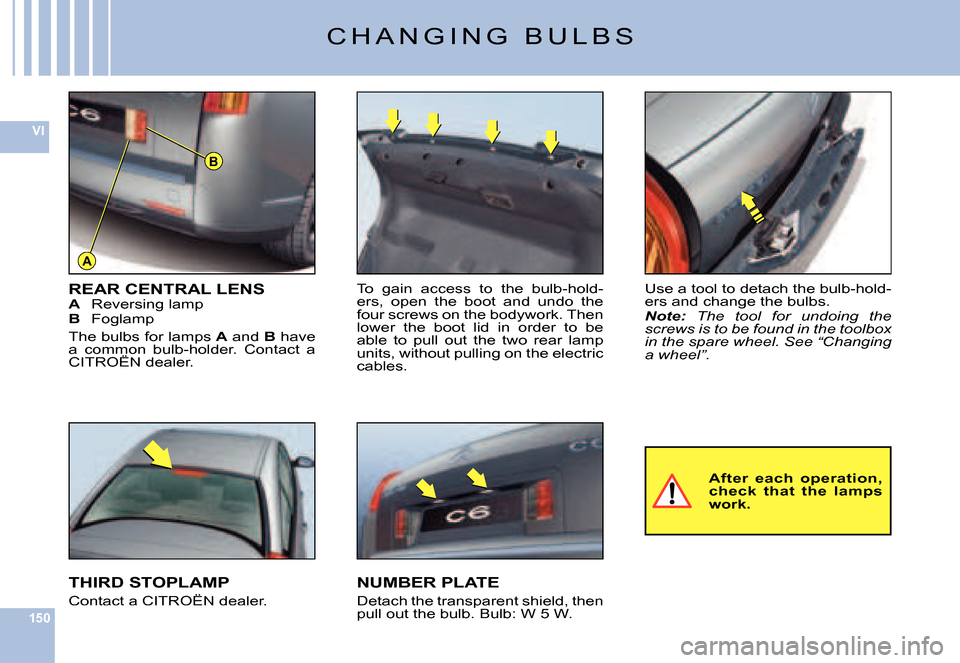

Page 147 of 216
150
VI
A
B
Use a tool to detach the bulb-hold-ers and change the bulbs.Note: The tool for undoing the screws is to be found in the toolbox i n t h e s p a r e w h e e l . S e e “ C h a n g i n g a w h e e l ” .
REAR CENTRAL LENSA Reversing lampB Foglamp
The bulbs for lamps A and B have a common bulb-holder. Contact a CITROËN dealer.
THIRD STOPLAMP
Contact a CITROËN dealer.
To gain access to the bulb-hold-ers, open the boot and undo the four screws on the bodywork. Then lower the boot lid in order to be able to pull out the two rear lamp units, without pulling on the electric cables.
NUMBER PLATE
Detach the transparent shield, then pull out the bulb. Bulb: W 5 W.
After each operation, check that the lamps work.
C H A N G I N G B U L B S
Page 153 of 216
156
VI
4
3
8
9
61
2
5
7
C H A N G I N G A W H E E L
ACCESS TO THE SPARE WHEEL
To access the spare wheel1. L i f t t h e b o o t fl o o r b y m e a n s o f t h e s t r a p .2. Anchor the strap on the roof of the boot.3. To remove the spare wheel, detach the belt then push the wheel for-wards so as to be able to lift it.
TO REPOSITION THE SPARE WHEEL
To put the spare wheel back in the boot1. P o s i t i o n t h e s p a r e w h e e l fl a t i n t h e b o o t , t h e n p u l l i t t o w a r d s y o u .2. Next place the toolbox inside the wheel, then secure the a ssembly with the belt.3. R e l e a s e t h e s t r a p t o r e t u r n t h e b o o t fl o o r t o i t s i n i t i a l p o s i t i o n .
Tyre pressures
Tyre pressures are indicated on the label which is positioned l ow down on t h e f r o n t p i l l a r . S e e “ V e h i c l e i d e n t i fi c a t i o n ” a n d “ U s e r P r e c a u t i o n s ” . ( O n t h i s label you will see a pressure for normal speeds and a pressure for high s p e e d s ) .
1. Handle2. Jack3. T o o l f o r r e m o v i n g / r e fi t t i n g t h e wheel bolts4. Tool for removing the anti-theft bolt protector5. Centring guide6. Tool for removing foglamps and reversing lamps7. Handle extension8. Towing eye9. Movable chock
TOOLS
The tools are to be found in a pro-tective holder inside the spare wheel. Pull back the retaining strap to have access.
