Glass sun roof
The sun roof provides you with improved ventilation and brightness in the passenger compartment.
P i l o t e d D e fl e c t o r
T h i s d e fl e c t o r e n h a n c e s the aerodynamics and the braking of your vehicle.
Parking assistance (dis-play and sound)
This function warns you, whilst manoeuvring, by detecting obstacles located in front of and behind the vehicle.
Lane Departure Warning System
This driving assistance device warns you when you unwittingly cross a lane marking.
The Xenon dual-function directional headlamps
This additional lighting automati-cally provides you with enhanced visibility on bends.
T y r e d e fl a t i o n d e t e c t i o n
This function monitors the pressure of each tyre and warns you of tyres that a r e p u n c t u r e d o r d e fl a t e d .
Page 2 of 216
II
55
BA
D
N
F
KK
G
H
E
IJ
L
C
M
IN BRIEF
A. Key release / storage.
B. Locking of the vehicle. C. Unlocking of the vehicle. D. Guide-me-home lighting.
E. Manual dipstick. F. Screen wash and headlamp w a s h fl u i d .
G. Power steering and suspension oil.
H. Engine coolant.
I. Engine oil.
J . B r a k e fl u i d .
K . A i r fi l t e r .
L. Poles “+” and “-” for starting with a slave battery.
See “Starting with a slave battery”.
Press on button M to the left of the d a s h b o a r d t o o p e n t h e f u e l fi l l e r fl a p .
Opening and attaching the fuel cap N .
REMOTE CONTROL KEY UNDER THE BONNET FUEL TANK
40 132 148
Tank capacity: approxi-
mately 72 litres
O P E N I N G
Page 20 of 216
23
II
W I P E R S
CHANGING THE WIPER BLADES
If you have to replace them, the wiper blades have to be parked in the maintenance position. For this, switch off the ignition and then within one minute move the wiper control stalk. The wipers stand up in a vertical position.
After replacement, switch on the ignition and move the wiper control stalk so that the wipers resume their normal position.Note: t h i s a c t i o n p l a c e s t h e P i l o t e d D e fl e c t o r i n t h e m a i n t e n a n c e p o s i t i o n . S e e “ P i l o t e d D e fl e c t o r ” .
WINDSCREEN WASH
To operate the windscreen wash, pull the wiper stalk towards you.
The screen wash is accompanied by a timed wipe of the windscreen , the headlamp wash also activates if the dipped beams are on.
The display of a message indicates that there is only approx. one litre of s c r e e n w a s h fl u i d r e m a i n i n g .
In freezing conditions, always check that the wiper blades are free to operate.
Remove any accumulation of snow at the base of the windscreen.
Page 21 of 216
24
II

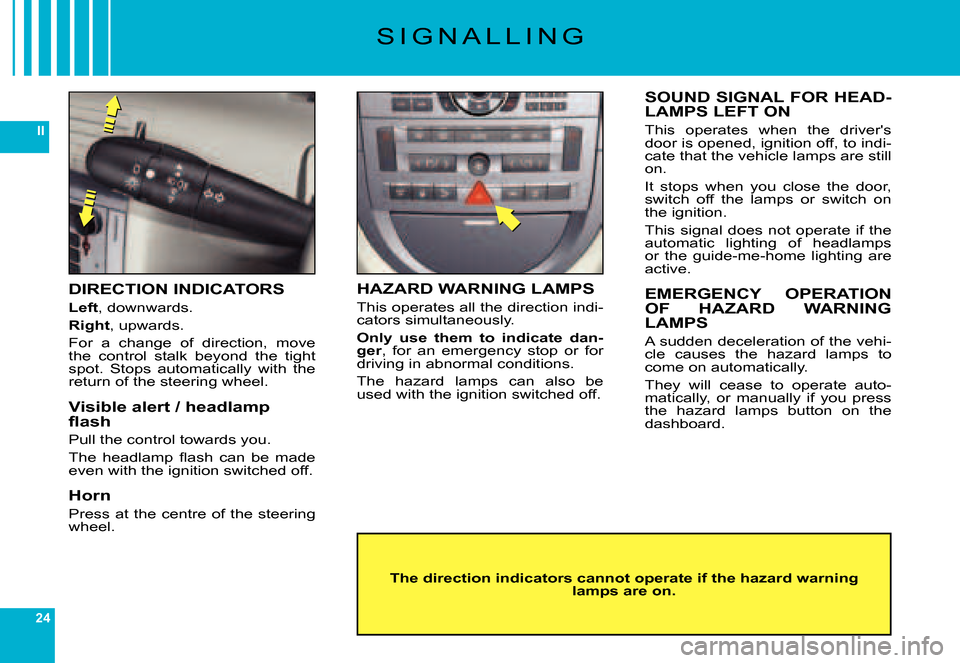

S I G N A L L I N G
DIRECTION INDICATORS
Left, downwards.
Right, upwards.
For a change of direction, move the control stalk beyond the tight spot. Stops automatically with the return of the steering wheel.
Visible alert / headlamp fl a s h
Pull the control towards you.
T h e h e a d l a m p fl a s h c a n b e m a d e even with the ignition switched off.
Horn
Press at the centre of the steering wheel.
HAZARD WARNING LAMPS
This operates all the direction indi-cators simultaneously.
Only use them to indicate dan-ger, for an emergency stop or for driving in abnormal conditions.
The hazard lamps can also be used with the ignition switched off.
SOUND SIGNAL FOR HEAD-LAMPS LEFT ON
This operates when the driver's door is opened, ignition off, to indi-cate that the vehicle lamps are still on.
It stops when you close the door, switch off the lamps or switch on the ignition.
This signal does not operate if the automatic lighting of headlamps or the guide-me-home lighting are active.
EMERGENCY OPERATION OF HAZARD WARNING LAMPS
A sudden deceleration of the vehi-cle causes the hazard lamps to come on automatically.
They will cease to operate auto-matically, or manually if you press the hazard lamps button on the dashboard.
The direction indicators cannot operate if the hazard warning lamps are on.
Page 22 of 216
25
II
41/58/61
A
S I G N A L L I N G
LIGHTING CONTROL STALK
All vehicle lamps off
Sidelamps on
Dipped beams/main beams on
Dipped beams/main beams dipswitch
Rotate the ring A forwards.
Rotate the ring A forwards.
AUTOMATIC LIGHTING OF HEADLAMPS
Sidelamps and dipped beams come on automatically in poor ambient light, or if the wipers are in continuous operation. They go out as soon as the a m b i e n t l i g h t a g a i n b e c o m e s u f fi c i e n t o r w h e n t h e w i p e r s c e a s e t o o p e r a t e .
Activation/deactivation of this function is possible in the menu “Personalisa- t i o n / C o n fi g u r a t i o n ” i n t h e “ M a i n m e n u ” .Note: Activation of this function is immediate while deactivation re quires the ignition to be switched off.
Take care not to cover the brightness sensor, which is visible from out-side the windscreen, behind the interior rear view mirror.
GUIDE-ME-HOME LIGHTING
This function switches on your headlamps, to light your way when you wish to walk from a carpark, for example.
This function is activated:Manually by pulling the con-trol A towards you, with the ignition switched off.Automatically, provided:
The automatic lighting of headlamps is activated.To activate the guide-me-home lighting function, select in the “Main menu”, then in “Personalisation/Configura-tion”, the sub-menu for light-ing and signalling, then acti-vate the function.
See “Multifunction display”.Note: It is possible to modify the duration of the guide-me-home lighting (approx. 60, 30 or 15 sec- o n d s ) i n t h e m e n u “ P e r s o n a l i s a - t i o n / C o n fi g u r a t i o n ” .
Page 23 of 216
26
II
C
S I G N A L L I N G
Front foglamps on
Front foglamps and rear foglamps on
Rotate the ring C forwards.
Switching off
First action rearwards, rear foglamps off.
Second action rearwards, front and rear foglamps off.Note: the foglamps should be used only in fog or in other conditions of poor visibility.
FRONT AND REAR FOGLAMPS (RING C)
Lighting
With dipped/main beams on:
Rotate the ring C forwards.
DAYTIME-RUNNING LAMPS
These come on automatically when the engine is running:If the function is activated in the IfMain Menu. See “Multifunction display”.
Provided the lighting control stalk is on position 0 and all the headlamps are off.
If the daytime-running lamps are active, the sidelamps will also be o n ( d e p e n d i n g o n c o u n t r y s p e c i fi - c a t i o n ) .
Page 43 of 216
46
II
S T E E R I N G L O C K – I G N I T I O N – S T A R T E R
NEVER REMOVE THE IGNITION KEY BEFORE THE ENGINE HAS COME TO A COMPLETE STOP.
IT IS ESSENTIAL ALWAYS TO DRIVE WITH THE ENGINE RUNNING, SO AS TO RETAIN STEERING AND BRAKING ASSISTANCE (risk of the steering lock engaging and loss of safety features).
When stationary, having removed the key, carefully turn the steering wheel if you wish to lock the steering.
S: STEERING LOCK
To unlock the steering, gently move the steering wheel while turning the key, without exerting undue force.
When you remove the key, turn your steering wheel to lock the steering. The key can only be removed when in position S.
M: DRIVE POSITION
The steering is unlocked (by turn-ing the key in position M, if neces- s a r y m o v e t h e s t e e r i n g w h e e l ) .
STARTING AND STOPPING THE ENGINE
See “Driving”.
ECONOMY MODE
In order not to discharge the bat-tery while the engine is stopped, your vehicle goes automatically into economy mode after a max-imum of 30 minutes. Economy mode is indicated by a message on the screen.
The electrical components relating to comfort and also the headlamps (not sidelamps or hazard warning l a m p s ) c u t o u t a u t o m a t i c a l l y . T o reactivate them, it is necessary to start the engine.
Depending on your vehicle ver-sion, the following warning lamps are tested:
If one of these warning lamps does not light up, this indicates a mal-function.
D: STARTING
Release the key as soon as the engine starts. Never turn it while the engine is running.
Page 49 of 216
50
II
I N S T R U M E N T P A N E L
W A R N I N G L A M P S
Front passenger's air-bag deactivation
See “Airbags”.
Left hand direction indicator
See “Signalling”.
Right hand direction indicator
See “Signalling”.
If the hazard lamps are activated, this means that the direction indica- t o r s fl a s h o n b o t h s i d e s a t t h e s a m e t i m e .
Sidelamps
See “Signalling”.
Front foglamps
See “Signalling”.
Dipped beams
I f t h i s w a r n i n g l a m p fl a s h e s , it indicates that the direc-tional headlamps are mal-functioning.
Contact a CITROËN dealer.
Foglamps (rear)
See “Signalling”.
Main beams
See “Signalling”.
Driver's seat belt not fastened
If this warning lamp comes on, it is reminding the driver to fasten his seat belt. While the vehicle is stationary it remains on until the belt is fastened.
See “Seat belt not fastened warn-ing lamp”.
Depollution system
I f t h i s w a r n i n g l a m p fl a s h e s or lights up while you are driving, this indicates a problem with the depollution sys-tem.
Consult a CITROËN dealer as soon as possible.
Diesel engine pre-heater
See method for starting the engine.
See “Driving”.
Fuel low
If this warning lamp comes on, permanently on level ground, there remain around 9 l of fuel for a Petrol vehi-cle, or around 8 l of fuel for a Die-sel vehicle.
