Page 6 of 216
II
99
1
8
2
3
7
9
10
1617
465
11
14
13
12
15
1819
IN BRIEF
1. Head-up display cavity
2. Steering column adjustment
3. Controls - Lighting / Direction indicators / Rear foglamps /
Voice recognition
4. Instrument panel
5. Horn
6. Controls - Wipers
7. Front passenger's airbag deactivation
8. Driver's seat adjustment controls and memories
9. Controls - Windows / Rear view mirrors / Child safe ty
10. Driver's airbag
11. Controls at the steering wheel - Speed limiter and Cruise
control
12. Electric parking brake
13. Suspension controls - Ground clearance adjustment/
Sport mode
14. Automatic gearbox SPORT/SNOW mode controls
15. Head-up display controls
16. Oddments tray
17. F u e l fl a p c o n t r o l
18. Ignition switch
19. Controls - Radio controls under the steering wheel
D A S H B O A R D
Page 8 of 216
II
1111
A
B
FED
C
21G
IN BRIEF

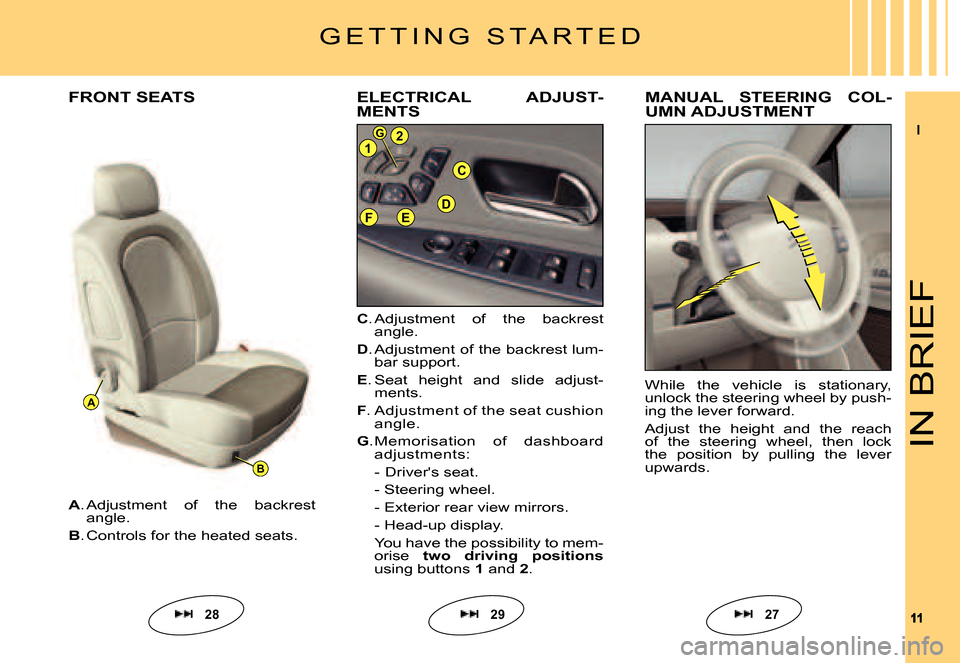

FRONT SEATS
C. Adjustment of the backrest angle.
D. Adjustment of the backrest lum-bar support.
E. Seat height and slide adjust-ments.
F. Adjustment of the seat cushion angle.
G. Memorisation of dashboard adjustments:
- Driver's seat.
- Steering wheel.
- Exterior rear view mirrors.
- Head-up display.
You have the possibility to mem-orise two driving positionsusing buttons 1 and 2.
ELECTRICAL ADJUST-MENTS
While the vehicle is stationary, unlock the steering wheel by push-ing the lever forward.
Adjust the height and the reach of the steering wheel, then lock the position by pulling the lever upwards.
MANUAL STEERING COL-UMN ADJUSTMENT
A. Adjustment of the backrest angle.
B. Controls for the heated seats.
282927
G E T T I N G S T A R T E D
Page 10 of 216
II
1313
15
4212
ba
c3
A
IN BRIEF
1133533
GLASS SUN ROOF
1. Driver's electric window control.
2. Passenger's electric window control.
3. Right-hand rear electric window control.
4. Left-hand rear electric window control.
5. Deactivation control for rear electric windows and rear door opening from inside.
1. Selection of rear view mirror: a - Left hand side. b - Right hand side. c - Folded / Automatic deploy-ment.
2. Mirror directional control.
ELECTRIC EXTERIOR REAR VIEW MIRRORSELECTRIC WINDOWS CON-TROL
The sun roof is operated by the electrical control A
A n a c t i o n t o t h e fi r s t n o t c h o f t h e control starts a movement which stops as soon as you release the control.
An action to the second notch of the control opens or closes the sun roof fully. A further action stops the movement.
G E T T I N G S T A R T E D
Page 15 of 216
I
18
IN BRIEF
AUTOMATIC AIR CONDITIONING
Adjustment of air distribu-tion on passenger's side
Adjustment of air distribution on driver's side
Adjustment of tempera-ture on passenger's side
Adjustment of tempera-ture on driver's side
Automatic operation
Air recirculation – Entry of air from outsideDeicing – Demisting of rear screen and exterior rear view mirrors
Front demisting - deicing
A d j u s t i n g t h e a i r fl o w
Note: It is recommended to use automatic mode by pressing on the « AUTO » button.
60- 85
V E N T I L A T I O N
Page 22 of 216
25
II
41/58/61
A
S I G N A L L I N G
LIGHTING CONTROL STALK
All vehicle lamps off
Sidelamps on
Dipped beams/main beams on
Dipped beams/main beams dipswitch
Rotate the ring A forwards.
Rotate the ring A forwards.
AUTOMATIC LIGHTING OF HEADLAMPS
Sidelamps and dipped beams come on automatically in poor ambient light, or if the wipers are in continuous operation. They go out as soon as the a m b i e n t l i g h t a g a i n b e c o m e s u f fi c i e n t o r w h e n t h e w i p e r s c e a s e t o o p e r a t e .
Activation/deactivation of this function is possible in the menu “Personalisa- t i o n / C o n fi g u r a t i o n ” i n t h e “ M a i n m e n u ” .Note: Activation of this function is immediate while deactivation re quires the ignition to be switched off.
Take care not to cover the brightness sensor, which is visible from out-side the windscreen, behind the interior rear view mirror.
GUIDE-ME-HOME LIGHTING
This function switches on your headlamps, to light your way when you wish to walk from a carpark, for example.
This function is activated:Manually by pulling the con-trol A towards you, with the ignition switched off.Automatically, provided:
The automatic lighting of headlamps is activated.To activate the guide-me-home lighting function, select in the “Main menu”, then in “Personalisation/Configura-tion”, the sub-menu for light-ing and signalling, then acti-vate the function.
See “Multifunction display”.Note: It is possible to modify the duration of the guide-me-home lighting (approx. 60, 30 or 15 sec- o n d s ) i n t h e m e n u “ P e r s o n a l i s a - t i o n / C o n fi g u r a t i o n ” .
Page 27 of 216
30
II
21
M
M E M O R I S A T I O N
DRIVING POSITIONS MEM-ORISED VIA BUTTONS 1 AND 2
To memorise a driving position:a. Place the igntion key in “Drive” p o s i t i o n ( s e c o n d p o s i t i o n ) .b. Make your adjustments of the seat, the steering wheel, the rear view mirrors and the Head-up Display.c. Press successively on button M then on button 1 ( fi r s t d r i v i n g p o s i t i o n ) o r 2 (second driving p o s i t i o n ) .
T h e m e m o r i s a t i o n i s c o n fi r m e d b y a sound signal.Note: The memorisation of a new driving position cancels and replaces the previous one.
The memorisation function allows to make the following dashboard adjustments:Driver's seat
Steering wheel
Exterior rear view mirrorsExteriorHead-up display.
See “Steering wheel adjustment”, “Rear view mirrors” and “Head-up Display”.
You have the possibility to memo-rise two driving positions using buttons 1 and 2.
Page 29 of 216
32
II12
R E A R V I E W M I R R O R S
Functioning of the interior and exterior rear view mir-rors
Switch on the ignition and press button 1.Warning lamp 2 on: automatic mode.
Warning lamp 2 off: automatic mode stopped. The mirror r e m a i n s i n i t s l i g h t e s t d e fi n i t i o n .Note: For optimal vision, the inte-rior and exterior mirrors lighten automatically when reverse gear is engaged.
Page 30 of 216
33
II
21
R E A R V I E W M I R R O R S
ELECTRIC EXTERIOR REAR VIEW MIRRORS
Features
The end of the glass in the exte-rior rear view mirrors is aspherical, s o a s t o e n l a r g e t h e l a t e r a l fi e l d o f vision.
Objects observed in the aspheri-cal part of the rear view mirrors are in reality closer than they appear.
You must take this into account in order to be properly aware of the distances involved.
Adjustment of the rear view mirrors
This can operate when the ignition is switched on.
The driver selects the rear view mirror by moving control 1, to the left or to the right, then adjusts the mirror in the four directions by acting on con-trol 2.
Demisting-deicing of the rear view mirrors is linked with that fo r the rear screen.
The adjustments you have made to the rear view mirrors are included in the memorisation of driving positions. See “Memorisation”.
Fold-back of door mirrors
When the vehicle is parked, the door mirrors can be folded back either man-ually or electrically.
Electric fold-back
From the central position, one press towards the rear on control 1 folds the rear view mirrors back.
To return them to the initial position, press again on control 1 towards the rear.
Automatic fold-back
Automatic fold-back operates when you lock the doors.
