Eaton®Fuller®Five and Six-Speed
Transmissions and TTC Spicer
Seven-Speed Transmissions
These transmissions have gears that automatically
synchronize when you shift up or down (except
FIRST (1) gear on the five-speed and seven-speed
transmission which is unsynchronized). Choose
the gear that will maintain the road speed you want
while keeping the engine above two-thirds of the
governed speed. When the engine speed
drops below two-thirds of the governed speed,
shift into the next lower gear before your engine
begins to lug. When you shift down, be sure
to double-clutch if required.
Eaton®Fuller®Nine and Ten-Speed
Non-Synchronized Manual
Transmissions
If your vehicle has one of these transmissions the
engine rpm and road speed must match when
upshifting and downshifting. The label above the
windshield will tell you the operating basics
you need to know.
The following are driving tips.
•Always choose an initial starting gear suitable
for the load and terrain.
•Always use double-clutching procedures when
shifting.
•Never move the range shift lever to the
LO speed gear position after HI range
preselection, or anytime the transmission is in
the HI range.
•Never move the range knob or lever with the
shift lever in NEUTRAL while the vehicle is
moving.
•Never make a range shift while moving in
REVERSE (R).
117

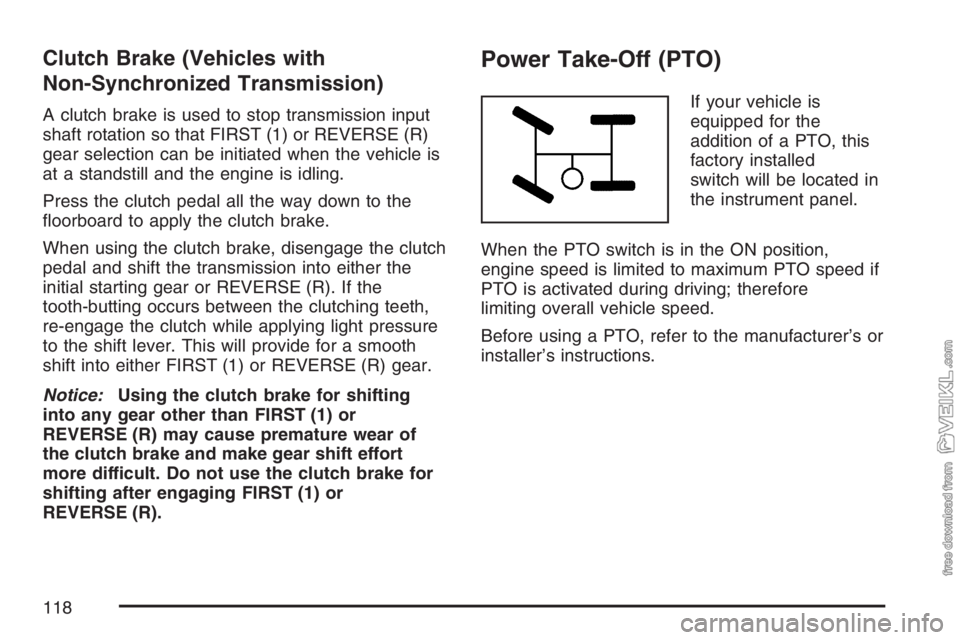

Clutch Brake (Vehicles with
Non-Synchronized Transmission)
A clutch brake is used to stop transmission input
shaft rotation so that FIRST (1) or REVERSE (R)
gear selection can be initiated when the vehicle is
at a standstill and the engine is idling.
Press the clutch pedal all the way down to the
floorboard to apply the clutch brake.
When using the clutch brake, disengage the clutch
pedal and shift the transmission into either the
initial starting gear or REVERSE (R). If the
tooth-butting occurs between the clutching teeth,
re-engage the clutch while applying light pressure
to the shift lever. This will provide for a smooth
shift into either FIRST (1) or REVERSE (R) gear.
Notice:Using the clutch brake for shifting
into any gear other than FIRST (1) or
REVERSE (R) may cause premature wear of
the clutch brake and make gear shift effort
more difficult. Do not use the clutch brake for
shifting after engaging FIRST (1) or
REVERSE (R).
Power Take-Off (PTO)
If your vehicle is
equipped for the
addition of a PTO, this
factory installed
switch will be located in
the instrument panel.
When the PTO switch is in the ON position,
engine speed is limited to maximum PTO speed if
PTO is activated during driving; therefore
limiting overall vehicle speed.
Before using a PTO, refer to the manufacturer’s or
installer’s instructions.
118

Four-Wheel Drive
If your vehicle has four-wheel drive, you can send
the engine’s driving power to all four wheels for
extra traction. To get the most satisfaction
out of four-wheel drive, you must be familiar with
its operation. Read the part that follows before
using four-wheel drive. You should use two-wheel
drive high for most normal driving conditions.
Notice:Driving on clean, dry pavement
in four-wheel drive for an extended period of
time can cause premature wear on your
vehicle’s powertrain. Do not drive on clean,
dry pavement in four-wheel drive for extended
periods of time.
Locking Hubs
Turn the dial of the hublock (A) from the Free
position to the Lock position to lock the front axle.
Turn the dial of the hublock (A) from the Lock
position to the Free position to unlock the axle.
You do not have to back the vehicle up to
disengage the hublocks.
Hublock Dial LocationHublock Dial
119

Shifting Into Two-Wheel High
Turn the knob to Two-Wheel High. This can be
done at 3 mph or less, while you are shifting out of
Four-Wheel Low.
Shifting Into Four-Wheel Low
To shift to Four-Wheel Low, the vehicle’s engine
must be running and the vehicle must be stopped
or moving less than 3 mph (5 km/h) with the
transmission in NEUTRAL (N). The preferred
method for shifting into Four-Wheel Low is to have
your vehicle moving 1 or 2 mph (1.6 to 3.2 km/h).
Turn the knob to Four-Wheel Low. You must
wait for the Four-Wheel Low indicator light to stop
flashing and remain on before shifting the
transmission into gear. Be sure to lock the
front hubs.Notice:Shifting the transmission into gear
before the Four-Wheel Drive Low indicator light
has stopped ashing could damage the
transfer case. To help avoid damaging your
vehicle, always wait for the Four-Wheel
Drive Low indicator light to stop ashing
before shifting the transmission into gear.
If you turn the knob to Four-Wheel Low while your
vehicle is in gear and/or moving, the Four-Wheel
Low indicator light flashes for 30 seconds and
does not complete the shift unless your vehicle is
moving less than 3 mph (4.8 km/h) and the
transmission is in NEUTRAL (N). After 30 seconds,
the transfer case returns to the setting last
chosen. If your vehicle is in gear and moving less
than 3 mph (4.8 km/h), the transfer case shifts
to Four-Wheel High.
122

Shifting Out of Four-Wheel Low
To shift from Four-Wheel Low to Four-Wheel High
or Two-Wheel High, your vehicle must be
stopped or moving less than 3 mph (5 km/h) with
the transmission in NEUTRAL (N) and the
engine running. The preferred method for shifting
out of Four-Wheel Low is to have your vehicle
moving 1 or 2 mph (1.6 to 3.2 km/h). Turn the knob
to Four-Wheel High or Two-Wheel High. You
must wait for the Four-Wheel High or Two-Wheel
High indicator light to stop flashing and remain
on before shifting the transmission into gear.
Notice:Shifting the transmission into gear
before the Four-Wheel High or Two-Wheel High
indicator light has stopped ashing could
damage the transfer case. To help avoid
damaging your vehicle, always wait for the
Four-Wheel High or Two-Wheel High indicator
light to stop ashing before shifting the
transmission into gear.
If the knob is turned to Four-Wheel High or
Two-Wheel High while your vehicle is in gear and/or
moving, the Four-Wheel High or Two-Wheel high
indicator light flashes for 30 seconds. It will not
complete the shift unless your vehicle is moving
less than 3 mph (5 km/h) with the transmission in
NEUTRAL (N).
Shifting Into NEUTRAL
Before shifting the transfer case to NEUTRAL, first
make sure the vehicle is parked so that it will
not roll.
1. Set the parking brake.
2. Start the vehicle.
3. Put the transmission in NEUTRAL (N).
4. Shift the transfer case to Two-Wheel High.
5. Turn the transfer case knob all of the way past
Four-Wheel Low and hold it there for a
minimum of 10 seconds. The NEUTRAL
indicator light comes on.
6. Shift the transmission to REVERSE (R) for
one second, then shift the transmission to
DRIVE (D) for one second.
7. Turn the ignition to OFF.
8. Place the transmission shift lever in
PARK. (P).
9. Turn the ignition to LOCK.
123

Shifting Out of NEUTRAL
To shift the transfer case out of NEUTRAL, do the
following:
1. Set the parking brake and apply the regular
brake pedal.
2. Turn the ignition to RUN with the engine off.
3. Put the transmission in NEUTRAL (N).
4. Turn the transfer case knob to the desired
shift position (Two-Wheel High, Four-Wheel
High, Four-Wheel Low).
5. After the transfer case has shifted out of
NEUTRAL, the indicator light goes out.Notice:Driving with the parking brake on can
overheat the brake system and cause
premature wear or damage to brake system
parts. Verify that the parking brake is fully
released and the brake warning light is
off before driving.
6. Release the parking brake.
7. Start the engine and shift the transmission
lever to the desired position.
Excessively shifting the transfer case into or out of
the different modes can cause the transfer case
to enter the shift protection mode. This protects the
transfer case from possible damage and only
allows the transfer case to respond to one shift per
10 seconds. The transfer case can stay in this
mode for up to three minutes.
124

Parking
{CAUTION:
If you do not park your vehicle properly, it
can roll. If you have left the engine
running, it can move very quickly. You or
others could be injured. To be sure your
vehicle will not move, even when you are
on level ground, follow the steps below.
Parking a Vehicle With the Two-Speed
Rear Axle
1. With the engine running, shift the two-speed
rear axle into low. To be sure it is in low, you
will need to move the vehicle in gear just a little.
2. Hold the regular brake pedal down with your
right foot.
3. Apply the parking brake.
4. Shift the transmission to NEUTRAL for
manual transmission or PARK (P) for
automatic transmission.
Parking Brake (With Hydraulic
Brakes)
If your vehicle has hydraulic brakes, it has either a
parking brake foot pedal or hand lever. If you
have the parking brake foot pedal, it is located
below the instrument panel to the left of the
steering column.
If you have the parking brake hand lever, it is
located to the right of the driver, on the floor.
Parking Brake Hand Lever Shown
125

Engine Exhaust
{CAUTION:
Engine exhaust can kill. It contains the
gas carbon monoxide (CO), which you
cannot see or smell. It can cause
unconsciousness and death.
You might have exhaust coming in if:
Your exhaust system sounds strange
or different.
Your vehicle gets rusty underneath.
Your vehicle was damaged in a
collision.
CAUTION: (Continued)
CAUTION: (Continued)

Your vehicle was damaged when
driving over high points on the road
or over road debris.
Repairs were not done correctly.
Your vehicle or exhaust system has
been modied improperly.
If you ever suspect exhaust is coming into
your vehicle:
Drive it only with all the windows
down to blow out any CO; and
Have your vehicle xed immediately.
