2007 CHEVROLET KODIAK relay

Relay Usage
ECU/PTO*Engine Control Unit/Power Take-Off
*Diesel 7.8 DURAMAX
®
BRK LAMPC4/C5 Brake Lamps,
C6/C7/C8 Tractor/Trailer Wiring
DRL Daytime Running Lamps
IGN-4 Ignition
CHMSL Center High Mounted Stoplamp
MRK LTS Sidemarker and Clearance Lamps
HTD/MIRR Heated Mirrors
HTR Diesel Heated Fuel
RT TRN TRLR Passenger’s Side Trailer Turn Signal
Blank Not Used
LT TRN TRLR Driver’s Side Trailer Turn Signal
Blank Not Used
Blank Not Used
Blank Not Used
Underhood Fuse Block
When a circuit goes out, the problem could be in
either the primary or secondary underhood
fuse blocks. These blocks use blade-type fuses.
Both underhood fuse blocks are located in
the engine compartment, on the passenger’s side
of the vehicle.
To access the fuse blocks, gently squeeze both
sides of the cover to unlatch the tabs at the
top. Then, unsnap both attachments at the bottom
and remove the cover.
Be sure to replace fuses with fuses of the same
rating. Do not use fuses of higher amperage
than those indicated on the fuse block.
344

Fuse Usage
NOTE 3L18 Fuel, LG4 Powertrain Control
Valve, LG5 Electronic Control
Module
STUD A Spare
STUD B Spare
Relay Usage
NOTE 1LLY/L18 Fuel Pump Relay, LG4/LG5
Heated Fuel Relay
IGN B Ignition Relay
STARTER Starter Relay
HORN Horn Relay
IGN A Ignition Relay
PTO/ECU*Power Take-Off/Engine Control Unit
(*Diesel 7.8L LG4)
REVERSE Reverse Relay
NEUTRAL
STARTNeutral Start (LG4 Allison Automatic
Transmission Series 3000/3500)
Fuse Usage
IGN 1 Ignition 1
IGN 4 Ignition 4
IGN 3 Ignition 3
BATT/HAZ Battery/Hazard Warning Flashers
HEADLAMP Headlamps
LIGHTING Interior/Exterior Lamps
HVAC Climate Control System
NOTEC4/C5 Electric Brake,
C6/C7/C8 Brake Lamps Secondary Underhood
Fuse Block
346

7,500 Miles (12 000 km)
❑Gasoline Engine Only: Check engine oil life
system. If engine oil and filter are changed,
reset system. See “Engine Oil (Gasoline
Engine)” in the Index.(2) (8)
❑Check fluid levels (or every 3 months,
whichever occurs first).(1) (5)
❑Chassis lubrication service (or every 6 months,
whichever occurs first).(11)
❑Spring-to-axle U-bolts and shackle bolts
service.(15)
❑Wheels and tires service.(14)
❑Hydraulic brake service (or every 6 months,
whichever occurs first).(6) (36)
❑Parking brake service (or every 6 months,
whichever occurs first).(21)
❑Air brake service (or every 6 months, whichever
occurs first).(32)
❑Air brake automatic slack adjuster service (or
every 500 hours, whichever occurs first).(33)
❑Check air brake relay valve operation and check
for leaks (or every month, or every 300 hours,
whichever occurs first).❑Clean air brake application valve (or every
3 months, or every 300 hours, whichever occurs
first). Lubricate linkage.
❑Air brake chamber service (or every 2 months,
whichever occurs first).(34)
12,000 Miles (20 000 km)
❑Isuzu 6H Diesel Without Engine Oil Life System
Only: Change engine oil and filter (or every
12 months, or every 600 hours of engine
operation, whichever occurs first).(2)
❑Isuzu 6H Diesel With Engine Oil Life System
Only: Check oil life system (or every 12 months,
or every 600 hours of engine operation,
whichever occurs first). If engine oil and filter
are changed, reset system. See “Engine Oil
(DURAMAX
®/Isuzu Diesel)” in the Index.(2) (7)
364

❑Check air brake relay valve operation and
check for leaks (or every month, or every
300 hours, whichever occurs first).
❑Clean air brake application valve (or every
3 months, or every 300 hours, whichever
occurs first). Lubricate linkage.
❑Air brake chamber service (or every 2 months,
whichever occurs first).(34)
❑Thermostatically controlled engine cooling
fan service.(3) (19)
❑Shields and underhood insulation
service.(3) (4) (20)
❑Gasoline Engine: Air compressor remote
mounted air filter dry element pleated paper
air strainer service (or every 6 months or
every 1800 hours, whichever occurs first).
22,500 Miles (36 000 km)
❑Gasoline Engine Only: Check engine oil life
system. If engine oil and filter are changed,
reset system. See “Engine Oil (Gasoline
Engine)” in the Index.(2) (8)
❑Check fluid levels (or every 3 months,
whichever occurs first).(1) (5)❑Chassis lubrication service (or every 6 months,
whichever occurs first).(11)
❑Inspect door hinge pins and bushings and
replace as necessary.
❑Cooling system service. Clean the cooling
system filter cap with clean water, clean
the core, pressure test the cap and the
system for proper pressure capability, and
inspect condition of cooling and heater
hoses and clamps. Replace hoses if cracked,
swollen, or damaged.
❑Wheels and tires service.(14)
❑Hydraulic brake service (or every 6 months,
whichever occurs first).(6) (36)
❑Parking brake service (or every 6 months,
whichever occurs first).(21)
❑Air brake service (or every 6 months, whichever
occurs first).(32)
❑Air brake automatic slack adjuster service (or
every 500 hours, whichever occurs first).(33)
366

❑Check air brake relay valve operation and
check for leaks (or every month, or every
300 hours, whichever occurs first).
❑Clean air brake application valve (or every
3 months, or every 300 hours, whichever
occurs first). Lubricate linkage.
❑Air brake chamber service (or every 2 months,
whichever occurs first).(34)
❑Air brake system valve service (or every
3 months, or every 900 hours, whichever
occurs first).(37)
❑Air intake system service (or every 24 months,
whichever occurs first).(3) (4) (23)
❑Evaporative Control System service,
if equipped, (or every 24 months,
whichever occurs first).(2) (24) †
❑Rear axle air shift motor service.(10)24,000 Miles (40 000 km)
❑Isuzu 6H Diesel Without Engine Oil Life System
Only: Change engine oil and filter (or every
12 months, or every 600 hours of engine
operation, whichever occurs first).(2)
❑Isuzu 6H Diesel With Engine Oil Life System
Only: Check oil life system (or every 12 months,
or every 600 hours of engine operation,
whichever occurs first). If engine oil and filter
are changed, reset system. See “Engine Oil
(DURAMAX
®/Isuzu Diesel)” in the Index.(2) (7)
❑Lubricate U-joints (or every 6 months,
whichever occurs first).
367

❑Parking brake service (or every 6 months,
whichever occurs first).(21)
❑Air brake service (or every 6 months,
whichever occurs first).(32)
❑Air brake automatic slack adjuster service (or
every 500 hours, whichever occurs first).(33)
❑Check air brake relay valve operation and check
for leaks (or every month, or every 300 hours,
whichever occurs first).
❑Clean air brake application valve (or every
3 months, or every 300 hours, whichever occurs
first). Lubricate linkage.
❑Air brake chamber service (or every 2 months,
whichever occurs first).(34)
❑C600, C700, and C800 Gasoline Engines Only:
Engine drive belts service (or every 12 months,
whichever occurs first.)(17)
❑Thermostatically controlled engine cooling
fan service.(3) (19)❑Shields and underhood insulation
service.(3) (4) (20)
❑Gasoline Engine: Air compressor remote
mounted air filter dry element pleated paper
air strainer service (or every 6 months or
every 1800 hours, whichever occurs first).
36,000 Miles (55 000 km)
❑Isuzu 6H Diesel Without Engine Oil Life System
Only: Change engine oil and filter (or every
12 months, or every 600 hours of engine
operation, whichever occurs first).(2)
❑Isuzu 6H Diesel With Engine Oil Life System
Only: Check oil life system (or every 12 months,
or every 600 hours of engine operation,
whichever occurs first). If engine oil and filter
are changed, reset system. See “Engine Oil
(DURAMAX
®/Isuzu Diesel)” in the Index.(2) (7)
369

37,500 Miles (60 000 km)
❑Gasoline Engine Only: Check engine oil life
system. If engine oil and filter are changed,
reset system. See “Engine Oil (Gasoline
Engine)” in the Index.(2) (8)
❑Check fluid levels (or every 3 months,
whichever occurs first).(1) (5)
❑Chassis lubrication service (or every 6 months,
whichever occurs first).(11)
❑Wheels and tires service.(14)
❑Hydraulic brake service (or every 6 months,
whichever occurs first).(6) (36)
❑Parking brake service (or every 6 months,
whichever occurs first).(21)
❑Air brake service (or every 6 months, whichever
occurs first).(32)
❑Air brake automatic slack adjuster service (or
every 500 hours, whichever occurs first).(33)
❑Check air brake relay valve operation and check
for leaks (or every month, or every 300 hours,
whichever occurs first).❑Clean air brake application valve (or every
3 months, or every 300 hours, whichever occurs
first). Lubricate linkage.
❑Air brake chamber service (or every 2 months,
whichever occurs first).(34)
45,000 Miles (72 000 km)
❑Gasoline Engine Only: Check engine oil life
system. If engine oil and filter are changed,
reset system. See “Engine Oil (Gasoline
Engine)” in the Index.(2) (8)
❑6.6L DURAMAX
®Diesel Without Engine Oil
Life System Only: Change engine oil and
filter (or every 12 months, or every 750 hours
of engine operation, whichever occurs first).(2)
❑6.6L DURAMAX
®Diesel With Engine Oil
Life System Only: Check oil life system.
If engine oil and filter are changed, reset
system. See “Engine Oil (DURAMAX
®/Isuzu
Diesel)” in the Index.(2) (9)
❑Check fluid levels (or every 3 months,
whichever occurs first).(1) (5)
❑Gasoline Engine: Replace engine air cleaner
filter. SeeEngine Air Cleaner/Filter on
page 280for more information.
370

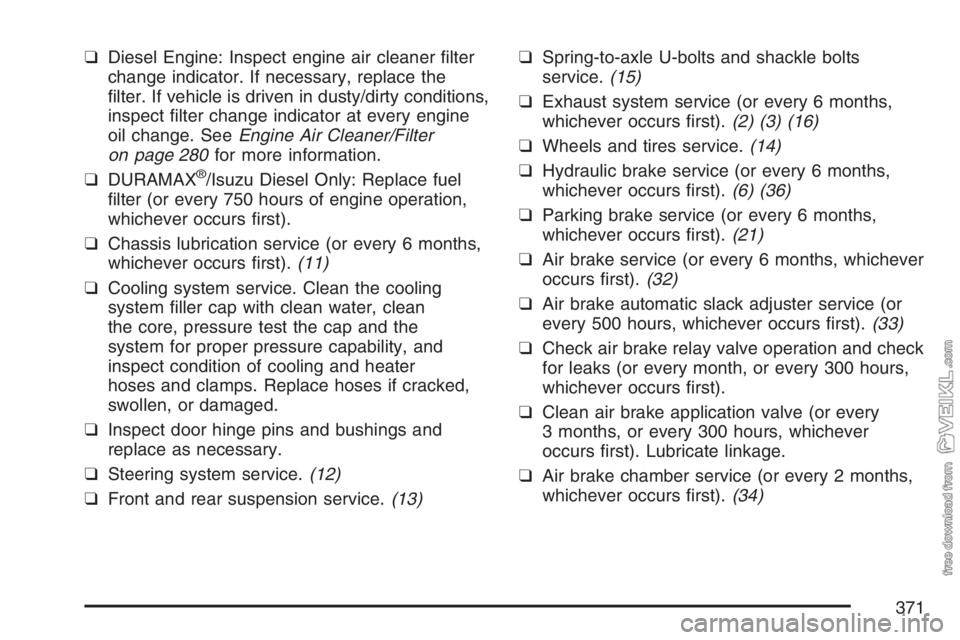

❑Diesel Engine: Inspect engine air cleaner filter
change indicator. If necessary, replace the
filter. If vehicle is driven in dusty/dirty conditions,
inspect filter change indicator at every engine
oil change. SeeEngine Air Cleaner/Filter
on page 280for more information.
❑DURAMAX
®/Isuzu Diesel Only: Replace fuel
filter (or every 750 hours of engine operation,
whichever occurs first).
❑Chassis lubrication service (or every 6 months,
whichever occurs first).(11)
❑Cooling system service. Clean the cooling
system filler cap with clean water, clean
the core, pressure test the cap and the
system for proper pressure capability, and
inspect condition of cooling and heater
hoses and clamps. Replace hoses if cracked,
swollen, or damaged.
❑Inspect door hinge pins and bushings and
replace as necessary.
❑Steering system service.(12)
❑Front and rear suspension service.(13)❑Spring-to-axle U-bolts and shackle bolts
service.(15)
❑Exhaust system service (or every 6 months,
whichever occurs first).(2) (3) (16)
❑Wheels and tires service.(14)
❑Hydraulic brake service (or every 6 months,
whichever occurs first).(6) (36)
❑Parking brake service (or every 6 months,
whichever occurs first).(21)
❑Air brake service (or every 6 months, whichever
occurs first).(32)
❑Air brake automatic slack adjuster service (or
every 500 hours, whichever occurs first).(33)
❑Check air brake relay valve operation and check
for leaks (or every month, or every 300 hours,
whichever occurs first).
❑Clean air brake application valve (or every
3 months, or every 300 hours, whichever
occurs first). Lubricate linkage.
❑Air brake chamber service (or every 2 months,
whichever occurs first).(34)
371
