Page 67 of 496
If your child restraint has the LATCH system, see
Lower Anchors and Tethers for Children
(LATCH) on page 55.
There is no top tether anchor at the right front
seating position. Do not secure a child seat in this
position if a national or local law requires that
the top tether be anchored or if the instructions
that come with the child restraint say that the top
tether must be anchored. SeeLower Anchors
and Tethers for Children (LATCH) on page 55if
the child restraint has a top tether.You will be using the lap-shoulder belt to secure
the child restraint in this position. Be sure to follow
the instructions that came with the child restraint.
Secure the child in the child restraint when and as
the instructions say.
1. Your vehicle has a right front passenger’s
frontal airbag. SeePassenger Sensing
System on page 81. We recommend that
rear-facing child restraints be secured in a rear
seat, even if the airbag is off. If your child
restraint is forward-facing, move the seat as
far back as it will go before securing the
child restraint in this seat. SeeManual
Passenger Seat on page 9orPower Seats
on page 9.
When the passenger sensing system has
turned off the right front passenger’s frontal
airbag and seat-mounted side impact airbag,
the off indicator on the passenger airbag status
indicator should light and stay lit when you
turn the ignition to RUN or START. See
Passenger Airbag Status Indicator
on page 198.
67
Page 69 of 496
6. To tighten the belt, push down on the child
restraint, pull the shoulder portion of the belt
to tighten the lap portion of the belt, and
feed the shoulder belt back into the retractor.
If you are using a forward-facing child
restraint, you may nd it helpful to use your
knee to push down on the child restraint
as you tighten the belt. You should not be able
to pull more of the belt from the retractor
once the lock has been set.
7. Push and pull the child restraint in different
directions to be sure it is secure.8. If the airbag is off, the off indicator on the
overhead console will be lit and stay lit
when the key is turned to RUN or START.
If a child restraint has been installed and the on
indicator is lit, turn the vehicle off. Remove
the child restraint from the vehicle and reinstall the
child restraint.
If, after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to
make sure that the vehicle’s seatback is not
pressing the child restraint into the seat cushion.
If this happens, slightly recline the vehicle’s
seatback and adjust the seat cushion if possible.
Also make sure the child restraint is not trapped
under the vehicle head restraint. If this happens,
adjust the head restraint.
If the on indicator is still lit, secure the child in the
child restraint in a rear seat position in the
vehicle and check with your dealer.
To remove the child restraint, just unbuckle the
vehicle’s safety belt and let it go back all the way.
The safety belt will move freely again and be
ready to work for an adult or larger child
passenger.
69
Page 70 of 496
Airbag System
Your vehicle has six airbags:
A frontal airbag for the driver and another
frontal airbag for the right front passenger.
A seat-mounted side impact airbag for the
driver and another for the right front
passenger.
A roof-mounted side impact airbag for the
driver and passenger directly behind the driver.
A roof-mounted side impact airbag for the right
front passenger and the person seated directly
behind that passenger.
Airbags are designed to supplement the protection
provided by safety belts. Even though today’s
airbags are also designed to help reduce the risk
of injury from the force of an in ating bag, all
airbags must in ate very quickly to do their job.Here are the most important things to know about
the airbag system:
{CAUTION:
You can be severely injured or killed in a
crash if you are not wearing your safety
belt — even if you have airbags. Wearing
your safety belt during a crash helps
reduce your chance of hitting things
inside the vehicle or being ejected from it.
Airbags are “supplemental restraints” to
the safety belts. All airbags are designed
to work with safety belts but do not
replace them.
CAUTION: (Continued)
70
Page 71 of 496
CAUTION: (Continued)
Frontal airbags for the driver and right
front passenger are designed to deploy in
moderate to severe frontal and near
frontal crashes. They are not designed to
in ate in rollover, rear crashes, or in many
side crashes. And, for some unrestrained
occupants, frontal airbags may provide
less protection in frontal crashes than
more forceful airbags have provided in
the past.
Seat-mounted side impact airbags and
roof-mounted side impact airbags are
designed to in ate in moderate to severe
crashes where something hits the side of
your vehicle. They are not designed to
in ate in frontal, in rollover or in rear
crashes. Everyone in your vehicle should
wear a safety belt properly — whether or
not there is an airbag for that person.
{CAUTION:
Both frontal and side impact airbags
in ate with great force, faster than the
blink of an eye. If you are too close to an
in ating airbag, as you would be if you
were leaning forward, it could seriously
injure you. Safety belts help keep you in
position for airbag in ation before and
during a crash. Always wear your safety
belt even with frontal airbags. The driver
should sit as far back as possible while
still maintaining control of the vehicle.
Occupants should not lean on or sleep
against the door.
71
Page 72 of 496
{CAUTION:
Anyone who is up against, or very close to,
any airbag when it in ates can be seriously
injured or killed. Airbags plus lap-shoulder
belts offer the best protection for adults,
but not for young children and infants.
Neither the vehicle’s safety belt system nor
its airbag system is designed for them.
Young children and infants need the
protection that a child restraint system can
provide. Always secure children properly
in your vehicle. To read how, seeOlder
Children on page 43orInfants and Young
Children on page 46.
There is an airbag
readiness light on the
instrument panel cluster,
which shows the
airbag symbol.The system checks the airbag electrical system for
malfunctions. The light tells you if there is an
electrical problem. SeeAirbag Readiness Light on
page 197for more information.
Where Are the Airbags?
The driver’s frontal airbag is in the middle of the
steering wheel.
72
Page 73 of 496

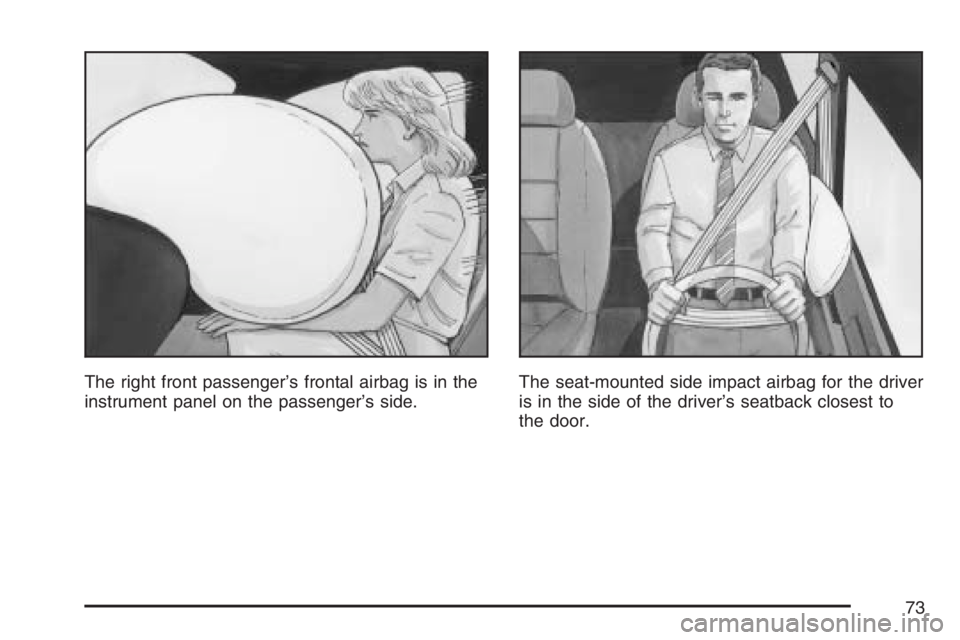

The right front passenger’s frontal airbag is in the
instrument panel on the passenger’s side.The seat-mounted side impact airbag for the driver
is in the side of the driver’s seatback closest to
the door.
73
Page 74 of 496
The seat-mounted side impact airbag for the right
front passenger is in the side of the passenger’s
seatback closest to the door.The roof-mounted side impact airbag for the driver
and the person seated directly behind the driver
is in the ceiling above the side windows.
74
Page 75 of 496
The roof-mounted side impact airbag for the right
front passenger and the person seated directly
behind that passenger is in the ceiling above the
side windows.
{CAUTION:
If something is between an occupant and
an airbag, the airbag might not in ate
properly or it might force the object into
that person causing severe injury or even
death. The path of an in ating airbag must
be kept clear. Do not put anything
between an occupant and an airbag, and
do not attach or put anything on the
steering wheel hub or on or near any
other airbag covering. Never secure
anything to the roof of your vehicle by
routing the rope or tie-down through any
door or window opening. If you do, the
path of an in ating airbag will be blocked.
Do not let seat covers block the in ation
path of a side impact airbag. The path of
an in ating airbag must be kept clear.
75
