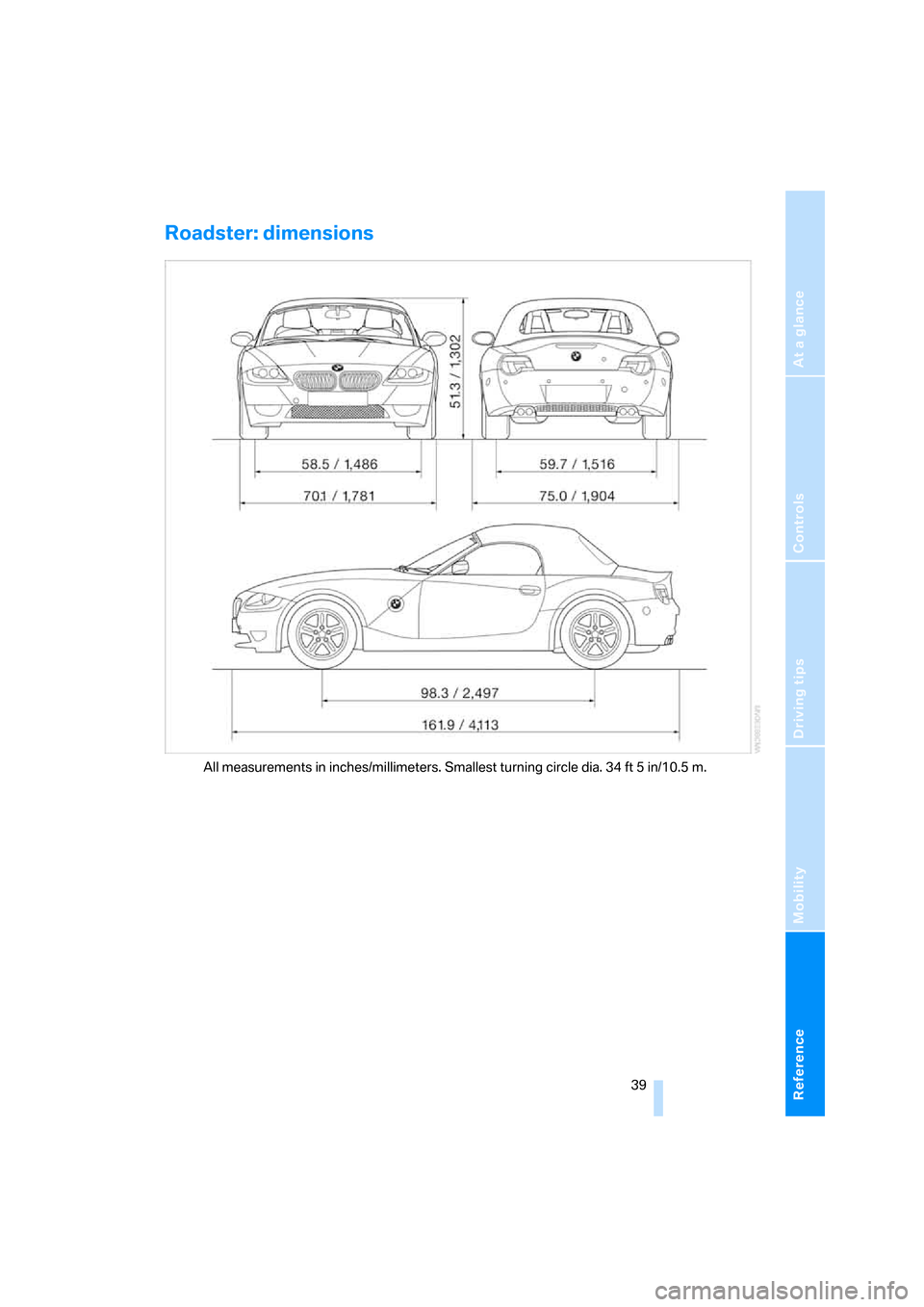

Roadster: dimensions
All measurements in inches/millimeters. Smallest turning circle dia. 34 ft 5 in/10.5 m.
ba5.book Seite 39 Mittwoch, 28. Februar 2007 1:09 13

Technical data
40

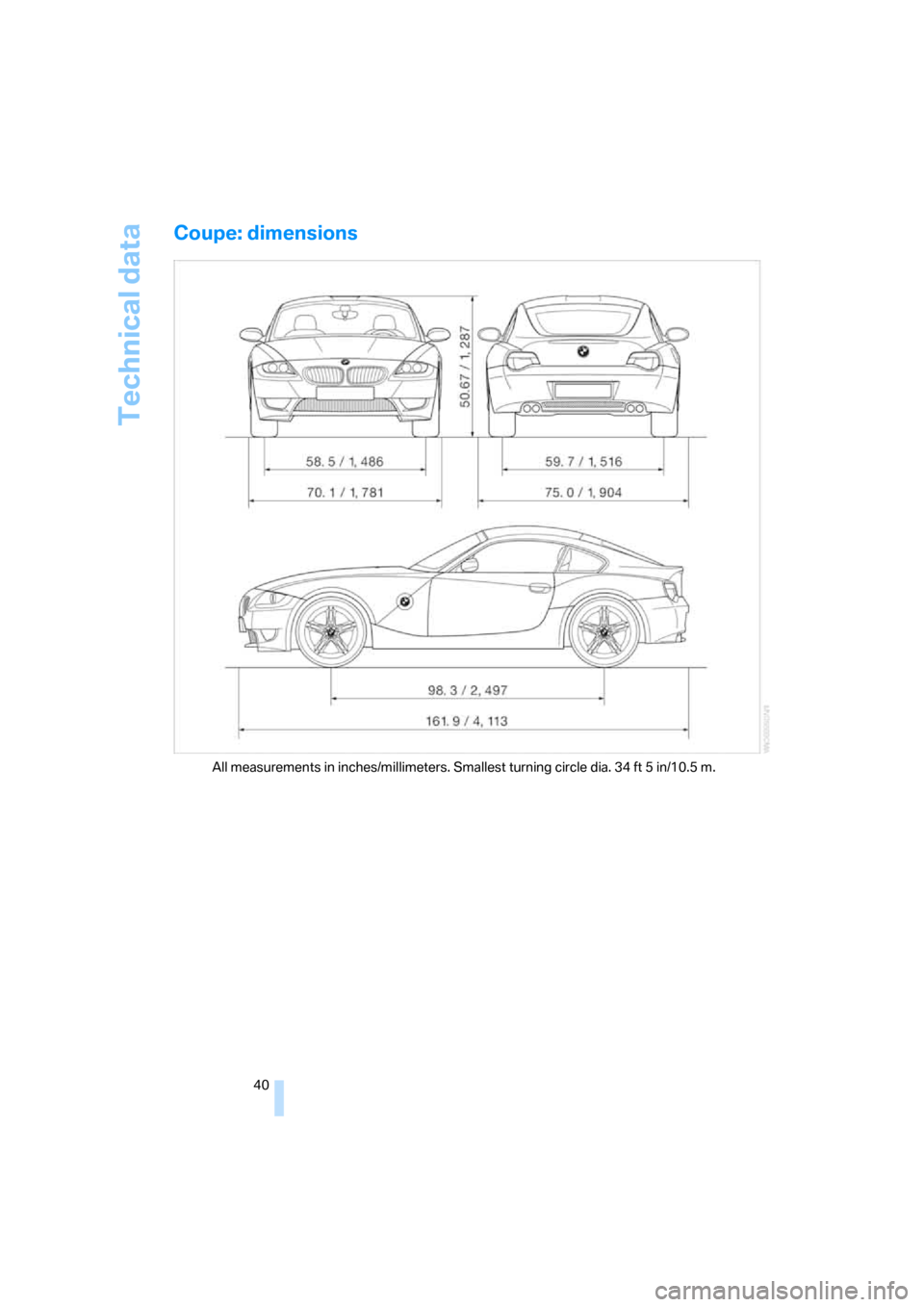

Coupe: dimensions
All measurements in inches/millimeters. Smallest turning circle dia. 34 ft 5 in/10.5 m.
ba5.book Seite 40 Mittwoch, 28. Februar 2007 1:09 13

Reference
At a glance
Controls
Driving tips
Mobility
41
Weights
Capacities
Z4 M Roadster
Curb weight lbs/kg 3,197/1,450
Approved gross vehicle weight lbs/kg 3,759/1,750
Load lbs/kg 562/255
Approved front axle load lbs/kg 1,852/840
Approved rear axle load lbs/kg 2,006/910
Cargo bay capacity cu ft/liters 7.1/200
With convertible top compartment
panel folded upcu ft/liters 7.8/220
Never exceed either the approved axle loads or the approved gross vehicle weight.
Z4 M Coupe
Curb weight lbs/kg 3,230/1,465
Approved gross vehicle weight lbs/kg 3,814/1,730
Load lbs/kg 584/265
Approved front axle load lbs/kg 1,885/855
Approved rear axle load lbs/kg 2,061/935
Cargo bay capacity cu ft/liters 8.7-10.6/245-300
Never exceed either the approved axle loads or the approved gross vehicle weight.
Notes
Fuel tank US gal/liters approx. 14.5/55
including reserve of US gal/liters approx. 2.6/10
Window washer system
including headlamp washers US quarts/liters approx. 5.3/5.0
Manual transmission US quarts/liters 1.6/1.5 Oil change at breaking-in
inspection
and during every Inspection II
Differential US quarts/liters 1.2/1.1 Oil change at breaking-in
inspection
and during every Inspection II
ba5.book Seite 41 Mittwoch, 28. Februar 2007 1:09 13

Everything from A to Z
42
Everything from A to Z
Index
A
ABS Antilock Brake System
– indicator lamp11
Accessories, refer to
– Your individual vehicle5
Airbags
– indicator lamp11
– warning lamp11
AKI, refer to Fuel
specifications26
Antilock Brake System ABS
– indicator lamp11
Approved engine oils29
Assistance systems, refer to
Dynamic Stability Control
DSC18
Axle loads, refer to Weights41
B
Battery
– indicator lamp10
Brake fluid
– indicator/warning lamp11
Brake hydraulic system
– indicator/warning lamp11
Brake lamps
– indicator lamp, defective
bulb11
Brake pad wear indicator
– warning lamp11
Brakes
– indicator/warning lamps11
– operating noise22
Brake system
– indicator/warning lamps11
Breaking-in inspection17
Breaking in the differential,
refer to Engine and
differential22
Breaking in the transmission,
refer to Transmission22Break-in procedures22
Buttons on the steering
wheel9
C
Capacity
– cargo bay, refer to
Weights41
Cargo bay
– battery cover31
– capacity41
Center console, refer to
Around the center
console12
Charge indicator lamp10
Check gas cap, indicator
lamp11
Cockpit8
Comfort area, refer to Around
the center console12
Compound brake discs, refer
to Braking safely22
Consumption display, refer to
Fuel gauge17
Controls and displays8
Coolant
– indicator lamp11
Coolant temperature17
Coolant temperature gauge,
refer to Coolant
temperature17
Curb weight, refer to
Weights41
Customized equipment, refer
to Your individual vehicle5
Cylinders, refer to Engine
data38
D
Dashboard, refer to Cockpit8Data38
– dimensions39,40
– engine data38
– technical38
Data, technical
– capacities41
– engine data38
– weights41
DBC Dynamic Brake Control
– warning lamp11
Dimensions39,40
Dipstick, engine oil29
Displacement, refer to Engine
data38
Display elements, refer to
Instrument cluster10
Displays, refer to Instrument
cluster10
Displays and controls8
Drive-off assistance, refer to
Dynamic Stability Control
DSC18
Driving notes22
Driving stability control
systems18
DSC Dynamic Stability
Control18
– indicator lamp11,18
Dynamic Brake Control DBC
– indicator lamp11
Dynamic Driving Control16
Dynamic Stability Control
DSC18
– indicator lamp11,18
E
Engine
– breaking in22
– data38
– electronics11
– indicator lamp11
– speed17
ba5.book Seite 42 Mittwoch, 28. Februar 2007 1:09 13

Reference
At a glance
Controls
Driving tips
Mobility
43
Engine compartment28
Engine data38
Engine oil28
– adding29
– additives29
– alternative oil grades30
– approved engine oils29
– dipstick29
– indicator/warning lamp10
– oil grades, refer also to
Approved engine oils29
Engine oil level28
– checking29
– indicator/warning lamp10
Engine oil pressure28
– indicator/warning lamp10
Engine oil sensor
– indicator/warning lamp10
Engine oil temperature, refer
to Engine oil
thermometer17
Engine oil thermometer17
Engine output, refer to Engine
data38
Engine speed, refer to Engine
data38
ESP Electronic Stability
Program, refer to Dynamic
Stability Control DSC18
F
Fasten safety belts
– warning lamp11
Filling sealant into wheel33
Flat tire
– Flat Tire Monitor18
– M Mobility System31
– Tire Pressure Monitor18
Flat tire, refer to Repairing a
flat tire31
Flat Tire Monitor FTM18
– indicator/warning
lamp11,18
– snow chains27
FTM, refer to Flat Tire
Monitor18Fuel
– capacity, refer to
Capacities41
– display17
– quality26
Fuel, refer to Fuel
specifications26
Fuel display, refer to Fuel
gauge17
Fuel reserve indicator, refer to
Fuel gauge17
Fuel tank capacity, refer to
Capacities41
G
Gasoline, refer to Fuel
specifications26
Gross weight, refer to
Weights41
Ground clearance22
H
Hazard warning flashers12
Headlamp flasher
– indicator lamp10
Headlamp washer reservoir
– volume, refer to
Capacities41
Height, refer to
Dimensions39,40
High beams
– indicator lamp10
Hood28
Horn8
I
Indicator/warning lamp
– brakes11
– Flat Tire Monitor18
– Tire Pressure Monitor19
Indicator and warning lamps,
overview10
Inflation pressure monitoring,
refer to
– Flat Tire Monitor18
– Tire Pressure Monitor18Inspection, refer to Service
interval display17
Instrument cluster10
Instrument panel, refer to
Cockpit8
Instrument panel, refer to
Instrument cluster10
Interval
– display, service17
K
Knock control26
L
Length, refer to
Dimensions39,40
Longlife oils30
– alternative oils30
– approved engine oils29
Low-beam headlamps
– indicator lamp11
Low beams
– indicator lamp, defective
bulb11
Luggage compartment
capacity, refer to Cargo bay
capacity41
Luggage compartment lid
– indicator lamp11
M
M Mobility System31
– compressor32
– viscosity32
Maintenance
– refer to Service interval
display17
Manufacturer5
Measurements, refer to
Dimensions39,40
Mobility System31
O
Octane numbers, refer to Fuel
specifications26
ba5.book Seite 43 Mittwoch, 28. Februar 2007 1:09 13

Everything from A to Z
44 Oil, refer to Engine oil28
Oil consumption28
Oil grades29
Oil level28
– checking29
– indicator lamp10
Oil pressure28
– indicator/warning lamp10
Oil sensor
– indicator lamp10
Oil service17
Onboard tool kit31
P
Parking brake
– indicator lamp11
Parking lamps
– indicator lamp11
Parts and accessories, refer to
Your individual vehicle5
Permissible axle load, refer to
Weights41
Permissible gross weight,
refer to Weights41
Power output, refer to Engine
data38
Power steering, hydraulic19
Pressure, tires
– restoring with M Mobility
System31
Pressure monitoring, tires,
refer to
– Flat Tire Monitor18
– Tire Pressure Monitor
TPM18
R
Rear lamps
– indicator lamp, defective
bulb11
Refueling26
S
Safety belts
– warning lamp11Safety systems, refer to
– Dynamic Stability Control
DSC18
Sealant bottle, refer to
M Mobility System31
Service interval display17
Signal horn, refer to Horn8
Special oils, refer to Approved
engine oils29
Specified engine oils29
Speedometer10
Sport program
– Dynamic Driving Control16
Stability control, refer to
– Driving stability control
systems18
– Dynamic Stability Control
DSC18
Status at time of printing5
Steering wheel8
– buttons on steering wheel9
Switches, refer to Cockpit8
Symbols4
T
Table of contents3
Tachometer17
Tailgate
– indicator lamp11
Tank capacity, refer to Fuel
tank capacity41
Tank indicator, refer to Fuel
gauge17
Technical data38
Temperature
– engine17
Tire, flat18,19
– Flat Tire Monitor18
– indicator/warning lamp11
– M Mobility System31
– Tire Pressure Monitor18
Tire inflation pressure27
– loss18
Tire pressure monitoring,
refer to
– Flat Tire Monitor18
– Tire Pressure Monitor18Tire Pressure Monitor
TPM18
– indicator/warning lamp19
Tires
– flat18,19
– M Mobility System31
– pressure monitoring, refer to
Flat Tire Monitor18
Tool kit, refer to Onboard tool
kit31
Torque, refer to Engine
data38
TPM Tire Pressure
Monitor18
Track width, refer to
Dimensions39,40
Traction control, refer to
Dynamic Stability Control
DSC18
Turning circle, refer to
Dimensions39,40
Turn signal indicators
– indicator lamp10
V
Vehicle
– break-in period22
– dimensions, refer to
Dimensions39,40
– weight41
Volume
– fuel tank, refer to
Capacities41
W
Warning and indicator
lamps10
Washer fluid reservoir, refer to
– Capacities41
Weights41
Wheelbase, refer to
Dimensions39,40
Wheels and tires27
Width, refer to
Dimensions39,40
ba5.book Seite 44 Mittwoch, 28. Februar 2007 1:09 13

Reference
At a glance
Controls
Driving tips
Mobility
45
Windshield washer reservoir
– volume, refer to
Capacities41
Wrench/screwdriver, refer to
Onboard tool kit31
ba5.book Seite 45 Mittwoch, 28. Februar 2007 1:09 13
