Replacing components
Onboard tool kit
The onboard tool kit is stored in a tool pouch.
Roadster
The onboard tool kit can be found on the right-
hand side of the cargo bay in a compartment
next to the battery cover.
Coupe: access to onboard tool kit
1.Turn the quick-release fastener counter-
clockwise.
2.Pull out the cover.
When reinstalling the cover, make sure
that its tabs are inserted into the corre-
sponding cut-outs in the cargo bay trim panel. hand side of the cargo bay on top of the battery.
M Mobility System
Repairing a flat tire
To repair a flat tire, an M Mobility System is pro-
vided in your BMW Z4 M Roadster/Z4 M Coupe.
Using this system you can apply a sealant to the
inside of the tire, seal off the damaged area,
restore the tire inflation pressure and then con-
tinue driving.
Safety measures in the event of a flat:
Park the vehicle as far as possible from
passing traffic and on solid ground. Switch on
the hazard warning flashers.
Lock the steering wheel so that the wheels are
facing straight ahead. Apply the parking brake
and engage first or reverse gear. Have all vehi-
cle occupants get out of the vehicle and ensure
that they remain outside the immediate area in a
safe place, such as behind a guardrail.
If a warning triangle
* or portable hazard warning
lamp
* is r e q u ir e d , s et i t up o n t h e ro a d s id e a t a n
appropriate distance from the rear of the vehi-
cle. Comply with all national safety guidelines
and regulations.<
Preparation
If possible, do not remove foreign bodies which
have penetrated the tire.
ba5.book Seite 31 Mittwoch, 28. Februar 2007 1:09 13

Replacing components
32 Corresponding information on using the
M Mobility System is also provided on the
device.<
Before using the M Mobility System, note
the information on the sealant bottle.<
Pull the sticker for the speed limit off the sealant
bottle and affix it to the steering wheel.
Please observe the expiry date on the
sealant bottle.<
Roadster
The M Mobility System is located on the right-
hand side of the cargo bay on the battery cover.
With the convertible top closed, fold the
convertible top compartment panel up to
remove the Mobility Set.<
To avoid any damage when opening the
convertible top, make sure that the con-
vertible top compartment panel in the cargo bay
has been folded down.<
Coupe: access to the Mobility Set
1.Turn the quick-release fastener counter-
clockwise.
2.Pull out the cover.When reinstalling the cover, make sure
that its tabs are inserted into the corre-
sponding cut-outs in the cargo bay trim panel.<
The M Mobility System is located on the right-
hand side of the cargo bay in a compartment on
top of the battery.
The M Mobility System consists of
1Sealant bottle and sticker with speed limit
2Filler hose from sealant bottle to wheel
3Cable and connector to cigarette lighter
socket
4Mounting for sealant bottle
5Compressor
6On/off switch
7Gauge for indicating tire inflation pressure
8Button for reducing tire inflation pressure
ba5.book Seite 32 Mittwoch, 28. Februar 2007 1:09 13

Reference
At a glance
Controls
Driving tips
Mobility
33
9Connecting hose for connecting compres-
sor and sealant bottle or compressor and
wheel
Connector, cable and connecting hose are
attached to the bottom of the compressor.

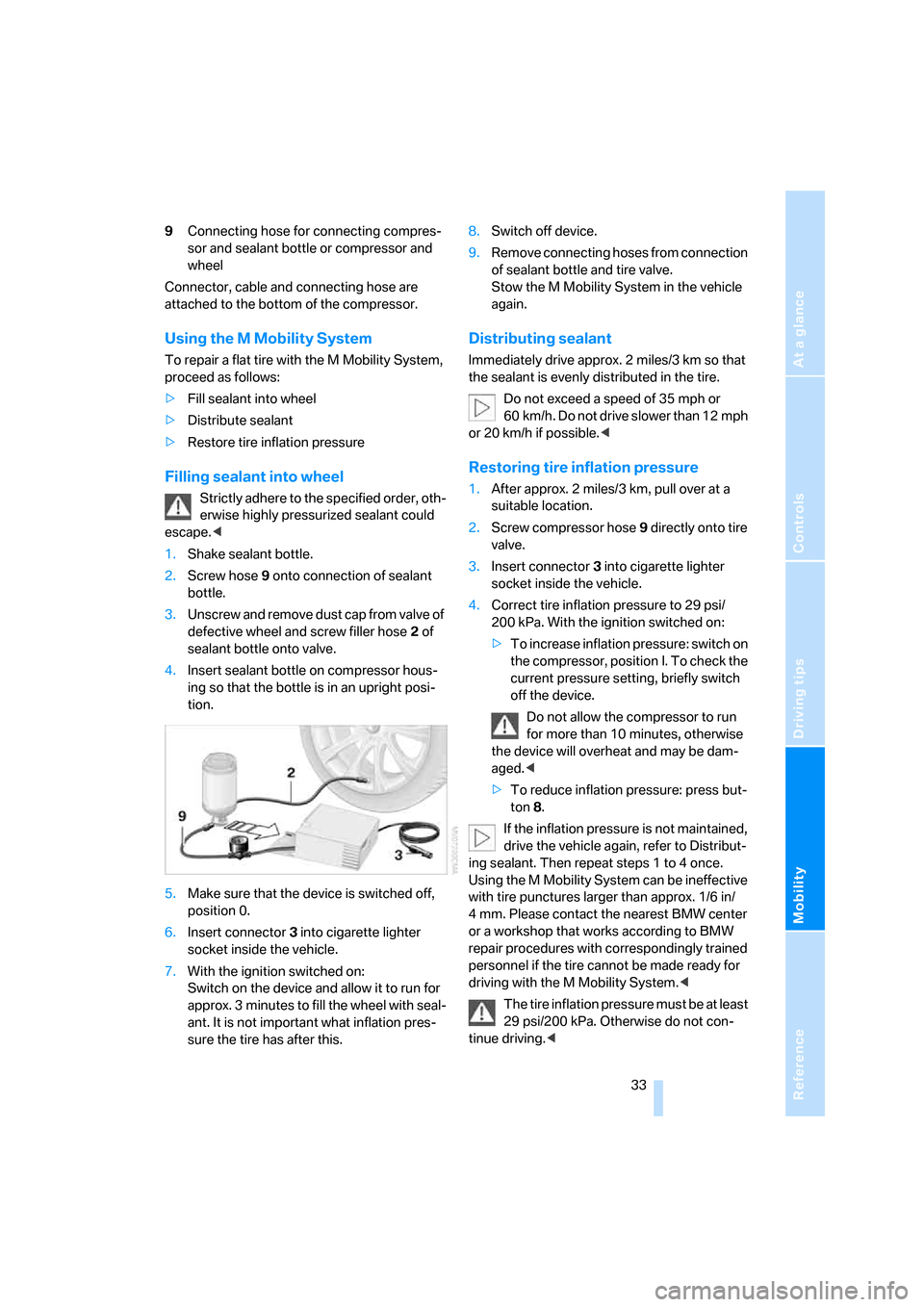

Using the M Mobility System
To repair a flat tire with the M Mobility System,
proceed as follows:
>Fill sealant into wheel
>Distribute sealant
>Restore tire inflation pressure
Filling sealant into wheel
Strictly adhere to the specified order, oth-
erwise highly pressurized sealant could
escape.<
1.Shake sealant bottle.
2.Screw hose9 onto connection of sealant
bottle.
3.Unscrew and remove dust cap from valve of
defective wheel and screw filler hose2 of
sealant bottle onto valve.
4.Insert sealant bottle on compressor hous-
ing so that the bottle is in an upright posi-
tion.
5.Make sure that the device is switched off,
position 0.
6.Insert connector 3 into cigarette lighter
socket inside the vehicle.
7.With the ignition switched on:
Switch on the device and allow it to run for
approx. 3 minutes to fill the wheel with seal-
ant. It is not important what inflation pres-
sure the tire has after this.8.Switch off device.
9.Remove connecting hoses from connection
of sealant bottle and tire valve.
Stow the M Mobility System in the vehicle
again.
Distributing sealant
Immediately drive approx. 2 miles/3 km so that
the sealant is evenly distributed in the tire.
Do not exceed a speed of 35 mph or
60 km/h. Do not drive slower than 12 mph
or 20 km/h if possible.<
Restoring tire inflation pressure
1.After approx. 2 miles/3 km, pull over at a
suitable location.
2.Screw compressor hose9 directly onto tire
valve.
3.Insert connector 3 into cigarette lighter
socket inside the vehicle.
4.Correct tire inflation pressure to 29 psi/
200 kPa. With the ignition switched on:
>To increase inflation pressure: switch on
the compressor, position I. To check the
current pressure setting, briefly switch
off the device.
Do not allow the compressor to run
for more than 10 minutes, otherwise
the device will overheat and may be dam-
aged.<
>To reduce inflation pressure: press but-
ton 8.
If the inflation pressure is not maintained,
drive the vehicle again, refer to Distribut-
ing sealant. Then repeat steps 1 to 4 once.
Using the M Mobility System can be ineffective
with tire punctures larger than approx. 1/6 in/
4 mm. Please contact the nearest BMW center
or a workshop that works according to BMW
repair procedures with correspondingly trained
personnel if the tire cannot be made ready for
driving with the M Mobility System.<
The tire inflation pressure must be at least
29 psi/200 kPa. Otherwise do not con-
tinue driving.<
ba5.book Seite 33 Mittwoch, 28. Februar 2007 1:09 13

Replacing components
34
Continued driving
Do not exceed the permissible maximum
speed of 50 mph or 80 km/h, otherwise
accidents could result.<
Reinitialize the Flat Tire Monitor
* or reset
the Tire Pressure Monitor
*. For more
information, refer to the BMW Z4 Owner's Man-
ual.
Have the defective tire and the sealant bottle of
the M Mobility System replaced as soon as
possible.<
ba5.book Seite 34 Mittwoch, 28. Februar 2007 1:09 13

Reference
At a glance
Controls
Driving tips
Mobility
35
ba5.book Seite 35 Mittwoch, 28. Februar 2007 1:09 13

ba5.book Seite 36 Mittwoch, 28. Februar 2007 1:09 13

Reference
This chapter will help you find the desired
information as quickly as possible. It contains
the Technical data section as well as the
manual's index.
Reference
ba5.book Seite 37 Mittwoch, 28. Februar 2007 1:09 13

Technical data
38
Technical data

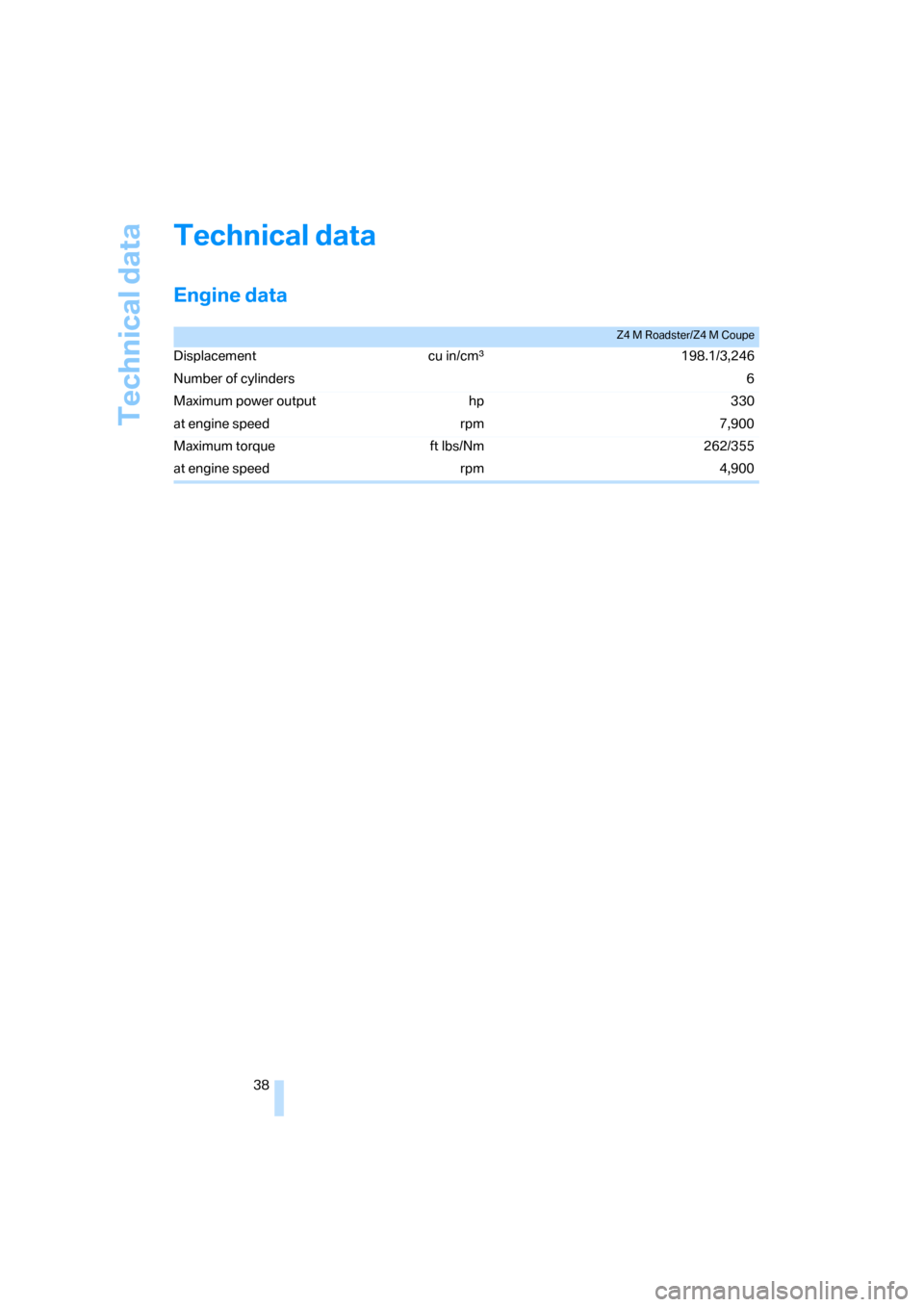

Engine data
Z4 M Roadster/Z4 M Coupe
Displacement cu in/cmµ198.1/3,246
Number of cylinders6
Maximum power output hp 330
at engine speed rpm 7,900
Maximum torque ft lbs/Nm 262/355
at engine speed rpm 4,900
