2007 Alfa Romeo 8C Owner handbook (in English)

183
7
CAPACITIES AND TECHNICAL SPECIFICATIONS
SUSPENSION
Front and rear
Articulated quadrilateral suspension.
STEERING
Rack and pinion hydraulic steering, with pump
driven by the drive shaft and tank. Articulated
steering column, with energy absorption and
adjustable inclination and height.
- Steering diameter = 10.7 m
- Number of steering wheel turns = 1.3
(to the left and right)WHEELS
Wheel rims and tyres
Wheel rim size Tyre size
front 8.5”J x 20” 245/35 ZR20
rear 10.5”J x 20” 285/35 ZR20
*front 8.5”J x 20” 245/35 ZR20 VM+S
*rear 10.5”J x 20” 275/35 ZR20 VM+S
* Winter tyres
CAUTION
Alternatively, you may use winter tyres having the same dimensions as
those provided with the vehicle.
CAUTION
When winter tyres are fitted, it is advisable not to exceed a speed of 220
km/h. Always observe the regulations in force in the country where you are
driving and follow the instructions provided by the tyre manufacturer.
Spare wheel (Japan only)
Alloy wheel rim.Tyre size Tyre brand
175/55 R18 VREDESTEIN

184
7
Snow chains
Maximum radial protrusion permitted over the tyre profile: 9 mm.Rear tyre Snow chains: brand/type
285/35 ZR20 Konig SupermagicWARNING: The snow chains must be fitted only on the rear tyres. To purchase snow chains contact an
Authorised Service Centre of the Manufacturer’s Network.PERFORMANCEMaximum speed Km/h mph
292 181
CAUTION
When winter tyres are fitted, it is advisable not to exceed a speed of 220
km/h. Always observe the regulations in force in the country where you are
driving and follow the instructions provided by the tyre manufacturer.
Accelerations with standing start (in seconds) 0-100 Km/h 0-400 m
4.2 sec. 12.4 sec.
WEIGHTS
Weights
Unladen vehicle weight (with fluids, tools and accessories) 1,585 kg
Weight with full load (2 passengers and luggage) 1,785 kg

185
7
910 mm 2645 mm
4381 mm826 mm
1590 mm
1341 mm
1589 mm
1894 mm
CAPACITIES AND TECHNICAL SPECIFICATIONS
DIMENSIONS

186
7
TYRE PRESSURETyre inflation pressure when cold (bar).
Wheel rim size Tyre size Infl ation pressure when
cold (bar)
front 8.5”J x 20” 245/35 ZR20 2.2
rear 10.5”J x 20” 285/35 ZR20 2.2
*front 8.5”J x 20” 245/35 ZR20 VM+S 2.2
*rear 10.5”J x 20” 275/35 ZR20 VM+S 2.2
* Winter tyres
CAUTION
Alternatively, you may use winter tyres having the same dimensions as
those provided with the vehicle.
CAUTION
When winter tyres are fitted, it is advisable not to exceed a speed of
220 km/h. Always observe the regulations in force in the country where you are
driving and follow the instructions provided by the tyre manufacturer.

7

8VEHICLE IDENTIFICATION DATA
ACTIVE AND PASSIVE SAFETY
INSTRUMENTS AND CONTROLS
BEFORE YOU DRIVE
USING THE VEHICLE
IN AN EMERGENCY
CAPACITIES AND TECHNICAL SPECIFICATIONS
MAINTENANCE

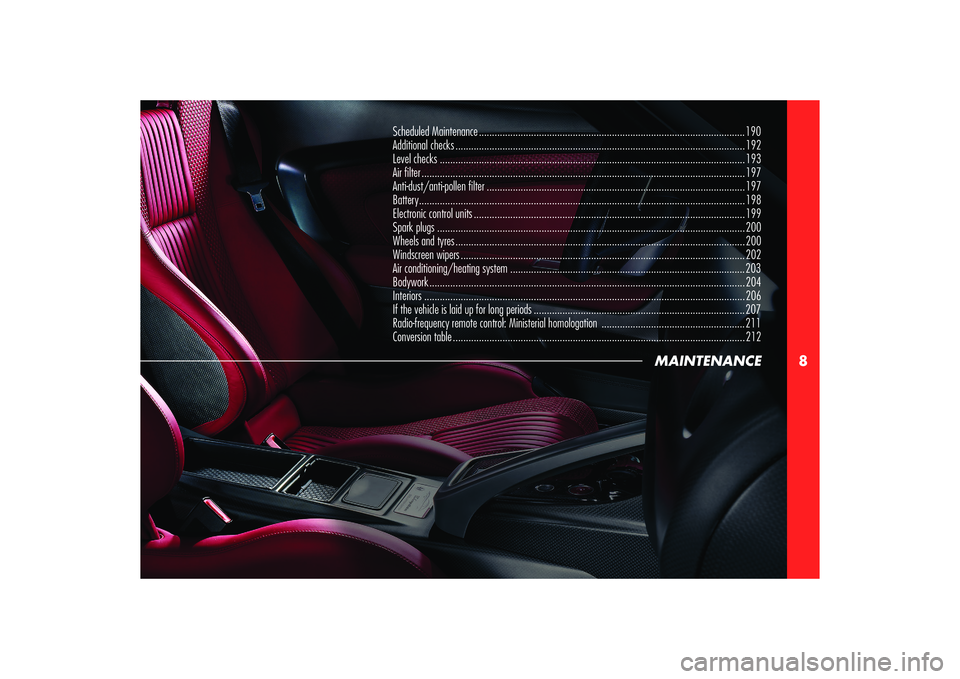

TABLE OF CONTENTS

8
MAINTENANCE
Scheduled Maintenance ...................................................................................................... 190
Additional checks ............................................................................................................... 192
Level checks ..................................................................................................................... 193
Air fi lter ............................................................................................................................ 197
Anti-dust/anti-pollen fi lter ................................................................................................... 197
Battery ............................................................................................................................. 198
Electronic control units ........................................................................................................ 199
Spark plugs ...................................................................................................................... 200
Wheels and tyres ............................................................................................................... 200
Windscreen wipers .............................................................................................................202
Air conditioning/heating system .......................................................................................... 203
Bodywork ......................................................................................................................... 204
Interiors ........................................................................................................................... 206
If the vehicle is laid up for long periods ................................................................................. 207
Radio-frequency remote control: Ministerial homologation ....................................................... 211
Conversion table ................................................................................................................ 212

190
8
SCHEDULED
MAINTENANCECorrect maintenance is clearly the best way
to maintain vehicle performance and safety
features, ensure respect for the environment and
low operating costs.WARNING: Also remember that the scrupulous
observance of the maintenance procedures is
essential for the validity of the warranty.For this reason, Alfa Romeo has provided for
a series of checks and maintenance operations
involving the 1
st service when the vehicle
mileage reaches 5,000 km or after 6 months of
the vehicle life, and subsequently every 10,000
km or every year. AFTER THE 11
TH SERVICE
After the 11
th service, scheduled maintenance is
restarted with the same operations performed for
the 1
st, 2nd, 3rd Services
WARNING: The Scheduled Maintenance services
are prescribed by the Manufacturer. Failure to
have the services carried out invalidates the
warranty.
Scheduled Maintenance Services are
provided by all Authorised Service Centres
of the Manufacturer’s Network. In the
event that, when a service is performed,
further replacements or repairs are found to
be necessary in addition to the scheduled
operations, these can be carried out only with
the specific consent of the Customer. WARNING: We advise you to immediately
report to an Authorised Service Centre of the
Manufacturer’s Network any small operating
failures and not to wait for the next service.The Maintenance Schedule is contained in the
“Warranty and Maintenance Schedule” book.
