2007 Acura RL Owner's Manual

Most audio system functions can still
be controlled by standard buttons,
dials, and knobs, but some functions
can only be accessed using the
interface dial. The interface dial has
two parts, a knob and a selector. The
selector can be pushed left,
right, up, down, and in. Use the
selector to scroll through lists, to
select menus, and to highlight menu
items. When you make a selection,
push the center of the selector
(ENTER)togotothatselection. The knob turns left and right. Use it
to make selections or adjustments to
a list or menu on the screen. When
you unlock the doors with
your remote and turn the audio
system on, the driver’s ID (Driver 1
or Driver 2) is detected, and the
radio preset memory (see page ),
the auto select preset memory (see
page ), and the volume and
sound level settings (see page )
are turned to the respective
memorized mode automatically.
The audio system can also be
operated by voice control.
See the Navi section in your quick
start guide for an overview of this
system, and the navigation system
manual for complete details.
Refer to Voice Control Basics for
complete details (see page ). 210
211 214
263
On models without navigation system
On models with navigation system
Interf ace Dial
Personalization Setting
Voice Control System
Audio System
Features
207
KNOB
ENTER
SELECTOR
——
y
y
(y
y

Audio System
Playing the AM/FM Radio
208
PRESET BUTTONSAM/FM
BUTTON
TUNE
BUTTONS TUNE
BUTTONS
AUTO
SELECT
BUTTON
AM BUTTON
FM BUTTON
AUDIO
DISPLAY
BUTTON SEEK
BUTTONS
AUDIO
DISPLAY
BUTTON
PRESET BUTTONS
UPPER DISPLAY
SCAN
BUTTON SEEK
BUTTONS SCAN
BUTTON
INTERFACE DIAL INTERFACE DIAL
POWER/
VOLUME
KNOB
POWER/
VOLUME
KNOB
U.S. models (Technology package model is shown)
Canadian and Hawaiian models
——
y
y
(y
y

µUse the TUNE button to
tune the radio to a desired f requency.
Press the button to tune to a
higher f requency, or the button
to tune to a lower f requency. To tune
with the interf ace dial, push the
selector down, and turn the knob to
TUNE. Then press ENTER on the
selector, and turn the knob to the
desired f requency. To exit the
TUNE mode, press ENTER on the
selector.
You can use any of f ive methods to
f ind radio stations on the selected
band:
the
preset buttons, and .
The ignition switch must be in the
ACCESSORY (I) or the ON (II)
position. Press the AUDIO button to
view the audio control display. Turn
the system on by pressing the
power/volume knob or the AM/FM
button (AM or FM button on
Canadian and Hawaiian models).
Adjust the volume by turning the
power/volume knob. The band and f requency that the
radio was last tuned to are shown on
the display. To change bands, press
the AM/FM button (AM or FM
buttononCanadianandHawaiian
models). You can also change bands
by pushing the interf ace selector up.
Each time you push it up, the band
will change to FM1, FM2, or AM. On
the FM bands, STEREO will be
shown on the navigation screen and
ST on the upper display, if the
stationisbroadcastinginstereo.
Stereo reproduction on AM is not
available.
CONT INUED
TUNE
To Select a Station TUNE,SEEK,SCAN, AUTO SELECT
Audio System
Features
209
STEREO ICON
TUNE ICON
BAND
——
y
y
(y
y

µµ µ
The SEEK f unction
searches up and down from the
current f requency to f ind a station
with a strong signal. To activate it,
press the or SEEK button,
then release it. You can also activate
SEEK by pushing the interf ace
selector to the right or lef t.
The SCAN f unction
samples all stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. Each preset button or
preset icon can store one f requency
on AM and two f requencies on FM.
Usethetune,seek,orscan
function to tune the radio to a
desired station.
To scan with the interf ace dial, push
the selector down, and then push it
to the right. You will see SCAN
f lashing on the screen and the upper
display.
The system will scan f or a station
with a strong signal. When it f inds
one, it will stop and play that station
f or about 10 seconds. If you do
nothing, the system will then scan
f or the next strong station and play it
f or 10 seconds. When it plays a
station that you want to listen to,
press the scan button again, or push
the interface selector to the right
again. Select the desired band, AM or
FM. FM1 and FM2 let you store
twosetsof FMfrequencieswith
the preset buttons (on-screen
icons).
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM. Press the preset button, and hold
it until you hear a beep. You can
also store f requencies with the
interf ace dial. Select the preset
icon you want to store the
f requency on, then press ENTER
on the interf ace selector, and hold
it f or more than 2 seconds.
4. 1.
2.
3.
To store a preset memory location:
SEEK
SCAN Preset
Audio System
210
SCAN ICON
——
y
y
(y
y

µIf you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area. You will see ‘‘0’’ displayed if auto
select cannot f ind a strong station f or
every preset button.
If you do not like the stations auto
select has stored, you can store
other f requencies on the preset
buttons (icons) as previously
described.
To turn of f auto select, press
ENTER on the interf ace selector
(press the A.SEL button) again. This
restores the presets you originally
set.
Push the interf ace selector down to
scroll down the screen, highlight
A.SEL, then press ENTER on the
interf ace selector. You will see
A.SEL on the upper display and
AUTO SEL on the screen, and the
system goes into scan mode f or
several seconds.
Press the A.SEL button. You will see
A.SEL on the upper display AUTO
SEL on the screen, and the system
goes into scan mode f or several
seconds. The system stores the
f requencies of six AM and twelve
FM stations in the preset buttons.
U.S. models (except Hawaiian)
Canadian and Hawaiian models
AUTO SELECT
Audio System
Features
211
AUTO SEL ICON
——
y
y
(y
y

Those bands cover these f requen-
cies:
AM band: 530 to 1,710 kHz
FM band: 87.7 to 107.9 MHzDriving very near the transmitter of
a station that is broadcasting on a
f requency close to the f requency of
the station you are listening to can
also af f ect your radio’s reception.
You may temporarily hear both
stations,orhearonlythestationyou
are close to.
The radio can receive the complete
AM and FM bands.
How well the radio receives stations
is dependent on many f actors, such
as the distance from the station’s
transmitter, nearby large objects,
and atmospheric conditions.
A radio station’s signal gets weaker
as you get f arther away f rom its
transmitter. If you are listening to an
AM station, you will notice the sound
volume becoming weaker, and the
stationdriftinginandout.If youare
listening to an FM station, you will
see the stereo indicator f lickering of f
and on as the signal weakens.
Eventually, the stereo indicator will
go of f and the sound will f ade
completely as you get out of range of
the station’s signal.
Radio stations on the AM band are
assigned f requencies at least 10 kHz
apart (530, 540, 550). Stations on the
FM band are assigned f requencies at
least 0.2 MHz apart (87.9, 88.1, 88.3).
Stations must use these exact
f requencies. It is f airly common f or
stations to round-of f the f requency in
their advertising, so your radio could
display a f requency of 100.9 even
though the announcer may identif y
the station as ‘‘FM101.’’
Audio System
A M/FM Radio Frequencies A M/FM Radio Reception
212
——
y
y
(y
y

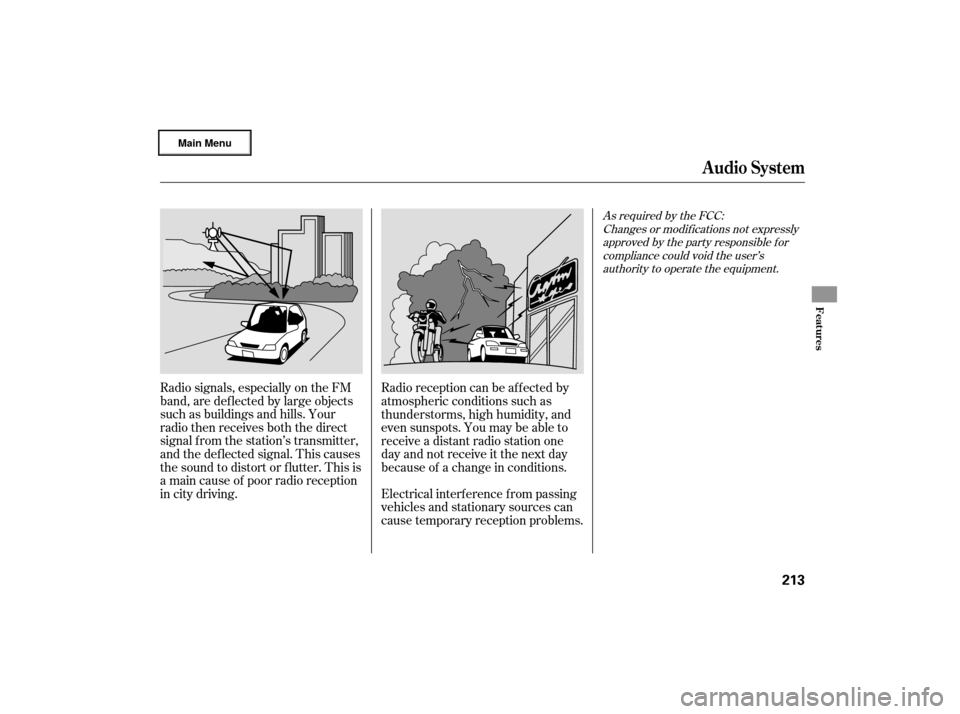

Radio signals, especially on the FM
band, are def lected by large objects
such as buildings and hills. Your
radio then receives both the direct
signal f rom the station’s transmitter,
and the def lected signal. This causes
the sound to distort or flutter. This is
a main cause of poor radio reception
in city driving.Radio reception can be af f ected by
atmospheric conditions such as
thunderstorms, high humidity, and
even sunspots. You may be able to
receive a distant radio station one
day and not receive it the next day
because of a change in conditions.
Electrical interf erence f rom passing
vehicles and stationary sources can
cause temporary reception problems.
As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
Audio System
Features
213
——
y

y
(y
y

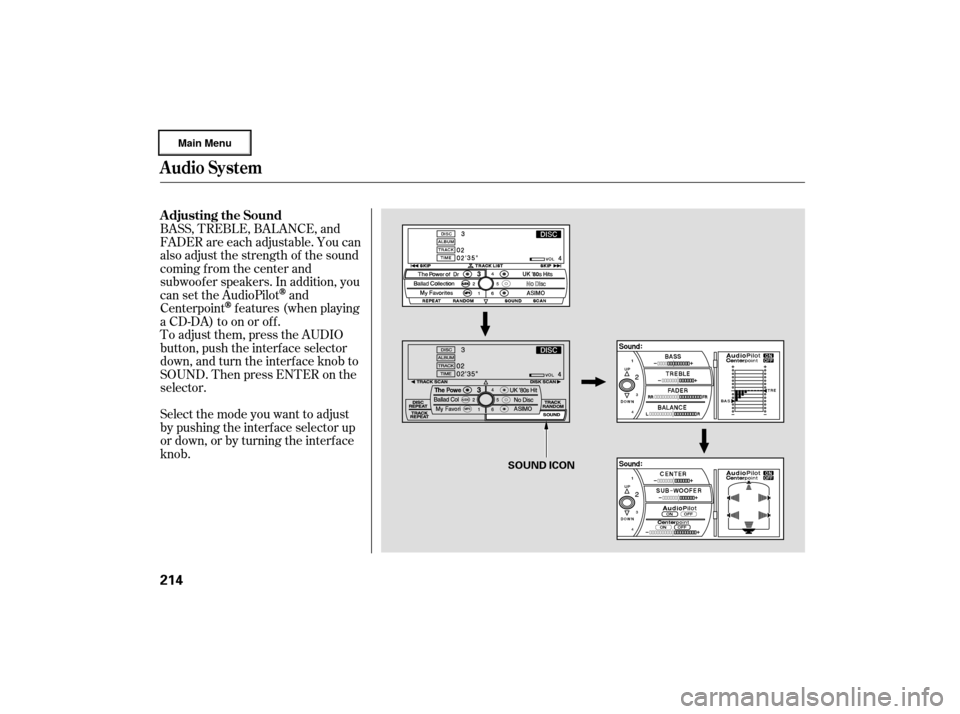

Selectthemodeyouwanttoadjust
by pushing the interf ace selector up
or down, or by turning the interf ace
knob. To adjust them, press the AUDIO
button, push the interf ace selector
down, and turn the interf ace knob to
SOUND. Then press ENTER on the
selector. BASS, TREBLE, BALANCE, and
FADER are each adjustable. You can
also adjust the strength of the sound
coming from the center and
subwoof er speakers. In addition, you
can set the AudioPilot
and
Centerpoint
f eatures (when playing
a CD-DA) to on or of f .
Audio System
Adjusting the Sound
214
SOUND ICON
——
