2007.5 Citroen C5 engine

60
II
1
2
R E A R V I E W M I R R O R S
Fold-back of door mirrors
When the vehicle is parked, the door mirrors can be folded back either manually or electrically.
Electric fold-back
From the central position, one press towards the rear on control 1folds the rear view mirrors back.
To return them to the initial position, press again on control 1 towards the rear.
Automatic fold-back on lock-ing
Automatic fold-back operates when you lock the doors.
The opposite movement will take place on unlocking, unless fold-back has been requested using control 1 before switching off the ignition.Note: Automatic fold-back of the rear view mirrors can be deac-tivated. Contact a CITROËN dealer.
In reverse gear: adjustment of the indexed positions for the passenger’s and driver’s rear view mirrors
With the engine running:1. Select the (driver's or passen-ger's) rear view mirror using control 1.2. Engage reverse gear, the mir-ror glass automatically posi-tions itself to improve your vision of the pavement.3. Adjust the mirror to your prefer-ence using control 2.
These adjustments are automati-cally memorised.
The rear view mirrors resume their original position:20 seconds after reverse gear is disengaged.
Once the vehicle reaches a speed of over 10 km/h (6 mph).
Deactivation of the driver's and passenger's indexed rear view mirrors function
To deactivate the function, move control 1 to the central position.Note: this action cancels the indexing of the rear view mirrors if in progress.

66
II
3
5
4
2
1
C R U I S E C O N T R O L
To cancel the functionPress on button 5.
Select the cruise control func-tion.Or stop the engine.
The speed that was chosen is no longer memorised.
If there is a malfunction, a mes-sage is displayed accompanied by a sound signal and lighting of the SERVICE warning lamp.
Contact a CITROËN dealer.

67
II
3
5
4
2
1
A
S P E E D L I M I T E R
This driving aid allows you to choose a maximum speed that you do not wish to exceed. This has to be over 30 km/h (19 mph).
The speed limiter controls are located on the steering wheel.Note: The speed limiter informa-tion is displayed in zone A of the instrument panel.
To select the function
Press on button 4 to select speed limiter mode “LIMIT”.
The selection is confi rmed by the display of the function in zone A of the instrument panel.
To adjust the maximum speed
With the engine running, you can adjust the memorised maximum speed, displayed in zone A, by pressing on:Button 1 to increase the memo-rised maximum speed.
Button 2 to decrease the mem-orised maximum speed.
Remark: Successive presses will modify the cruise speed in steps of 1 km/h and a continuous press in steps of 5 km/h (3 mph).

68
II
3
5
4
2
1
A
S P E E D L I M I T E R
Suspension or resumption of maximum speed
Press on button 3.
Temporary override of the maximum speed
The accelerator pedal has an end-of-travel switch. In order to exceed the memorised maximum speed at any time, you can press the pedal all the way down. While the speed is being exceeded, the speed dis-played in zone A will fl ash. You have only to release the accelera-tor pedal to return below the maxi-mum speed, to restore the func-tion.
Remark: the speed will also fl ash if the speed limiter is not able to prevent the vehicle from exceeding the programmed speed (e.g. on a steep descent or under excessive acceleration).
To reactivate the speed limiter, release the accelerator to slow to a speed lower than the programmed speed.
To cancel the functionPress on button 5.Select the speed limiter func-tion.
Or stop the engine.
The speed that was chosen is no longer memorised.
If there is a malfunction, a mes-sage is displayed accompanied by a sound signal and lighting of the SERVICE warning lamp.
Contact a CITROËN dealer.

73
II
A U T O M A T I C G E A R B O X
The engine can only be started when the lever is at position P or N.
A safety device ensures that starting is impossible in the other positions.
Once the engine has been started, with the gear lever at P, press on the brake pedal then place the lever at:D for automatic mode.
R for reverse gear.M to change to manual mode.
The change from position D (driving in automatic mode) to position M (driv-ing in sequential mode) or vice versa can be made at any time.
The gear selected is displayed on the instrument panel.

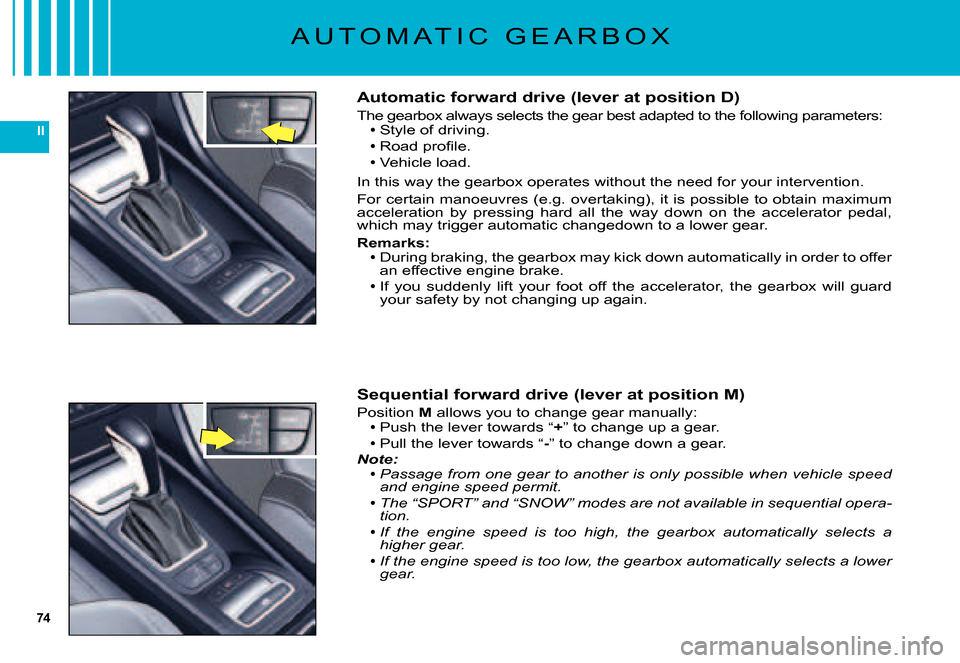

74
II
A U T O M A T I C G E A R B O X
Automatic forward drive (lever at position D)
The gearbox always selects the gear best adapted to the following parameters:Style of driving.
Road profi le.Vehicle load.
In this way the gearbox operates without the need for your i ntervention.
For certain manoeuvres (e.g. overtaking), it is possible to obtain maximum acceleration by pressing hard all the way down on the accelerat or pedal, which may trigger automatic changedown to a lower gear.
Remarks:During braking, the gearbox may kick down automatically in order to offer an effective engine brake.
If you suddenly lift your foot off the accelerator, the gearbox will guard your safety by not changing up again.

75
II
A
B
A U T O M A T I C G E A R B O X
Operation in SPORT or SNOW automatic mode
Lever at D:
Press on button A to select the SPORT driving mode.
Press on button B to select the SNOW driving mode.
Pressing again on button A or B returns you to NORMAL driving mode.
NORMAL mode is selected by default when the engine is started. This driving mode is suitable for normal driving conditions.
No warning lamp will light up in the instrument panel.
SNOW mode facilitates starting and smooth driving when road adherence conditions are poor.
The instrument panel display lights up.
SPORT mode is for more responsive driving, to provide maximum performance and acceleration.
The instrument panel display lights up.
Remark: The driving mode selected before you switched off the engin e will be retained the next time you start up.
If there is an operating fault, the gearbox is stuck in a gear, do not exceed 100 km/h (approx. 60 mph).
Juddering may be felt when selecting R for reverse gear or when returning to position D.
Consult a CITROËN dealer as soon as possible.
Do not stop your engine if the gear selector lever is in position D or R.

77
II
A
The electronic parking brake com-bines 2 operational modes:AUTOMATIC:
Automatic application when the engine is stopped and automatic release on use of the accelerator (automatic operation by default).
MANUAL:The MANUAL application/release of the parking brake is possible permanently by pull-ing/pushing control A.
