2006 TOYOTA SIENNA Owners Manual

06 SIENNA_U (L/O 0603)
321
2006 SIENNA from March ‘06 Prod. (OM45443U)
“AUTO” button
For automatic operation of the rear air
conditioning, press the “AUTO” button. An
indicator light will illuminate to show that
the automatic operation mode has been
selected.
In the automatic operation mode, the air
conditioning selects the most suitable fan
speed and air flow according to the tem-
perature.
You may use manual controls if you want
to select your own settings.
Fan speed selectors
Push the button to select the fan speed
mode.
In the automatic operation mode, the fan
speed is adjusted automatically unless you
desire another fan speed mode.Temperature selectors
To increase the temperature, press the
“
 ” side. To decrease it, press the “ ”
side.
“LO” appears when you adjust to maxi-
mum cooling, and “HI” appears when you
adjust to maximum warming.
When “SYNC” appears on the rear tem-
perature display, rear controls cannot be
used. Use the controls on the front control
panel. To cancel this function, push the
“SYNC” button. For details about the
“SYNC” button, see “Front automatic air
conditioning system” on page 312 in this
Section.
The temperature display changes between
“  C” and “ F” when the unit of the outside
temperature display is changed. (For de-
tails, see “Multi −information display” on
page 326 in Section 1 −10.)
“REAR” button
To turn on the rear air conditioning system
using the front control panel, push the
button. To turn it off, push the button
again.
“OFF” button
Push the button to turn off the rear air
conditioning system.
Air flow selectors
Push the button to select the vents used
for air flow. 1. Panel— Air flows from the roof panel
vents.
2. Bilevel— Air flows from both the roof
panel vents and floor vent.
3. Floor— Air flows from the floor vent.

06 SIENNA_U (L/O 0603)
322
2006 SIENNA from March ‘06 Prod. (OM45443U)
The air conditioning filter information
label is placed on the right side of the
glove box as shown and indicates that
a filter has been installed.
The air conditioning filter prevents dust
from entering the vehicle through the air
conditioning vent.The air conditioning filter is behind the
glove box.
—Air flow selector settings Air conditioning filter—

06 SIENNA_U (L/O 0603)
323
2006 SIENNA from March ‘06 Prod. (OM45443U)
The air conditioning filter may clog af-
ter long use. The filter may need to be
replaced if the air flow of the air condi-
tioning and heater experiences extreme
reductions in operating efficiency, or if
the windows begin to fog up easily.
To maintain the air conditioning efficiency,
inspect and replace the air conditioning
filter according to the maintenance sched-
ule. In dusty areas or areas with heavy
traffic flow, such as inner city or desert
areas, early replacement may be required.
(For scheduled maintenance information,
please refer to the “Scheduled Mainte-
nance Guide” or “Owner ’s Manual Supple-
ment”.)
1. Open the glove box, and slide offthe damper as shown.2. Push in each side of the glove boxto disconnect the claws.
—Checking and replacing the
air conditioning filter

06 SIENNA_U (L/O 0603)
324
2006 SIENNA from March ‘06 Prod. (OM45443U)
3. Remove the filter case from the filteroutlet as shown in the illustration.4. Remove the filter from the filtercase.
5. Inspect the filter on the surface.
If it is dirty, it should be replaced.
INFORMATION
The air filter should be installed prop-
erly in position. The use of air condi-
tioning with the air filter removed
may cause deteriorated dustproof per-
formance and then affect air condi-
tioning performance.

06 SIENNA_U (L/O 0603)
325
2006 SIENNA from March ‘06 Prod. (OM45443U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Multi−information display 326
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clock 338
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Conversation mirror 339
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Toyota park assist system 340
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear view monitor system 348
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlets 351
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Glove box 354
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Garage door opener box 354
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Auxiliary boxes 357
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Coin holder 359
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Cup holders 359
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Bottle holders 361
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Storage box 362
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Removable console box 362
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Note pad holder 367
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Front seat side table 368
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Coat hooks 369
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Grocery bag hooks 369
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
Cargo net hooks 370
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Tie −down hooks 371
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Roof luggage carrier 372
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
Sun shade 373
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Floor mat 373
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
SECTION 1 10

06 SIENNA_U (L/O 0603)
326
2006 SIENNA from March ‘06 Prod. (OM45443U)

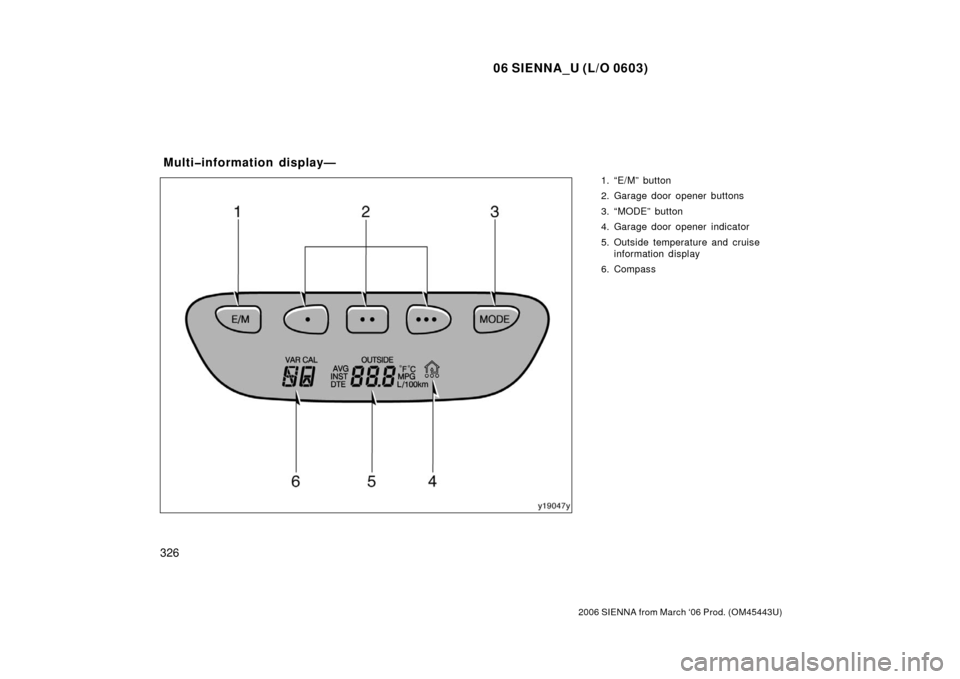

1. “E/M” button
2. Garage door opener buttons
3. “MODE” button
4. Garage door opener indicator
5. Outside temperature and cruiseinformation display
6. Compass
Multiinformation display—

06 SIENNA_U (L/O 0603)
327
2006 SIENNA from March ‘06 Prod. (OM45443U)
Operate the multiinformation display
with the ignition switch on.
When the ignition switch is turned to
“ON”, the last previously used mode dis-
played just before the ignition switch is
turned off will appear.
When the instrument panel lights are
turned on, the brightness of the display
will be reduced.
—Before using the
multiinformation display
Indication
English/U.S.
Customary
System (E) Metric (M) Outside
temperature
F
 C Instantaneous fuel consumption/
Average fuel consumption
MPG
L/100 km Distance to empty
MI
km
“E/M” button
This button is used to switch between English/U.S. Customary System and
metric units.
Each time you push this button, the display switches. This is also linked to the front
and rear air conditioning displays. The display variations are as follows;

06 SIENNA_U (L/O 0603)
328
2006 SIENNA from March ‘06 Prod. (OM45443U)
“MODE” button
This button is used to select the item.
Every time you push the “MODE” button,
the display toggles.
For more details, see “—Outside tempera-
ture and cruise information display” on
page 332.
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
Buttons
Indicator light
The garage door opener (\b
Universal Transceiver) is manufactured
under license from HomeLink\b and can
be programmed to operate garage
doors, gates, entry doors, door locks,
home lighting systems, and security
systems, etc. (a) Programming the HomeLink
\b
The HomeLink\b in your vehicle has 3
buttons and you can store one program
for each button.
To ensure correct programming into the
HomeLink
\b, install a new battery in the
hand− held transmitter prior to program-
ming.
The battery side of the hand −held trans-
mitter must be pointed away from the
HomeLink
\b during the programming pro-
cess.
For Canadian users, follow the procedure
in “Programming an entrance gate/Pro-
gramming all devices in the Canadian
market”.
1. Decide which of 3 HomeLink
\b buttons
you want to program. Push and hold
down one of the buttons until the indi-
cator corresponding to the selected
channel begins to flash.
—Garage door opener
