2006 TOYOTA SIENNA Owners Manual

06 SIENNA_U (L/O 0603)
97
2006 SIENNA from March ‘06 Prod. (OM45443U)
FOLDING THIRD SEATS
Push the folding/returning switch. The
seatback will fold down.
If the indicator light above the switches
flashes three times when the folding/re-
turning switch is pushed, the folding op-
eration will not start.
To continue the operation, do the follow-
ing:1. Open the back door when the ignition key is in “LOCK” or “ACC” and/or the
automatic transmission selector lever is
in “P”.
2. Push the folding/returning switch.
Seat operation will stop if any one of
the switches shown in the illustrations
is pushed. At this time the indicator
light above the switches comes on and
a beep sounds for about 10 seconds.
If the engine is started during operating,
the seat operation may also be stopped.
To continue the folding operation, the seat-
back must be back to its original position
first. If an object is caught between the seat-
back and seat cushion, the indicator
light above the switches flashes and a
beep sounds for about 10 seconds. Re-
move the object before operating the
seat again.
If the indicator light above the switches
flashes even though there is no object
between the seatback and seat cushion,
contact your Toyota dealer.

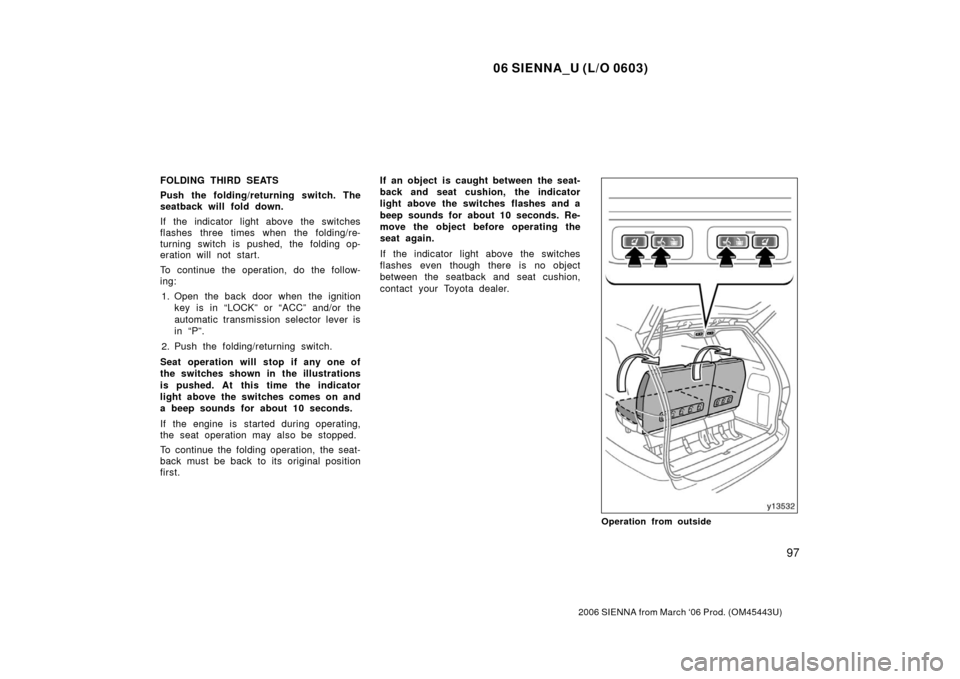

Operation from outside

06 SIENNA_U (L/O 0603)
98
2006 SIENNA from March ‘06 Prod. (OM45443U)
Operation from inside
RETURNING THIRD SEATS
Push one of the switches shown in the
illustrations. The seatback returns to its
original position.
If the indicator light above the switches
flashes three times when the switch is
pushed, the returning operation will not
start.
To continue the operation, do the follow-
ing:1. Operation from outside only—Open the back door when the ignition key is in
“LOCK” or “ACC” and/or the automatic
transmission selector lever is in “P”. 2. Lock the seat legs and push any
switch other than the stowing switch.
Seat operation will stop if any one of
the switches shown in the illustrations
is pushed. At this time the indicator
light above the switches comes on and
a beep sounds for about 10 seconds.
If the engine is started during operating,
the seat operation may also be stopped.
To continue the returning operation, the
seatback must be back to the folded posi-
tion first.
CAUTION
When folding or returning the seats,
observe the following precautions in
order to prevent personal injury:
Make sure that the seat path is
clear before moving the seat. Other-
wise, injury may result from contact
with the seat.
Be careful not to allow hands or
feet to get caught or pinched in the
seat.
When returning the seats to their
original position, make sure the seat
belts are not twisted or caught in the
seatback. It could result in serious
injuries in a sudden braking or a col-
lision.
Do not shift the automatic transmis-
sion selector lever out of “P” with
the ignition key in “ON” during the
operation. Doing so may cause the
vehicle to move and result in serious
personal injury.

06 SIENNA_U (L/O 0603)
99
2006 SIENNA from March ‘06 Prod. (OM45443U)
This “3RD SEAT” warning light warns the
third seat operation is not yet complete
when the ignition key is turned to the
“ON” position.The third seats can be stowed by push-
ing and holding the stowing switch that
is inside the back door opening on the
outer edge of the ceiling.
Before stowing the third seats:
Stow the seat belt buckles and center
seat belt. (See “—Stowing seat belt
buckles of the second and third seats”
on page 111 and “—Stowing the center
seat belt of the third seats” on page 112
in this Section.)
Lower the head restraint to the lowest
position. (See “Head restraints” on
page 104 in this Section.)
Make sure that there is no object on
the seat cushion, floor around the
seats and floor of the luggage compart-
ment. If an object is caught during the
operation, seat operation will stop.
—Stowing third seat
(power seat)

06 SIENNA_U (L/O 0603)
100
2006 SIENNA from March ‘06 Prod. (OM45443U)
1. FOLDING/RETURNING SWITCH
The seatback will be folded/returned.
(See “Folding third seats” on page 95) 2. RETURNING SWITCH
The seat will be returned from the
stowed position by pushing and holding
this switch. 3. STOWING SWITCH
The seat will be stowed by pushing and
holding this switch. 4. SEATBACK ADJUSTING SWITCH
The seatback will be returned. (See
“Folding third seats” on page 95)
The seatback will be adjusted. (See
“Adjusting third seats” on page 91)
STOWING THIRD SEATS
Push and hold the stowing switch. A
beep sounds twice to indicate the start
of the operation. The beep sounds
again twice when the operation is com-
pleted.
If the indicator light above the switches
flashes while the stowing switch is being
pushed, the stowing operation will not
start.

06 SIENNA_U (L/O 0603)
101
2006 SIENNA from March ‘06 Prod. (OM45443U)
To continue the operation, do the follow-
ing:1. Open the back door when the ignition key is in “LOCK” or “ACC” and/or the
automatic transmission selector lever is
in “P”.
2. Push and hold the stowing switch.
To operation stops, the indicator light
above the switches comes on and a beep
sounds for about 10 seconds if any of the
following condition occur during the opera-
tion:
When the stowing switch is released.
When the folding/returning switch, re-
turning switch or seatback adjusting
switch is pushed while the stowing
switch is being pushed.
When the ignition key is turned to the
“ON” position and the automatic trans-
mission selector lever is moved from
the “P” position.
When the automatic transmission selec-
tor lever is in the “N” position and the
ignition key is turned to the “ON” posi-
tion.
If the engine is started during operating,
the seat operation may also be stopped. If an object is caught between the seat-
back and seat cushion, the indicator
light above the switches flashes and a
beep sounds for about 10 seconds. Re-
move the object before operating the
seat again.
If the indicator light above the switches
flashes even though there is no object
between the seatback and seat cushion,
contact your Toyota dealer.
If an object is caught between the seat
and floor, the object prevents the seat
from moving. Do not continue the op-
eration. Remove the object before oper-
ating the seat again.
When the seat is already folded, the seat
can be stowed using the same procedure.
If an object is caught between the seat-
back and seat cushion, the stowing opera-
tion will not start.
After stowing the seats, open the flaps as
shown in the illustration.

06 SIENNA_U (L/O 0603)
102
2006 SIENNA from March ‘06 Prod. (OM45443U)
RETURNING THIRD SEATS
Push and hold the returning switch un-
til the seat cushion is locked. A beep
sounds twice to indicate the start of
the operation. Releasing the switch
when the beep sounds again completes
the operation automatically.
If the indicator light above the switches
flashes while the returning switch is being
pushed, the returning operation will not
start.To continue the operation, do the follow-
ing:
1. Open the back door when the ignition key is in “LOCK” or “ACC” and/or the
automatic transmission selector lever is
in “P”.
2. Push and hold the returning switch.
To operation stops, the indicator light
above the switches comes on and a beep
sounds for about 10 seconds if any of the
following condition occur during the opera-
tion:When the returning switch is released
before the seat legs are securely
locked.
When the folding/returning switch, stow-
ing switch or seatback adjusting switch
is pushed while the returning switch is
being pushed.
When the ignition key is turned to the
“ON” position and the automatic trans-
mission selector lever is moved from
the “P” position.
When the automatic transmission selec-
tor lever is in the “N” position and the
ignition key is turned to the “ON” posi-
tion.

06 SIENNA_U (L/O 0603)
103
2006 SIENNA from March ‘06 Prod. (OM45443U)
If the engine is started during operating,
the seat operation may also be stopped.
If an object is caught between the seat
and floor, the object prevents the seat
from moving. Do not continue the op-
eration. Remove the object before oper-
ating the seat again.
If the indicator light above the switches
flashes even though there is no object
between the seatback and seat cushion,
contact your Toyota dealer.
CAUTION
When stowing or returning the seats,
observe the following precautions in
order to prevent personal injury:
Make sure that the seat path is
clear before moving the seat. Other-
wise, injury may result from contact
with the seat.
Be careful not to allow hands or
feet to get caught or pinched in the
seat. Be sure to operate the seats
from outside the vehicle.
When the indicator above the stowing
switch and returning switch come on
or flash, do not continue the opera-
tion. An object or a person may be
caught in the seat. If a person is
caught, serious injury may result.
When returning the seats to their
original position, make sure the seat
belts are not twisted or caught in the
seatback. It could result in serious
injuries in a sudden braking or a col-
lision.
Do not shift the automatic transmis-
sion selector lever out of “P” with
the ignition key in “ON” during the
operation. Doing so may cause the
vehicle to move and result in serious
personal injury.
NOTICE
Make sure that the seat path is clear
before stowing or returning the seat.
Otherwise, the seat cushion and seat
legs may be damaged if the seat
comes into contact with the luggage.
This “3RD SEAT” warning light warns the
third seat operation is not yet complete
when the ignition key is turned to the
“ON” position.

06 SIENNA_U (L/O 0603)
104
2006 SIENNA from March ‘06 Prod. (OM45443U)
Front and second seats
Third seats
For your safety and comfort, adjust the
head restraint before driving.
To raise: Pull it up.
To lower: Push it down while pressing the
lock release button.
Third seats—When an occupant sits on
the seat, always pull up the head restraint
to the lock position.
The head restraint is most effective when
it is close to your head. Therefore, using
a cushion on the seatback is not recom-
mended.
CAUTION
Adjust the center of the head re-
straint so that it is closest to the
top of your ears.
After adjusting the head restraint,
make sure it is locked in position.
Do not drive with the head re-
straints removed.
To adjust the armrest, lower the armrest
to the lowest position and raise it to the
desired angle. Raising the armrest to the
highest position unlocks the armrest to let
you return it to the lowest position.
NOTICE
To prevent damage to the armrest,
avoid putting heavy loads on it.
Head restraintsArmrests
