2006 TOYOTA PRIUS engine

425
SPECIFICATIONS
Dimensions and weight426
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Electric motor 426
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Enginee 426
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Fuel 427
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Hybrid battery 427
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Service specifications 427
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 429
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 430
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 9

426
Overall length mm (in.) 4445 (175.0)
Overall width mm (in.) 1725 (67.9)
Overall height mm (in.) 1490 (58.7)*
Wheelbase mm (in.) 2700 (106.3)
Front tread mm (in.) 1505 (59.3)
Rear tread mm (in.) 1480 (58.3)
Vehicle capacity weight
(occupants + luggage)kg (lb.) 365 (810)
*: Unladen vehicle
Electric motor
Type: Permanent magnet synchronous motor (water cooling)
Maximum output: 50/1200 − 1540 kW/rpm
Maximum torque: 400/0 − 1200 N·m/rpm Model: 1.5 L 4
−cylinder (1NZ− FXE)
Type: 4 −cylinder in line, 4 cycle, gasoline
Bore and stroke, mm (in.): 75.0 x 84.7 (2.95 x 3.33)
Displacement, cm
3 (cu. in.):
1497 (91.4)
Dimensions and weight Engine

427
Fuel type:Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or
higher
Fuel tank capacity, L (gal., lmp.gal.): 45 (11.9, 9.9)
Hybrid battery
Type: Nickel −Metal hydride battery
Voltage: 7.2 V
Capacity: 6.5 Ah (3HR)
Quantity: 28
Overall voltage: 201.6 V
Service specifications
ENGINE
Valve clearance (engine cold), mm (in.): Intake 0.17 − 0.23 (0.007 − 0.009)
Exhaust 0.27 − 0.33 (0.011 − 0.013)
Spark plug type: DENSO SK16R11
NGK IFR5A11
Spark plug gap, mm (in.): 1.1 (0.043)
Fuel

428
ENGINE LUBRICATION
Oil capacity (drain and refill), L (qt.,
lmp.qt.):With filter 3.7 (3.9, 3.3)
Without filter 3.4 (3.6, 3.0)
“Toyota Genuine Motor Oil” is used in your
Toyota vehicle. Use Toyota approved “Toyota
Genuine Motor Oil” or equivalent to satisfy the
following grade and viscosity.
Oil grade: ILSAC multigrade engine oil Recommended oil viscosity:
SAE 5W
−30
oil008
Outside temperature
Please contact your Toyota dealer for further
details. COOLING SYSTEM
Total capacity, L (qt., Imp.qt.):
For gasoline engine 8.6 (9.0, 7.5)
For electric motor
and inverter and
converter 2.7 (2.9, 2.4)
Coolant type: “Toyota Super Long Life Coolant” is
used in your Toyota vehicle at factory
fill. In order to avoid technical prob-
lems, only use “Toyota Super Long Life
Coolant” or similar high quality ethyl-
ene glycol based non −silicate, non −
amine, non− nitrite, and non− borate
coolant with long −life hybrid organic
acid technology. (Coolant with long −life
hybrid organic acid technology is a
combination of low phosphates and or-
ganic acids.)
Do not use plain water alone.
Please contact your Toyota dealer for
further details.

430
90p007b
Instrument panel
1. PWR 30 A: Power windows
2. DEF 40 A: Rear window defogger
3. M/HTR 15 A: Outside rear view mirror
heater
4. WIP 30 A: Windshield wiper
5. RR WIP 15 A: Rear wiper
6. WSH 20 A: Washer
7. ECUIG 7.5 A: Smart entry and start
system, power wi ndows, multi−informa-
tion display, electric power steering,
theft deterrent system
90p005b
Engine compartment
8. GAUGE 10 A: Gauge and meter, back −
up lights, emergency flasher, power
windows
9. OBD 7.5 A: On−board diagnosis sys-
tem
10. STOP 7.5 A: Stop lights
11. DOOR 25 A: Power door lock system
12. ACCB 25 A: “POWER OUTLET”,
“ACC” fuses
13. ECUB 15 A: Multi−information display,
power windows, air conditioning system
14. AM1 7.5 A: Hybrid system
90p008b
Luggage compartment
15. TAIL 10 A: Tail lights, license plates
light, parking lights
16. PANEL 7.5 A: Multi−information dis-
play, clock, audio system, instrument
panel lights
17. A/C (HTR) 10 A: Air conditioning sys-
tem
18. FR DOOR 20 A: Power windows
19. PWR OUTLET 15 A: Power outlet
20. ACC 7.5 A: Audio system, multi −infor-
mation display, clock
21. PWR OUTLET FR 15 A: Power outlet
Fuses

439
In order to be effective, the SRS
airbags must deploy with tremen-
dous speed. The rapid deployment
of the SRS airbags makes the
SRS airbags themselves potential
sources of serious injury if an oc-
cupant is too close to an airbag,
or if an object or some part of his
or her body has been placed be-
tween the occupant and the airbag
at the time of deployment. This is
just one example of how the in-
structions in Section 2−2 of this
Owner ’s Manual will help ensure
proper use of the occupant re-
straint systems, and increase the
safety they can provide to you
and your family in the event of an
accident.
Toyota recommends you to read
the provisions in Section 2− 2 care-
fully and refer to them as needed
during your time of ownership of
this vehicle.Event data recorder
Your vehicle has computers that
monitor and control certain as-
pects of your vehicle. These com-
puters assist in driving and main-
taining optimal vehicle perfor-
mance. Besides storing data useful
for troubleshooting, there is a sys-
tem to record data in a crash or
a near car crash event. This is
called an Event Data Recorder
(EDR).
The SRS airbag sensor assembly
contains the EDR. In a crash or a
near car crash event, this device
may record some or all of the fol-
lowing information:
 Engine speed
 Whether the brake pedal was
applied or not
 Vehicle speed
 To what extent the accelerator
pedal was depressed
 Position of the transmission
selector lever
 Whether the driver and front
passenger wore the seat belts
or not
 Driver ’s seat position
 Front passenger ’s occupant
classification

443
CAUTION
WARNING: Engine exhaust, some of its constitu-
ents, and a wide variety of automobile compo-
nents contain or emit chemicals known to the
State of California to cause cancer and birth de-
fects and other reproductive harm. In addition,
oils, fuels and fluids contained in vehicles as well
as waste produced by component wear contain or
emit chemicals known to the State of California
to cause cancer and birth defects or other repro-
ductive harm.
Battery posts, terminals and related accessories
contain lead and lead compounds. Wash your
hands after handling. Used engine oil contains
chemicals that have caused cancer in laboratory
animals. Always protect your skin by washing
thoroughly with soap and water.

449

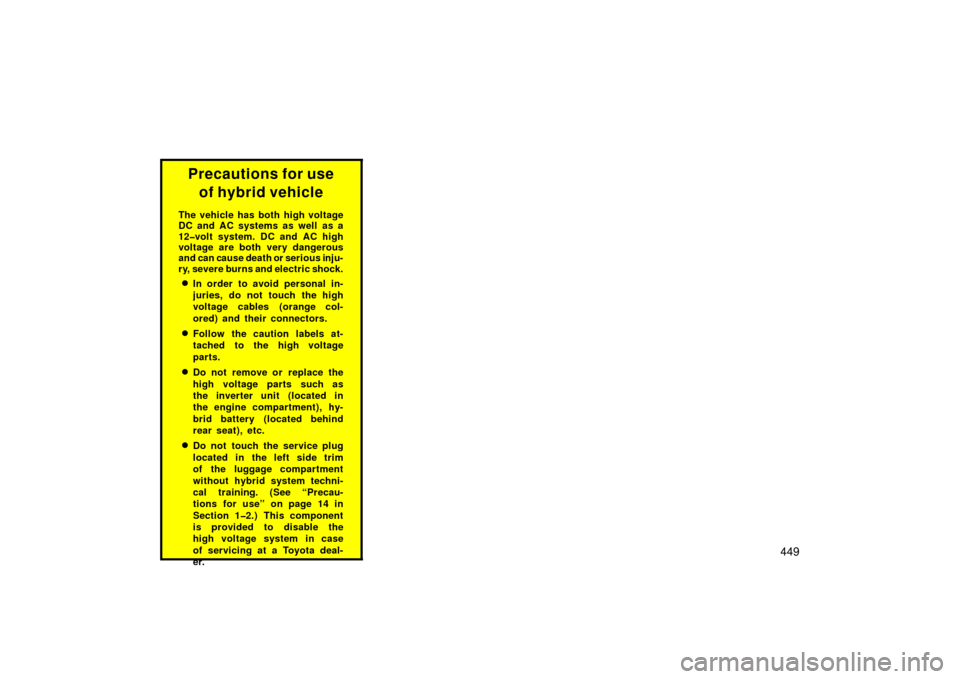

Precautions for useof hybrid vehicle
The vehicle has both high voltage
DC and AC systems as well as a
12volt system. DC and AC high
voltage are both very dangerous
and can cause death or serious inju-
ry, severe burns and electric shock.
In order to avoid personal in-
juries, do not touch the high
voltage cables (orange col-
ored) and their connectors.
Follow the caution labels at-
tached to the high voltage
parts.
Do not remove or replace the
high voltage parts such as
the inverter unit (located in
the engine compartment), hy-
brid battery (located behind
rear seat), etc.
Do not touch the service plug
located in the left side trim
of the luggage compartment
without hybrid system techni-
cal training. (See “Precau-
tions for use” on page 14 in
Section 12.) This component
is provided to disable the
high voltage system in case
of servicing at a Toyota deal-
er.
