2006 TOYOTA PRIUS key

11 5
23p111
To turn on the fog lights, twist the
band of the headlight switch lever to
the position of the fog light. The fog
lights come on only when the head-
lights are on low beam.
The band automatically returns to the
“OFF” position after you release it.
23p126
Front
Rear
To turn on the interior light, slide the
switch.
The interior light switch has the following
positions:
“ON”—Keeps the light on all the time.
“OFF”—Turns the light off.
“DOOR”—Turns the light on when any
door is opened. The light remains on for
15 seconds when all the doors are closed.
ILLUMINATED ENTRY SYSTEM
With the switch in the “DOOR” position,
the light comes on when any of the doors
is opened or when you get close to the
front door, carrying the smart key. After all
the doors are closed, the light remains on
for about 15 seconds and then fades out.
However, in the following cases, the light
goes off immediately.
All the doors are closed when the hy-
brid system is in “ACC” or “IG−ON”.
All the doors are closed and locked.
When all the doors are unlocked, the light
comes on for about 15 seconds and then
fades out, even if the door is not opened.
Front fog lights
(some models) Interior lights

11 6

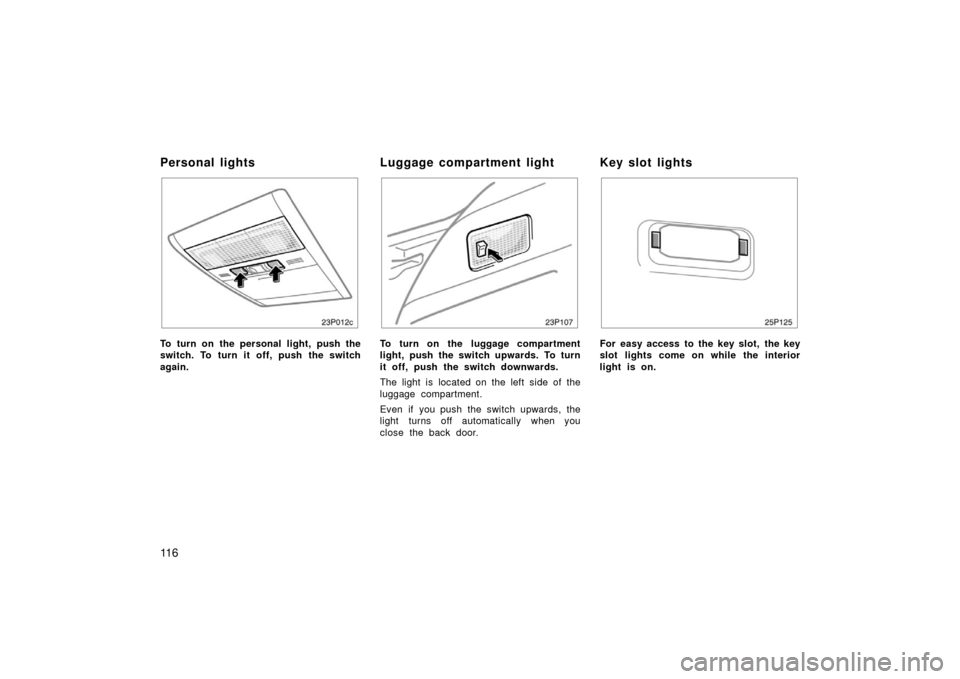

23P012c
To turn on the personal light, push the
switch. To turn it off, push the switch
again.
23p107
To turn on the luggage compartment
light, push the switch upwards. To turn
it off, push the switch downwards.
The light is located on the left side of the
luggage compartment.
Even if you push the switch upwards, the
light turns off automatically when you
close the back door.
23p125
For easy access to the key slot, the key
slot lights come on while the interior
light is on.
Personal lightsLuggage compartment light Key slot lights

126
If the indicator or buzzer comes on...Do this.
(g)Take vehicle to Toyota dealer immediately.
(h)Close all doors.
(i)Fill up tank.
(j)Replace engine oil
(k)Take vehicle to Toyota dealer. If red brake system warning light is also on, stop imme-
diately and contact Toyota dealer.
(l)Adjust tire inflation pressure. If light remains on, contact Toyota dealer.
(m)Key reminder buzzerRemove key.
(n)P position reminder
buzzerPush the “P” position switch.
If any warning comes on, the hybrid system may not start by pushing the “POWER” switch. In that case, push it once again.

131
Hold down the button for at least 5 sec-
onds. The odometer indicates “000000”
and the light goes off.
If the system fails to reset, the light will
remain flashing.
(k) “VSC” Warning Light
This light warns that there is a problem
somewhere in the vehicle stability control
system.
The light will come on when the “IG−ON”
mode is enabled and will go off after the
“READY” light comes on.
If the light comes on while driving, the
system does not work. However, as con-
ventional braking operates when applied,
there is no problem to continue your driv-
ing.
In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the “IG −ON” mode is enabled.
The warning light remains on after the
“READY” light comes on.
The warning light comes on while you
are driving.
CAUTION
If the “VSC” warning light remains on
together with the red brake system
warning light, immediately stop your
vehicle at a safe place and contact
your Toyota dealer.
In this case, not only the vehicle sta-
bility control system will fail but also
the vehicle will become extremely un-
stable during braking.
(l) Low Tire Pressure Warning Light
This light comes on when the “IG −ON”
mode is enabled. If the tire pressure
warning system works properly and tire
inflation pressure is appropriate, the light
goes off after a few seconds.
This light comes on or flashes in the fol-
lowing cases when the “IG −ON” mode is
enabled.
When the low tire inflation pressure
is detected while driving...
If any tire has low inflation pressure,
the light comes on. The light goes off after the tire inflation
pressure is adjusted to a specified lev-
el.
When initializing the system...
If initialization is completed, the light
blinks three times.
When the system malfunctions...
If the system malfunctions, the light
blinks.
Although it is no problem to continue
driving, have your vehicle checked by
your Toyota dealer as soon as pos-
sible.
(m) Key Reminder Buzzer
This buzzer acts as a reminder to remove
the key if you open the driver’s door when
the hybrid system is off and the key is
inserted into the key slot.
(n) P Position Reminder Buzzer
This buzzer will sound if the driver ’s door
is opened while the hybrid transaxle is in
“N”, “D” or “B”.

138
25p118
The push button start system is used to
start or stop the hybrid system and select
“ACC”, “IG−ON” or “OFF” mode. (See
“—Selecting the push button start system
mode” on page 140 and “How to start the
hybrid system” on page 348.) The system
contains the following components.
1. “POWER” switch
2. Key slot
3. Brake pedal
4. Electronic shift lever
21p006a
Your vehicle keys and the key slot are
different shapes from conventional ones.
Keep the following in mind when operating
the key:
When inserting the key, be sure to
push it in all the way.
When pulling out the key, be careful
because it will be pushed out by the
spring and it might fly out.
If the key cannot be pulled out, push
it in all the way again, then pull it out.
CAUTION
Do not put your finger into the key
slot. Your finger might be injured.
NOTICE
Observe the following instructions, or
the key mechanism might be damaged
and will not work properly.
 The key should be operated with a
clean hand and fingers.
 Do not insert the key forcibly.
 Do not insert any key other than
genuine formal keys into the key
slot.
 Do not pull out the key forcibly
when it cannot be removed.
 Do not put water, oil, foreign ob-
jects, etc. into the key slot.
 Do not insert a wet, oily or dam-
aged key into the key slot.
 Do not affix a sticker on the key.
 Do not insert the key in the wrong
way.
Push button start system— —Key slot

139
Do not pull out the key ring when
removing the key out of the key
slot.
Should you find anything unusual,
contact your Toyota dealer as soon as
possible.
25p113
Press the “POWER” switch slowly and
surely. Quick operation may not activate
the desired mode.
CAUTION
Do not press the switch while driv-
ing, except in an emergency.
In hot weather, the switch surface
may get hot. Take care not to get
burned.
NOTICE
Observe the following instructions or
the push switch start system may not
work properly.
 The switch should be operated with
a clean finger. Do not use an oily
or dirty finger.
 Be careful not to spill water or oth-
er liquid on the switch.
In the following conditions, contact
your Toyota dealer as soon as pos-
sible.
 If the indicator on the switch
flashes in amber, the system may
be malfunctioning. Once you turn
the power off, it may not turn on
again.
 If you find anything unusual in the
switch function, refrain from using
the vehicle.
In the following condition, have your
vehicle inspected by your Toyota deal-
er.
 The indicator light on the “POWER”
switch does not come on when the
clearance lights are turned on.
—“POWER” switch

140
25p105a
Without depressing the brake pedal
Carrying a smart key allows you to op-
erate the “POWER” switch without the
key being inserted into the key slot.
Each time you press the “POWER”
switch briefly without the brake pedal
depressed, the hybrid system mode
changes in the order of “OFF”, “ACC”,
“IGON” and then back to “OFF”.
The smart function can be set to become
inoperative using the smart cancel switch.
For details, see “Deactivating the smart
function” on page 34.1) “ACC” (Green indicator is turned on)
Accessories such as the radio operate.
Pressing the “POWER” switch briefly with-
out depressing the brake pedal in the
“OFF” mode turns on this mode.
In the “ACC” mode, pressing the “POW-
ER” switch briefly while depressing the
brake pedal will start the hybrid system.
If you leave your vehicle in the “ACC”
mode for about an hour, the hybrid system
is automatically turned off.
2) “IGON” (Amber indicator is turned
on)
All accessories are operable.
Pressing the “POWER” switch briefly with-
out depressing the brake pedal in the
“ACC” mode turns on this mode.
In the “IG
−ON” mode, pressing the “POW-
ER” switch briefly while depressing the
brake pedal will start the hybrid system.
However, if “N” position is selected, the
hybrid system will be turned in the “OFF”
mode. 3) “OFF” (Indicator is turned off)
The hybrid system is off.
You may hear a motor sound in the en-
gine compartment for a few seconds after
the system is turned off and about 90
seconds have passed.
The hybrid vehicle immobilizer system is
automatically set. See “Hybrid vehicle im-
mobilizer system” on page 21.
—Selecting the push button
start system mode
(with smart function—on some
models)

141

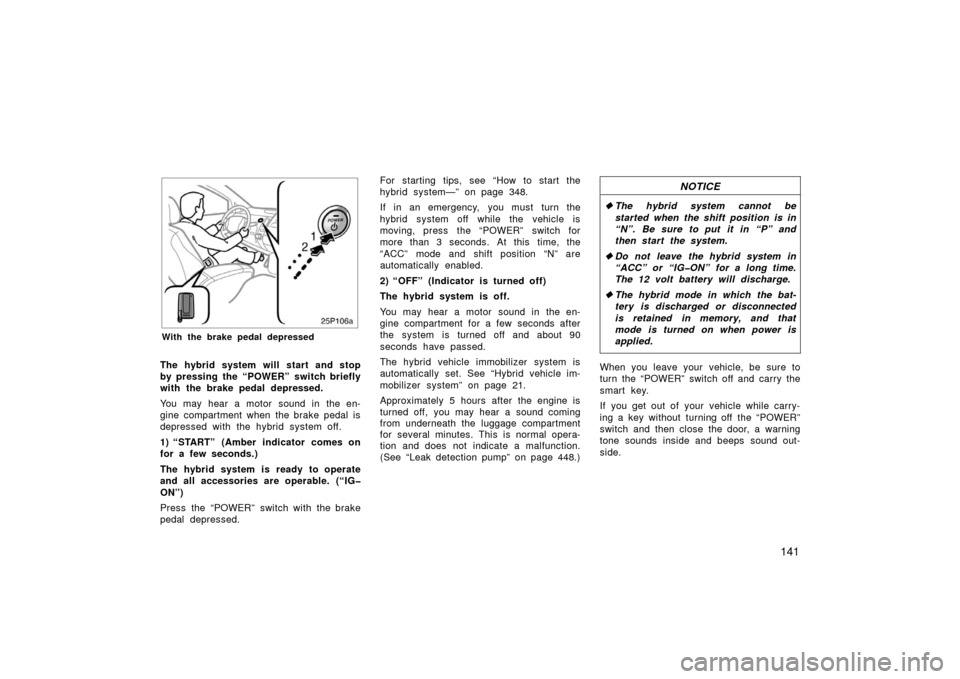

25p106a
With the brake pedal depressed
The hybrid system will start and stop
by pressing the “POWER” switch briefly
with the brake pedal depressed.
You may hear a motor sound in the en-
gine compartment when the brake pedal is
depressed with the hybrid system off.
1) “START” (Amber indicator comes on
for a few seconds.)
The hybrid system is ready to operate
and all accessories are operable. (“IG
ON”)
Press the “POWER” switch with the brake
pedal depressed.For starting tips, see “How to start the
hybrid system—” on page 348.
If in an emergency, you must turn the
hybrid system off while the vehicle is
moving, press the “POWER” switch for
more than 3 seconds. At this time, the
“ACC” mode and shift position “N” are
automatically enabled.
2) “OFF” (Indicator is turned off)
The hybrid system is off.
You may hear a motor sound in the en-
gine compartment for a few seconds after
the system is turned off and about 90
seconds have passed.
The hybrid vehicle immobilizer system is
automatically set. See “Hybrid vehicle im-
mobilizer system” on page 21.
Approximately 5 hours after the engine is
turned off, you may hear a sound coming
from underneath the luggage compartment
for several minutes. This is normal opera-
tion and does not indicate a malfunction.
(See “Leak detection pump” on page 448.)
NOTICE

The hybrid system cannot be
started when the shift position is in
“N”. Be sure to put it in “P” and
then start the system.
 Do not leave the hybrid system in
“ACC” or “IGON” for a long time.
The 12 volt battery will discharge.
 The hybrid mode in which the bat-
tery is discharged or disconnected
is retained in memory, and that
mode is turned on when power is
applied.
When you leave your vehicle, be sure to
turn the “POWER” switch off and carry the
smart key.
If you get out of your vehicle while carry-
ing a key without turning off the “POWER”
switch and then close the door, a warning
tone sounds inside and beeps sound out-
side.
