2006 TOYOTA PRIUS key

23
21p007b
The system is automatically set when the
key is removed from the key slot. The
indicator light will start flashing to show
the system is set.
If any of the following indicator conditions
occurs, contact your Toyota dealer.
The indicator light stays on except
when the theft deterrent system is set-
ting or activating. (See “Theft deterrent
system” on page 46.)
The indicator light does not start flash-
ing when the key is removed from the
key slot.
The indicator light flashes inconsistent-
ly.Inserting the registered key in the key slot
automatically cancels the system, which
enables the hybrid system to start. The
indicator light will go off.
For your Toyota dealer to make you a
new key with built
−in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
NOTICE
Do not modify, remove or disas-
semble the hybrid vehicle immobilizer
system. If any unauthorized changes
or modifications are made, proper op-
eration of the system cannot be guar-
anteed.
For vehicles sold in U.S.A.
FCC ID: MOZRI24KTY
MADE IN JAPAN
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.

24

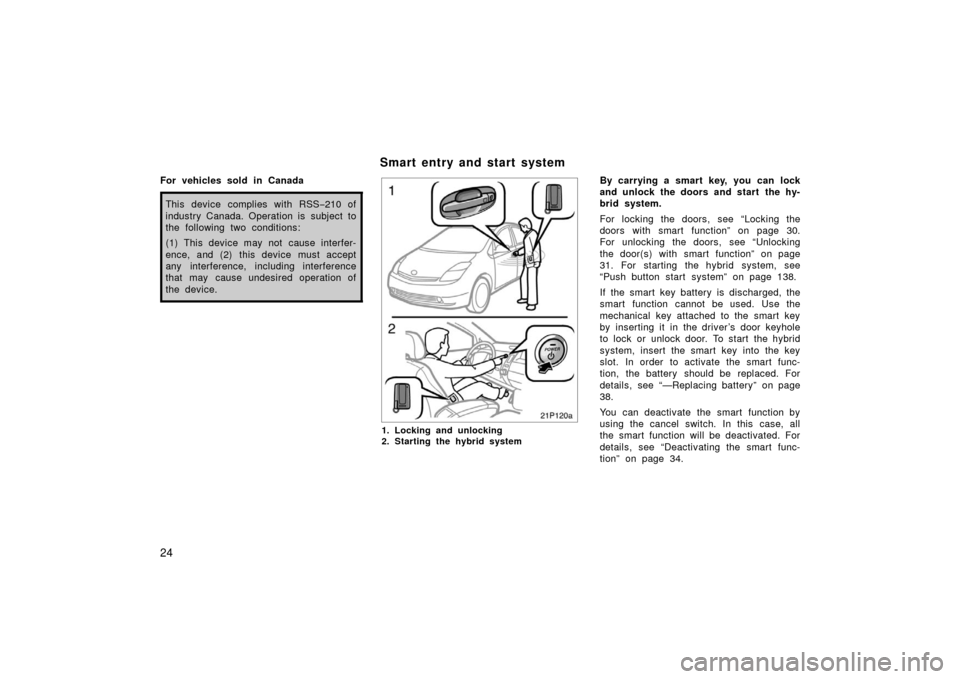

For vehicles sold in Canada
This device complies with RSS−210 of
industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
21p120a
1. Locking and unlocking
2. Starting the hybrid system
By carrying a smart key, you can lock
and unlock the doors and start the hy-
brid system.
For locking the doors, see “Locking the
doors with smart function” on page 30.
For unlocking the doors, see “Unlocking
the door(s) with smart function” on page
31. For starting the hybrid system, see
“Push button start system” on page 138.
If the smart key battery is discharged, the
smart function cannot be used. Use the
mechanical key attached to the smart key
by inserting it in the driver’s door keyhole
to lock or unlock door. To start the hybrid
system, insert the smart key into the key
slot. In order to activate the smart func-
tion, the battery should be replaced. For
details, see “—Replacing battery” on page
38.
You can deactivate the smart function by
using the cancel switch. In this case, all
the smart function will be deactivated. For
details, see “Deactivating the smart func-
tion” on page 34.
Smart entry and start system

25
INFORMATION
Be sure to take the smart key with
you.
In the following cases, the smart
function or wireless remote control
feature may not operate properly. (If
this happens, use a mechanical key
to lock or unlock the driver’s door
and a smart key to start the hybrid
system.) When facilities issuing strong
electromagnetic waves such as
TV towers, electric power sta-
tions, broadcasting stations are
nearby.
 When you are carrying a smart
key together with a mobile com-
munications system such as a
twoway radio or cellular phone.
 When the smart key is in contact
with or covered by a metallic ob-
ject.
 When another person is operating
a wireless remote control func-
tion on another vehicle near your
vehicle.
If you do not drive your vehicle,
store the smart key, keeping it at
least 5 m (16 ft.) away from the ve-
hicle.CAUTION
People with implanted pacemakers
or cardiac defibrillators s hould keep
away from the smart entry and start
system antennas, because the radio
waves may affect the operation of
such devices. For the antenna loca-
tions, see “ANTENNA LOCATIONS”
on page 26.
Users of any electrical medical de-
vice other than implanted pacemak-
ers and implanted cardiac defibrilla-
tors should consult the manufactur-
er of the device for information
about its operation under the influ-
ence of radio waves. Radio waves
could have unexpected effects on
the operation of such medical de-
vices.
If necessary, the smart function can
be disabled. See “DEACTIVATING
THE SMART FUNCTION” on page
34.

26
21p157
ANTENNA LOCATIONS1. Antenna inside cabin
2. Antenna outside cabin
ALARMS AND WARNING LIGHT
Your vehicle is equipped with alarms
inside and outside, as well as warning
light in the instrument cluster, that re-
mind you if there is a problem involv-
ing the smart entry and start system.
This warning light will come on when the
“IG −ON” mode is enabled and will go off
after a few seconds.
If an alarm sounds or the warning light
comes on, be sure to check your ve-
hicle and smart key.

27
(a) The hybrid system was not turnedoff and the transaxle was in a posi-
tion other than “P”.
When the driver ’s door is opened with the
hybrid system in “ACC” or “IG −ON” and
with the transaxle in a position other than
“P”.
Inside alarm: Beeps continuously
Multiinformation display: Warning mes-
sage
Alarms will be turned off by any of the
following operations:
Closing the driver ’s door
Pressing the “P” position switch
Turning off the hybrid system (b) The smart key was brought outside
the vehicle with the transaxle in a
position other than “P”.
When the driver ’s door is opened or
closed with the hybrid system not to be
turned off and with the transaxle in a
position other than “P”, it is determined
that the smart key is not in the vehicle.
Inside alarm: Beeps continuously
Outside alarm: Beeps continuously
Warning light: On
Alarms will be turned off by any of the
following operations:
Pressing the “P” position switch
Bringing the smart key inside the ve-
hicle
Turning off the hybrid system
(c) The hybrid system was not turned off with the transaxle in “P”.
When the driver ’s door is opened with the
hybrid system in “ACC” and with the
transaxle in “P”.
Inside alarm: 3 beeps
In the “IG −ON” mode, an alarm will not
sound. (d) The smart key was brought outside
the vehicle.
When the driver ’s door is opened or
closed with the hybrid system not to be
turned off (and with the transaxle in “P”),
it is determined that the smart key is not
in the vehicle.
Inside alarm: One beep
Outside alarm: 3 beeps
Warning light: On
(e) Locking with smart function was at- tempted with the hybrid system not
to be turned off.
When you attempt to lock all the doors
using smart locking function with the hy-
brid system not to be turned off and with
the transaxle in a position other than “P”.
Outside alarm: One beep (sounds for 2
seconds.)
Warning light: On
At this time, the doors cannot be
locked.

28
(f) The smart key was brought outsidethe vehicle.
When a door other than the driver ’s door
is opened or closed with the hybrid sys-
tem not to be turned off, it is determined
that the smart key is not in the vehicle.
Inside alarm: One beep
Outside alarm: 3 beeps
Warning light: On (g) Preventing the key from being
locked inside the vehicle
When you close the door with the hybrid
system off but with the smart key left in
the vehicle, and attempt to lock all the
doors using smart locking function, it is
determined that the smart key is in the
vehicle.
Outside alarm: One beep (sounds for 2
seconds)
INFORMATION
 This function may not operate when
the smart key is left on the instru-
ment panel, luggage cover, floor or
in the glove box.
 The function may operate if the
smart key is brought outside but it
is very close to the door window or
door handle.
(h) Low smart key battery
When the hybrid system is turned to
“ACC” or “OFF” about 20 minutes after
the hybrid system is turned on or to “IG −
ON”, it is determined that the smart key
battery voltage is low.
Inside alarm: One beep (i) Outside of effective range
When the “POWER” switch is pressed, it
is determined that the smart key is not in
the vehicle.
Inside alarm: One beep
Warning light: On (for 5 seconds)
(j) Open door warning
When you attempt to lock all the doors
using smart locking function with the hy-
brid system turned off but with any door
open.
Outside alarm: One beep (sounds for 10
seconds)
Alarms will be turned off by either of
the following operations:
Closing all the doors
Pressing the unlock button on the
smart key

29
Warning and its meaningInside warning alarm
Outside warning alarmWarning lightCauses
One beep
(sounds continuously)——The driver ’s door was opened when the hybrid system was in “ACC”
or “IG −ON” and when the transaxle was in a position other than “P”.
One beep
(sounds continuously)One beep
(sounds continuously)OnThe driver brought out the smart key from the vehicle with the hybrid
system not to be turned off and with the transaxle in a position other
than “P”.
Beeps
(sound intermittently)——The driver ’s door was opened when the hybrid system was in “ACC”
and when the transaxle was in “P”.
One beep3 beepsOnThe driver brought out the smart key from the vehicle with the hybrid
system not to be turned off and with the transaxle in “P”.
—One beep
(sounds for 2 seconds)OnThe lock switch was pressed with the hybrid system not to be turned
off and with the transaxle in “P”.
One beep3 beepsOnThe passenger brought out the smart key from the vehicle with the
hybrid system not to be turned off.
—One beep
(sounds for 2 seconds)—The lock switch was pressed when the hybrid system was off but with
the smart key left in the vehicle.
One beep——The key battery voltage become about 2 V. (3 V for normal operation)
One beep—On
(for 5 seconds)The “POWER” swi t c h was pr es s ed when the smar t key was not in the
effective range of the system.
—One beep
(sounds for 10 seconds)—The lock switch was pressed when the hybrid system was off but any
door was opened.

30
21p128
Side door
21p139
Back door
LOCKING THE DOORS WITH SMART
FUNCTION
The smart entry and start system will
lock the doors without being inserted
into the door keyhole.
When you exit the vehicle carrying the
smart key and push the lock button on the
outside front door handle or back door
with all the doors closed, all the doors will
be locked provided that the electronic
code in the key corresponds to the regis-
tered ID code for the vehicle.
At this time, you will hear one beep and
the turn signal lights flash once. However,
when you push the lock button on the
outside front door handle or back door
with any door not closed securely, a beep
sounds for 10 seconds.
NOTICE
If the key is in the vehicle, do not
perform door locking operation, or
you might lock your keys inside the
vehicle.
INFORMATION
The rear doors are not equipped
with smart function.
When locking the doors, be sure to
push the lock button on the outside
front door handle or back door
slowly and surely. If you push the
button quickly, the doors may not
lock.
When opening or closing a door, do
not touch the lock button on the
outside door handle or back door. If
you push the button, an alarm
sounds 10 seconds.
When a wireless remote control is
used to lock the doors and a smart
key is left in the effective range of
the smart function in the vehicle,
the doors cannot be unlocked using
the smart function. In this case, use
the wireless remote function to un-
lock the doors.
You cannot activate smart unlocking
functions within 3 seconds after the
smart locking function is activated.
