2006 TOYOTA COROLLA Owners Manual

’06 Corolla_U (L/O 0508)
55
CAUTION
The SRS side airbag and curtain
shield airbag system is designed
only as a supplement to the prima-
ry protection of the driver, front
passenger and rear outside passen-
ger seat belt systems. To ensure
maximum protection in an accident,
the driver and all passengers in the
vehicle must wear their seat belts
properly. Wearing a seat belt prop-
erly during an accident reduces the
chances of death or serious injury
or being thrown out of the vehicle.
For instructions and precautions
concerning the seat belt system,
see “Seat belts” on page 39 in this
Section.
Do not allow anyone to lean his/her
head or any part of his/her body
against the door or the area of the
seat, front pillar, rear pillar or roof
side rail from which the SRS side
airbag and curtain shield airbag
deploy even if he/she is a child
seated in the child restraint system.
It is dangerous if the SRS side air-
bag and/or curtain shield airbag in-
flate, and the impact of the deploy-
ing airbag could cause death or se-
rious injury to the occupant.Improperly seated and/or restrained
infants and children can be killed
or seriously injured by the deploy-
ing airbags. An infant or child who
is too small to use a seat belt
should be properly secured using a
child restraint system. Toyota
strongly recommends that all in-
fants and children be placed in the
rear seats of the vehicle and prop-
erly restrained. The rear seats are
the safest for infants and children.
For instructions concerning the
installation of a child restraint sys-
tem, see “Child restraint” on page
66 in this Section.

’06 Corolla_U (L/O 0508)
56
The SRS side airbag and curtain shield
airbag system may not activate if the
vehicle is subjected to a collision from
the side at certain angles, or a collision
to the side of the vehicle body other
than the passenger compartment as
shown in the illustration.
The SRS side airbags and curtain shield
airbags are designed to inflate when the
passenger compartment area suffers a se-
vere impact from the side.
Always wear your seat belts properly.
Collision from the rear
Collision from the front Vehicle rollover
The SRS side airbags and curtain shield
airbags are not generally designed to
inflate if the vehicle is involved in a
front or rear collision, if it rolls over,
or if it is involved in a lowspeed side
collision.The SRS side airbag and curtain shield
airbag system consists mainly of the fol-
lowing components, and their locations are
shown in the illustration.1. SRS warning light
2. Front passenger occupant classification indicator light
3. Curtain shield airbag modules (airbag and inflator)
4. Front passenger occupant classification system (ECU and sensors)
5. Side airbag modules (airbag and inflator)
6. Curtain shield airbag sensors
7. Side and curtain shield airbag sensors

’06 Corolla_U (L/O 0508)
57
8. Front passenger ’s seat belt buckleswitch
9. Airbag sensor assembly
The SRS side airbag and curtain shield
airbag system is controlled by the airbag
sensor assembly. The airbag sensor as-
sembly consists of a safing sensor and
airbag sensor.
In a severe side impact, the side and
curtain shield airbag sensor and/or the
curtain shield airbag sensor trigger(s) the
side airbag inflators and/or the curtain
shield airbag inflators. At this time a
chemical reaction in the inflators quickly
fills the air bags with non −toxic gas to help
restrain the lateral motion of the occu-
pants.
When the airbags inflate, they produce a
fairly loud noise and release some smoke
and residue along with non −toxic gas. This
does not indicate a fire. This smoke may
remain inside the vehicle for some time,
and may cause some minor irritation to
the eyes, skin or breathing. Be sure to
wash off any residue as soon as possible
to prevent any potential skin irritation with
soap and water. If you can safely exit
from the vehicle, you should do so imme-
diately. Deployment of the airbags happens in a
fraction of a second, so the airbags must
inflate with considerable force. While the
system is desi
gned to reduce serious inju-
ries, it may also cause minor burns or
abrasions and swelling.
Front seats as well as parts of the front
and rear pillars, and roof side rail may be
hot for several minutes, but the airbags
themselves will not be hot. The airbags
are designed to inflate only once.
CAUTION
SRS side airbags and curtain shield
airbags inflate with considerable
force. To reduce the possibility of
death or serious injury when they in-
flate, the driver, front passenger and
rear outside passengers must:
Wear their seat belts properly.
Remain properly seated with their
backs upright and against the seats
at all times.
Do not allow anyone to lean against
the door when the vehicle is in use,
since the side airbag and curtain
shield airbag could inflate with con-
siderable speed and force. Other-
wise, he/she may be killed or seri-
ously injured. Special care should
be taken especially when you have
a small child in the vehicle.
Sit up straight and well back in the
seat, distributing your weight evenly
in the seat. Do not apply excessive
weight to the outer side of the
seats with a side airbag, and to the
front pillar, rear pillar and roof side
rail with a curtain shield airbag.

’06 Corolla_U (L/O 0508)
58

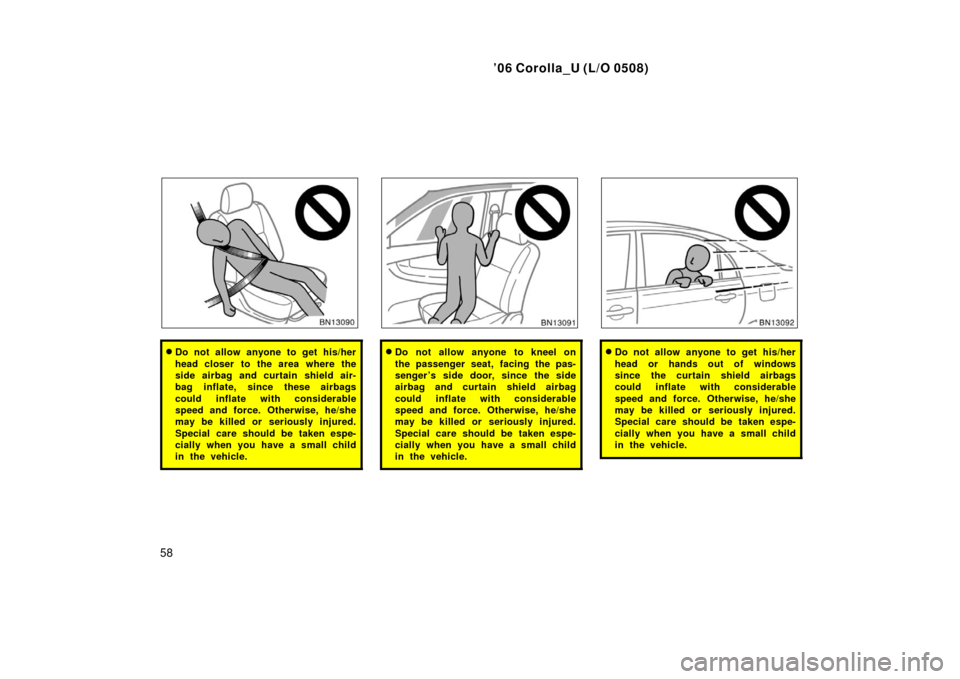

Do not allow anyone to get his/her
head closer to the area where the
side airbag and curtain shield air-
bag inflate, since these airbags
could inflate with considerable
speed and force. Otherwise, he/she
may be killed or seriously injured.
Special care should be taken espe-
cially when you have a small child
in the vehicle.Do not allow anyone to kneel on
the passenger seat, facing the pas-
senger ’s side door, since the side
airbag and curtain shield airbag
could inflate with considerable
speed and force. Otherwise, he/she
may be killed or seriously injured.
Special care should be taken espe-
cially when you have a small child
in the vehicle.Do not allow anyone to get his/her
head or hands out of windows
since the curtain shield airbags
could inflate with considerable
speed and force. Otherwise, he/she
may be killed or seriously injured.
Special care should be taken espe-
cially when you have a small child
in the vehicle.

’06 Corolla_U (L/O 0508)
59
Do not attach a cup holder or any
other device or object on or around
the door. When the side airbag in-
flates, the cup holder or any other
device or object will be thrown with
great force or the side airbag may
not activate correctly, resulting in
death or serious injury. Likewise,
the driver and front passenger
should not hold objects in their
arms or on their knees.Do not attach a microphone or any
other device or object around the
area where the curtain shield airbag
activates such as on the windshield
glass, side door glass, front and
rear pillars, roof side rail and assist
grips. When the curtain shield air-
bag inflates, the microphone or oth-
er device or object will be thrown
away with great force or the curtain
shield airbag may not activate cor-
rectly, resulting in death or serious
injury.
Do not hook a hanger, heavy or
sharp pointed objects on the coat
hook. If the curtain shield airbag
inflates, those items will be thrown
away with great force or the curtain
shield airbag may not activate cor-
rectly, resulting in death or serious
injury. When you hang clothes,
hang them on the coat hook direct-
ly.
Do not use seat accessories which
cover the parts where the side air-
bags inflate. Such accessories may
prevent the side airbags from acti-
vating correctly, causing death or
serious injury.
Do not modify or replace the seats
or upholstery of the seats with side
airbags. Such changes may prevent
the side airbag system from activat-
ing correctly, disable the system or
cause the side airbags to inflate ac-
cidentally, resulting in death or seri-
ous injury.

’06 Corolla_U (L/O 0508)
60
Do not disassemble or repair the
front and rear pillars and roof side
rail containing the curtain shield
airbags. Such changes may disable
the system or cause the curtain
shield airbags to inflate accidental-
ly, resulting in death or serious in-
jury.
Failure to follow these instructions
can result in death or serious injury.
Consult your Toyota dealer about any
repair and modification.
If you wish to modify your vehicle for
a person with physical disability, con-
sult your Toyota dealer. It may dan-
gerously interfere with the SRS side
airbags and curtain shield airbags op-
eration.NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
SRS side airbag and curtain shield
airbag system in some cases.
 Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Modification of the suspension sys-
tem
 Modification of the side structure of
the passenger compartment
 Repairs made on or near the con-
sole or front seat
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the SRS side airbags and curtain
shield airbags are operating properly.

’06 Corolla_U (L/O 0508)
61
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, curtain shield airbag sensors, driv-
er ’s seat position sensor, driver ’s seat belt
buckle switch, front passenger occupant
classification system and indicator light,
front passenger ’s seat belt buckle switch,
seat belt pretensioner assemblies, inflat-
ors, warning light, interconnecting wiring
and power sources. (For details, see “Ser-
vice reminder indicators and warning buzz-
ers” on page 102 in Section 1−6.)
If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
The light does not come on when the
ignition key is turned to the “ON” posi-
tion or remains on for more than 6
seconds or flashes.
The light comes on or starts flashing
while driving.
The SRS warning light will come on and
front passenger occupant classification in-
dicator light will indicate “OFF” if there is
a malfunction in the front passenger occu-
pant classification system.
In the following cases, contact your Toyota
dealer as soon as possible:
Any of the SRS side airbags and cur-
tain shield airbags have been inflated.
The portion of the doors (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the SRS side airbags and curtain
shield airbags to inflate.
The surface of the seats with the side
airbag (shaded in the illustration) is
scratched, cracked, or otherwise dam-
aged.
The portion of the front pillars, rear
pillars or roof side rail garnishes (pad-
ding) containing the curtain shield air-
bags inside (shaded in the illustration)
is scratched, cracked, or otherwise
damaged.
NOTICE
Do not disconnect the battery cables
before contacting your Toyota dealer.

’06 Corolla_U (L/O 0508)
62
Your vehicle is equipped with a front
passenger occupant classification sys-
tem. This system detects the conditions
1—4 in the table on page 64 and based
on these conditions activates or deacti-
vates the following systems;
Front passenger airbag
Side airbag on the front passenger
seat
Front passenger ’s seat belt pretension-
er
The system monitors the weight and
load on the front passenger seat, and
the seat belt buckle switch to determine
conditions 1—4.
In order for the system to detect the
conditions correctly, do not do any of
the following:
Apply a heavy load to the front pas-
senger seat.
Attach a commercial seatback table,
etc. to the front passenger seat seat-
back.
Put weight on the front passenger seat
by putting your hands or feet on the
seatback from the rear passenger seat.
The front passenger occupant classifi-
cation indicator light indicates the ac-
tuation of the front passenger airbag,
side airbag on the front passenger seat
and front passenger ’s seat belt preten-
sioner.
The indicator light will indicate “OFF”
when the ignition switch is in the “ON”
position with the condition 2 in the table
shown below.
If the front passenger occupant classifica-
tion system determines that a person of
adult size sits in the front passenger seat
but the “OFF” indicator is illuminated, one
of the following is likely to have occurred:
A rear passenger lifts the front passen-
ger seat cushion with their legs.
Objects are placed under the front pas-
senger seat.
The front passenger seatback is in
contact with the rear seat.
To ensure the system correctly detects an
adult sitting in the front passenger seat,
make sure the above do not occur.
Make sure that the “ON” indicator is illu-
minated when an adult is seated in the
front passenger seat. If the “OFF” indica-
tor is illuminated, ask the passenger to sit
up straight, well back in the seat, and
with the seat belt worn correctly. If the
“OFF” indicator still remains illuminated,
either ask the passenger to move to the
rear seat, or if that is not possible, move
the front passenger seat fully rearward.
The front passenger occupant classifi-
cation indicator light will indicate “ON”
and “OFF” when the ignition key is
turned to the “ON” position. After
about four seconds, it will go off. After
that, the front passenger occupant clas-
sification system operates and judges
whether to indicate “ON” or “OFF”.
—Front passenger occupant
classification system
