When initializing the system, make sure
the low tire pressure warning light blinks
three times. If the warning light does not
blink three times, initializing will be failed
and the tire pressure warning system will
not function properly.
Do not push the reset switch without ad-
justing the tire inflation pressure to the
specified level. Otherwise, the low tire
pressure warning light may not come on
even if the tire pressure is low, or it may
come on when the tire inflation pressure
is actually normal.
If you push the reset switch while the
vehicle is moving, initialization is not per-
formed.If the low tire pressure warning light does
not blink when you push and hold the
reset switch, have the low pressure warn-
ing system checked at your Toyota dealer.
When the warning light blinks once every
three seconds while driving, you may be
unable to reset the system. In this case,
set the system again according to the
above procedure.Ty p e A
Ty p e B
Parking brake

’06 Corolla_U (L/O 0508)
128
When parking, firmly apply the parking
brake to avoid inadvertent creeping.
To set: Pull up the lever. For better hold-
ing power, first depress the brake pedal
and hold it while setting the parking
brake.
To release: Pull up the lever slightly (1),
press the lock release button (2), and low-
er (3).
To remind you that the parking brake is
set, the parking brake reminder light in
the instrument panel remains on until you
release the parking brake.
CAUTION
Before driving, be sure the parking
brake is fully released and the park-
ing brake reminder light is off.
The cruise control is designed to main-
tain a set cruising speed without requir-
ing the driver to operate the accelera-
tor. Cruising speed can be set to any
speed above 40 km/h (25 mph).
Within the limits of the engine’s capabili-
ties, cruising speed can be maintained up
or down grades. However, changes in ve-
hicle speed may occur on steeper grades.
CAUTION
To help maintain maximum control
of your vehicle, do not use the
cruise control when driving in
heavy or varying traffic, or on slip-
pery (rainy, icy or snowcovered) or
winding roads.
Avoid vehicle speed increases when
driving downhill. If the vehicle
speed is too fast in relation to the
cruise control set speed, cancel the
cruise control then downshift the
transmission to use engine braking
to slow down.
TURNING THE SYSTEM ON AND OFF
To turn the cruise control on, press the
“ON−OFF” button. The “CRUISE” indicator
light on the instrument panel will come on
to indicate that the cruise control is opera-
tional. Pressing the “ON −OFF” button
again turns the system off.
When the system is turned off, cruising
speed must be reset when the cruise con-
trol is turned on again.
Cruise control

’06 Corolla_U (L/O 0508)
129
CAUTION
To avoid accidentally engaging the
cruise control, turn the system off
when it is not in use. Make sure the
“CRUISE” indicator light is off.
SETTING THE CRUISING SPEED
On vehicles with automatic transmission,
the transmission must be in “D” before
you set the cruising speed.
Bring your vehicle to the desired speed,
push the lever down in the “− SET” direc-
tion and release it. This sets the vehicle
at that speed. If the speed is not satisfac-
tory, tap the lever up for a faster speed,
or tap it down for a slower speed. Each
tap changes the set speed by 1.6 km/h
(1.0 mph). You can now take your foot off
the accelerator pedal. If you need acceleration—for example,
when passing—depress the accelerator
pedal enough for the vehicle to exceed
the set speed. When you release it, the
vehicle will return to the speed set prior
to the acceleration.
CAUTION
For manual transmission:
While driving with the cruise control
on, do not shift to neutral without
depressing the clutch pedal, as this
may cause engine racing or overrev-
ving.
CANCELLING THE CRUISE CONTROL
The cruise control may be temporarily
cancelled by the driver or by the system
itself under certain circumstances. Tempo-
rary cancellation allows the set cruising
speed to remain in memory.
The cruise control can be temporarily can-
celled by doing the following:
Pulling the lever in the “CANCEL” di-
rection and releasing it
Depressing the brake pedal
Depressing the clutch pedal (manual
transmission)

’06 Corolla_U (L/O 0508)
130
Under certain circumstances, the cruise
control is temporarily cancelled:
When vehicle speed falls below 40
km/h (25 mph)
When vehicle stability control is acti-
vated
When vehicle speed drops 16 km/h (10
mph) below the set speed, the cruise con-
trol is cancelled and the set speed is
erased from memory.
The “CRUISE” indicator light remains on
to indicate that the system is still in op-
eration.
To turn the cruise control off, push the
“ON −OFF” button. Make sure the
“CRUISE” indicator light is off.
If the cruise control automatically cancels
out other than for the above cases, have
your vehicle checked by your Toyota deal-
er at the earliest opportunity.
RESUMING THE CRUISE CONTROL
If the cruise control is temporarily can-
celled, the cruising speed can be resumed
by pushing the lever up in the “+ RES”
direction.
Vehicle speed must be above 40 km/h (25
mph). RESETTING TO A FASTER SPEED
Push the lever up in the “+ RES” direction
and hold it. Release the lever when the
desired speed is attained. While the lever
is held up, the vehicle will gradually gain
speed.
However, a faster way to reset is to ac-
celerate the vehicle and then push the
lever down in the “− SET” direction.
RESETTING TO A SLOWER SPEED
Push the lever down in the “
− SET” direc-
tion and hold it. Release the lever when
the desired speed is attained. While the
lever is held down, the vehicle speed will
gradually decrease.
However, a faster way to reset is to de-
press the brake pedal and then push the
lever down in the “− SET” direction.
On vehicles with automatic transmission,
even if you turn off the overdrive switch,
with the cruise control on, engine braking
will not be applied because the cruise
control is not cancelled. To decrease the
vehicle speed, reset to a slower speed
with the cruise control lever or depress
the brake pedal. If you use the brake
pedal, cruise control is cancelled. CRUISE CONTROL FAILURE WARNING
If the “CRUISE” indicator light flashes
when using the cruise control, press the
“ON
−OFF” button to turn the system off
and then press it again to turn it on.
If any of the following conditions then oc-
curs, there is some trouble in the cruise
control system.
The indicator light does not come on.
The indicator light flashes again.
The indicator light goes out after it
comes on.
If this is the case, contact your Toyota
dealer and have your vehicle inspected.

’06 Corolla_U (L/O 0508)
131
OPERATION OF INSTRUMENTS AND
CONTROLS
Audio system
Reference132
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Using your audio system 132
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Audio system operating hints 144
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 8

’06 Corolla_U (L/O 0508)
132

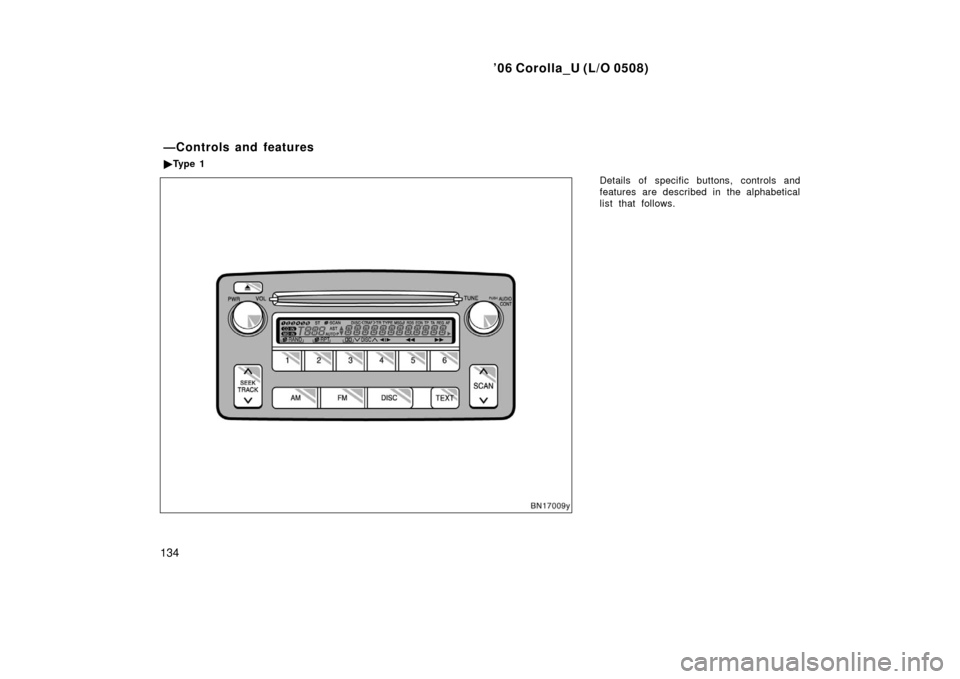

Type 1: AM·FM radio/compact disc player
(with compact disc changer controller)
Type 2: AM·FM radio/compact disc player
with changer
This Section describes some of the basic
features on Toyota audio systems. Some
information may not pertain to your sys-
tem.
Your audio system works when the ignition
key is in the “ACC” or “ON” position.
TURNING THE SYSTEM ON AND OFF
Push “PWR/VOL” to turn the audio system
on and off.
Push “AM”, “FM” or “DISC” to turn on that
function without pushing “PWR/VOL”.
You can turn on compact disc player by
inserting a compact disc.
You can turn off the compact disc player
by ejecting the compact disc. If the audio
system was previously off, then the entire
audio system will be turned off when you
eject the compact disc. If the other func-
tion was previously playing, it will come
on again.
SWITCHING BETWEEN FUNCTIONS
Push “AM”, “FM” or “DISC” if the system
is already on but you want to switch from
one function to another.TONE AND BALANCE
For details about your system’s tone and
balance controls, see the description of
your own system.
Tone
How good an audio program sounds to
you is largely determined by the mix of
the treble, midrange (on some models)
and bass levels. In fact, different kinds of
music and vocal programs usually sound
better with different mixes of treble, mi-
drange and bass.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to
a stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.
Reference
Using your audio system—
—Some basics

’06 Corolla_U (L/O 0508)
133
YOUR RADIO ANTENNA
Your vehicle has a mast type antenna.
To remove the antenna, carefully turn it
counterclockwise.
NOTICE
To prevent damage to the antenna,
make sure it is removed before driv-
ing your Toyota through an automatic
car wash.
YOUR COMPACT DISC PLAYER (type 1)
When you insert a disc, gently push it in
with the label side up. The player will play
from track 1 through to the end of the
disc. Then it will play from track 1 again.
NOTICE
Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything other than com-
pact discs into the slot.
The player is intended for use with 12 cm
(4.7 in.) discs only.YOUR COMPACT DISC PLAYER WITH
CHANGER (type 2)
When you insert a disc, push the “LOAD”
button and gently push the disc in with
the label side up. The player will play
from track 1 through to the end of the
disc. Then it will play from track 1 of the
next disc.
The player is intended for use with 12 cm
(4.7 in.) discs only.
NOTICE

Do not stack up two discs for in-
sertion, or it will cause damage to
the compact disc player. Insert only
one compact disc into slot at a
time.
 Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything other than com-
pact discs into the slot.

’06 Corolla_U (L/O 0508)
134
Details of specific buttons, controls and
features are described in the alphabetical
list that follows.
—Controls and features
Ty p e 1
