2006 TOYOTA COROLLA Owners Manual

’06 Corolla_U (L/O 0508)
15
If the wireless remote control transmitter
does not actuate the doors or alarm, or
operate from a normal distance:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
The battery may have been consumed.
Check the battery in the transmitter. To
replace the battery, see “—Replacing
transmitter battery” on page 16.
If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an acci-
dent. (See “If you lose your wireless re-
mote control transmitter” on page 230 in
Section 4.)
This complies with Part 15 of the FCC
rules. Operation is subject to the follow-
ing two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
Locking operation
Unlocking operation
To lock and unlock all the doors, push
the switches of the transmitter slowly
and securely.
To lock: Push the “LOCK” switch. All the
doors are locked simultaneously. At this
time the turn signal lights will flash once.
Check to see that the doors are securely
locked.
If any door is not securely closed, locking
cannot be performed by the “LOCK”
switch.
To unlock: Push the “UNLOCK” switch
once to unlock the driver ’s door alone.
Pushing the switch twice within 3 seconds
unlocks all the doors simultaneously. Each
time the “UNLOCK” switch is pushed, the
turn signal lights will flash twice.
When the doors are unlocked, the interior
light comes on and remains on for about
15 seconds before fading out. (For further
information, see “Interior light” on page 93
in Section 1− 5.)
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
doors will be automatically locked again.
—Locking and unlocking
doors

’06 Corolla_U (L/O 0508)
16
If the “LOCK” or “UNLOCK” switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the switch
and then push again.
Pushing the “PANIC” switch blows the
horn intermittently and flashes the
headlights, tail lights, turn signal lights
and interior light.
The “PANIC” mode is used to deter ve-
hicle theft when you witness anyone at-
tempting to break into or damage your
vehicle.
The alarm will last for one minute. To stop
the alarm midway, push any switch on the
transmitter or turn the ignition key from
the “LOCK” to “ON” position.
The “PANIC” mode does not work when
the ignition key is in the “ON” position.For replacement, use a CR2032 lithium
battery or equivalent.
CAUTION
Special care should be taken to pre-
vent small children from swallowing
the removed transmitter battery or
components.
NOTICE

When replacing the transmitter bat-
tery, be careful not to lose the com-
ponents.
 Replace only with the same or
equivalent type recommended by a
Toyota dealer.
 Dispose of used batteries according
to the local laws.

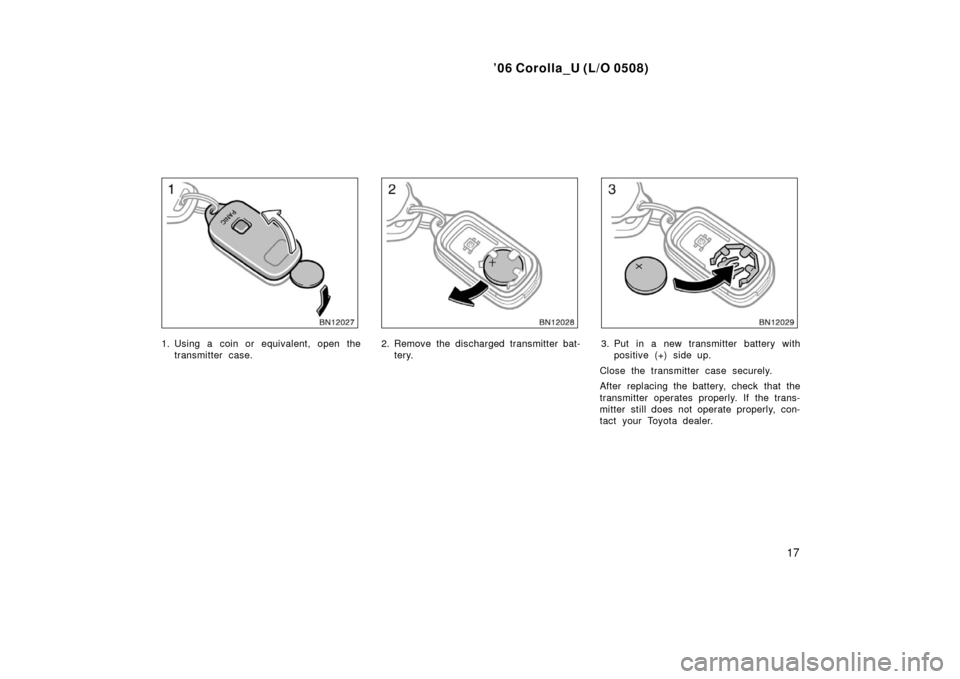

Replace the transmitter battery by follow-
ing these procedures:
—Activating panic mode —Replacing transmitter
battery

’06 Corolla_U (L/O 0508)
17
1. Using a coin or equivalent, open thetransmitter case.2. Remove the discharged transmitter bat-tery.3. Put in a new transmitter battery withpositive (+) side up.
Close the transmitter case securely.
After replacing the battery, check that the
transmitter operates properly. If the trans-
mitter still does not operate properly, con-
tact your Toyota dealer.

’06 Corolla_U (L/O 0508)
18
NOTICE
Do not bend the terminals.
 Make sure the positive side and
negative side of the transmitter bat-
tery are faced correctly.
 Do not replace the battery with wet
hands. Water may cause unexpected
rust.
 Do not touch or move any compo-
nents inside the transmitter, or it
may interfere with proper operation.
 Be careful not to bend the electrode
when inserting the transmitter bat-
tery and that dust or oils do not
adhere to the transmitter case.
 Close the transmitter case securely.
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key forward.
To unlock: Turn the key backward.
Vehicles with power door lock system—
All the doors lock and unlock simulta-
neously with either front door. In the driv-
er’s door lock, turning the key once will
unlock the driver’s door and twice in suc-
cession will unlock all the doors simulta-
neously. When the doors are unlocked, the interior
light comes on and remains on for about
15 seconds before fading out. (For further
information, see “Interior light” on page 93
in Section 1−
5.)
Side doors—

’06 Corolla_U (L/O 0508)
19
LOCKING AND UNLOCKING WITH
INSIDE LOCK KNOB
Move the lock knob.
To lock: Push the knob forward.
To unlock: Pull the knob backward.
The front doors can be opened by pulling
the inside handle even if the lock knobs
are in the locked position.
CAUTION
Do not pull the inside handle of the
front doors while driving. The doors
will open and an accident may occur.
Toyota strongly recommends that all
children be placed in the rear seat of
the vehicle.
Closing the door with the lock knob in the
lock position will also lock the door. Be
careful not to lock your keys in the ve-
hicle.
Vehicles with power door lock system—
Doors cannot be locked when either front
door is open and the key is in the igni-
tion.
Driver’s side
Passenger’s side

’06 Corolla_U (L/O 0508)
20
LOCKING AND UNLOCKING WITH
POWER DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch down on the
front side.
To unlock: Push the switch down on the
rear side.
Operating the switch simultaneously locks
or unlocks all the doors.
If you do either of the following, no door
can be unlocked with the power door lock
switch.
Lock all the doors with the key or wire-
less remote control transmitter when all
the doors are closed.
Open the driver ’s door or front passen-
ger’s door and move the inside lock
knobs of both front doors to the lock
position, then close the front doors.
The power door lock switch can be reset
in the following ways.
Turn the ignition key to “ON”.
Unlock all the doors with the key or
wireless remote control transmitter.
Unlock the driver’s door or front pas-
senger ’s door with the inside lock
knob, and then unlock all the doors
with the power door lock switch.
REAR DOOR CHILDPROTECTORS
Move the lock lever to the “LOCK”
position as shown on the label.
When the child −protector is locked, you
cannot open the rear door by the inside
door handle. We recommend using this
feature whenever small children are in the
vehicle.
CAUTION
Before driving, be sure that the doors
are closed and locked, especially
when small children are in the ve-
hicle. Along with the proper use of
seat belts, locking the doors helps
prevent the driver and passengers
from being thrown out from the ve-
hicle in an accident. It also helps pre-
vent the doors from being opened
unintentionally.

’06 Corolla_U (L/O 0508)
21
Vehicles with automatic transmission
and power door lock system—You can
select the following modes of the
automatic locking and unlocking
functions.
Mode 1—Automatic locking linked
with the shift position
All doors are automatically locked when
the selector lever is moved out of the
“P” position with the ignition switch in
the “ON” position and all the doors are
closed.
Mode 2—Functions cancelled
Automatic door locking and unlocking
functions do not activate in this mode.
Mode 3—Automatic locking and un-
locking linked with the shift position
Locking function—All doors are auto-
matically locked when the selector le-
ver is moved out of the “P” position
with the ignition switch in the “ON”
position and all doors are closed.
Unlocking function—All doors are auto-
matically unlocked when the selector
lever is moved to the “P” position with
the ignition switch in the “ON” position.
Mode 4—Automatic locking and un-
locking linked with the shift position
and ignition switch
Locking function—All doors are auto-
matically locked when the selector le-
ver is moved out of the “P” position
with the ignition switch in the “ON”
position and all doors are closed.
Unlocking function—All doors are auto-
matically unlocked when the ignition
switch is turned from the “ON” position
to the “ACC” or “LOCK” position.
CHANGING THE MODE
The mode toggles through from mode
1 to mode 4. To change the mode, do
the following:
1. Set the interior light switch to the “DOOR” position. (See “Interior light”
on page 93 in Section 1 −5.)
2. Shift the selector lever into the “P” position and close all doors.
3. Turn the ignition switch to the “ON” position.
4. Within 5 seconds after the ignition switch is turned to the “ON” position,
push and hold the power door lock
switch on the front side for about 5
seconds. 5. The interior light will flash to indicate
that the mode has been changed.
The flashing of the interior light indicates
the mode which has been selected.
Flashing once, the function has
changed to mode 1.
Flashing twice, the function has
changed to mode 2.
Flashing three times, the function has
changed to mode 3.
Flashing four times, the function has
changed to mode 4.
If the battery is disconnected or run down,
the mode may change. Set the desired
mode by following the above procedure.
—Automatic door locking and
unlocking functions

’06 Corolla_U (L/O 0508)
22
Window lock
switch
Driver’s door
Passengers’ doors
The windows can be operated with the
switch on each door. The passengers’
windows can also be controlled by the
switches on the driver ’s door.
The power windows work when the ignition
switch is in the “ON” position.
Normal operation: The window moves as
long as you hold the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passengers’ windows
cannot be operated.
Automatic operation (to open the driv-
er ’s window): Push the switch completely
down and then release it. The window will
fully open. To stop the window partway,
lightly pull the switch up and then release
it.CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in death or serious in-
jury. When anyone closes the power
windows, make sure he or she op-
erates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Be sure to remove the ignition key
when you leave your vehicle.
Power windows
