2006 TOYOTA CAMRY display

’06Camry_U (L/O 0507)
4
2006 CAMRY from July ‘05 Prod. (OM33708U)
1. Headlight, turn signal and front foglight switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock/outside temperature display, multi −information display, and “AIRBAG
ON” and “AIRBAG OFF” indicator lights
5. Audio system or navigation system including audio system (For the
navigation system, see the separate
“Navigation System Owner ’s Manual”.)
6. Theft deterrent system/engine immobilizer system indicator light
7. Rear window and outside rear view mirror defogger switch
8. Air conditioning controls
9. Ignition switch
10. Tilt steering lock release lever 11. Hood lock release lever
12. Traction control system off switch
13. Power adjustable pedals switch

With manual air conditioning controls

’06Camry_U (L/O 0507)
5
2006 CAMRY from July ‘05 Prod. (OM33708U)
1. Headlight, turn signal and front foglight switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock/outside temperature display, multi −information display, and “AIRBAG
ON” and “AIRBAG OFF” indicator lights
5. Audio system or navigation system including audio system (For the
navigation system, see the separate
“Navigation System Owner ’s Manual”.)
6. Theft deterrent system/engine immobilizer system indicator light
7. Rear window and outside rear view mirror defogger switch
8. Air conditioning controls
9. Ignition switch
10. Tilt steering lock release lever 11. Hood lock release lever
12. Traction control system off switch
13. Power adjustable pedals switch

With automatic air conditioning controls

’06Camry_U (L/O 0507)
6
2006 CAMRY from July ‘05 Prod. (OM33708U)
Ty p e A
Ty p e B
1. Audio remote control switches
2. Cruise control switch
3. Multi−information display control
switches
Ty p e A
Ty p e B
 Steering switches Center console

’06Camry_U (L/O 0507)
11 7
2006 CAMRY from July ‘05 Prod. (OM33708U)
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Idling for a long period with the air
conditioning on in stop−and− go traffic.
Towing a trailer.
NOTICE
Do not remove the thermostat in
the engine cooling system as this
may cause the engine to overheat.
The thermostat is designed to con-
trol the flow of coolant to keep the
temperature of the engine within
the specified operating range.
 Do not continue driving with an
overheated engine. See “If your ve-
hicle overheats” on page 267 in
Section 4.
The tachometer indicates engine speed
in thousands of rpm (revolutions per
minute). Use it while driving to select
correct shift points and to prevent en-
gine lugging and overrevving.
Driving with the engine running too fast
causes excessive engine wear and poor
fuel economy. Remember, in most cases
the slower the engine speed, the greater
the fuel economy.
NOTICE
Do not let the indicator needle get
into the red zone. This may cause
severe engine damage.
This meter displays the odometer and
two trip meters when the ignition
switch is on.
1. Odometer—Shows the total distance the vehicle has been driven.
2. Two trip meters—Show two different distances independently driven since
the last time each trip meter was set
to zero.
You can use one trip meter to calculate
the fuel economy and the other to
measure the distance on each trip. All
trip meter data is cancelled if the elec-
trical power source is disconnected.
Tachometer Odometer and two trip meters

’06Camry_U (L/O 0507)
11 8
2006 CAMRY from July ‘05 Prod. (OM33708U)
3. Trip meter reset knob—Resets the twotrip meters to zero, and also change
the meter display.
To change the meter display, quickly
push and release the knob. The meter
display changes in the order from the
odometer to trip meter A to trip meter
B, then back to the odometer each
time you push.
To reset the trip meter A to zero, dis-
play the meter A reading, then push
and hold the knob until the meter is
set to zero. The same process can be
applied for resetting the trip meter B.
This display remains for about 10 minutes
after the ignition switch is turned off. Turn
the headlight switch off and then on to
illuminate the instrument cluster.

’06Camry_U (L/O 0507)
129
2006 CAMRY from July ‘05 Prod. (OM33708U)
Your automatic transmission has a shift
lock system to minimize the possibility of
incorrect operation. This means you can
only shift out of “P” position when the
brake pedal is depressed (with the ignition
switch in “ON” position and the lock re-
lease button depressed).
(a) Selector lever
The shift position is also displayed on the
instrument cluster.
P:Parking, engine starting and
key removal
R: Reverse
N: Neutral
D: Normal driving (with overdrive on)
3, 2: Stronger engine braking
L: Maximum engine braking

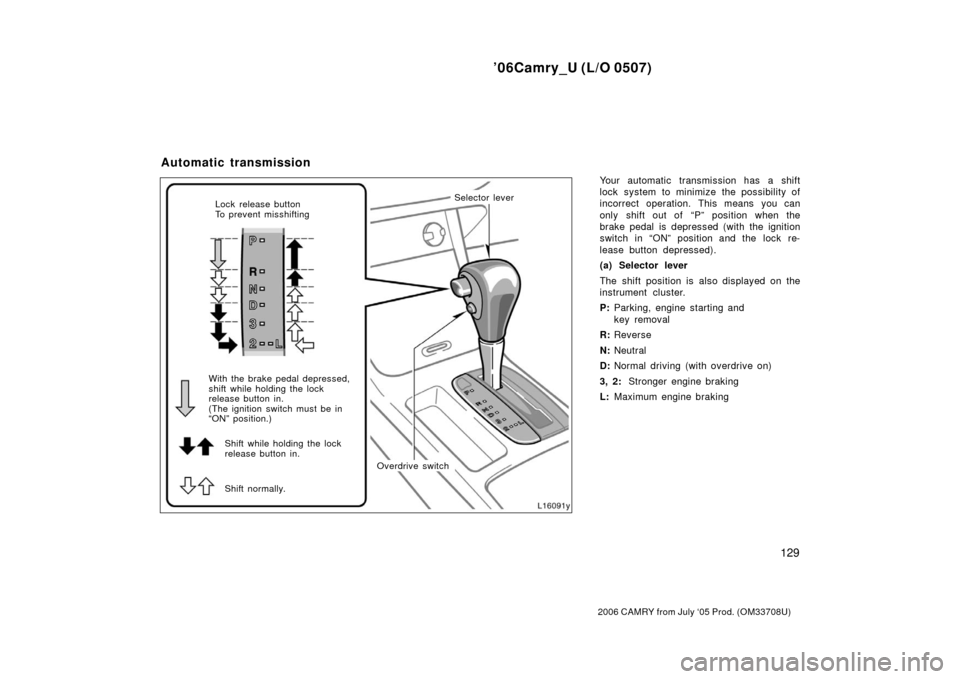

Automatic transmission
Lock release button
To prevent misshifting
With the brake pedal depressed,
shift while holding the lock
release button in.
(The ignition switch must be in
“ON” position.) Shift while holding the lock
release button in.
Shift normally.Selector lever
Overdrive switch

’06Camry_U (L/O 0507)
145
2006 CAMRY from July ‘05 Prod. (OM33708U)
This section describes some of the basic
features on Toyota audio systems. Some
information may not pertain to your sys-
tem.
Your audio system works when the ignition
key is in the “ACC” or “ON” position.
TURNING THE SYSTEM ON AND OFF
Push “PWR·VOL” to turn the audio system
on and off.
Push “AM”, “FM1”, “FM2”, “FM1·2”, “FM”,
“SAT”
∗, “TAPE”, “CD” or “DISC” to turn on
that function without pushing “PWR·VOL”.
You can turn on each player by inserting
a cassette tape or compact disc.
You can turn off each player by ejecting
the cassette tape or compact disc. If the
audio system was previously off, then the
entire audio system will be turned off
when you eject the cassette tape or com-
pact disc. If another function was pre-
viously playing, it will come on again.
∗: Use of satellite radio r equires XM tuner
and service. Contact your Toyota deal-
er for details. SWITCHING BETWEEN FUNCTIONS
Push “AM”, “FM1”, “FM2”, “FM1·2”, “FM”,
“SAT”
∗, “TAPE”, “CD” or “DISC” if the sys-
tem is already on but you want to switch
from one function to another.
∗: Use of satellite radio requires XM tuner and service. Contact your Toyota deal-
er for details.
LISTENING TO THE XM SATELLITE
RADIO BROADCAST
∗ (type 3)
To listen to a satellite radio broadcast in
your vehicle, an additional genuine Toyota
satellite receiver and antenna (or equiva-
lents) must be purchased and installed. A
subscription to the XM satellite radio ser-
vice is also necessary.
How to subscribe to an XM satellite
radio
An XM satellite radio is a tuner designed
exclusively to receive broadcasts provided
under a separate subscription. Availability
is limited to the 48 contiguous states. How to subscribe:
You must enter into a separate service
agreement with the XM radio in order to
receive satellite broadcast programming in
the vehicle. Additional activation and ser-
vice subscription fees apply that are not
included in the purchase price of the ve-
hicle and optional digital satellite tuner.
For complete information on subscription
rates and terms, or to subscribe to the
XM radio, visit XM on the web at
www.xmradio.com
or call an XM’s Listener
Care at (800) 852 −9696. The XM radio is
solely responsible for the quality, availabil-
ity and content of the satellite radio ser-
vices provided, which are subject to the
terms and conditions of the XM radio cus-
tomer service agreement.
Customers should have their radio ID
ready; the radio ID can be found by tun-
ing to “channel 000” on the radio. For
details, see “Displaying the radio ID” be-
low.
All fees and programming are the respon-
sibility of the XM satellite radio and are
subject to change.
Using your audio system—
—Some basics

’06Camry_U (L/O 0507)
146
2006 CAMRY from July ‘05 Prod. (OM33708U)
Satellite tuner technology notice:
Toyota’s satellite radio t uners are awarded
Type Approval Certificates from XM Satel-
lite Radio Inc. on “March 10, 2003” and
“April 15, 2003” as proof of compatibility
with the services offered by the XM satel-
lite radio.
Displaying the radio ID
Each XM tuner is identified with a unique
radio ID. You will need the radio ID when
activating XM service or when reporting a
problem.
If you select the “CH 000” using the
“TUNE” knob, the ID code of 8 alphanu-
meric characters appears. If you select
another channel, display of the ID code is
canceled. The channel (000) alternates the
display between the radio ID and the spe-
cific radio ID code.
∗: Use of satellite radio r equires XM tuner
and service. Contact your Toyota deal-
er for details. TONE AND BALANCE
For details about your system’s tone and
balance controls, see the description of
your own system.
Tone
How good an audio program sounds to
you is largely determined by the mix of
the treble, midrange (type 2 and 3), and
bass levels. In fact, different kinds of mu-
sic and vocal programs usually sound bet-
ter with different mixes of treble, mi-
drange, and bass.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to
a stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.
YOUR RADIO ANTENNA
Your vehicle has an antenna printed on
the inside of the rear window.
NOTICE
Putting a film (especially a conductive
or metallic film) on the rear wi
ndow
will noticeably reduce the sensitivity
of the radio.
YOUR CASSETTE PLAYER
When you insert a cassette, the exposed
tape should face to the right.
NOTICE
Never try to disassemble or oil any
part of the cassette player. Do not
insert anything other than cassette
tapes into the slot.
