CALIBRATING THE COMPASS (deviation
calibration)
The direction display on the compass
deviates from the true direction deter-
mined by the earth’s magnetic field. The
angle of deviation varies according to the
geographic position of the vehicle.
To adjust this deviation, stop the vehicle,
then push and hold the switch until the
zone number appears on the display.

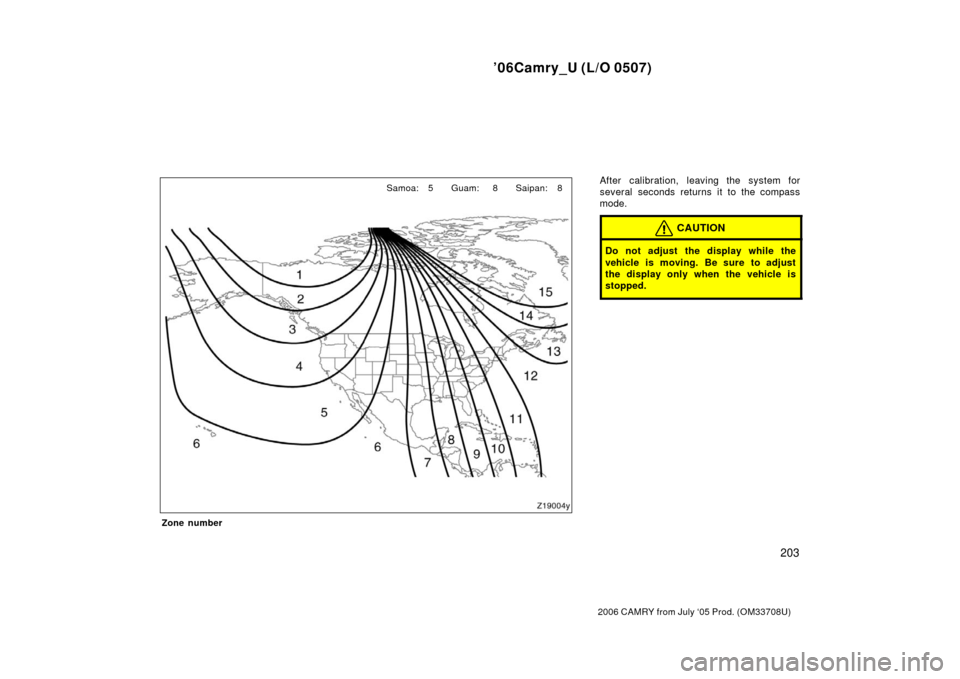

Then push the switch, referring to the fol-
lowing map to select the number of the
zone where the vehicle is.
’06Camry_U (L/O 0507)
204
2006 CAMRY from July ‘05 Prod. (OM33708U)
Ty p e A
Ty p e B
CALIBRATING THE COMPASS (circling
calibration)
Sometimes the direction display on the
compass may not change after a turn. To

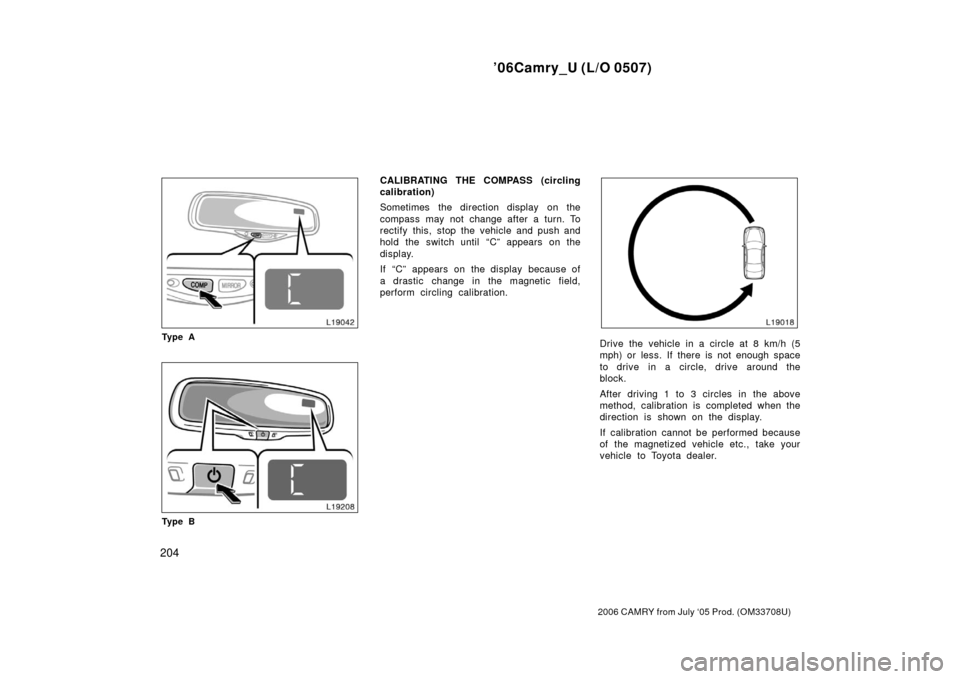

rectify this, stop the vehicle and push and
hold the switch until “C” appears on the
display.
If “C” appears on the display because of
a drastic change in the magnetic field,
perform circling calibration.
Drive the vehicle in a circle at 8 km/h (5
mph) or less. If there is not enough space
to drive in a circle, drive around the
block.
After driving 1 to 3 circles in the above
method, calibration is completed when the
direction is shown on the display.
If calibration cannot be performed because
of the magnetized vehicle etc., take your
vehicle to Toyota dealer.
’06Camry_U (L/O 0507)
205
2006 CAMRY from July ‘05 Prod. (OM33708U)
Perform circling calibration just after
you have purchased your Toyota. And
then always perform circling calibration
after the battery has been removed, re-
placed or disconnected.
Do not perform circling calibration of
the compass in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
During calibration, do not operate elec-
tric systems (moon roof, power win-
dows, etc.) as they may interfere with
the calibration.
CAUTION
When doing the circling calibration,
be sure to secure a wide space,
and watch out for people and ve-
hicles in the neighborhood. Do not
violate any local traffic rules while
performing circling calibration.
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.

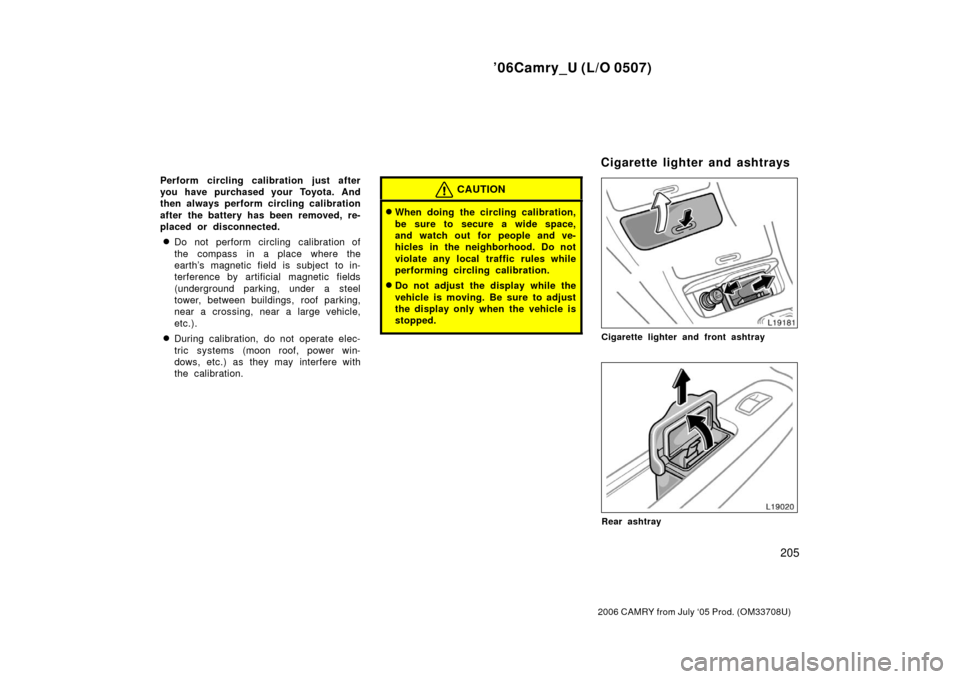

Cigarette lighter and front ashtray
Rear ashtray
Cigarette lighter and ashtrays
’06Camry_U (L/O 0507)
343
2006 CAMRY from July ‘05 Prod. (OM33708U)
21. ETCS 10 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system
22. HAZ 15 A: Emergency flashers
23. ECU B 10 A: Multiplex communication
system (power door lock system, secu-
rity system, auto −door locking system,
automatic light control system, head-
light delay off system, tail light auto
cut system, illuminated entry system,
daytime running light system, wireless
remote control system), air conditioning
system
24. DOME 7.5 A: Ignition switch light, inte-
rior light, personal lights, trunk light,
vanity lights, garage door opener,
clock, outside temperature display, mul-
ti −information display
25. CIG 15 A: Cigarette lighter
26. ECU ACC 5 A: Power rear view mir-
rors, clock, multi −information display
27. RAD NO.2 10 A: Audio system, navi-
gation system
28. POWER POINT 15 A: Power outlets
29. RAD NO.1 20 A: Audio system, navi-
gation system 30. GAUGE1 10 A:
Gauges and meters,
clock, outside temperature display, mul-
ti −information display, shift lock system,
seat belt reminder lights
31. ECU IG 10 A: SRS airbag system,
power windows, anti −lock brake system
32. WIPER 25 A: Windshield wipers
33. HTR 10 A: Air conditioning system
34. MIR HTR 10 A: Outside rear view mir-
ror heaters
35. AM1 5 A: Starting system
36. FOG 15 A: Front fog lights
37. SUN SHADE 15 A: No circuit
38. GAUGE2 10 A: Auto anti−glare inside
rear view mirror, compass, electric
moon roof, back −up lights, automatic
transmission indicator lights, automatic
light control system, cruise control sys-
tem
39. PANEL 10 A: Glove box light, clock,
outside temperature display, multi −infor-
mation display, instrument cluster
lights, instrument panel lights, over-
drive− off indicator light
40. TAIL 10 A: Tail lights, parking lights,
license plate lights 41. PWR NO.4 20 A:
Rear passenger’s
power window (left side)
42. PWR NO.2 20 A: Front passenger ’s
door lock system, front passenger ’s
power window
43. OBD 7.5 A: On−board diagnosis sys-
tem
44. SEAT HTR 20 A: Seat heaters
45.
WASHER 15 A: Windshield washer
46. FAN RLY 10 A: Electric cooling fans
47. STOP 15 A: Stop lights, high mounted
stoplight, anti −lock brake system,
cruise control system
48. FUEL OPEN 5 A: No circuit
49. DOOR NO.2 25 A: Multiplex commu-
nication system (power door lock sys-
tem, auto −door locking system, wire-
less remote control system)
50. AMP 25 A: No circuit
51. PWR NO.3 20 A: Rear passenger’s
power window (right side)
