2006 TOYOTA AVALON Owners Manual

’06 AVALON_U (L/O 0508)
41
Automatic operation: Push the switch
completely down or pull it completely up,
and then release it. The window will fully
open or close. To stop the window part-
way, lightly move the switch in the oppo-
site direction and then release it.
If you push in the window lock switch on
the driver ’s door, the front passenger ’s
window cannot be operated.
The indicator lights on the switch tell you
which of the switches can be operated.
Jam protection function: During automat-
ic closing operation or key off closing op-
eration, the window stops and opens half
way if something gets caught between the
window and window frame.
If the window receives a strong impact,
this function may work even if nothing is
caught. If the power window does not operate
automatically or the jam protection
function does not operate correctly, you
should normalize the power window.
To normalize the power window:
1. Push down the power window switches of each front door and lower the win-
dows halfway.
2. Pull up the switches until the windows close and hold the switches for a sec-
ond.
Make sure that the windows open and
close automatically. If the power windows
cannot be operated properly, have it
checked by your Toyota dealer.CAUTION
Never try jamming any part of your
body to activate the jam protection
function intentionally, as it could re-
sult in a serious injury.
The jam protection function may
not work if something gets caught
just before the window is fully
closed.

’06 AVALON_U (L/O 0508)
42

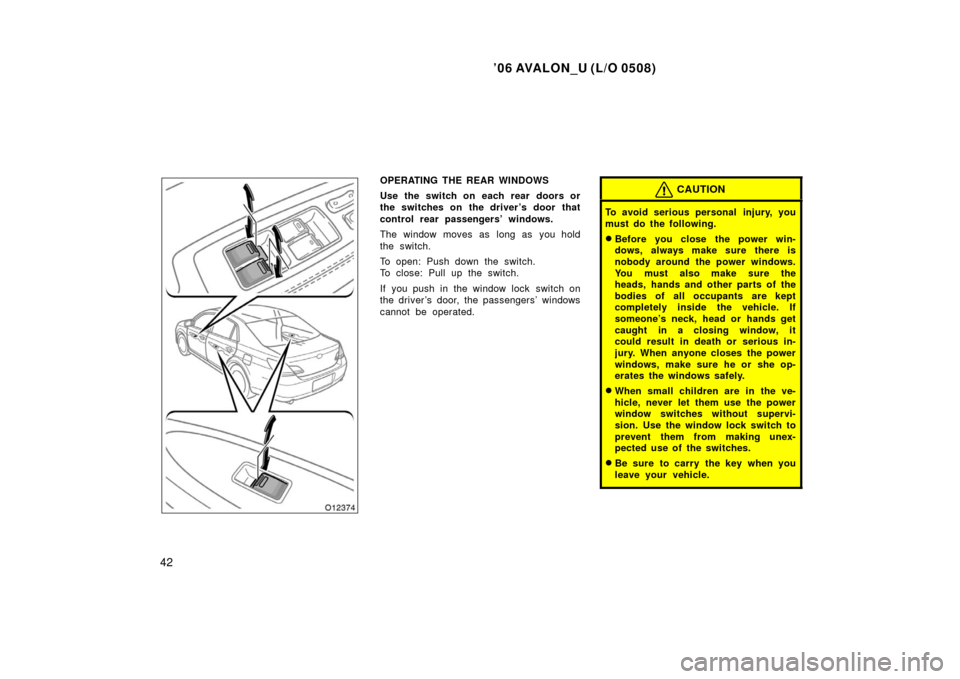

OPERATING THE REAR WINDOWS
Use the switch on each rear doors or
the switches on the driver’s door that
control rear passengers’ windows.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passengers’ windows
cannot be operated.CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in death or serious in-
jury. When anyone closes the power
windows, make sure he or she op-
erates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Be sure to carry the key when you
leave your vehicle.

’06 AVALON_U (L/O 0508)
43
Never leave anyone (particularly a
small child) alone in your vehicle,
with the key left in the vehicle.
Otherwise, he/she could use the
power window switches and get
trapped in a window. Unattended
person (particularly a small child)
can be involved in a serious acci-
dent.

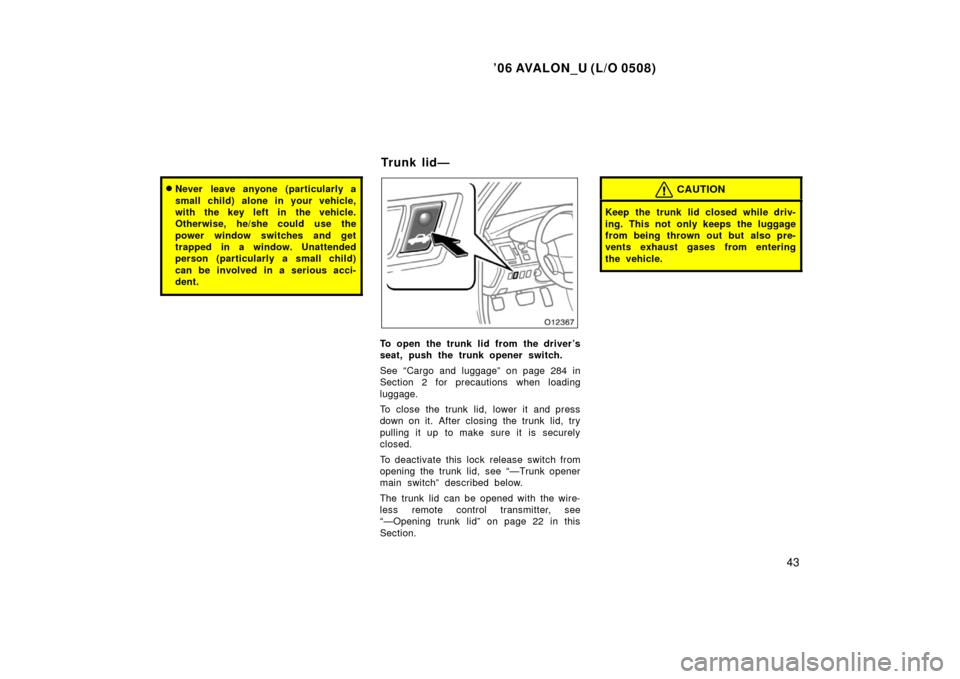

To open the trunk lid from the driver’s
seat, push the trunk opener switch.
See “Cargo and luggage” on page 284 in
Section 2 for precautions when loading
luggage.
To close the trunk lid, lower it and press
down on it. After closing the trunk lid, try
pulling it up to make sure it is securely
closed.
To deactivate this lock release switch from
opening the trunk lid, see “—Trunk opener
main switch” described below.
The trunk lid can be opened with the wire-
less remote control transmitter, see
“—Opening trunk lid” on page 22 in this
Section.
CAUTION
Keep the trunk lid closed while driv-
ing. This not only keeps the luggage
from being thrown out but also pre-
vents exhaust gases from entering
the vehicle.
Trunk lid—

’06 AVALON_U (L/O 0508)
44

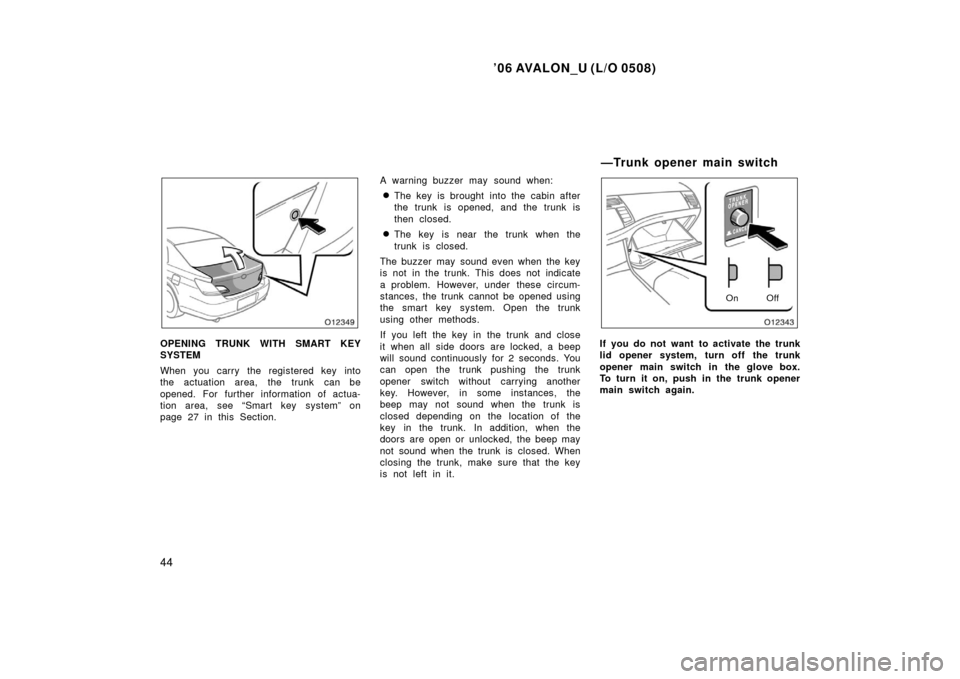

OPENING TRUNK WITH SMART KEY
SYSTEM
When you carry the registered key into
the actuation area, the trunk can be
opened. For further information of actua-
tion area, see “Smart key system” on
page 27 in this Section.A warning buzzer may sound when:
The key is brought into the cabin after
the trunk is opened, and the trunk is
then closed.
The key is near the trunk when the
trunk is closed.
The buzzer may sound even when the key
is not in the trunk. This does not indicate
a problem. However, under these circum-
stances, the trunk cannot be opened using
the smart key system. Open the trunk
using other methods.
If you left the key in the trunk and close
it when all side doors are locked, a beep
will sound continuously for 2 seconds. You
can open the trunk pushing the trunk
opener switch without carrying another
key. However, in some instances, the
beep may not sound when the trunk is
closed depending on the location of the
key in the trunk. In addition, when the
doors are open or unlocked, the beep may
not sound when the trunk is closed. When
closing the trunk, make sure that the key
is not left in it.
On Off
If you do not want to activate the trunk
lid opener system, turn off the trunk
opener main switch in the glove box.
To turn it on, push in the trunk opener
main switch again.
—Trunk opener main switch

’06 AVALON_U (L/O 0508)
45

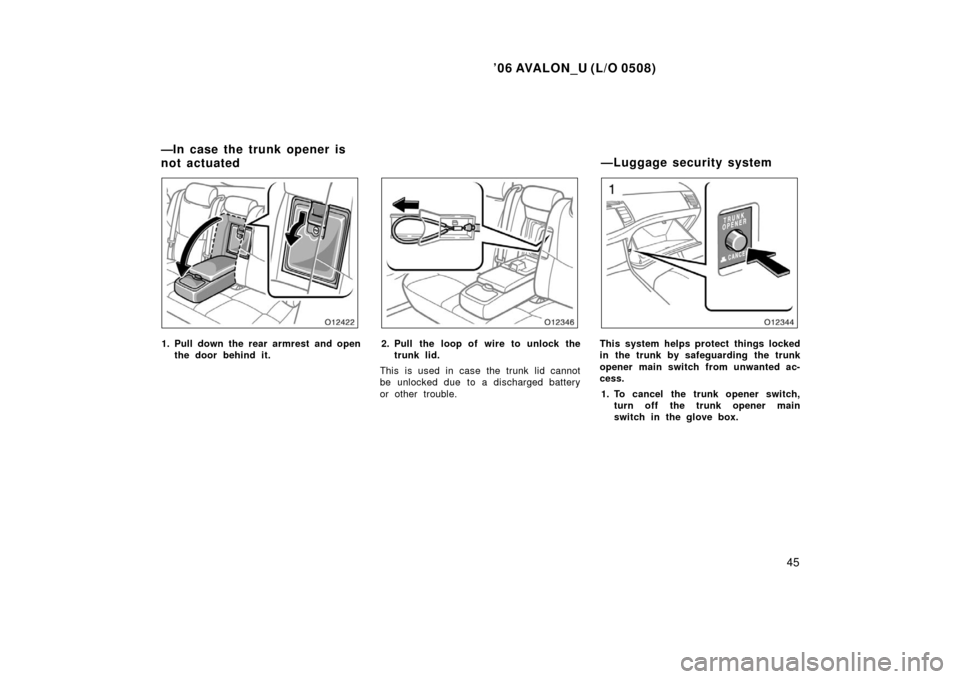

1. Pull down the rear armrest and openthe door behind it.2. Pull the loop of wire to unlock thetrunk lid.
This is used in case the trunk lid cannot
be unlocked due to a discharged battery
or other trouble.This system helps protect things locked
in the trunk by safeguarding the trunk
opener main switch from unwanted ac-
cess. 1. To cancel the trunk opener switch, turn off the trunk opener main
switch in the glove box.
—In case the trunk opener is
not actuated —Luggage security system

’06 AVALON_U (L/O 0508)
46

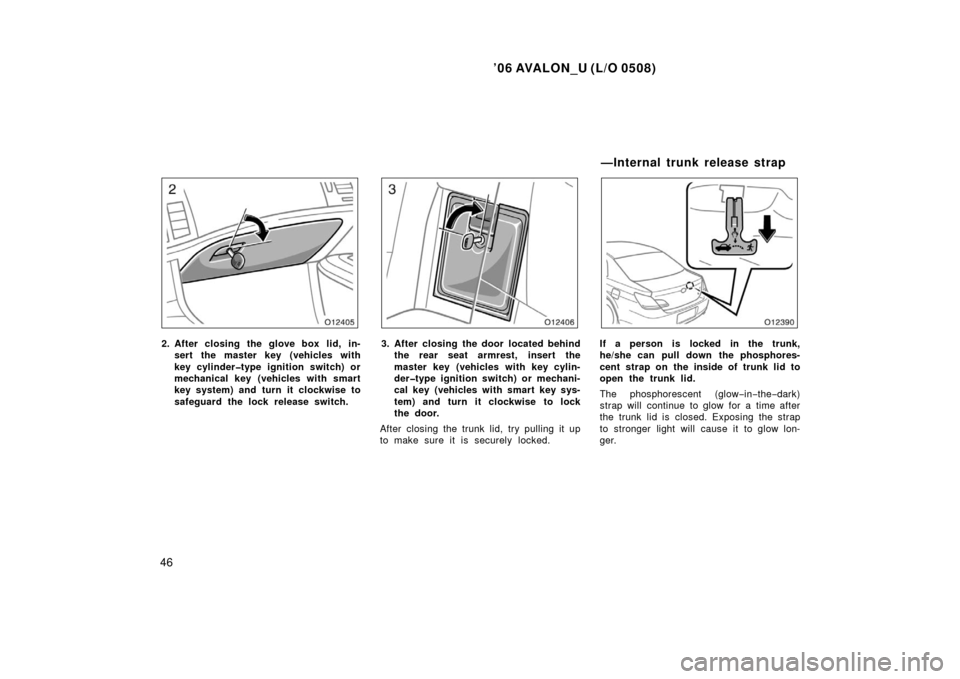

2. After closing the glove box lid, in-sert the master key (vehicles with
key cylindertype ignition switch) or
mechanical key (vehicles with smart
key system) and turn it clockwise to
safeguard the lock release switch.3. After closing the door located behindthe rear seat armrest, insert the
master key (vehicles with key cylin-
dertype ignition switch) or mechani-
cal key (vehicles with smart key sys-
tem) and turn it clockwise to lock
the door.
After closing the trunk lid, try pulling it up
to make sure it is securely locked.If a person is locked in the trunk,
he/she can pull down the phosphores-
cent strap on the inside of trunk lid to
open the trunk lid.
The phosphorescent (glow −in −the −dark)
strap will continue to glow for a time after
the trunk lid is closed. Exposing the strap
to stronger light will cause it to glow lon-
ger.
—Internal trunk release strap

’06 AVALON_U (L/O 0508)
47
CAUTION
Always lock the trunk lid and all
doors, and keep away the vehicle
keys out of children’s reach.
Never leave children unattended in
the vehicle. Unsupervised children
may lock themselves in the vehicle
or trunk and suffer serious injuries
or death.

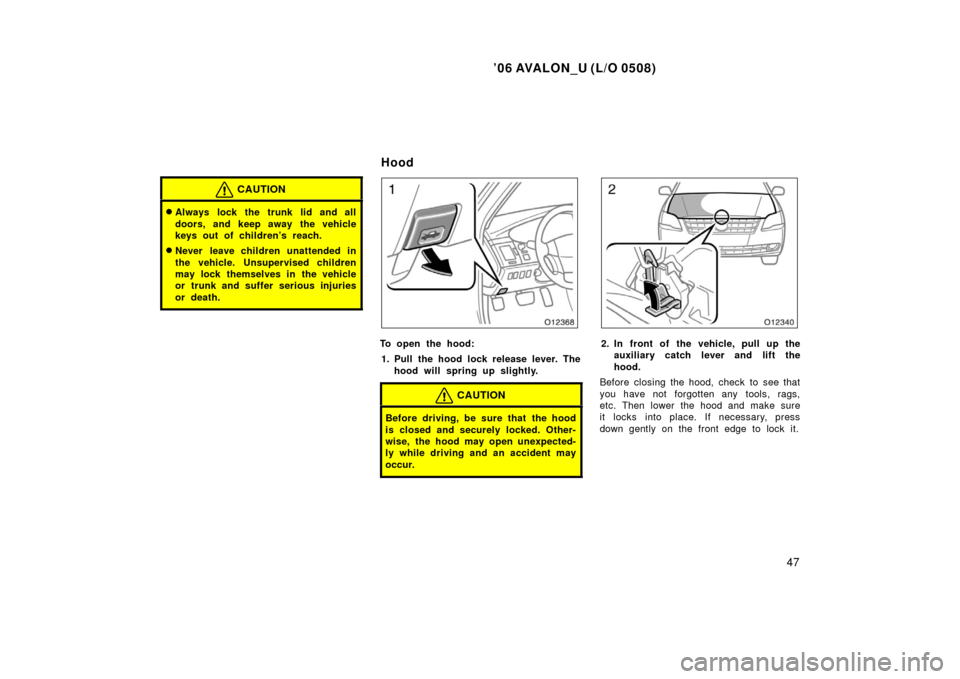

To open the hood:1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. Then lower the hood and make sure
it locks into place. If necessary, press
down gently on the front edge to lock it.
Hood

’06 AVALON_U (L/O 0508)
48
To deter vehicle theft, the system is
designed to sound an alarm if any of
the doors, trunk or hood is forcibly un-
locked or the battery terminal is discon-
nected and then reconnected when the
vehicle is locked.
The alarm also sounds, when someone
attempts to break the side windows.
The alarm blows the horn intermittently
and flashes the headlights, tail lights and
interior light.Indicator light
Glass breakage sensor
SETTING THE SYSTEM1. Vehicles with key cylinder −type ignition
switch—The key is removed from the
ignition switch.
Vehicles with smart key system—The
ignition switch is turned off.
The engine immobilizer system is set and
the indicator light will start flashing. (For
details, see “Engine immobilizer system”
on page 16 in this Section.)
2. Have all passengers get out of the vehicle.
3. Close and lock all the doors, trunk and hood.
The indicator light will remain on when all
the doors, trunk and hood are closed and
locked.
The theft deterrent system will automati-
cally be set after 30 seconds. When the
system is set, the indicator light will start
flashing again. 4. After making sure the indicator light starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
Theft deterrent system
