For your Toyota dealer to make you a
new key with built−in transponder chip,
your dealer will need your key number
and master key (vehicles with key cylin-
der −type ignition switch) or electronic key
(vehicles with smart key system). Howev-
er, there is a limit to the number of addi-
tional keys your Toyota dealer can make
for you.
NOTICE
Do not modify, remove or disas-
semble the engine immobilizer sys-
tem. If any unauthorized changes or
modifications are made, proper opera-
tion of the system cannot be guaran-
teed.

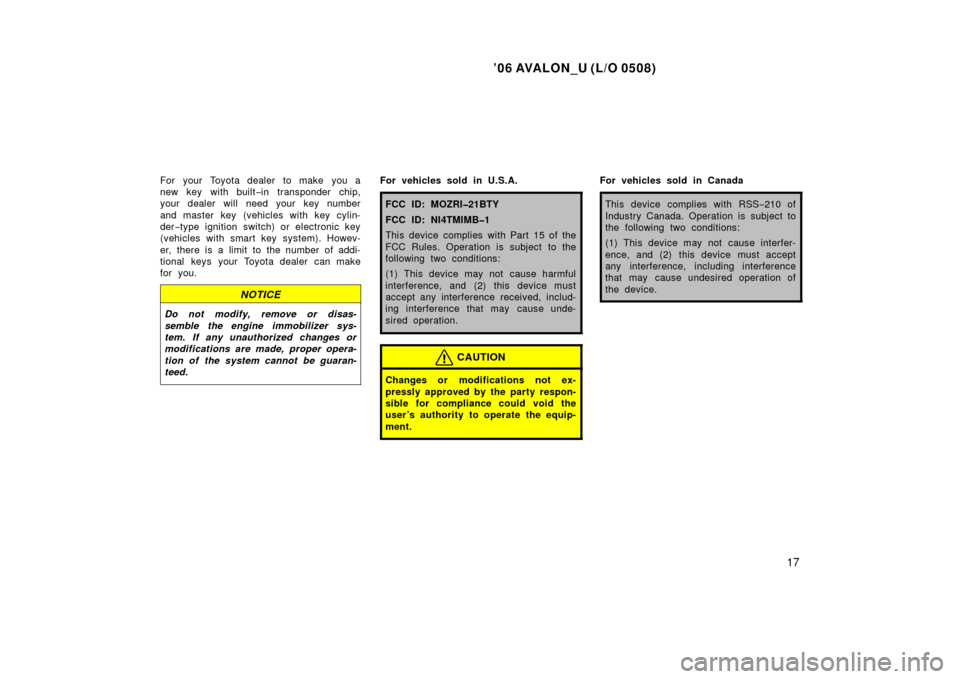

For vehicles sold in U.S.A.
FCC ID: MOZRI21BTY
FCC ID: NI4TMIMB1
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
CAUTION
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
This device complies with RSS −210 of
Industry Canada. Operation is subject to
the following two conditions:
(1) This device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.

’06 AVALON_U (L/O 0508)
18
Vehicles with key cylindertype ignition
switch
Vehicles with smart key system

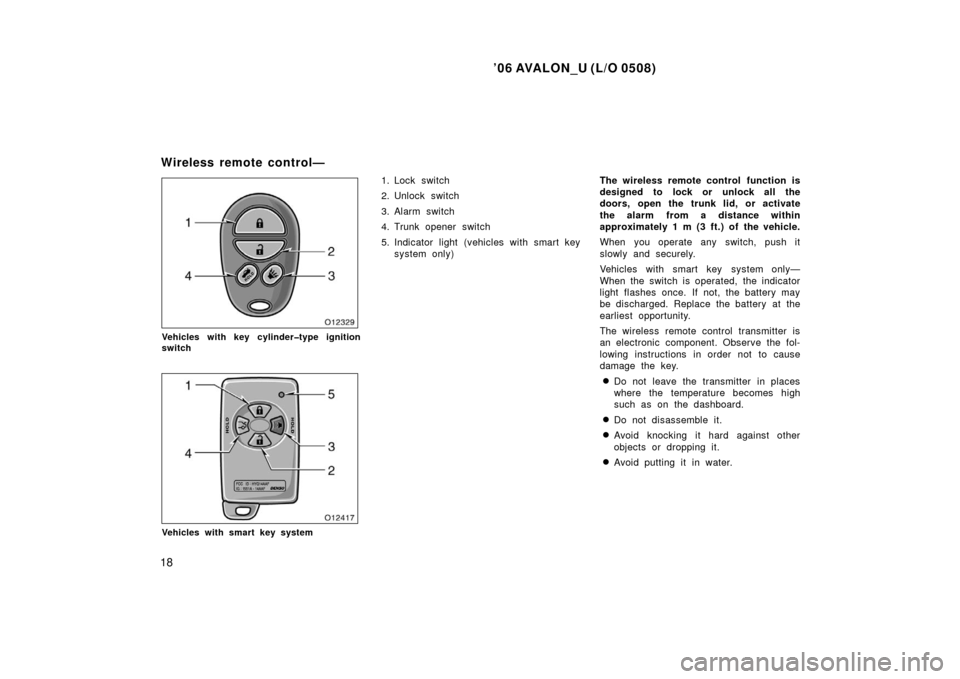

1. Lock switch
2. Unlock switch
3. Alarm switch
4. Trunk opener switch
5. Indicator light (vehicles with smart keysystem only) The wireless remote control function is
designed to lock or unlock all the
doors, open the trunk lid, or activate
the alarm from a distance within
approximately 1 m (3 ft.) of the vehicle.
When you operate any switch, push it
slowly and securely.
Vehicles with smart key system only—
When the switch is operated, the indicator
light flashes once. If not, the battery may
be discharged. Replace the battery at the
earliest opportunity.
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instructions in order not to cause
damage the key.
Do not leave the transmitter in places
where the temperature becomes high
such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
Wireless remote control—

’06 AVALON_U (L/O 0508)
19
You can use up to 4 wireless remote con-
trol transmitters (for vehicles with key cyl-
inder−type ignition switch) or 7 wireless
remote control transmitters (for vehicles
with smart key system) for the same ve-
hicle. Contact your Toyota dealer for de-
tailed information.
If the wireless remote control transmitter
does not actuate the doors, or does not
operate from a normal distance, or if the
indicator on the transmitter is dimmed or
does not come on:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
The battery may have been consumed.
Check the battery in the transmitter. To
replace the battery, see “—Replacing
battery” on pages 23 or 25 in this Sec-
tion.
If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an acci-
dent. (See “If you lose your wireless re-
mote control transmitter” on page 326 in
Section 4.) For vehicles sold in U.S.A.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful
interference, and (2) this device must
accept any interference received, includ-
ing interference that may cause unde-
sired operation.
NOTICE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instruc-
tions, may cause harmful interference to
radio communications. However, there is
no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interfer-
ence to radio or television reception,
which can be determined by turning the
equipment off and on, the user is en-
couraged to try to correct the interfer-
ence by one or more of the following
measures:

’06 AVALON_U (L/O 0508)
20
Reorient or relocate the receiving an-
tenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
FCC WARNING:
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
Operation is subject to the following two
conditions:
(1) this device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
Locking operation (vehicles with key cyl-
indertype ignition switch)
Unlocking operation (vehicles with key
cylindertype ignition switch)
Locking operation (vehicles with smart
key system)
Unlocking operation (vehicles with smart
key system)
—Locking and unlocking
doors

’06 AVALON_U (L/O 0508)
21
To lock or unlock all the doors, push
the switches slowly and securely.
To lock: Push the lock switch. All the
doors are locked simultaneously. At this
time one beep will sound and turn signal
lights flash once.
Vehicles with smart key system—For three
seconds after the doors have been locked,
the doors cannot be re−unlocked via the
smart key system.
Check to see that the doors are securely
locked.
If any of the doors is not securely closed,
or if the key is in the ignition switch (ve-
hicles with key cylinder −type ignition
switch) or key left in the vehicle (vehicles
with smart key system), locking cannot be
performed by the lock switch and a beep
will sound continuously for 10 seconds.
To stop the beep, take out the key from
the vehicle or push the unlock switch.
The beep can be disabled. For details,
contact your Toyota dealer.
On vehicles with key cylinder −type ignition
switch, see “—Switching beep sound” on
page 23 if you wish to change the set-
tings yourself. To unlock: Push the unlock switch once to
unlock the driver ’s door alone. Pushing
the switch twice within 3 seconds unlocks
all the doors simultaneously. Each time
the unlock switch is pushed, two beeps
will sound and turn signal lights flash
twice.
This double switch operation to unlock all
doors can be changed to a single switch
operation. For details, contact your Toyota
dealer.
If the key is in the ignition (vehicles with
key cylinder
−type ignition switch) or the
ignition switch is set to ACC or ON (ve-
hicles with smart key system), the vehicle
cannot be unlocked via the unlock switch.
When all the doors are unlocked simulta-
neously with a key, wireless remote con-
trol or entry function of the smart key
system, the following lights come on for
about 15 seconds and then fade out, even
if the door is not opened.
Vehicles with key cylinder −type ignition
switch—Ignition switch light, interior light,
front personal lights and rear personal
lights
Vehicles with smart key system—Ignition
switch light, interior light, front personal
lights, rear personal lights and exterior
foot lights (For further information, see “Illuminated
entry system” on page 135 in Section
1
−5.)
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
doors will be automatically locked again.
If the wireless remote control is used to
lock the doors near the window or door
handle, there is a possibility that the door
may not unlocked by entry function of
smart key system. Under these circum-
stances, use the wireless remote control
to unlock the doors.
The time before automatic door lock func-
tion can be changed. For details, contact
your Toyota dealer.
If the lock or unlock switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the switch
and then push again.

’06 AVALON_U (L/O 0508)
22
Vehicles with key cylindertype ignition
switch
Vehicles with smart key system

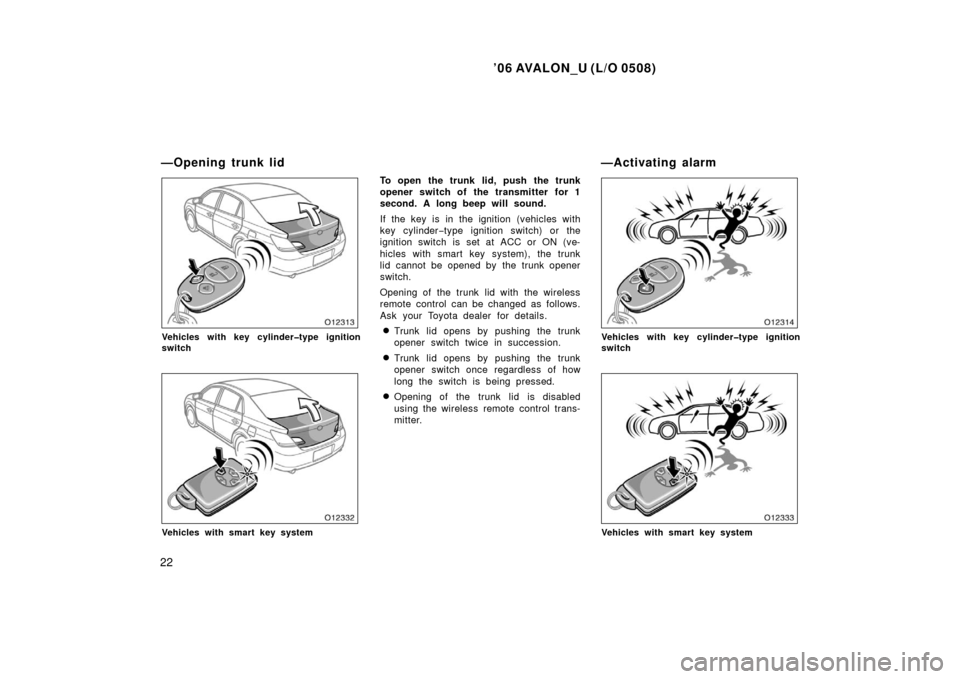

To open the trunk lid, push the trunk
opener switch of the transmitter for 1
second. A long beep will sound.
If the key is in the ignition (vehicles with
key cylinder−type ignition switch) or the
ignition switch is set at ACC or ON (ve-
hicles with smart key system), the trunk
lid cannot be opened by the trunk opener
switch.
Opening of the trunk lid with the wireless
remote control can be changed as follows.
Ask your Toyota dealer for details.
Trunk lid opens by pushing the trunk
opener switch twice in succession.
Trunk lid opens by pushing the trunk
opener switch once regardless of how
long the switch is being pressed.
Opening of the trunk lid is disabled
using the wireless remote control trans-
mitter.
Vehicles with key cylindertype ignition
switch
Vehicles with smart key system
—Opening trunk lid —Activating alarm

’06 AVALON_U (L/O 0508)
23
Pushing the switch blows the horn in-
termittently and flashes the headlights,
tail lights and interior light.
Vehicles with smart key system only—
When pushing the switch, the indicator
light flashes.
The alarm switch is used to deter vehicle
theft when you witness anyone attempting
to break into or damage your vehicle.
The alarm will last for one minute. To stop
the alarm midway, push the switch once
again, unlock a door with the transmitter,
or set the ignition switch to ON.
If the key is in the ignition (vehicles with
key cylinder−type ignition switch) or the
ignition switch is set at ACC or ON (ve-
hicles with smart key system), the alarm
does not work.
This alarm function can be disabled. For
details, contact your Toyota dealer. You can switch the beep sound on and
off. (The beep sound is on initially and
after battery replacement.)
To switch the beep sound on and off:
With the driver ’s door opened—
1. Insert the ignition key and remove it.
2. Within 5 seconds, set the ignition switch to ON.
3. After 10 seconds, push any switch on the transmitter twice within 10 seconds.
Two beep sounds inform you that the
program has been switched on or off.
If this procedure is not followed exactly,
the beep sound will not operate as ex-
pected.
Check the beep sound on/off operation by
pushing the transmitter switch after you
finish this procedure. If the beep does not
operate as expected, repeat this proce-
dure from step 1. For replacement, use a CR2016 lithium
battery or equivalent.
CAUTION
Special care should be taken to pre-
vent small children from swallowing
the removed transmitter battery or
components.
NOTICE

When replacing the transmitter bat-
tery, be careful not to lose the com-
ponents.
 Replace only with the same or
equivalent type recommended by a
Toyota dealer.
 Dispose of used batteries according
to the local laws.
Replace the transmitter battery by follow-
ing these procedures:
—Switching beep sound
(with key cylindertype ignition
switch only)
—Replacing battery
(with key cylindertype
ignition switch)

’06 AVALON_U (L/O 0508)
24

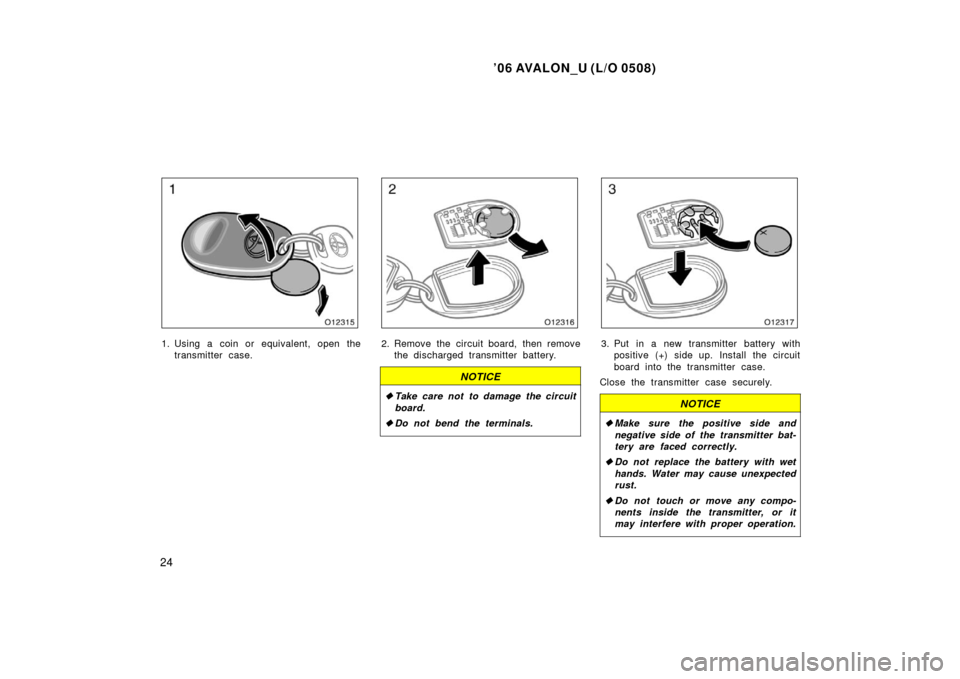

1. Using a coin or equivalent, open thetransmitter case.2. Remove the circuit board, then removethe discharged transmitter battery.
NOTICE
Take care not to damage the circuit
board.
 Do not bend the terminals.
3. Put in a new transmitter battery with
positive (+) side up. Install the circuit
board into the transmitter case.
Close the transmitter case securely.
NOTICE
 Make sure the positive side and
negative side of the transmitter bat-
tery are faced correctly.
 Do not replace the battery with wet
hands. Water may cause unexpected
rust.
 Do not touch or move any compo-
nents inside the transmitter, or it
may interfere with proper operation.
