Downloaded from www.Manualslib.com manuals search engine 8B-57 Air Bag System:

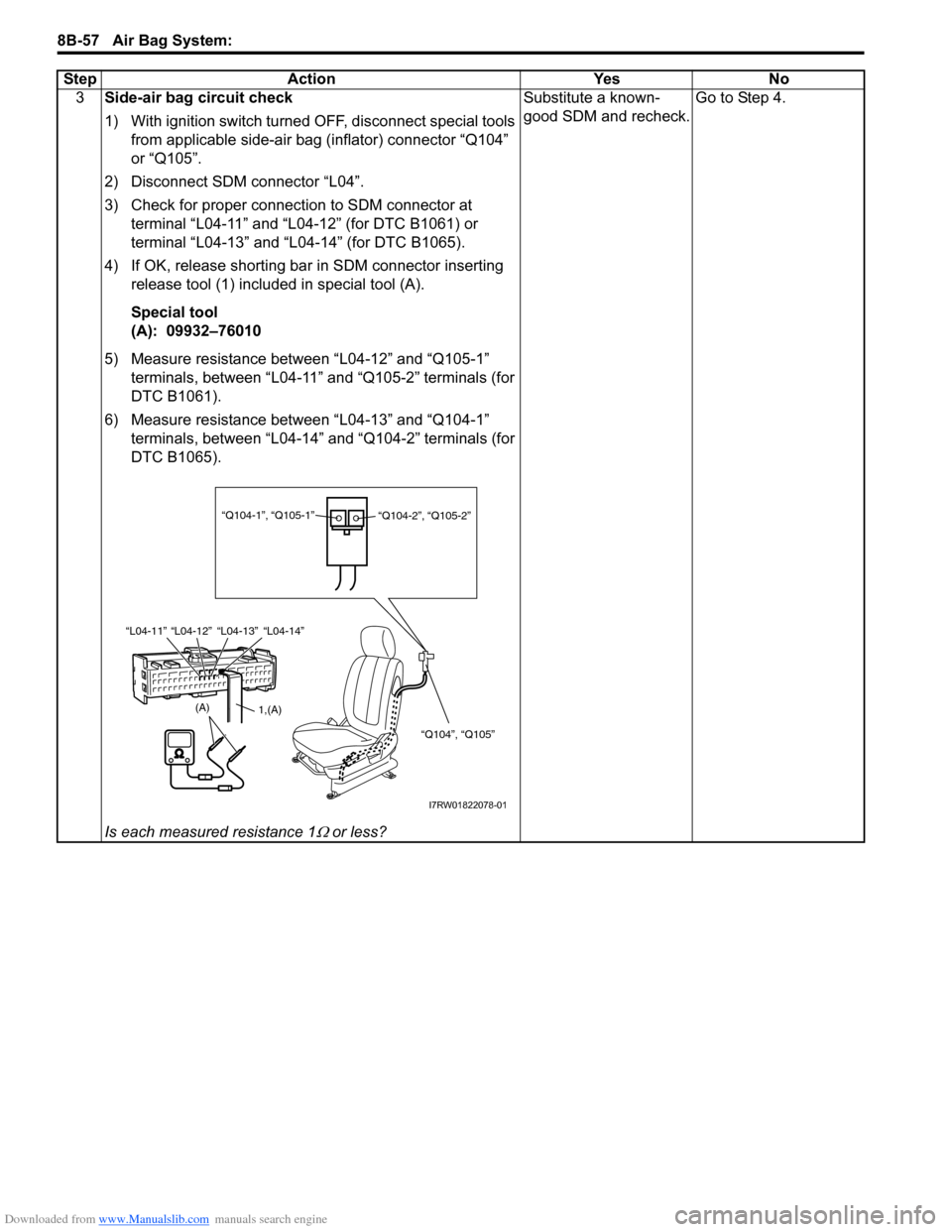

3Side-air bag circuit check
1) With ignition switch turned OFF, disconnect special tools
from applicable side-air bag (inflator) connector “Q104”
or “Q105”.
2) Disconnect SDM connector “L04”.
3) Check for proper connection to SDM connector at
terminal “L04-11” and “L04-12” (for DTC B1061) or
terminal “L04-13” and “L04-14” (for DTC B1065).
4) If OK, release shorting bar in SDM connector inserting
release tool (1) included in special tool (A).
Special tool
(A): 09932–76010
5) Measure resistance between “L04-12” and “Q105-1”
terminals, between “L04-11” and “Q105-2” terminals (for
DTC B1061).
6) Measure resistance between “L04-13” and “Q104-1”
terminals, between “L04-14” and “Q104-2” terminals (for
DTC B1065).
Is each measured resistance 1
Ω or less?Substitute a known-
good SDM and recheck.Go to Step 4. Step Action Yes No
(A)
“L04-12” “L04-13” “L04-14” “L04-11”
1,(A)
“Q104-1”, “Q105-1”
“Q104-2”, “Q105-2”
“Q104”, “Q105”
I7RW01822078-01

Downloaded from www.Manualslib.com manuals search engine Air Bag System: 8B-58
NOTE
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components, ensure all components are properly mounted.
• Clear DTCs referring to “DTC Clearance”, if any.
• Repeat “Air Bag Diagnostic System Check” to confirm that the trouble has been corrected.

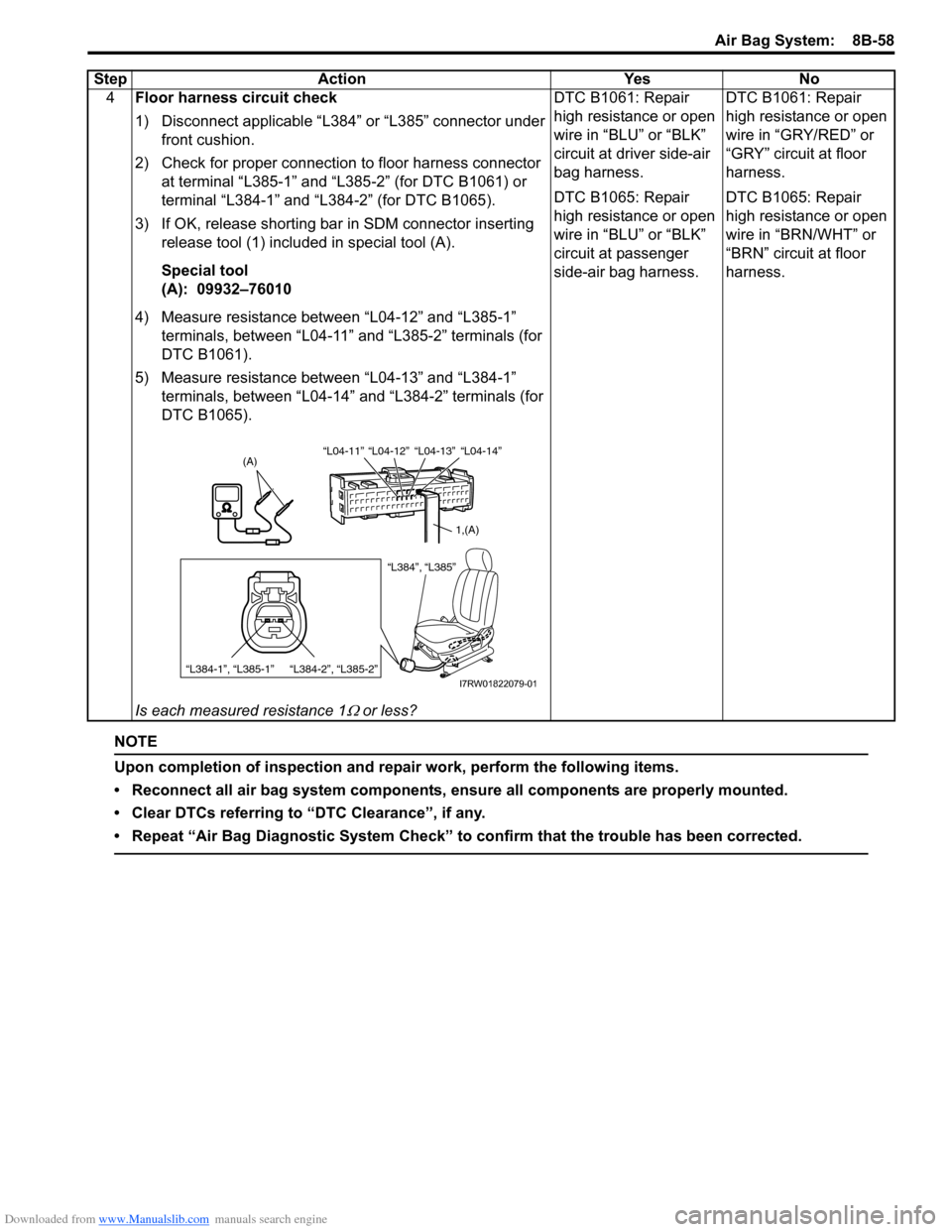

4Floor harness circuit check
1) Disconnect applicable “L384” or “L385” connector under
front cushion.
2) Check for proper connection to floor harness connector
at terminal “L385-1” and “L385-2” (for DTC B1061) or
terminal “L384-1” and “L384-2” (for DTC B1065).
3) If OK, release shorting bar in SDM connector inserting
release tool (1) included in special tool (A).
Special tool
(A): 09932–76010
4) Measure resistance between “L04-12” and “L385-1”
terminals, between “L04-11” and “L385-2” terminals (for
DTC B1061).
5) Measure resistance between “L04-13” and “L384-1”
terminals, between “L04-14” and “L384-2” terminals (for
DTC B1065).
Is each measured resistance 1
Ω or less?DTC B1061: Repair
high resistance or open
wire in “BLU” or “BLK”
circuit at driver side-air
bag harness.
DTC B1065: Repair
high resistance or open
wire in “BLU” or “BLK”
circuit at passenger
side-air bag harness.DTC B1061: Repair
high resistance or open
wire in “GRY/RED” or
“GRY” circuit at floor
harness.
DTC B1065: Repair
high resistance or open
wire in “BRN/WHT” or
“BRN” circuit at floor
harness. Step Action Yes No
“L384”, “L385”
(A)“L04-12” “L04-13” “L04-14” “L04-11”
1,(A)
“L384-1”, “L385-1” “L384-2”, “L385-2”I7RW01822079-01

Downloaded from www.Manualslib.com manuals search engine 8B-59 Air Bag System:

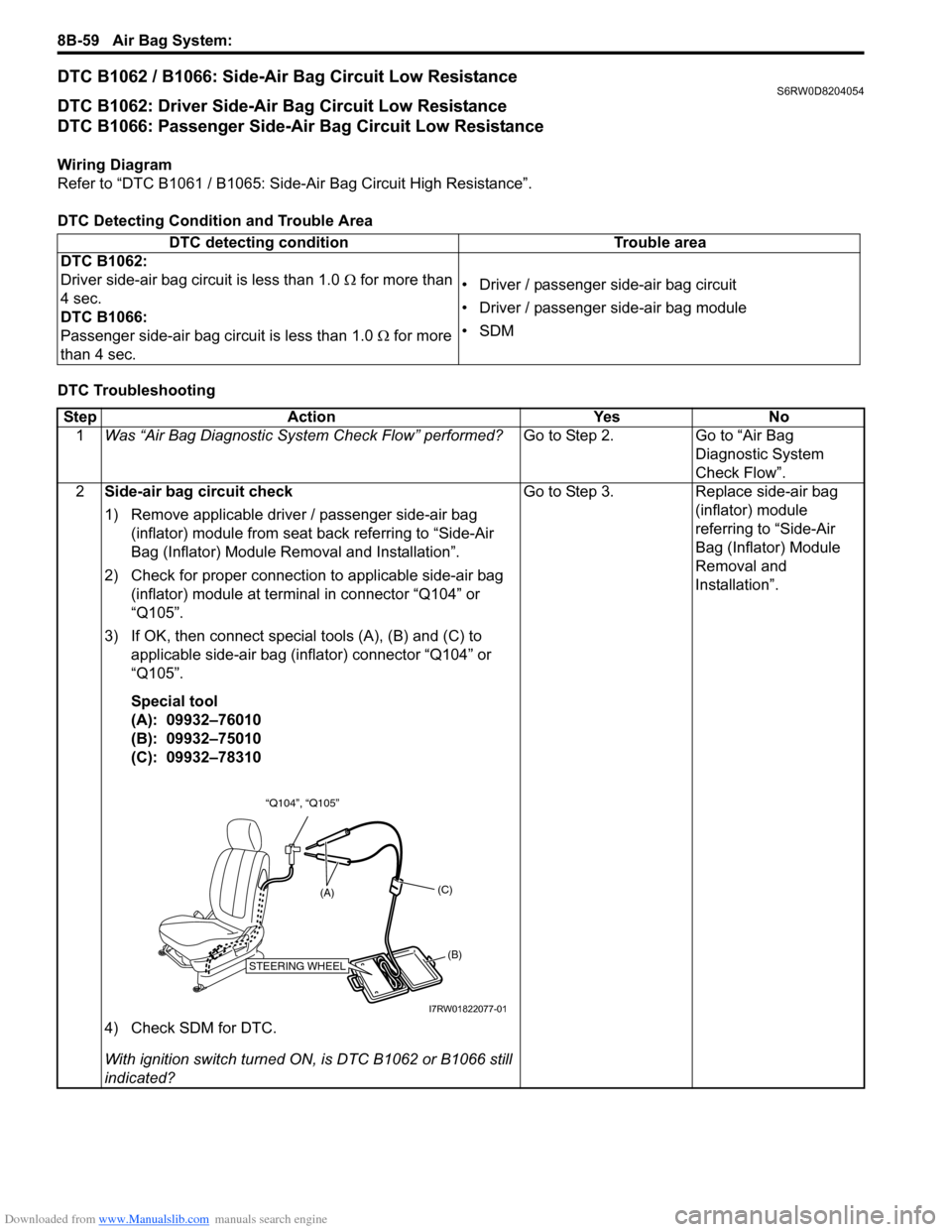

DTC B1062 / B1066: Side-Air Bag Circuit Low ResistanceS6RW0D8204054
DTC B1062: Driver Side-Air Bag Circuit Low Resistance
DTC B1066: Passenger Side-Air Bag Circuit Low Resistance
Wiring Diagram
Refer to “DTC B1061 / B1065: Side-Air Bag Circuit High Resistance”.
DTC Detecting Condition and Trouble Area
DTC TroubleshootingDTC detecting condition Trouble area
DTC B1062:
Driver side-air bag circuit is less than 1.0 Ω for more than
4 sec.
DTC B1066:
Passenger side-air bag circuit is less than 1.0 Ω for more
than 4 sec.• Driver / passenger side-air bag circuit
• Driver / passenger side-air bag module
•SDM
Step Action Yes No
1Was “Air Bag Diagnostic System Check Flow” performed?Go to Step 2. Go to “Air Bag
Diagnostic System
Check Flow”.
2Side-air bag circuit check
1) Remove applicable driver / passenger side-air bag
(inflator) module from seat back referring to “Side-Air
Bag (Inflator) Module Removal and Installation”.
2) Check for proper connection to applicable side-air bag
(inflator) module at terminal in connector “Q104” or
“Q105”.
3) If OK, then connect special tools (A), (B) and (C) to
applicable side-air bag (inflator) connector “Q104” or
“Q105”.
Special tool
(A): 09932–76010
(B): 09932–75010
(C): 09932–78310
4) Check SDM for DTC.
With ignition switch turned ON, is DTC B1062 or B1066 still
indicated?Go to Step 3. Replace side-air bag
(inflator) module
referring to “Side-Air
Bag (Inflator) Module
Removal and
Installation”.
“Q104”, “Q105”
STEERING WHEEL(B) (C)
(A)
I7RW01822077-01

Downloaded from www.Manualslib.com manuals search engine Air Bag System: 8B-60

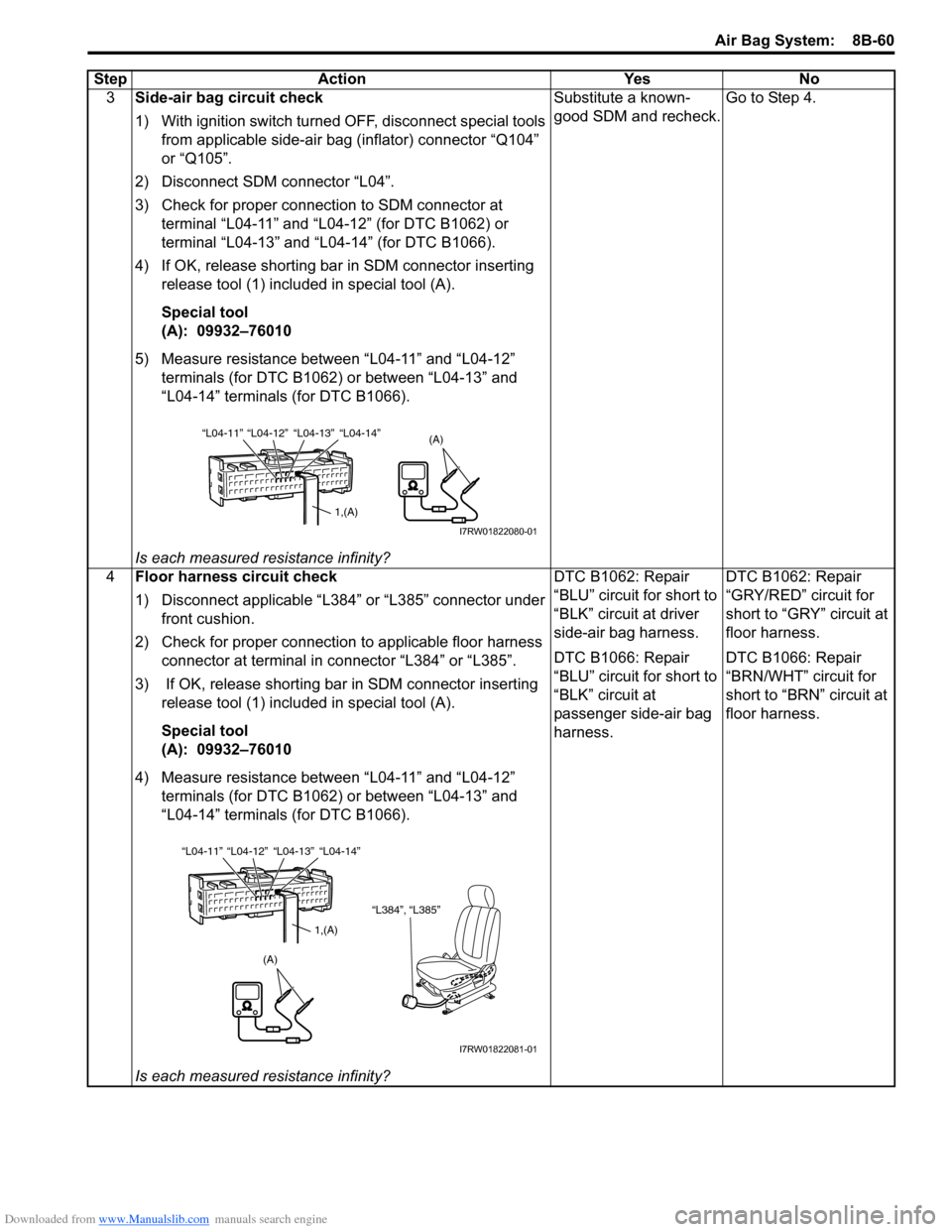

3Side-air bag circuit check
1) With ignition switch turned OFF, disconnect special tools
from applicable side-air bag (inflator) connector “Q104”
or “Q105”.
2) Disconnect SDM connector “L04”.
3) Check for proper connection to SDM connector at
terminal “L04-11” and “L04-12” (for DTC B1062) or
terminal “L04-13” and “L04-14” (for DTC B1066).
4) If OK, release shorting bar in SDM connector inserting
release tool (1) included in special tool (A).
Special tool
(A): 09932–76010
5) Measure resistance between “L04-11” and “L04-12”
terminals (for DTC B1062) or between “L04-13” and
“L04-14” terminals (for DTC B1066).
Is each measured resistance infinity?Substitute a known-
good SDM and recheck.Go to Step 4.
4Floor harness circuit check
1) Disconnect applicable “L384” or “L385” connector under
front cushion.
2) Check for proper connection to applicable floor harness
connector at terminal in connector “L384” or “L385”.
3) If OK, release shorting bar in SDM connector inserting
release tool (1) included in special tool (A).
Special tool
(A): 09932–76010
4) Measure resistance between “L04-11” and “L04-12”
terminals (for DTC B1062) or between “L04-13” and
“L04-14” terminals (for DTC B1066).
Is each measured resistance infinity?DTC B1062: Repair
“BLU” circuit for short to
“BLK” circuit at driver
side-air bag harness.
DTC B1066: Repair
“BLU” circuit for short to
“BLK” circuit at
passenger side-air bag
harness.DTC B1062: Repair
“GRY/RED” circuit for
short to “GRY” circuit at
floor harness.
DTC B1066: Repair
“BRN/WHT” circuit for
short to “BRN” circuit at
floor harness. Step Action Yes No
(A)“L04-12” “L04-13” “L04-14” “L04-11”
1,(A)
I7RW01822080-01
“L384”, “L385”
(A)
“L04-12” “L04-13” “L04-14” “L04-11”
1,(A)
I7RW01822081-01

Downloaded from www.Manualslib.com manuals search engine 8B-61 Air Bag System:

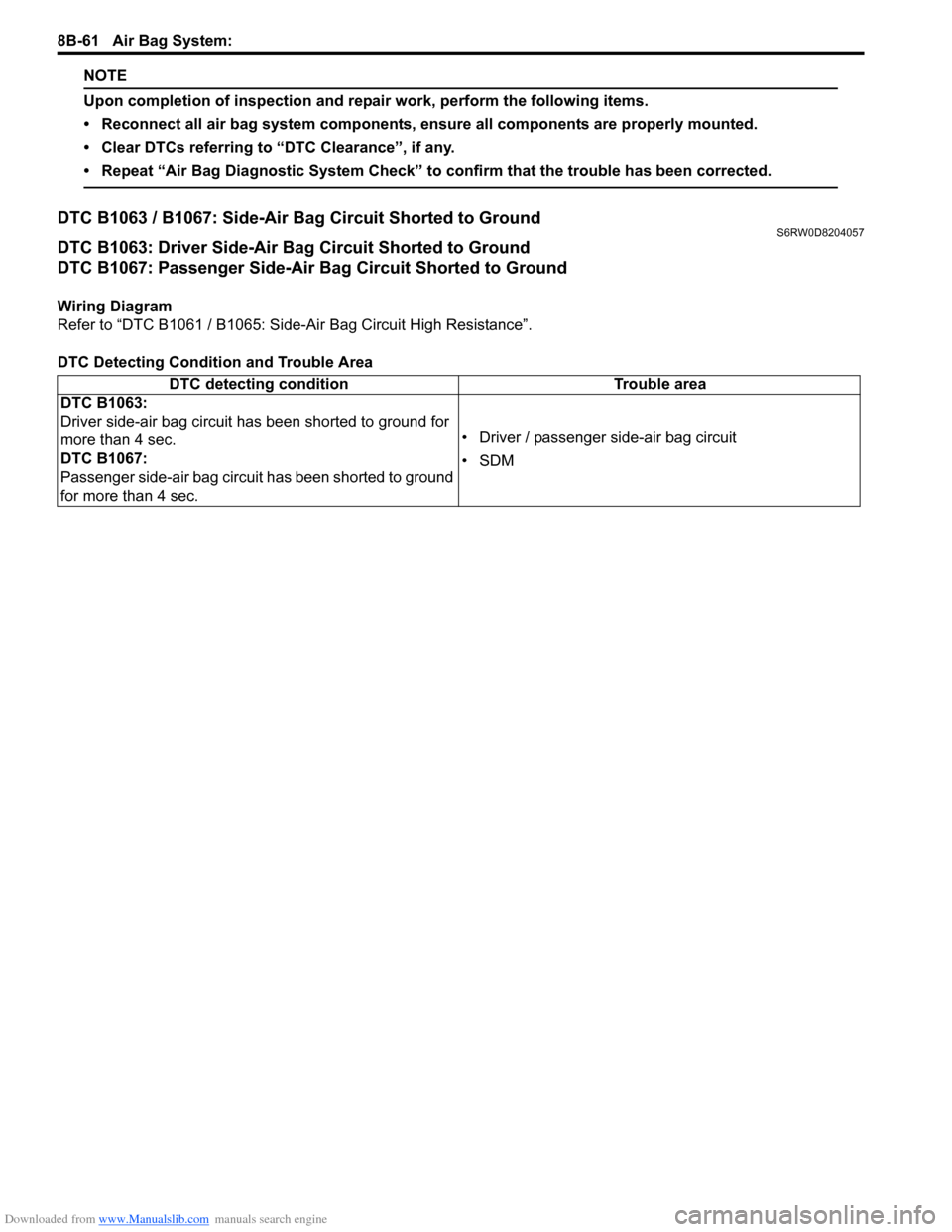

NOTE
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components, ensure all components are properly mounted.
• Clear DTCs referring to “DTC Clearance”, if any.
• Repeat “Air Bag Diagnostic System Check” to confirm that the trouble has been corrected.

DTC B1063 / B1067: Side-Air Bag Circuit Shorted to GroundS6RW0D8204057
DTC B1063: Driver Side-Air Bag Circuit Shorted to Ground
DTC B1067: Passenger Side-Air Bag Circuit Shorted to Ground
Wiring Diagram
Refer to “DTC B1061 / B1065: Side-Air Bag Circuit High Resistance”.
DTC Detecting Condition and Trouble Area
DTC detecting condition Trouble area
DTC B1063:
Driver side-air bag circuit has been shorted to ground for
more than 4 sec.
DTC B1067:
Passenger side-air bag circuit has been shorted to ground
for more than 4 sec.• Driver / passenger side-air bag circuit
•SDM

Downloaded from www.Manualslib.com manuals search engine Air Bag System: 8B-62

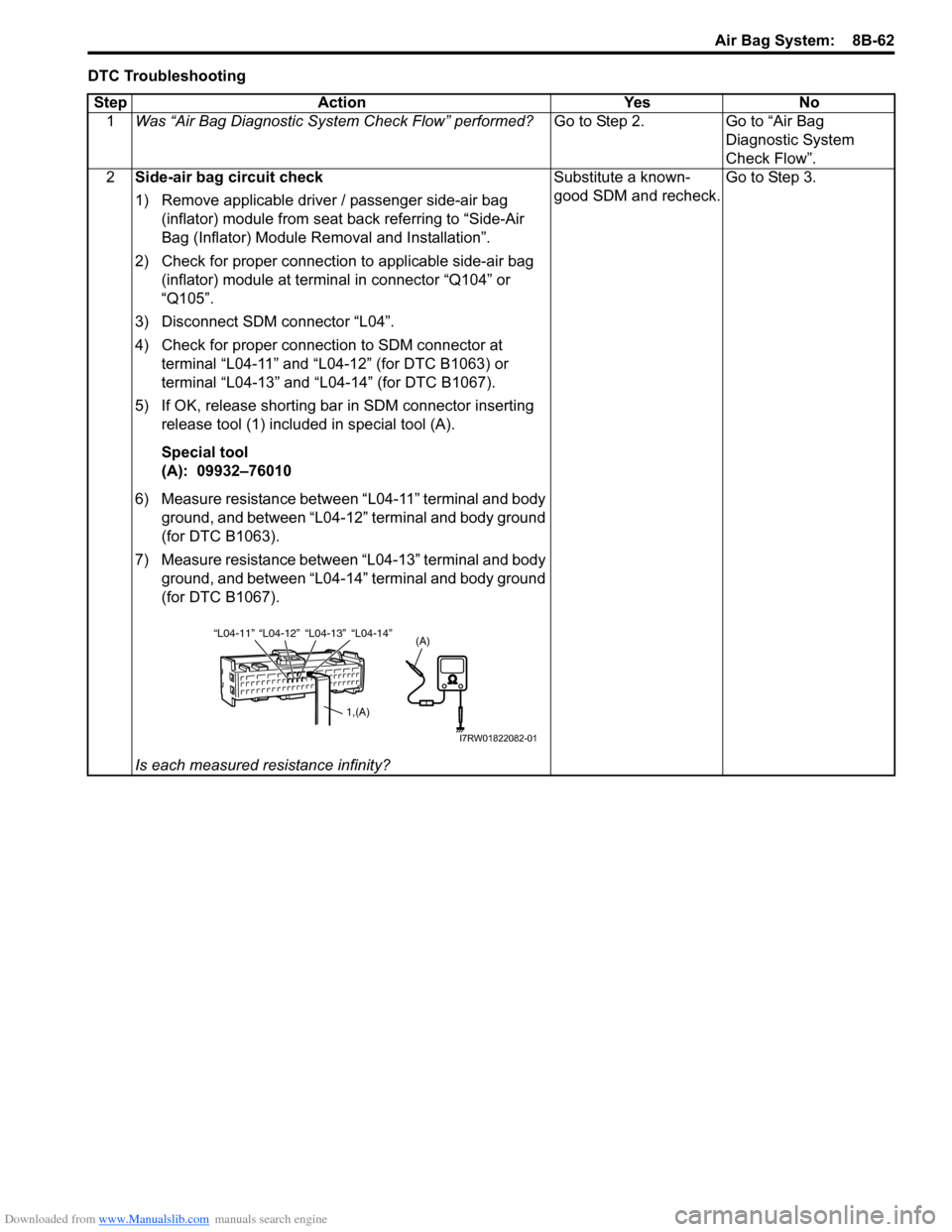

DTC Troubleshooting
Step Action Yes No
1Was “Air Bag Diagnostic System Check Flow” performed?Go to Step 2. Go to “Air Bag
Diagnostic System
Check Flow”.
2Side-air bag circuit check
1) Remove applicable driver / passenger side-air bag
(inflator) module from seat back referring to “Side-Air
Bag (Inflator) Module Removal and Installation”.
2) Check for proper connection to applicable side-air bag
(inflator) module at terminal in connector “Q104” or
“Q105”.
3) Disconnect SDM connector “L04”.
4) Check for proper connection to SDM connector at
terminal “L04-11” and “L04-12” (for DTC B1063) or
terminal “L04-13” and “L04-14” (for DTC B1067).
5) If OK, release shorting bar in SDM connector inserting
release tool (1) included in special tool (A).
Special tool
(A): 09932–76010
6) Measure resistance between “L04-11” terminal and body
ground, and between “L04-12” terminal and body ground
(for DTC B1063).
7) Measure resistance between “L04-13” terminal and body
ground, and between “L04-14” terminal and body ground
(for DTC B1067).
Is each measured resistance infinity?Substitute a known-
good SDM and recheck.Go to Step 3.
“L04-12” “L04-13” “L04-14” “L04-11”
1,(A)
(A)
I7RW01822082-01

Downloaded from www.Manualslib.com manuals search engine 8B-63 Air Bag System:
NOTE
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components, ensure all components are properly mounted.
• Clear DTCs referring to “DTC Clearance”, if any.
• Repeat “Air Bag Diagnostic System Check” to confirm that the trouble has been corrected.

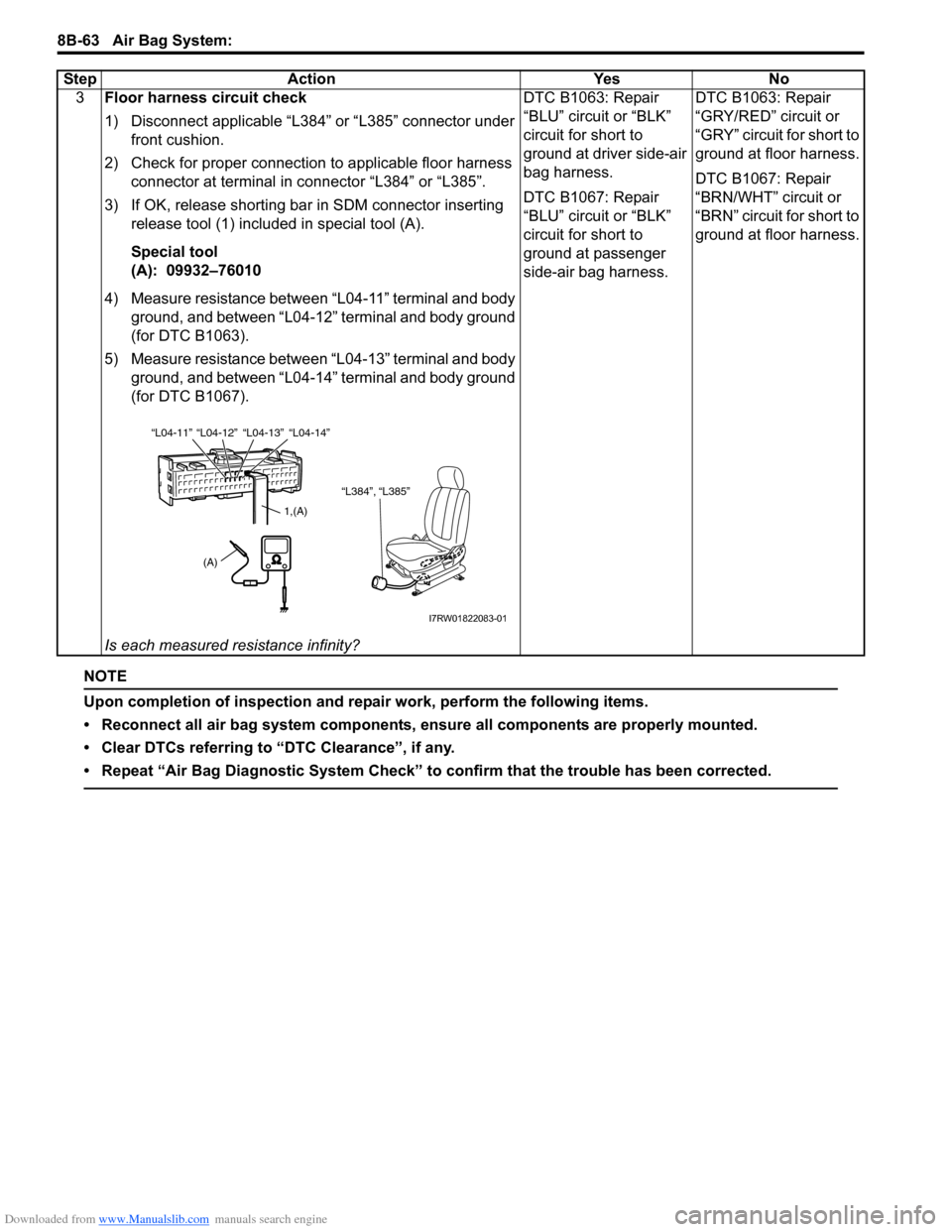

3Floor harness circuit check
1) Disconnect applicable “L384” or “L385” connector under
front cushion.
2) Check for proper connection to applicable floor harness
connector at terminal in connector “L384” or “L385”.
3) If OK, release shorting bar in SDM connector inserting
release tool (1) included in special tool (A).
Special tool
(A): 09932–76010
4) Measure resistance between “L04-11” terminal and body
ground, and between “L04-12” terminal and body ground
(for DTC B1063).
5) Measure resistance between “L04-13” terminal and body
ground, and between “L04-14” terminal and body ground
(for DTC B1067).
Is each measured resistance infinity?DTC B1063: Repair
“BLU” circuit or “BLK”
circuit for short to
ground at driver side-air
bag harness.
DTC B1067: Repair
“BLU” circuit or “BLK”
circuit for short to
ground at passenger
side-air bag harness.DTC B1063: Repair
“GRY/RED” circuit or
“GRY” circuit for short to
ground at floor harness.
DTC B1067: Repair
“BRN/WHT” circuit or
“BRN” circuit for short to
ground at floor harness. Step Action Yes No
“L384”, “L385”
“L04-12” “L04-13” “L04-14” “L04-11”
1,(A)
(A)
I7RW01822083-01

Downloaded from www.Manualslib.com manuals search engine Air Bag System: 8B-64

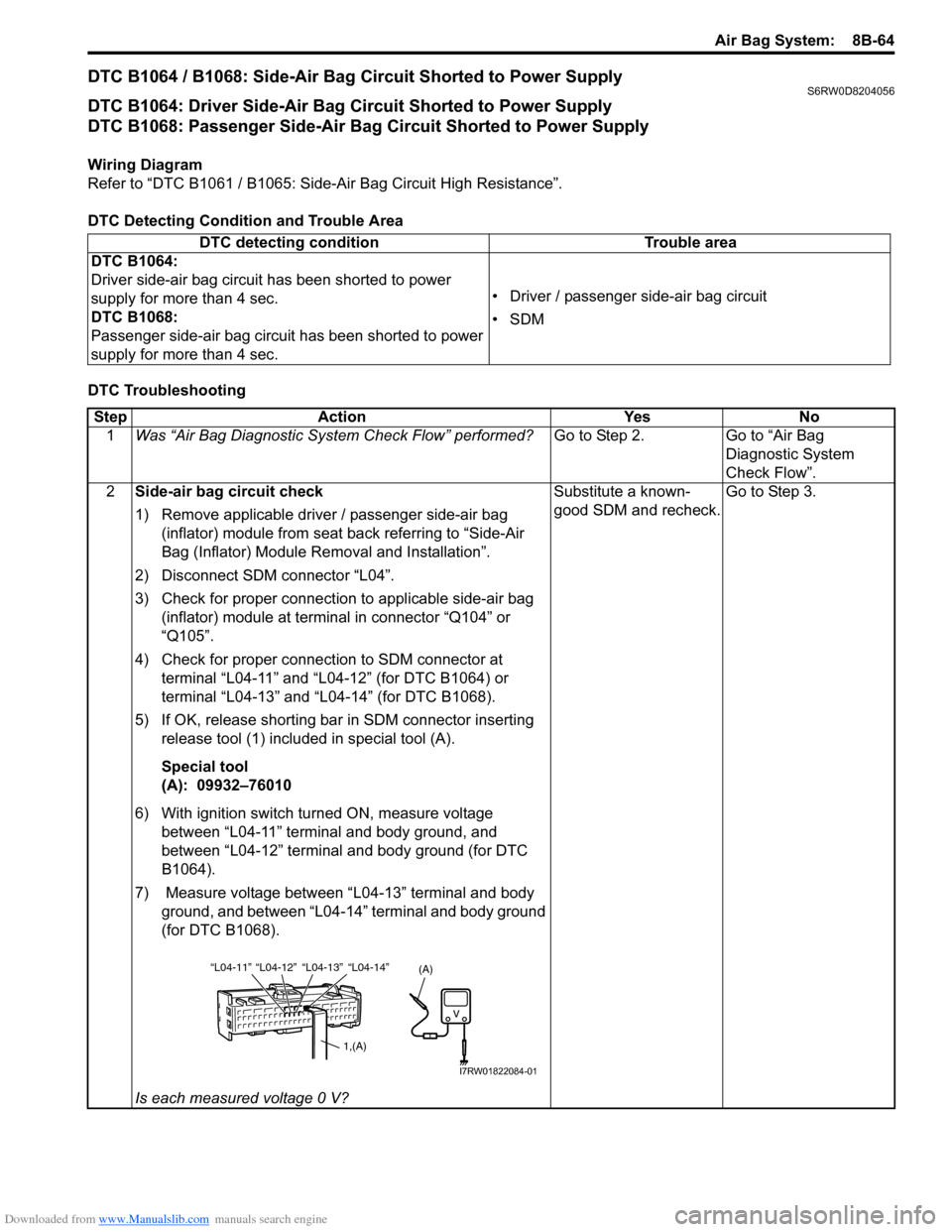

DTC B1064 / B1068: Side-Air Bag Circuit Shorted to Power SupplyS6RW0D8204056
DTC B1064: Driver Side-Air Bag Circuit Shorted to Power Supply
DTC B1068: Passenger Side-Air Bag Circuit Shorted to Power Supply
Wiring Diagram
Refer to “DTC B1061 / B1065: Side-Air Bag Circuit High Resistance”.
DTC Detecting Condition and Trouble Area
DTC TroubleshootingDTC detecting condition Trouble area
DTC B1064:
Driver side-air bag circuit has been shorted to power
supply for more than 4 sec.
DTC B1068:
Passenger side-air bag circuit has been shorted to power
supply for more than 4 sec.• Driver / passenger side-air bag circuit
•SDM
Step Action Yes No
1Was “Air Bag Diagnostic System Check Flow” performed?Go to Step 2. Go to “Air Bag
Diagnostic System
Check Flow”.
2Side-air bag circuit check
1) Remove applicable driver / passenger side-air bag
(inflator) module from seat back referring to “Side-Air
Bag (Inflator) Module Removal and Installation”.
2) Disconnect SDM connector “L04”.
3) Check for proper connection to applicable side-air bag
(inflator) module at terminal in connector “Q104” or
“Q105”.
4) Check for proper connection to SDM connector at
terminal “L04-11” and “L04-12” (for DTC B1064) or
terminal “L04-13” and “L04-14” (for DTC B1068).
5) If OK, release shorting bar in SDM connector inserting
release tool (1) included in special tool (A).
Special tool
(A): 09932–76010
6) With ignition switch turned ON, measure voltage
between “L04-11” terminal and body ground, and
between “L04-12” terminal and body ground (for DTC
B1064).
7) Measure voltage between “L04-13” terminal and body
ground, and between “L04-14” terminal and body ground
(for DTC B1068).
Is each measured voltage 0 V?Substitute a known-
good SDM and recheck.Go to Step 3.
“L04-12” “L04-13” “L04-14” “L04-11”
1,(A)
(A)
I7RW01822084-01
