Downloaded from www.Manualslib.com manuals search engine 8B-39 Air Bag System:
NOTE
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components and ensure all components are properly mounted.
• Clear DTCs referring to “DTC Clearance”, if any.
• Repeat “Air Bag Diagnostic System Check” to confirm that the trouble has been corrected.

4Contact coil circuit check
1) Connect contact coil connector “G347” located under the
steering column.
2) Remove driver air bag (inflator) module from steering
column referring to “Driver Air Bag (Inflator) Module
Removal and Installation”.
3) Check for proper connection to driver air bag (inflator)
module at terminal in connector (2).
4) If OK, release shorting bar in SDM connector inserting
release tool (1) included in special tool (A).
Special tool
(A): 09932–76010
5) With ignition switch turned ON, measure voltage
between each terminals of driver air bag (inflator)
module connector (2) and body ground.
Is each measured voltage 0 V?Substitute a known-
good SDM and recheck.Replace contact coil
assembly referring to
“Contact Coil Cable
Assembly Removal and
Installation in Section
6B”. Step Action Yes No
“L04-4” “L04-3”
1,(A)
2
(A)
I7RW01821023-01

Downloaded from www.Manualslib.com manuals search engine 8B-41 Air Bag System:
DTC Troubleshooting
Step Action Yes No
1Was “Air Bag Diagnostic System Check Flow” performed?Go to Step 2. Go to “Air Bag
Diagnostic System
Check Flow”.

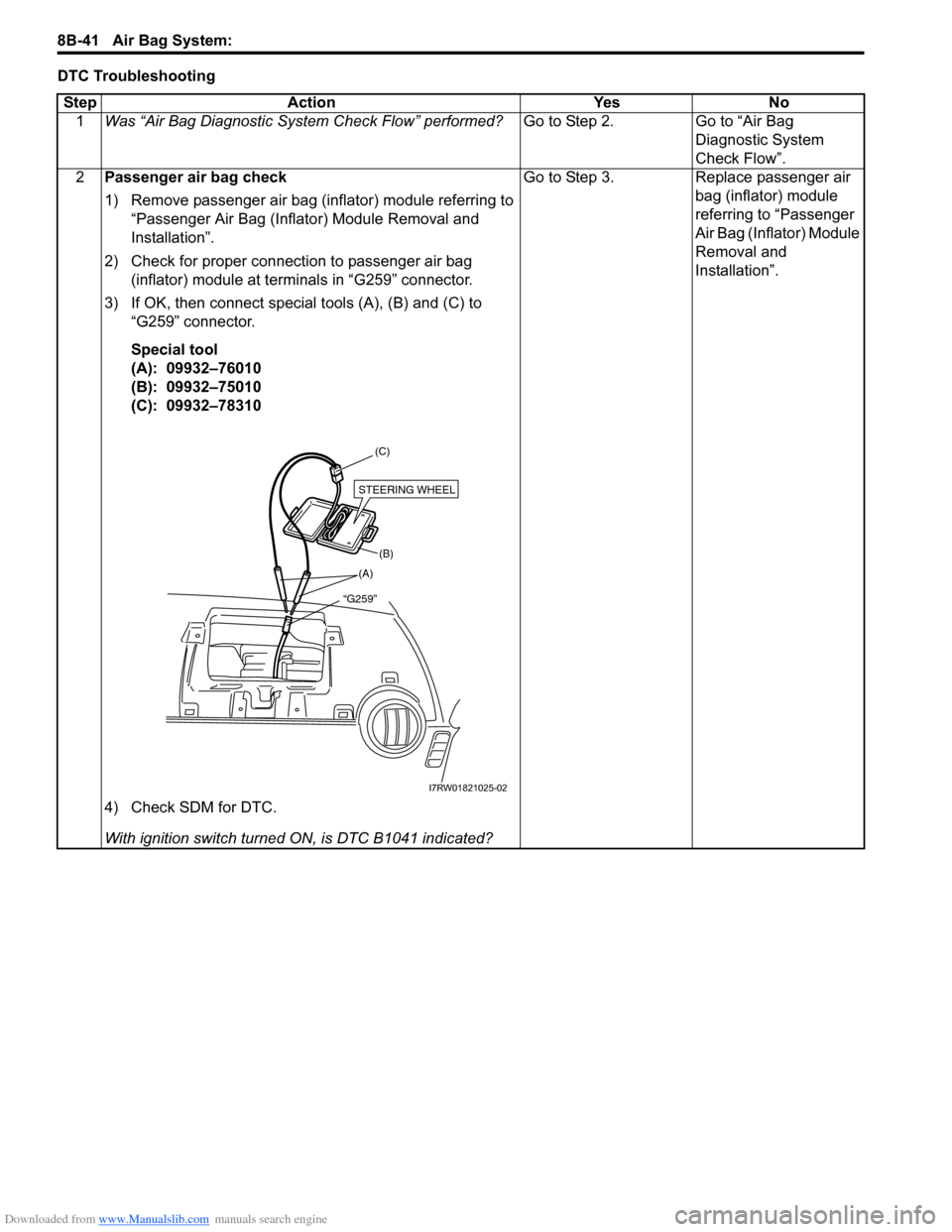

2Passenger air bag check
1) Remove passenger air bag (inflator) module referring to
“Passenger Air Bag (Inflator) Module Removal and
Installation”.
2) Check for proper connection to passenger air bag
(inflator) module at terminals in “G259” connector.
3) If OK, then connect special tools (A), (B) and (C) to
“G259” connector.
Special tool
(A): 09932–76010
(B): 09932–75010
(C): 09932–78310
4) Check SDM for DTC.
With ignition switch turned ON, is DTC B1041 indicated?Go to Step 3. Replace passenger air
bag (inflator) module
referring to “Passenger
Air Bag (Inflator) Module
Removal and
Installation”.
“G259”
(B) (C)
(A)
STEERING WHEEL
I7RW01821025-02

Downloaded from www.Manualslib.com manuals search engine Air Bag System: 8B-42
NOTE
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components and ensure all components are properly mounted.
• Clear DTCs referring to “DTC Clearance”, if any.
• Repeat “Air Bag Diagnostic System Check” to confirm that the trouble has been corrected.

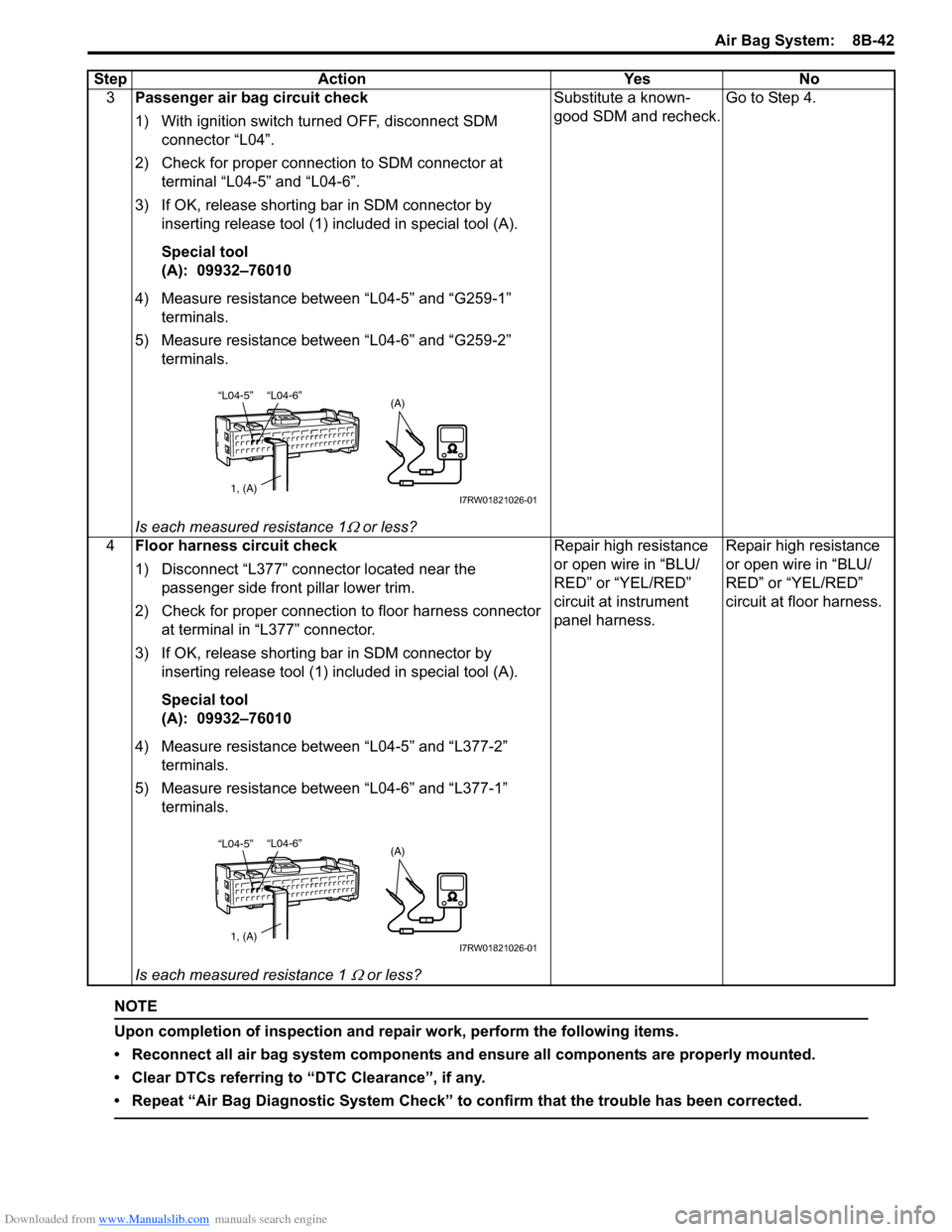

3Passenger air bag circuit check
1) With ignition switch turned OFF, disconnect SDM
connector “L04”.
2) Check for proper connection to SDM connector at
terminal “L04-5” and “L04-6”.
3) If OK, release shorting bar in SDM connector by
inserting release tool (1) included in special tool (A).
Special tool
(A): 09932–76010
4) Measure resistance between “L04-5” and “G259-1”
terminals.
5) Measure resistance between “L04-6” and “G259-2”
terminals.
Is each measured resistance 1
Ω or less?Substitute a known-
good SDM and recheck.Go to Step 4.
4Floor harness circuit check
1) Disconnect “L377” connector located near the
passenger side front pillar lower trim.
2) Check for proper connection to floor harness connector
at terminal in “L377” connector.
3) If OK, release shorting bar in SDM connector by
inserting release tool (1) included in special tool (A).
Special tool
(A): 09932–76010
4) Measure resistance between “L04-5” and “L377-2”
terminals.
5) Measure resistance between “L04-6” and “L377-1”
terminals.
Is each measured resistance 1
Ω or less?Repair high resistance
or open wire in “BLU/
RED” or “YEL/RED”
circuit at instrument
panel harness.Repair high resistance
or open wire in “BLU/
RED” or “YEL/RED”
circuit at floor harness. Step Action Yes No
“L04-5”“L04-6”
1, (A)
(A)
I7RW01821026-01
“L04-5”“L04-6”
1, (A)
(A)
I7RW01821026-01

Downloaded from www.Manualslib.com manuals search engine 8B-43 Air Bag System:
DTC B1042: Passenger Air Bag Circuit Low ResistanceS6RW0D8204023
Wiring Diagram
Refer to “DTC B1041: Passenger Air Bag Circuit High Resistance”.
DTC Detecting Condition and Trouble Area
DTC TroubleshootingDTC detecting condition Trouble area
Passenger air bag circuit is less than 0.9 Ω for more than
4 sec.• Passenger air bag circuit
• Passenger air bag module
•SDM
Step Action Yes No
1Was “Air Bag Diagnostic System Check Flow” performed?Go to Step 2. Go to “Air Bag
Diagnostic System
Check Flow”.

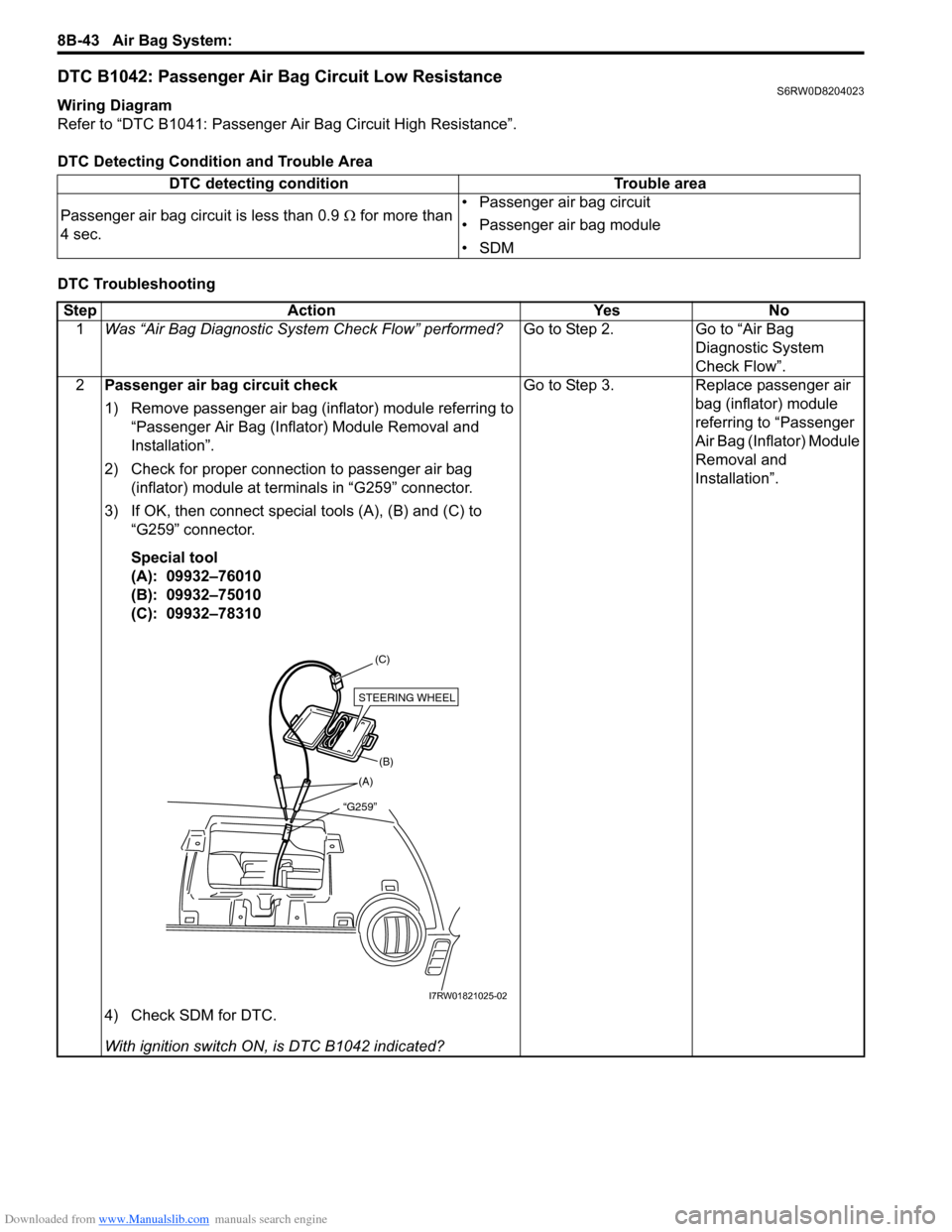

2Passenger air bag circuit check
1) Remove passenger air bag (inflator) module referring to
“Passenger Air Bag (Inflator) Module Removal and
Installation”.
2) Check for proper connection to passenger air bag
(inflator) module at terminals in “G259” connector.
3) If OK, then connect special tools (A), (B) and (C) to
“G259” connector.
Special tool
(A): 09932–76010
(B): 09932–75010
(C): 09932–78310
4) Check SDM for DTC.
With ignition switch ON, is DTC B1042 indicated?Go to Step 3. Replace passenger air
bag (inflator) module
referring to “Passenger
Air Bag (Inflator) Module
Removal and
Installation”.
“G259”
(B) (C)
(A)
STEERING WHEEL
I7RW01821025-02

Downloaded from www.Manualslib.com manuals search engine Air Bag System: 8B-44
NOTE
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components and ensure all components are properly mounted.
• Clear DTCs referring to “DTC Clearance”, if any.
• Repeat “Air Bag Diagnostic System Check” to confirm that the trouble has been corrected.

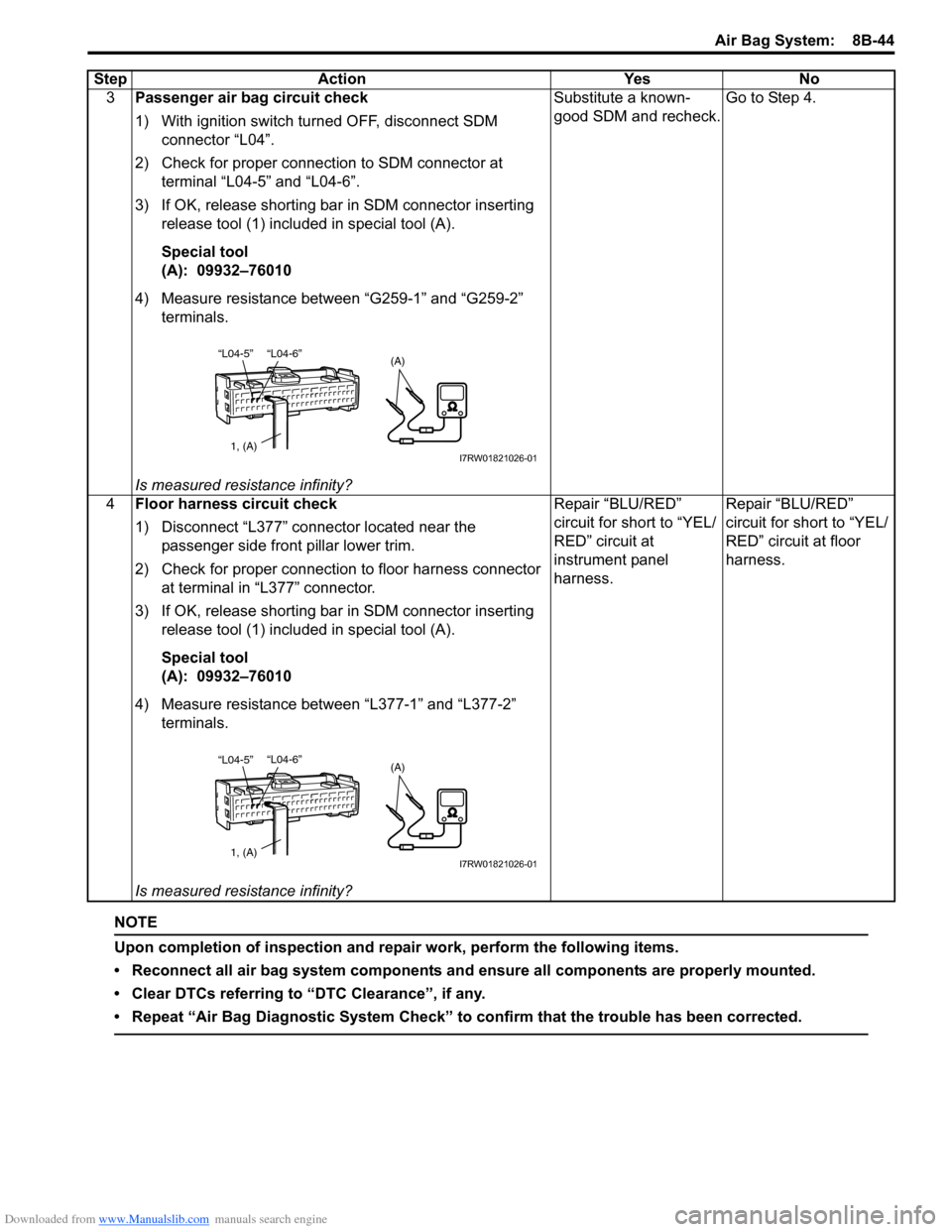

3Passenger air bag circuit check
1) With ignition switch turned OFF, disconnect SDM
connector “L04”.
2) Check for proper connection to SDM connector at
terminal “L04-5” and “L04-6”.
3) If OK, release shorting bar in SDM connector inserting
release tool (1) included in special tool (A).
Special tool
(A): 09932–76010
4) Measure resistance between “G259-1” and “G259-2”
terminals.
Is measured resistance infinity?Substitute a known-
good SDM and recheck.Go to Step 4.
4Floor harness circuit check
1) Disconnect “L377” connector located near the
passenger side front pillar lower trim.
2) Check for proper connection to floor harness connector
at terminal in “L377” connector.
3) If OK, release shorting bar in SDM connector inserting
release tool (1) included in special tool (A).
Special tool
(A): 09932–76010
4) Measure resistance between “L377-1” and “L377-2”
terminals.
Is measured resistance infinity?Repair “BLU/RED”
circuit for short to “YEL/
RED” circuit at
instrument panel
harness.Repair “BLU/RED”
circuit for short to “YEL/
RED” circuit at floor
harness. Step Action Yes No
“L04-5”“L04-6”
1, (A)
(A)
I7RW01821026-01
“L04-5”“L04-6”
1, (A)
(A)
I7RW01821026-01

Downloaded from www.Manualslib.com manuals search engine 8B-45 Air Bag System:

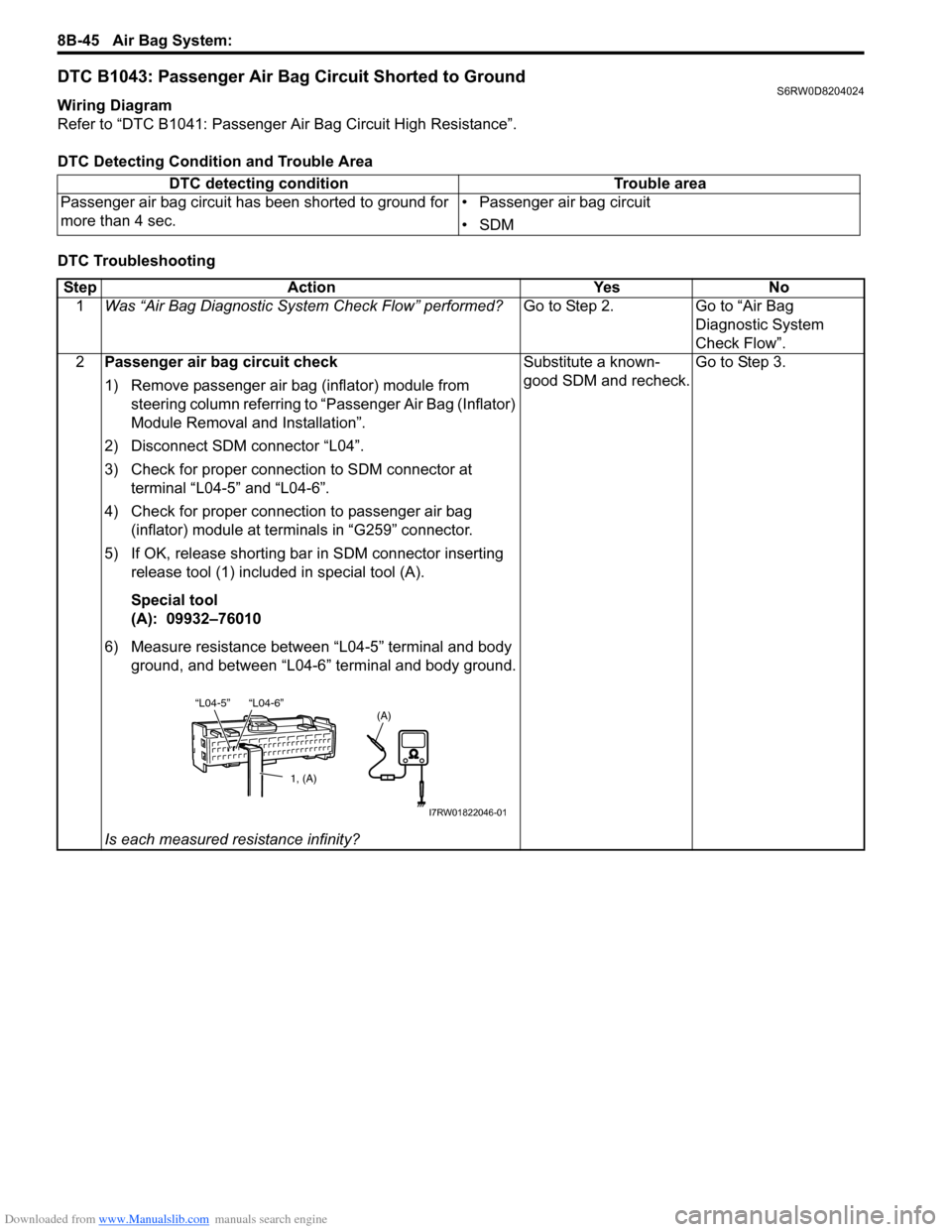

DTC B1043: Passenger Air Bag Circuit Shorted to GroundS6RW0D8204024
Wiring Diagram
Refer to “DTC B1041: Passenger Air Bag Circuit High Resistance”.
DTC Detecting Condition and Trouble Area
DTC TroubleshootingDTC detecting condition Trouble area
Passenger air bag circuit has been shorted to ground for
more than 4 sec.• Passenger air bag circuit
•SDM
Step Action Yes No
1Was “Air Bag Diagnostic System Check Flow” performed?Go to Step 2. Go to “Air Bag
Diagnostic System
Check Flow”.
2Passenger air bag circuit check
1) Remove passenger air bag (inflator) module from
steering column referring to “Passenger Air Bag (Inflator)
Module Removal and Installation”.
2) Disconnect SDM connector “L04”.
3) Check for proper connection to SDM connector at
terminal “L04-5” and “L04-6”.
4) Check for proper connection to passenger air bag
(inflator) module at terminals in “G259” connector.
5) If OK, release shorting bar in SDM connector inserting
release tool (1) included in special tool (A).
Special tool
(A): 09932–76010
6) Measure resistance between “L04-5” terminal and body
ground, and between “L04-6” terminal and body ground.
Is each measured resistance infinity?Substitute a known-
good SDM and recheck.Go to Step 3.
1, (A)
“L04-6” “L04-5”(A)
I7RW01822046-01

Downloaded from www.Manualslib.com manuals search engine Air Bag System: 8B-46
NOTE
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components and ensure all components are properly mounted.
• Clear DTCs referring to “DTC Clearance”, if any.
• Repeat “Air Bag Diagnostic System Check” to confirm that the trouble has been corrected.

DTC B1044: Passenger Air Bag Circuit Shorted to Power SupplyS6RW0D8204025
Wiring Diagram
Refer to “DTC B1041: Passenger Air Bag Circuit High Resistance”.
DTC Detecting Condition and Trouble Area

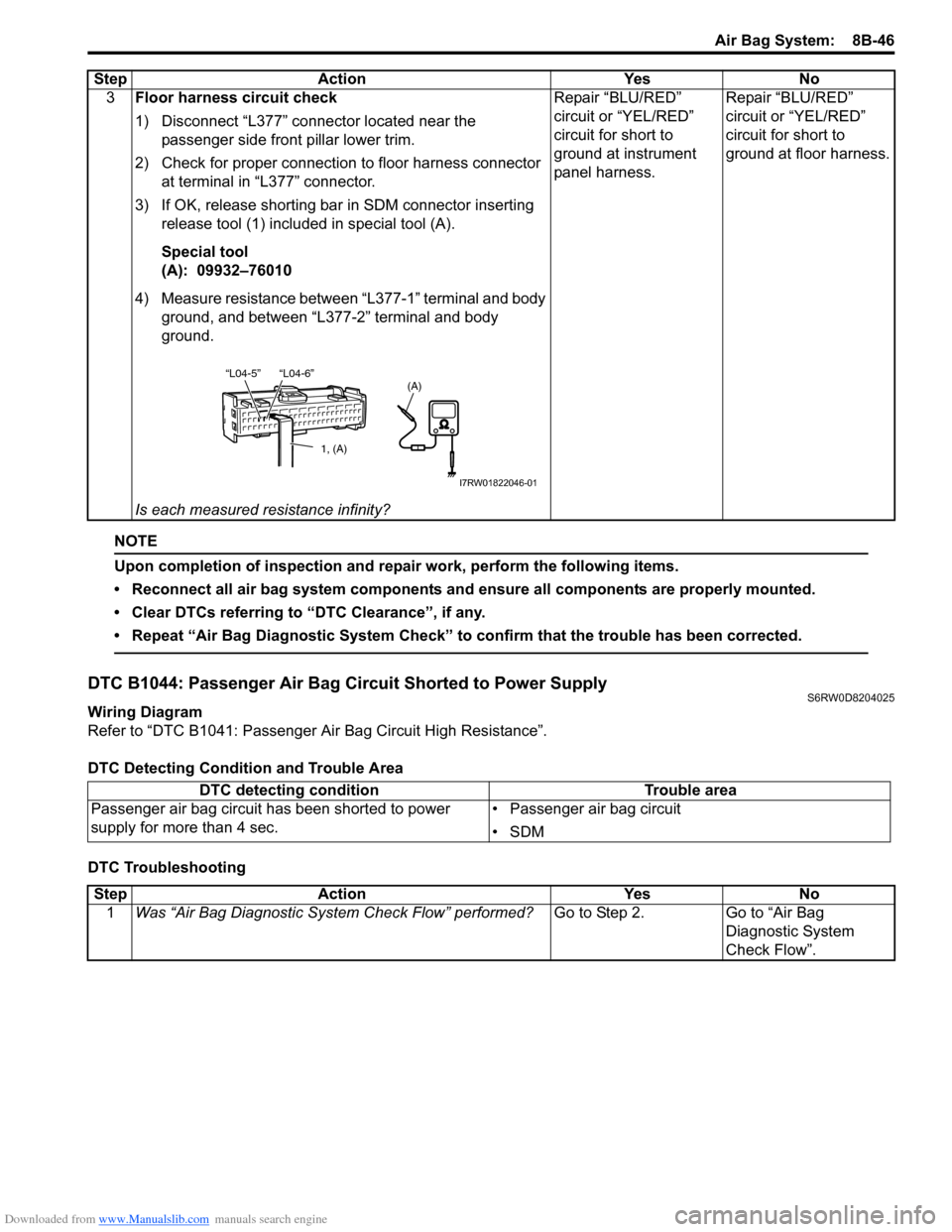

DTC Troubleshooting3Floor harness circuit check
1) Disconnect “L377” connector located near the
passenger side front pillar lower trim.
2) Check for proper connection to floor harness connector
at terminal in “L377” connector.
3) If OK, release shorting bar in SDM connector inserting
release tool (1) included in special tool (A).
Special tool
(A): 09932–76010
4) Measure resistance between “L377-1” terminal and body
ground, and between “L377-2” terminal and body
ground.
Is each measured resistance infinity?Repair “BLU/RED”
circuit or “YEL/RED”
circuit for short to
ground at instrument
panel harness.Repair “BLU/RED”
circuit or “YEL/RED”
circuit for short to
ground at floor harness. Step Action Yes No
1, (A)
“L04-6” “L04-5”(A)
I7RW01822046-01
DTC detecting condition Trouble area
Passenger air bag circuit has been shorted to power
supply for more than 4 sec.• Passenger air bag circuit
•SDM
Step Action Yes No
1Was “Air Bag Diagnostic System Check Flow” performed?Go to Step 2. Go to “Air Bag
Diagnostic System
Check Flow”.

Downloaded from www.Manualslib.com manuals search engine 8B-47 Air Bag System:
NOTE
Upon completion of inspection and repair work, perform the following items.
• Reconnect all air bag system components and ensure all components are properly mounted.
• Clear DTCs referring to “DTC Clearance”, if any.
• Repeat “Air Bag Diagnostic System Check” to confirm that the trouble has been corrected.

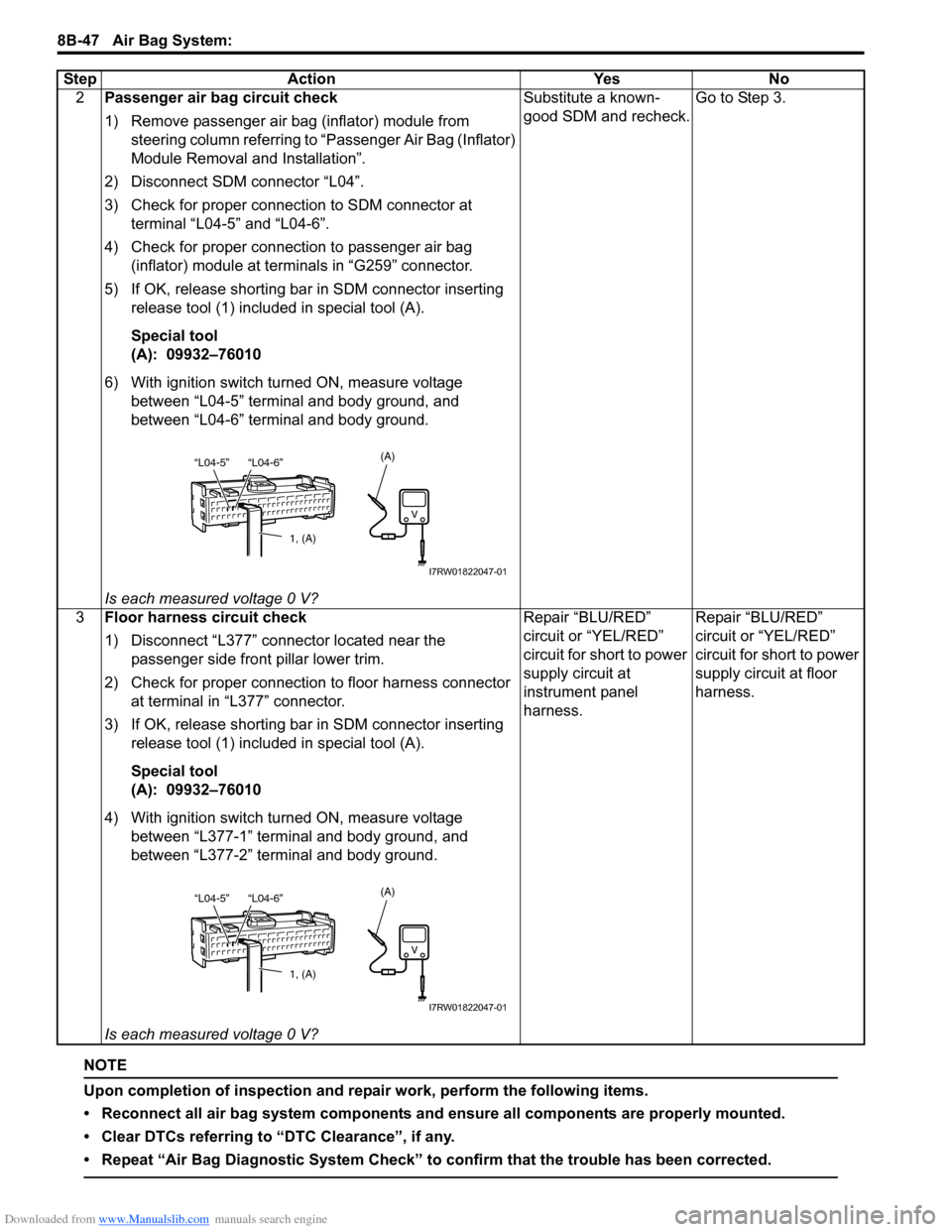

2Passenger air bag circuit check
1) Remove passenger air bag (inflator) module from
steering column referring to “Passenger Air Bag (Inflator)
Module Removal and Installation”.
2) Disconnect SDM connector “L04”.
3) Check for proper connection to SDM connector at
terminal “L04-5” and “L04-6”.
4) Check for proper connection to passenger air bag
(inflator) module at terminals in “G259” connector.
5) If OK, release shorting bar in SDM connector inserting
release tool (1) included in special tool (A).
Special tool
(A): 09932–76010
6) With ignition switch turned ON, measure voltage
between “L04-5” terminal and body ground, and
between “L04-6” terminal and body ground.
Is each measured voltage 0 V?Substitute a known-
good SDM and recheck.Go to Step 3.
3Floor harness circuit check
1) Disconnect “L377” connector located near the
passenger side front pillar lower trim.
2) Check for proper connection to floor harness connector
at terminal in “L377” connector.
3) If OK, release shorting bar in SDM connector inserting
release tool (1) included in special tool (A).
Special tool
(A): 09932–76010
4) With ignition switch turned ON, measure voltage
between “L377-1” terminal and body ground, and
between “L377-2” terminal and body ground.
Is each measured voltage 0 V?Repair “BLU/RED”
circuit or “YEL/RED”
circuit for short to power
supply circuit at
instrument panel
harness.Repair “BLU/RED”
circuit or “YEL/RED”
circuit for short to power
supply circuit at floor
harness. Step Action Yes No
1, (A)
“L04-6” “L04-5”(A)
I7RW01822047-01
1, (A)
“L04-6” “L04-5”(A)
I7RW01822047-01
