Downloaded from www.Manualslib.com manuals search engine 4E-27 ABS:
DTC C1057: Power Supply Voltage Too High / Too LowS6RW0D4504018
Wiring Diagram
DTC Detecting Condition and Trouble Area
DTC Troubleshooting
WHTGRN
34 5
E08-23BLK
12VE08-9GRN/ORN
2
1
[A]E08
1
2
3
4
5
6
7 12
13
14
15
16
17
18
19
20
21
228
9
10
11
23
24
25
26
I7RW01450009-03
[A]: ABS control module connector (viewed from terminal side) 2. Main fuse box 4. Junction block assembly
1. Battery 3. Ignition switch 5. ABS hydraulic unit control module assembly
DTC Detecting Condition Trouble Area
ABS control module power supply voltage is too high or
too low.• ABS control module power supply circuit
• ABS control module
Step Action Yes No
1Was “ABS Check” performed?Go to Step 2. Go to “ABS Check”.
2Check ABS hydraulic unit / control module assembly
power and ground circuit
1) Check that ABS hydraulic unit / control module assembly
power supply circuit and ground circuit is in good
condition referring to “ABS Hydraulic Unit / Control
Module Assembly Power and Ground Circuit Check”.
Are check results OK?Go to Step 3 Repair ABS hydraulic
unit / control module
assembly power or
ground circuit.
3ABS hydraulic unit / control module power source
voltage check
1) Measure battery voltage with engine running at 3000
rpm.
Is voltage 15 V or less?Substitute a known-
good ABS hydraulic unit
/ control module
assembly and recheck.Check charging system
referring to “Generator
Test (Undercharged
Battery Check) in
Section 1J”.

Downloaded from www.Manualslib.com manuals search engine ABS: 4E-28
DTC C1061: Pump Motor CircuitS6RW0D4504019
Wiring Diagram
DTC Detecting Condition and Trouble Area
DTC Troubleshooting
WHT/RED
1 2
5
M
3
4
12VE08-25
E08-26BLKE08 [A]
1
2
3
4
5
6
7 12
13
14
15
16
17
18
19
20
21
228
9
10
11
23
24
25
26
I7RW01450010-02
[A]: ABS control module connector (viewed from terminal side) 3. Pump motor driver (transistor)
1. Battery 4. ABS pump motor
2. Main fuse box 5. ABS hydraulic unit / control module assembly
DTC Detecting Condition Trouble Area
• Defective pump motor and/or motor power supply
voltage is too low.
• Pump motor circuit in ABS control module is opened,
shorted to power or ground circuit.• Pump Motor and/or Motor Driver power supply circuit
• ABS control module
Step Action Yes No
1Was “ABS Check” performed?Go to Step 2. Go to “ABS Check”.
2Check ABS hydraulic unit / control module assembly
power and ground circuit
1) Check that ABS hydraulic unit / control module assembly
power supply circuit and ground circuit is in good
condition referring to “ABS Hydraulic Unit / Control
Module Assembly Power and Ground Circuit Check”.
Are check results OK?Substitute a known-
good ABS hydraulic unit
/ control module
assembly and recheck.Repair ABS hydraulic
unit / control module
assembly power or
ground circuit.

Downloaded from www.Manualslib.com manuals search engine 4E-29 ABS:

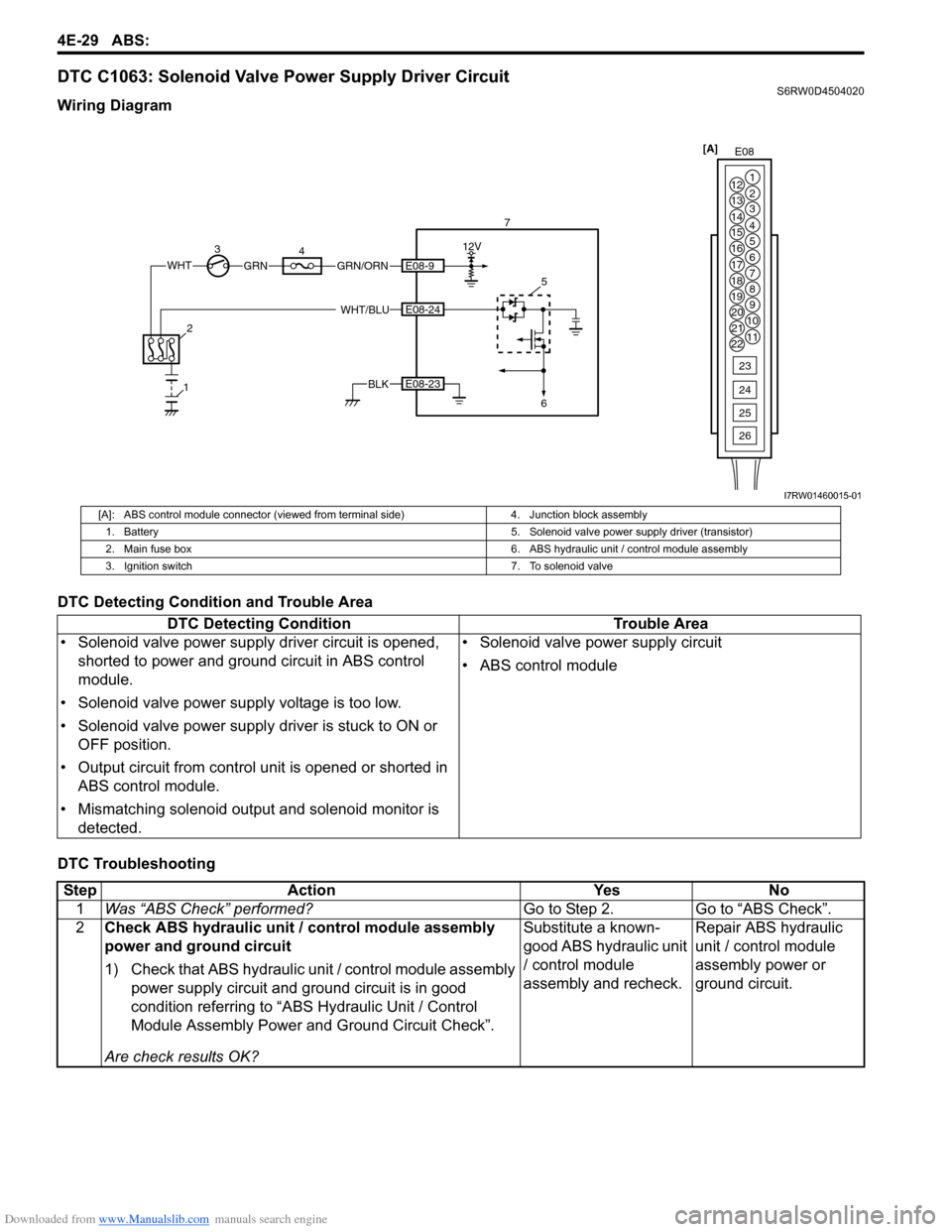

DTC C1063: Solenoid Valve Power Supply Driver CircuitS6RW0D4504020
Wiring Diagram
DTC Detecting Condition and Trouble Area
DTC Troubleshooting
E08 [A]
1
2
3
4
5
6
7 12
13
14
15
16
17
18
19
20
21
228
9
10
11
23
24
25
26
WHTGRN 34 7
E08-23BLK12V
E08-9GRN/ORN
2
1
WHT/BLU5E08-24
6
I7RW01460015-01
[A]: ABS control module connector (viewed from terminal side) 4. Junction block assembly
1. Battery5. Solenoid valve power supply driver (transistor)
2. Main fuse box 6. ABS hydraulic unit / control module assembly
3. Ignition switch 7. To solenoid valve
DTC Detecting Condition Trouble Area
• Solenoid valve power supply driver circuit is opened,
shorted to power and ground circuit in ABS control
module.
• Solenoid valve power supply voltage is too low.
• Solenoid valve power supply driver is stuck to ON or
OFF position.
• Output circuit from control unit is opened or shorted in
ABS control module.
• Mismatching solenoid output and solenoid monitor is
detected.• Solenoid valve power supply circuit
• ABS control module
Step Action Yes No
1Was “ABS Check” performed?Go to Step 2. Go to “ABS Check”.
2Check ABS hydraulic unit / control module assembly
power and ground circuit
1) Check that ABS hydraulic unit / control module assembly
power supply circuit and ground circuit is in good
condition referring to “ABS Hydraulic Unit / Control
Module Assembly Power and Ground Circuit Check”.
Are check results OK?Substitute a known-
good ABS hydraulic unit
/ control module
assembly and recheck.Repair ABS hydraulic
unit / control module
assembly power or
ground circuit.

Downloaded from www.Manualslib.com manuals search engine ABS: 4E-30
DTC C1071: Control Module Internal DefectS6RW0D4504021
DTC Detecting Condition and Trouble Area
DTC Troubleshooting
ABS Hydraulic Unit / Control Module Assembly Power and Ground Circuit CheckS6RW0D4504022
Wiring Diagram
Circuit Description
When the ignition switch is turned ON, power supply is supplied to ABS control module. And, power supply is supplied
to pump motor and solenoid valve in other line by the switching function in ABS control module. DTC Detecting Condition Trouble Area
ABS control module internal defect is detected. • ABS control module
Step Action Yes No
1Was “ABS Check” performed?Go to Step 2. Go to “ABS Check”.
2Check ABS hydraulic unit / control module assembly
power and ground circuit
1) Check that ABS hydraulic unit / control module assembly
power supply circuit and ground circuit is in good
condition referring to “ABS Hydraulic Unit / Control
Module Assembly Power and Ground Circuit Check”.
Are check results OK?Substitute a known-
good ABS hydraulic unit
/ control module
assembly and recheck.Repair ABS hydraulic
unit / control module
assembly power or
ground circuit.
E08 [A]
1
2
3
4
5
6
7 12
13
14
15
16
17
18
19
20
21
228
9
10
11
23
24
25
26
WHTGRN
35
6
7
84
E08-23BLK
12V
E08-25
E08-24
E08-9
WHT/RED
WHT/BLU
GRN/ORN
2
1
12V
I6RW0C450004-01
[A]: ABS control module connector (viewed from terminal side) 5. ABS hydraulic unit / control module assembly
1. Battery6. To pump motor driver
2. Main fuse box 7. Solenoid valve power supply driver
3. Ignition switch 8. To solenoid valve
4. Junction block assembly

Downloaded from www.Manualslib.com manuals search engine Automatic Transmission/Transaxle: 5A-97
Transmission Control Module (TCM) Removal
and Installation
S6RW0D5106021
CAUTION!
• TCM and ECM consists of highly precise
parts, therefore when handling it, be
careful not to expose to excessive shock.
• When replacing TCM with used one, all
learned contents, which have been stored
in TCM memory by executing learning
control, should be initialized after
replacement.

Removal
1) Disconnect negative cable at battery.
2) If the vehicle is equipped with air bag system,
disable air bag system. Refer to “Disabling Air Bag
System in Section 8B”.
3) Disconnect connectors from TCM (1).
4) Remove TCM by removing its nuts.Installation
Reverse removal procedure noting the following.
• Connect TCM connectors securely.
• If the vehicle is equipped with air bag system, be sure
to enable air bag system after TCM is back in place.
Refer to “Enabling Air Bag System in Section 8B”.
A/T Relay InspectionS6RW0D5106022
1) Disconnect negative cable at battery.
2) Remove A/T relay (2) from fuse and relay box (1).
3) Check that there is no continuity between terminal
“C” and “D”.
If continuity is indicated, replace A/T relay.
4) Connect battery positive (+) terminal to terminal “A”
of A/T relay and battery negative (–) terminal to
terminal “B” of A/T relay.
Check continuity between terminal “C” and “D” of A/T
relay.
If continuity does not indicated, replace A/T relay.
I4RS0A510031-01
1
I5RW0C510040-01
“D” “B”“C”21
“A”
I5RW0C510041-02

Downloaded from www.Manualslib.com manuals search engine 6C-4 Power Assisted Steering System:
Schematic and Routing Diagram
EPS System Wiring Circuit DiagramS6RW0D6302001
[A]
123
45
3 21
4
567
8
9 11
10 12 13
141516
17 18 19201
2
[B]
1
2
[C] [D]
10 9 8 7654 3 21
16 15 14 13 12 11
26 25 24 2322 21 20 19 18 17
32 31 30 29 28 27
[F][E]
12
BRN RED/
BLU GRY LT GRN/
BLK
BLK
RED
WHT GRN
BLK
E11-1
E11-5
E11-14
E11-12
[J]:E01-44E01-4
[J]:E01-27E01-26
E12-1
E12-2
E11-10E11-8
E11-9
E11-19
E13-1 GRN
GRY
GRN
WHT
G241-25G241-31
RED/BLK
11
12
1314 3 18
20
21
7 19
4 12
22
12V
E13-2BLK
9V
REDE11-20
12V
12V
E61-2
E61-1
610
55
5V
8
E11-115V
PPL
E11-4
9
23
+BB
BLU/
WHTE04-9
1524YELE11-18E31-5
E31-2
E31-39V
3V
E31-4
E31-1IG11617
C07-25
[H]
[G]
G04-15
[I]:G04-22
25L313-3
[I]
I6RW0D630001-01
[A]: P/S control module connector No.1 “E11” (viewed from harness side) 3. Junction block assembly 15. BCM
[B]: P/S control module connector No.2 “E13” (viewed from harness side) 4. Main fuse 16. Output shaft speed sensor
[C]: P/S control module connector No.3 “E12” (viewed from harness side) 5. Front (left/right) wheel speed sensor 17. TCM
[D]: Combination meter connector “G241” (viewed from harness side) 6. ABS control module 18. Individual circuit fuse box No.1
[E]: Torque sensor connector “E31” (viewed from harness side) 7. Combination meter 19. “IGN” fuse
[F]: Motor connector “E61” (viewed from harness side) 8. “EPS” warning light 20. “P/S” fuse
[G]: M/T model 9. Data link connector (DLC) 21. “IG1 SIG” fuse
[H]: A/T model 10. ECM 22. “MTR” fuse
[I]: Junction block without BCM model (Taiwan model) 11. P/S control module 23. To ABS control module
[J]: M15A engine with 4A/T equipped with slip control model (Hong Kong
model)12. P/S motor 24. To HVAC control module
1. Main fuse box 13. Shield 25. To SDM
2. Ignition switch 14. Torque sensor (built into steering gear case)

Downloaded from www.Manualslib.com manuals search engine 6C-14 Power Assisted Steering System:
DLC and Its Communication Check (No communication to P/S Control Module)S6RW0D6304009
Wiring Diagram
Troubleshooting
[A]
123
4567
8
9 11
10 12 13
141516
17 18 1920
1
2
[B]
10 9 8 7654 3 21
16 15 14 13 12 11
26 25 24 2322 21 20 19 18 17
32 31 30 29 28 27
[C]
LT GRN/BLKE11-1
E11-11
E13-1 GRN
GRN
WHT
8
13
318
19
20
5
6 17
4
12
712V
E13-2BLK
9
G241-31
+BB
BLU/
WHTE04-9
10
11
RED/BLK
G241-25E11-5GRY
L313-312
BLKBLK/
ORN
16
16
15
14[D]
I6RW0D630002-01
[A]: P/S control module connector No.1 “E11” (viewed from harness side) 5. Combination meter 13. Individual circuit fuse box No.1
[B]: P/S control module connector No2 “E13” (viewed from harness side) 6. “EPS” warning light 14. Serial data circuit
[C]: Combination meter connector “G241” (viewed from harness side) 7. Data link connector (DLC) 15. DLC power supply circuit
[D]: Junction block without BCM model (Taiwan model) 8. P/S control module 16. DLC ground circuit
1. Main fuse box 9. BCM 17. “IGN” fuse
2. Ignition switch 10. To HVAC control module 18. “P/S” fuse
3. Junction block assembly 11. To ABS control module 19. “IG1 SIG” fuse
4. Main fuse 12. To SDM 20. “MTR” fuse
Step Action Yes No
1“EPS” warning light check
1) Turn ignition switch to ON position.
Does “EPS” warning light turn on?Go to step 2. Go to ““EPS” Warning
Light Does Not Come
ON with Ignition Switch
Turned ON before
Engine Starts”.
2Scan tool condition check
1) Make sure that SUZUKI scan tool is as follows.
• Correct PCMCIA card (software) is used.
• There are no deformation and wear for DLC cable
terminals.
• Connection for DLC cable terminals is in good
condition.
Are they OK?Go to step 3. Repair or replace
defective part.

Downloaded from www.Manualslib.com manuals search engine 6C-16 Power Assisted Steering System:
“EPS” Warning Light Does Not Come ON with Ignition Switch Turned ON before Engine StartsS6RW0D6304010
Wiring Diagram8Scan tool operation check
1) Check if communication is possible by making
communication with other vehicles.
Is it possible to communicate with the other vehicle?Scan tool is in good
condition, check
intermittent trouble
referring to “Intermittent
and Poor Connection
Inspection in Section
00”.Recheck PCMCIA card
and DLC cable for faulty
condition. If they are
OK, scan tool is faulty. Step Action Yes No
[A]
123
4567
8
9 11
10 12 13
141516
17 18 1920
1
2
[B]
10 9 8 7654 3 21
16 15 14 13 12 11
26 25 24 2322 21 20 19 18 17
32 31 30 29 28 27
[C]
LT GRN/BLKE11-1E13-1 GRNGRN
WHT
7
8
311
12
13
5
6 10
4 12
12V
E13-2BLK
G241-31
RED/BLK
G241-25E11-5GRY
9
I6RW0C630003-01
[A]: P/S control module connector No.1 “E11” (viewed from harness side) 4. Main fuse 10. “IGN” fuse
[B]: P/S control module connector No.2 “E13” (viewed from harness side) 5. Combination meter 11. “P/S” fuse
[C]: Combination meter connector “G241” (viewed from harness side) 6. “EPS” warning light 12. “IG1 SIG” fuse
1. Main fuse box 7. P/S control module 13. “MTR” fuse
2. Ignition switch 8. Individual circuit fuse box No.1
3. Junction block assembly 9. “EPS” warning light circuit
