DTC P2762: Torque Converter Clutch (TCC) Pressure Control Solenoid Control Circuit Range /
Performance
S6RW0D5104050
Wiring Diagram
DTC Detecting Condition and Trouble Area
DTC Confirmation Procedure
1) Connect scan tool to DLC with ignition switch OFF, if available.
2) Clear DTC in TCM memory.
3) Start engine.
4) Keep engine running at idle speed for 30 seconds or more.
5) Stop vehicle and check DTC.
12V
C06-5
C06-3
WHT/BLU
WHT/BLK
3
1
2
53
C06C07
[A]
I6RW0D510007-01
1. TCM 3. A/T
2. TCC solenoid valve [A]: Terminal arrangement of TCM connector (viewed from harness side)
DTC detecting condition Trouble area
Difference between actual current of TCC solenoid valve
circuit and current of TCC solenoid valve circuit calculated by
ECM is more than specification.• TCC solenoid valve or its circuit malfunction
•TCM

Downloaded from www.Manualslib.com manuals search engine Automatic Transmission/Transaxle: 5A-71
DTC Troubleshooting
Step Action Yes No
1Was “A/T System Check” performed?Go to Step 2. Go to “A/T System
Check”.
2Check TCC solenoid valve resistance
1) Turn ignition switch OFF.
2) Disconnect valve body harness connector (1), (2) on
automatic transaxle.
3) Check for proper connection to terminal at “WHT/BLU”
and “WHT/BLK” circuit.
4) Check resistance of TCC solenoid valve.
TCC solenoid valve resistance
Between terminals of transaxle side valve body
harness connector: 5.0 – 5.6 Ω at 20 °C (68 °F)
Between terminals of transaxle valve body harness
connector and transaxle: Infinity
Is check results satisfactory?Go to Step 3. Replace TCC solenoid
valve or valve body
harness.
3Check for pressure control solenoid valve circuit
1) Disconnect TCM connectors
2) Check for proper connection to TCM at terminals “C06-
3” and “C06-5”. If connection is OK, check circuit for
open, short and high resistance for the following circuit.
• Between “C06-3” terminal of TCM connector and
“WHT/BLK” terminal of valve body harness connector.
• Between “C06-4” terminal of TCM connector and
“WHT/BLU” terminal of valve body harness connector.
Are they in good condition?Intermittent trouble or
faulty TCM. Check for
intermittent referring to
“Intermittent and Poor
Connection Inspection
in Section 00”. If OK,
substitute a known-
good TCM and recheck.Repair “WHT/BLU” and/
or “WHT/BLK” circuit.
1
6 7 8 9
1054
32
2
1
I5RW0C510023-01

Downloaded from www.Manualslib.com manuals search engine 5A-72 Automatic Transmission/Transaxle:

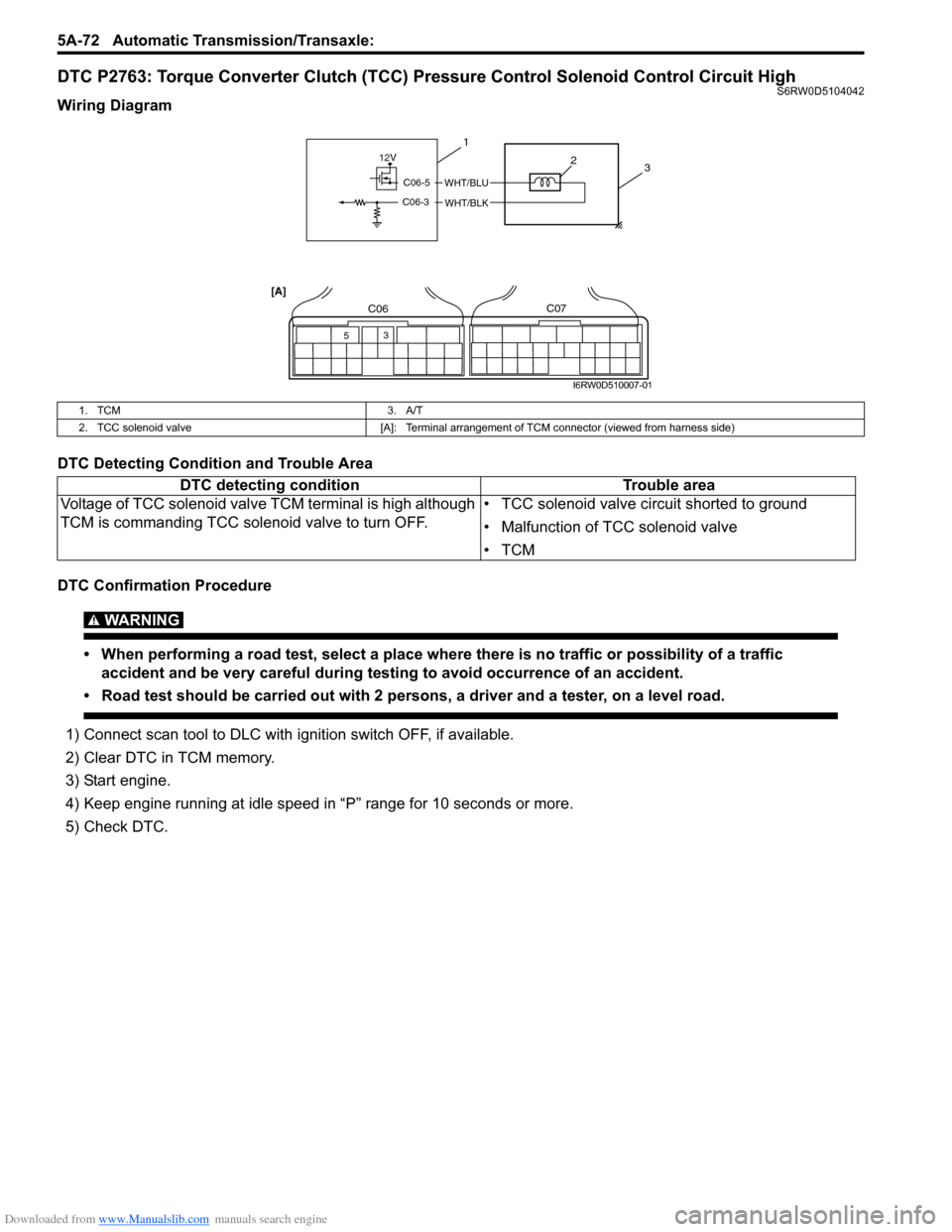

DTC P2763: Torque Converter Clutch (TCC) Pressure Control Solenoid Control Circuit HighS6RW0D5104042
Wiring Diagram
DTC Detecting Condition and Trouble Area
DTC Confirmation Procedure
WARNING!
• When performing a road test, select a place where there is no traffic or possibility of a traffic
accident and be very careful during testing to avoid occurrence of an accident.
• Road test should be carried out with 2 persons, a driver and a tester, on a level road.

1) Connect scan tool to DLC with ignition switch OFF, if available.
2) Clear DTC in TCM memory.
3) Start engine.
4) Keep engine running at idle speed in “P” range for 10 seconds or more.
5) Check DTC.
12V
C06-5
C06-3
WHT/BLU
WHT/BLK
3
1
2
53
C06C07
[A]
I6RW0D510007-01
1. TCM 3. A/T
2. TCC solenoid valve [A]: Terminal arrangement of TCM connector (viewed from harness side)
DTC detecting condition Trouble area
Voltage of TCC solenoid valve TCM terminal is high although
TCM is commanding TCC solenoid valve to turn OFF.• TCC solenoid valve circuit shorted to ground
• Malfunction of TCC solenoid valve
•TCM

Downloaded from www.Manualslib.com manuals search engine Automatic Transmission/Transaxle: 5A-73
DTC Troubleshooting
Step Action Yes No
1Was “A/T System Check” performed?Go to Step 2. Go to “A/T System
Check”.
2Check TCC solenoid valve circuit for IG short
1) Connect valve body harness connector.
2) Disconnect TCM connectors.
3) Check for proper connection to TCM at terminal “C06-3”
and “C06-5”.
4) If connection is OK, turn ignition switch ON and measure
voltage between terminal “C06-3” of disconnected
harness side TCM connector and ground between
terminal “C06-5” of disconnected harness side TCM
connector and ground.
Are voltage 1 V or less?Go to Step 3. “WHT/BLU” or “WHT/
BLK” circuit shorted to
power circuit.
3Check TCC solenoid valve resistance
1) Turn ignition switch OFF.
2) Disconnect valve body harness connector (1), (2) on
automatic transaxle.
3) Check for proper connection to solenoid at “WHT/BLU”
and “WHT/BLK” circuits.
4) Check resistance of TCC solenoid valve.
TCC solenoid valve resistance
Between terminals of transaxle side valve body
harness connector: 5.0 – 5.6 Ω at 20 °C (68 °F)
Between terminals of transaxle side valve body
harness connector and transaxle: Infinity
Is check results satisfactory?Intermittent trouble or
faulty TCM.
Check for intermittent
referring to “Intermittent
and Poor Connection
Inspection in Section
00”.
If OK, substitute a
known-good TCM and
recheck.Replace TCC solenoid
valve or lead wire.
1
6 7 8 9
1054
32
2
1
I5RW0C510023-01

Downloaded from www.Manualslib.com manuals search engine 5A-74 Automatic Transmission/Transaxle:
DTC P2764: Torque Converter Clutch (TCC) Circuit Pressure Control Solenoid Control Circuit LowS6RW0D5104043
Wiring Diagram
DTC Detecting Condition and Trouble Area
DTC Confirmation Procedure
WARNING!
• When performing a road test, select a place where there is no traffic or possibility of a traffic
accident and be very careful during testing to avoid occurrence of an accident.
• Road test should be carried out with 2 persons, a driver and a tester, on a level road.

1) Connect scan tool to DLC with ignition switch OFF, if available.
2) Clear DTC in TCM memory.
3) Start engine.
4) Keep engine running at idle speed in “P” range for 20 seconds or more.
5) Check DTC.
12V
C06-5
C06-3
WHT/BLU
WHT/BLK
3
1
2
53
C06C07
[A]
I6RW0D510007-01
1. TCM 3. A/T
2. TCC solenoid valve [A]: Terminal arrangement of TCM connector (viewed from harness side)
DTC detecting condition Trouble area
Voltage of TCC solenoid valve TCM terminal is low although
TCM is commanding TCC solenoid valve to turn ON.• TCC solenoid valve circuit shorted to ground
• Malfunction of TCC solenoid valve
•TCM

Downloaded from www.Manualslib.com manuals search engine Automatic Transmission/Transaxle: 5A-75
DTC Troubleshooting
Step Action Yes No
1Was “A/T System Check” performed?Go to Step 2. Go to “A/T System
Check”.
2Check TCC solenoid valve resistance
1) Turn ignition switch OFF.
2) Disconnect valve body harness connector (1), (2) on
automatic transaxle.
3) Check for proper connection to solenoid at “WHT/BLU”
and “WHT/BLK” circuits.
4) Check resistance of TCC solenoid valve.
TCC solenoid valve resistance
Between shift terminals of transaxle side valve body
harness connector: 5.0 – 5.6 Ω at 20 °C (68 °F)
Between shift terminals of transaxle side valve body
harness connector and transaxle: Infinity
Is check results satisfactory?Go to Step 3. Replace TCC solenoid
valve or valve body
harness.
3Check TCC solenoid valve circuit for ground short
1) Disconnect TCM connectors.
2) Check for proper connection to TCM at terminals “C06-
3” and “C06-5”.
3) If connection is OK, check continuity between terminal
“C06-5” of disconnected harness side TCM connector
and ground, between terminal “C06-3” of disconnected
harness side TCM connector and ground.
Are continuity indicated?“WHT/BLU” or “WHT/
BLK” circuit shorted to
ground.Intermittent trouble or
faulty TCM.
Check for intermittent
referring to “Intermittent
and Poor Connection
Inspection in Section
00”.
If OK, substitute a
known-good TCM and
recheck.
1
6 7 8 9
1054
32
2
1
I5RW0C510023-01

Downloaded from www.Manualslib.com manuals search engine 5A-76 Automatic Transmission/Transaxle:
DTC U0073: Control Module Communication Bus OffS6RW0D5104051
Refer to “Troubleshooting for CAN-DTC in Section 1A”.
DTC U0100: Lost Communication with ECM / PCM “A”S6RW0D5104052
Refer to “Troubleshooting for CAN-DTC in Section 1A”.
Inspection of TCM and Its CircuitsS6RW0D5104044
TCM and its circuits can be checked at TCM wiring connectors by measuring voltage, pulse signal and resistance.
CAUTION!
TCM cannot be checked by itself, it is strictly prohibited to connect voltmeter or ohmmeter to TCM with
connector disconnected from it.

1) Remove TCM (1) from vehicle referring to “Transmission Control Module (TCM) Removal and Installation”.
2) Connect TCM connectors (2) to TCM.
3) Check voltage and/or pulse signal at each terminal of connectors connected using voltmeter (3) and oscilloscope
(4).
NOTE
• As each terminal voltage is affected by battery voltage, confirm that it is 11 V or more when ignition
switch is ON.
• Voltage with asterisk(*) cannot be measured by voltmeter because it is pulse signal. Check it with
oscilloscope if necessary.

Terminal arrangement of TCM coupler (Viewed from harness side)
3
4
12
I4RS0A510021-02
65
16 15 14 13 12 1143
24 23 212210 9 8 721
19 20 18 17 C06
17 16
26 2515 14 65 342
13 12
23 22 2411 10 9
21 20 1987
18 1 C07
I6RW0B510018-01

Downloaded from www.Manualslib.com manuals search engine 5A-80 Automatic Transmission/Transaxle:
Reference waveform No. 5
Output shaft speed sensor (VSS) signal at vehicle speed
60 km/h (37 mile/h).
TCM Power and Ground Circuit CheckS6RW0D5104045
Wiring DiagramMeasurement
terminalCH1: “C07-25” to “C06-1”
Oscilloscope
settingCH1: 5 V/DIV
TIME: 20 ms/DIV
Measurement
condition• After warmed up to normal
operating temperature
• Drive vehicle at 60 km/h (37
mile/h).
I3RM0B510028-01
BLK
BLK
BLK
C06-1
C06-23
C06-6YEL/BLKYEL/BLU
LT GRN/BLK
+BB
C06-24WHT/RED1
23
6
24 231
C06C07
[A]
I6RW0B510019-01
1. TCM 3. Ignition switch
2. A/T relay [A]: Terminal arrangement of TCM connector (viewed from harness side)
