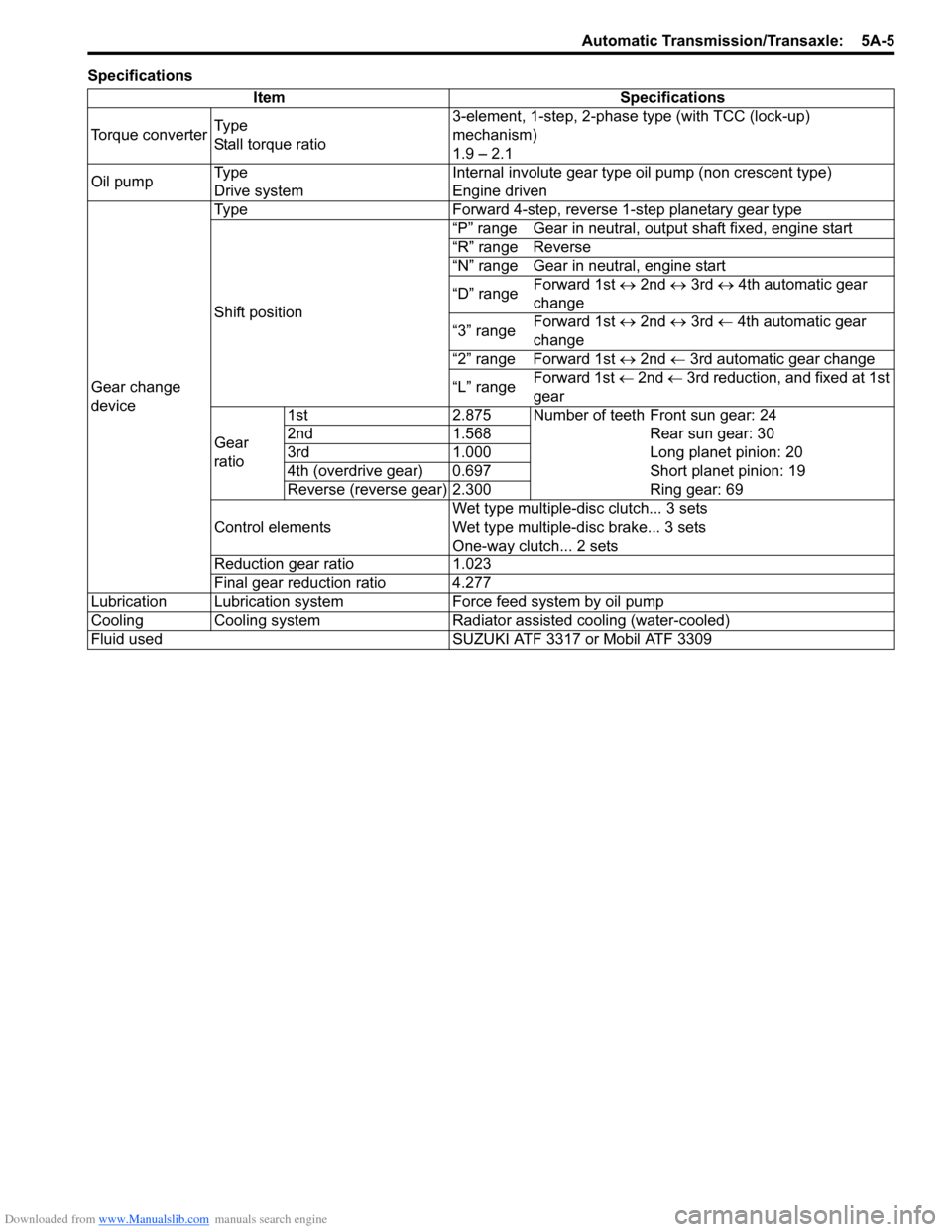

Specifications
Item Specifications
Torque converterTy p e
Stall torque ratio3-element, 1-step, 2-phase type (with TCC (lock-up)
mechanism)
1.9 – 2.1
Oil pumpTy p e
Drive systemInternal involute gear type oil pump (non crescent type)
Engine driven
Gear change
deviceType Forward 4-step, reverse 1-step planetary gear type
Shift position“P” range Gear in neutral, output shaft fixed, engine start
“R” range Reverse
“N” range Gear in neutral, engine start
“D” range Forward 1st ↔ 2nd ↔ 3rd ↔ 4th automatic gear
change
“3” rangeForward 1st ↔ 2nd ↔ 3rd ← 4th automatic gear
change
“2” range Forward 1st ↔ 2nd ← 3rd automatic gear change
“L” rangeForward 1st ← 2nd ← 3rd reduction, and fixed at 1st
gear
Gear
ratio1st 2.875 Number of teeth Front sun gear: 24
2nd 1.568 Rear sun gear: 30
3rd 1.000 Long planet pinion: 20
4th (overdrive gear) 0.697 Short planet pinion: 19
Reverse (reverse gear) 2.300 Ring gear: 69
Control elementsWet type multiple-disc clutch... 3 sets
Wet type multiple-disc brake... 3 sets
One-way clutch... 2 sets
Reduction gear ratio 1.023
Final gear reduction ratio 4.277
Lubrication Lubrication system Force feed system by oil pump
Cooling Cooling system Radiator assisted cooling (water-cooled)
Fluid used SUZUKI ATF 3317 or Mobil ATF 3309

Downloaded from www.Manualslib.com manuals search engine 5A-10 Automatic Transmission/Transaxle:
Schematic and Routing Diagram
Transmission Control Module (TCM) Wiring DiagramS6RW0D5102001
12V
12V
12V
IG1
118
9
10
P
R
N
D
2
L12
2.5V
5V
12V
5V
12V
12V
12V
WHT
BLK
BLK
BLK
BLK
PPLBLK/WHT
BLK/ORN
IG11
RED/BLK
YEL/BLKYEL/BLU
LT GRN/BLK
+BB
WHT/RED
14
20 15
16
17
19
12V18
1 2
3
132126
24 27
28
29
30
65
16 15 14 13 12 1143
24 23 212210 9 8 721
19 20 18 17 C06
17 16
26 2515 14 65 342
13 12
23 22 2411 10 9
21 20 1987
18 1 C07
[A]
22
25
YELYEL/GRN
WHT
P
N
BRN LT/GRN
ORN
BLK/YEL
BLU/BLK
GRY
LT GRN/BLKWHT/BLU
WHT/BLK
C06-11
C06-12
C06-16
C06-15
C06-14
C06-4
C06-2
C06-1
C06-23C06-6 C06-24C06-5
C06-3
RED
GRN GRN/ORNPNK/BLK
GRN/YEL
LT GRN/BLKC07-6
C07-16
C07-23 C07-25
C07-20
C07-1
C07-8
C07-7
C07-19
C07-18
4IG11 23
C07-9
YEL
RED
WHTBLU35 34
3637
5REDWHT
7
WHT
RED
33
4
6
C06-7C06-17WHT
REDREDWHT
WHT
12V12V
WHTRED
WHTREDREDWHT
31
32
RED
WHTRED[B]
[C]
I6RW0D510003-02
1. TCM 15. Shift solenoid valve-A (No.1) 29. “ST SIG” fuse
2. Input shaft speed sensor 16. Shift solenoid valve-B (No.2) 30. “ST” fuse
3. Output shaft speed sensor / VSS 17. Timing solenoid valve 31. MIL
4. ECM 18. TCC solenoid valve 32. Transmission warning light (non-Euro-OBD model)
5. Combination meter 19. Pressure control solenoid valve 33. ABS control module
6. BCM 20. A/T 34. To Data link connector
7. 4WD control module (if equipped) 21. A/T relay 35. To BCM
8. “3” position switch 22. Inhibitor switch (including transmission range
sensor)36. Junction connector
9. Shift lock solenoid 23. Starter motor relay 37. Keyless start control module (if equipped)
10. Brake light switch 24. Ignition switch [A]: Terminal arrangement of TCM connector (viewed
from harness side)
11. Transmission range sensor 25. Starter motor [B]: Junction block with BCM model
12. Backup lamp 26. “DOME” fuse [C]: Junction block without BCM model
13. Data link connector (DLC) 27. “AT” fuse
14. Transmission fluid temperature sensor 28. “IG1 SIG” fuse

Downloaded from www.Manualslib.com manuals search engine 5A-14 Automatic Transmission/Transaxle:
Component Location
Electronic Shift Control System Components LocationS6RW0D5103001
NOTE
The figure shows left-hand steering vehicle. For right-hand steering vehicle, parts with (*) are installed
at the opposite side.

5*
17
15
1
2
8
9
1011
12
13
16*18 19
14
7
6
3420
[B]
[A]5*
I6RW0D510004-01
[A]: Junction block with BCM model 7. Input shaft speed sensor 15. ECM
[B]: Junction block without BCM model 8. TCC solenoid valve 16. TCM
1. Engine 9. Transmission fluid temperature sensor 17. AT relay
2. Transaxle 10. Timing solenoid valve 18. “3” position switch
3. MIL 11. Pressure control solenoid valve 19. Select lever
4. Transaxle select position indicator 12. Shift solenoid valve-B (No.2) 20. Transmission warning light (non-Euro-OBD model)
5. Junction block assembly (included in BCM) 13. Shift solenoid valve-A (No.1)

Downloaded from www.Manualslib.com manuals search engine Automatic Transmission/Transaxle: 5A-15
6. Output shaft speed sensor (VSS) 14. Transmission range sensor
EngineTorque converter with
torque converter clutch
Oil pumpRegulator valves
in valve body
Planetary gear
unit
Clutches and
brakes
Control valves
in valve body
Shift solenoid valves,
TCC solenoid valve and
Timing solenoid valve Pressure control
solenoid valve
Final gear
reduction unit
Engine control module (ECM)
Body control module (BCM)
Combination meter
· Engine torque signal
· Engine speed signal
Transmission control module (TCM)
· Torque request signal
· Throttle position signal
· Accelerator pedal position signal
· Engine coolant temperature signal
· Brake pedal switch signal
· Driving cycle active
· Warm up cycle active
Accelerator pedal
position sensor
Crank shaft
position sensor
Engine coolant
temperature sensor
Input shaft speed sensor
Brake light switch
“3” position switch
Transmission range sensor
Transmission fluid
temperature sensor
Output shaft speed
sensor (VSS)
Power transmission
Fluid pressure circuit
Electric signal
Data link connector
· Transmission diagnostic trouble code (DTC) · Vehicle speed pulse signal
· Transmission warning light signal
· A/T select lever position signal
· Transmission actual gear position signal
· Transmission oil temperature signal · MIL control signal
ABS control module
· A/C compressor clutch signal
I6RW0D510005-01

Downloaded from www.Manualslib.com manuals search engine 5A-18 Automatic Transmission/Transaxle:
Step 2. DTC / Freeze Frame Data Check, Record and
Clearance
First, referring to “DTC Check”, check DTC and pending
DTC. If DTC exists, print or write down DTC and freeze
frame data and then clear malfunction DTC(s) by
referring to “DTC Clearance”. Malfunction DTC indicates
malfunction in the system but it is not possible to know
from it whether the malfunction is occurring now or it
occurred in the past and normal condition has been
restored. In order to know that, check symptom in
question according to Step 5 and then recheck DTC
according to Step 6.
Diagnosing a trouble based on the DTC in this step only
or failure to clear the DTC in this step may result in an
faulty diagnosis, trouble diagnosis of a normal circuit or
difficulty in troubleshooting which is otherwise
unnecessary.
Step 3 and 4. Visual Inspection
As a preliminary step, be sure to perform visual check of
the items that support proper function of the engine and
automatic transaxle referring to “Visual Inspection”.
Step 5. Trouble Symptom Confirmation
Check trouble symptoms based on information obtained
in “Step 1. Customer Complaint Analysis: ” and “Step 2.
DTC / Freeze Frame Data Check, Record and
Clearance: ”.
Also, reconfirm DTC according to “DTC Confirmation
Procedure” described in each DTC flow.
Step 6 and 7. Rechecking and Record of DTC and
Freeze Frame Data
Refer to “DTC Check” for checking procedure.Step 8. A/T Basic Check and A/T Symptom
Diagnosis
Perform basic check of A/T according to “A/T Basic
Check” first. When the end of the flow has been reached,
check the parts of the system suspected as a possible
cause referring to “A/T Symptom Diagnosis” and based
on symptoms appearing on the vehicle (symptoms
obtained through steps of customer complaint analysis,
trouble symptom confirmation and/or A/T basic check)
and repair or replace faulty parts, if any.
Step 9. Troubleshooting for DTC
Based on the DTC indicated in Step 6 / 7 and referring to
“applicable DTC flow”, locate the cause of the trouble,
namely in a sensor, switch, wire harness, connector,
actuator, TCM or other part and repair or replace faulty
parts.
Step 10. Check for Intermittent Problem
Check parts where an intermittent trouble is easy to
occur (e.g. wire harness, connector, etc.), referring to
“Intermittent and Poor Connection Inspection in Section
00” and related circuit of DTC recorded in Step 2.
Step 11. Final Confirmation Test
Confirm that the problem symptom has gone and the
vehicle is free from any abnormal conditions. If what has
been repaired is related to the malfunction DTC, clear
the DTC once and check to ensure that no malfunction
DTC is indicated.
Visual InspectionS6RW0D5104002
Visually check the following parts and systems.
Inspection item Referring
• A/T fluid ----- level, leakage, color “Automatic Transaxle Fluid Level Inspection in
Section 0B”
• A/T fluid hoses ----- disconnection, looseness, deterioration “A/T Fluid Cooler Hoses Replacement”
• Throttle cable (if equipped) ----- play (under warm engine),
installation
• A/T select cable ----- installation “Select Cable Removal and Installation”
• Engine oil ----- level, leakage “Engine Oil and Filter Change in Section 0B”
• Engine coolant ----- level, leakage “Engine Coolant Change in Section 0B”
• Engine mountings ----- play, looseness, damage “Engine Assembly Removal and Installation in
Section 1D”
• Suspension ----- play, looseness “Suspension, Wheels and Tires Symptom
Diagnosis in Section 2A”
• Drive shafts ----- damage “Front Drive Shaft Assembly On-Vehicle Inspection
in Section 3A”
• Battery ----- indicator condition, corrosion of terminal “Battery Inspection in Section 1J”
• Connectors of electric wire harness ----- disconnection, friction “Electronic Shift Control System Components
Location”
• Fuses ----- burning
• Parts ----- installation, damage
• Bolts ----- looseness
• Other parts that can be checked visually

Downloaded from www.Manualslib.com manuals search engine 5A-20 Automatic Transmission/Transaxle:
DTC No. Detecting itemDetecting condition
(DTC will set when detecting)AB
) UP0602Control module Programming
ErrorData programming error. — —
) P0705Transmission range sensor circuit
malfunction (PRNDL input)Multiple signals are inputted simultaneously.1 driving
cycle1 driving
cycle
) P0707Transmission range sensor circuit
lowNo sensor signal is inputted.2 driving
cycles2 driving
cycles
) *P0711Transmission Fluid Temperature
Sensor “A” circuit Range /
PerformanceTransmission temperature sensor signal is no
change for specified time continuously.2 driving
cycles2 driving
cycles*
) P0712Transmission fluid temperature
sensor circuit lowSensor output voltage is too low.1 driving
cycle1 driving
cycle
) P0713Transmission fluid temperature
sensor circuit highSensor output voltage is too high.1 driving
cycle1 driving
cycle
) P0717Input / Turbine speed sensor
circuit no signalNo sensor signal is detected although output
speed sensor signal is inputted.1 driving
cycle1 driving
cycle
) P0722Output speed sensor circuit no
signalNo sensor signal is inputted although input
speed sensor signal is inputted.1 driving
cycle1 driving
cycle
) *P0741Torque converter clutch circuit
performance or stuck offDifference in revolution between engine and
input shaft is too large although TCM is
commanding TCC solenoid valve to turn ON.2 driving
cycles2 driving
cycles*
) *P0742Torque converter clutch circuit
stuck onDifference in revolution between engine and
input shaft is too small although TCM is
commanding TCC solenoid valve to turn OFF.2 driving
cycles2 driving
cycles*
) *P0751
Shift solenoid-A (No.1)
performance or stuck offActual gear position is 3rd gear although TCM
command is for 2nd gear.2 driving
cycles2 driving
cycles*
) *P0752 Shift solenoid-A (No.1) stuck onActual gear position is 2nd gear although TCM
command is for 3rd gear.2 driving
cycles2 driving
cycles*
) *P0756Shift solenoid-B (No.2)
performance or stuck offActual gear position is 3rd gear although TCM
command is for 4th gear.2 driving
cycles2 driving
cycles*
) *P0757 Shift solenoid-B (No.2) stuck onActual gear position is 4th gear although TCM
command is for 3rd gear.2 driving
cycles2 driving
cycles*
) P0787Shift / Timing solenoid control
circuit lowVoltage of timing solenoid terminal is low
although TCM is commanding timing solenoid to
turn ON.1 driving
cycle1 driving
cycle
) P0788Shift / Timing solenoid control
circuit highVoltage of timing solenoid terminal is high
although TCM is commanding timing solenoid to
turn OFF.1 driving
cycle1 driving
cycle
) P0961Pressure Control Solenoid “A”
Control Circuit Range /
PerformanceDifference between actual current of control
solenoid valve circuit and current of control
solenoid valve circuit calculated by ECM is more
than specification.1 driving
cycle1 driving
cycle
) P0962Pressure control solenoid control
circuit lowNo electric flow is detected on pressure control
solenoid circuit.1 driving
cycle1 driving
cycle
) P0963Pressure control solenoid control
circuit highToo much electric flow is detected on pressure
control solenoid circuit.1 driving
cycle1 driving
cycle
) P0973Shift solenoid-A (No.1) control
circuit lowVoltage of shift solenoid terminal is low although
TCM is commanding shift solenoid to turn ON.1 driving
cycle1 driving
cycle
) P0974
Shift solenoid-A (No.1) control
circuit highVoltage of shift solenoid terminal is high
although TCM is commanding shift solenoid to
turn OFF.1 driving
cycle1 driving
cycle
) P0976Shift solenoid-B (No.2) control
circuit lowVoltage of shift solenoid terminal is low although
TCM is commanding shift solenoid to turn ON.1 driving
cycle1 driving
cycle
) P0977Shift solenoid-B (No.2) control
circuit highVoltage of shift solenoid terminal is high
although TCM is commanding shift solenoid to
turn OFF.1 driving
cycle1 driving
cycle
) P1702Internal control module memory
check sum errorCalculation of current data stored in TCM is not
correct comparing with pre-stored checking data
in TCM.1 driving
cycle1 driving
cycle

Downloaded from www.Manualslib.com manuals search engine 5A-22 Automatic Transmission/Transaxle:
DTC ClearanceS6RW0D5104006
WARNING!
When performing a driving test, select a safe
place where there is neither any traffic nor
any traffic accident possibility and be very
careful during testing to avoid occurrence of
an accident.

After repair or replace malfunction part(s), clear all DTCs
by performing the following procedure.
1) Connect SUZUKI scan tool to data link connector in
the same manner as when making this connection
for “DTC Check”.
2) Turn ignition switch ON.3) Erase DTC and pending DTC according to
instructions displayed on scan tool. Refer to scan
tool operator’s manual for further details.
4) After completing the clearance, turn ignition switch
OFF and disconnect scan tool from data link
connector (DLC).
NOTE
DTC and freeze frame data stored in TCM
memory are also cleared in the following
cases. Be careful not to clear them before
keeping their record.
• When the same malfunction (DTC) is not
detected again during 40 engine warm-up
cycles.

Fail-Safe TableS6RW0D5104007
This function is provided by the safe mechanism that assures safe driveability even when the solenoid valve, sensor or
its circuit fails. The following table shows the fail-safe function for each fail condition of sensor, solenoid or its circuit.
DTC No. Trouble area Fail-safe operation
) P0705Transmission range sensor circuit
malfunction (PRNDL input)• Selected range is set in priority order shown below.
D> 2> L> R> N> P
• Slip controlled lock-up function is inhibited to operate.
• Learning control is inhibited.
) P0707 Transmission range sensor circuit low• Selected range is assumed to be “D” range.
• Slip controlled lock-up function is inhibited to operate.
• Learning control is inhibited.
) P0712
) P0713Transmission fluid temperature sensor
circuit low• A/T fluid temperature is assumed to be 200 °C (392 °F).
• Upshifting to 4th gear is inhibited.
• Lock-up function is inhibited to operate.
• Garage shift control is inhibited.
• Learning control is inhibited.
) P0717Input / Turbine speed sensor circuit no
signal• Upshifting to 4th gear is inhibited.
• Lock-up function is inhibited to operate.
• Line pressure control at gear shifting is inhibited.
• Torque reducing request to ECM (torque reduction control)
is inhibited.
• Garage shift control is inhibited.
• Learning control is inhibited.
) P0722 Output speed sensor circuit no signal• Vehicle speed which is calculated by input shaft speed
sensor signal is used for gear shifting control instead of
vehicle speed calculated by output shaft speed sensor
(VSS) signal.
• Upshifting to 4th gear is inhibited.
• Lock-up function is inhibited to operate.
• Line pressure control at gear shifting is inhibited.
• Torque reducing request to ECM (torque reduction control)
is inhibited.
• Garage shift control is inhibited.
• Learning control is inhibited.

Downloaded from www.Manualslib.com manuals search engine Automatic Transmission/Transaxle: 5A-23
) P0787 Shift / Timing solenoid Control Circuit Low
• Power supply for all solenoid valves is cut.
• Gear position is fixed in 3rd gear.
• Line pressure control at gear shifting is inhibited.
• Look-up function is inhibited to operate. ) P0788 Shift / Timing solenoid Control Circuit High
) P0962Pressure control solenoid control circuit
low
) P0963Pressure control solenoid control circuit
high
) P0973 Shift solenoid-A (No.1) control circuit low
) P0974 Shift solenoid-A (No.1) control circuit high
) P0976 Shift solenoid-B (No.2) control circuit low
) P0977 Shift solenoid-B (No.2) control circuit high
) P0961Pressure Control Solenoid “A” Control
Circuit Range / Performance• Upshifting to 4th gear is inhibited.
• Lock-up function is inhibited to operate.
• Slip controlled lock-up function is inhibited to operate.
• Line pressure control at gear shifting is inhibited.
• Torque reducing request to ECM (torque reduction control)
is inhibited.
• Garage shift control is inhibited.
• Leaning control is inhibited.
) P1702Internal control module memory check
sum error• Power supply for all solenoid valves is cut.
• Gear position is fixed in 3rd gear.
• Line pressure control at gear shifting is inhibited.
• Lock-up function is inhibited to operate.
) P1723 Range select switch malfunction “3” position switch is assumed to be OFF.
) P1878 Torque converter clutch shudder Slip controlled lock-up function is inhibited to operate.
) P2762Torque Converter Clutch (TCC) Pressure
Control Solenoid Control Circuit Range /
Performance• Lock-up function is inhibited to operate.
• Slip controlled lock-up function is inhibited to operate.
• Upshifting to 4th gear is inhibited when Transmission Fluid
Temperature is 150 °C (302 °F) or more.
• Gear position is fixed in 1st gear when vehicle speed is 10
km/h (6 mile/h) or less.
) P2763Torque converter clutch pressure control
solenoid control circuit high• Lock-up function is inhibited to operate.
• Upshifting to 4th gear is inhibited when A/T fluid
temperature is more than 150 °C (302 °F).
• Vehicle speed is slower than 10 km/h (6 mile/h), gear
position is fixed in 1st gear for prevention of engine stall.
) P2764Torque converter clutch pressure control
solenoid control circuit low• Lock-up function is inhibited to operate.
• Upshifting to 4th gear is inhibited when A/T fluid
temperature is more than 150 °C (302 °F).
) U0073 Control module communication bus off• Throttle opening used for line pressure control is assumed
to be 100%.
• Throttle opening used for gear shifting control is assumed
to be 0%.
• Engine revolution is assumed to be 0 RPM.
• After 15 minutes pass from detecting malfunction, engine
coolant temperature is assumed to be 90 °C (194 °F).
• Lock-up function is inhibited to operate.
• Line pressure control at gear shifting is inhibited.
• Torque reducing request to ECM (torque reduction control)
is inhibited.
• Upshifting to 4th gear is inhibited.
• Garage shift control is inhibited.
• Learning control is inhibited. DTC No. Trouble area Fail-safe operation
