2006 SUBARU IMPREZA WRX Owners Manual

14

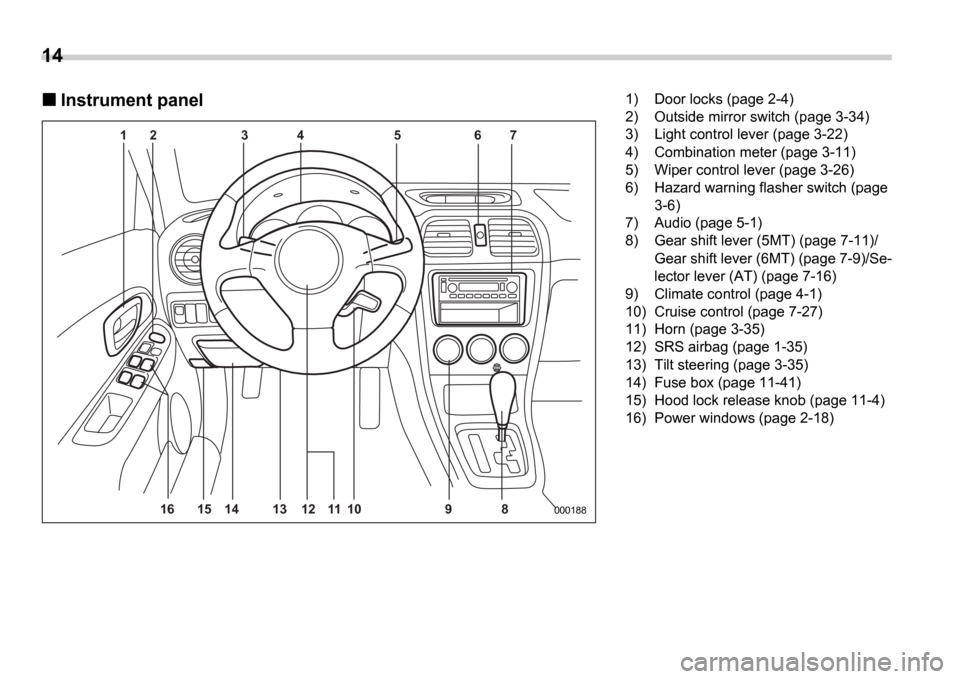

Instrument panel
7
6
5
4
3
2
1
15
16 14 12 10 11
13 9 8
000188
1) Door locks (page 2-4)
2) Outside mirror switch (page 3-34)
3) Light control lever (page 3-22)
4) Combination meter (page 3-11)
5) Wiper control lever (page 3-26)
6) Hazard warning flasher switch (page
3-6)
7) Audio (page 5-1)
8) Gear shift lever (5MT) (page 7-11)/
Gear shift lever (6MT) (page 7-9)/Se-
lector lever (AT) (page 7-16)
9) Climate control (page 4-1)
10) Cruise control (page 7-27)
11) Horn (page 3-35)
12) SRS airbag (page 1-35)
13) Tilt steering (page 3-35)
14) Fuse box (page 11-41)
15) Hood lock release knob (page 11-4)
16) Power windows (page 2-18)

15
– CONTINUED –

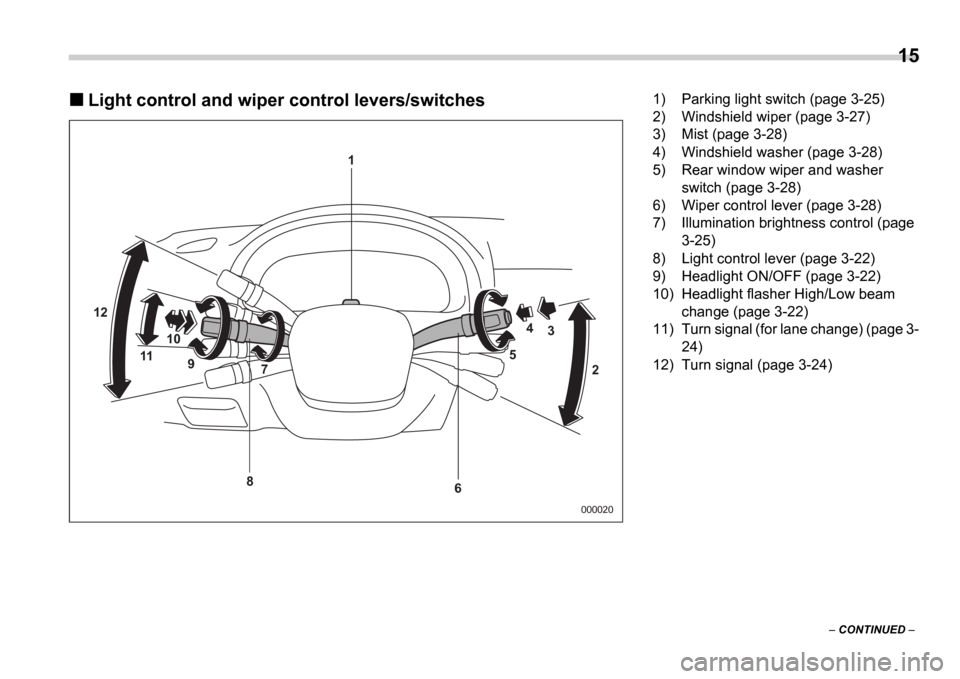

Light control and wiper control levers/switches
000020
12
3
4
5
1
10 9 7
11
2
6
8
1) Parking light switch (page 3-25)
2) Windshield wiper (page 3-27)
3) Mist (page 3-28)
4) Windshield washer (page 3-28)
5) Rear window wiper and washer
switch (page 3-28)
6) Wiper control lever (page 3-28)
7) Illumination brightness control (page 3-25)
8) Light control lever (page 3-22)
9) Headlight ON/OFF (page 3-22)
10) Headlight flasher High/Low beam change (page 3-22)
11) Turn signal (for lane change) (page 3-
24)
12) Turn signal (page 3-24)

16

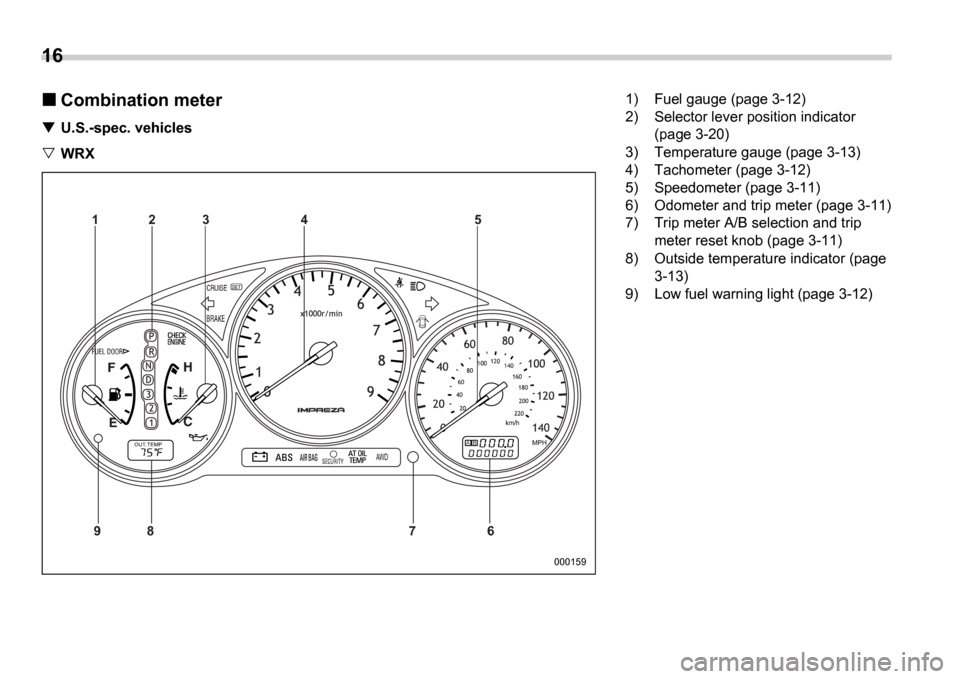

Combination meter
U.S.-spec. vehicles
WRX
AB
9 87 65
4
3
2
1
000159
1) Fuel gauge (page 3-12)
2) Selector lever position indicator
(page 3-20)
3) Temperature gauge (page 3-13)
4) Tachometer (page 3-12)
5) Speedometer (page 3-11)
6) Odometer and trip meter (page 3-11)
7) Trip meter A/B selection and trip meter reset knob (page 3-11)
8) Outside temperature indicator (page 3-13)
9) Low fuel warning light (page 3-12)

17
– CONTINUED –

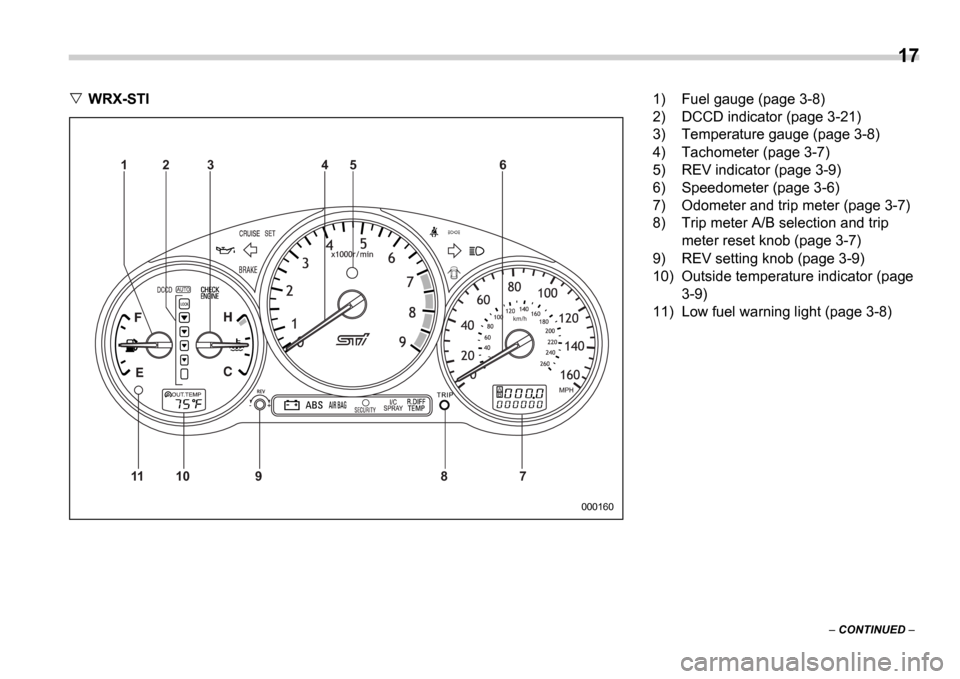

WRX-STI
000160
km/h
AB
11 10 9 8 7 6
5
4
3
2
1
1) Fuel gauge (page 3-8)
2) DCCD indicator (page 3-21)
3) Temperature gauge (page 3-8)
4) Tachometer (page 3-7)
5) REV indicator (page 3-9)
6) Speedometer (page 3-6)
7) Odometer and trip meter (page 3-7)
8) Trip meter A/B selection and trip
meter reset knob (page 3-7)
9) REV setting knob (page 3-9)
10) Outside temperature indicator (page 3-9)
11) Low fuel warning light (page 3-8)

18

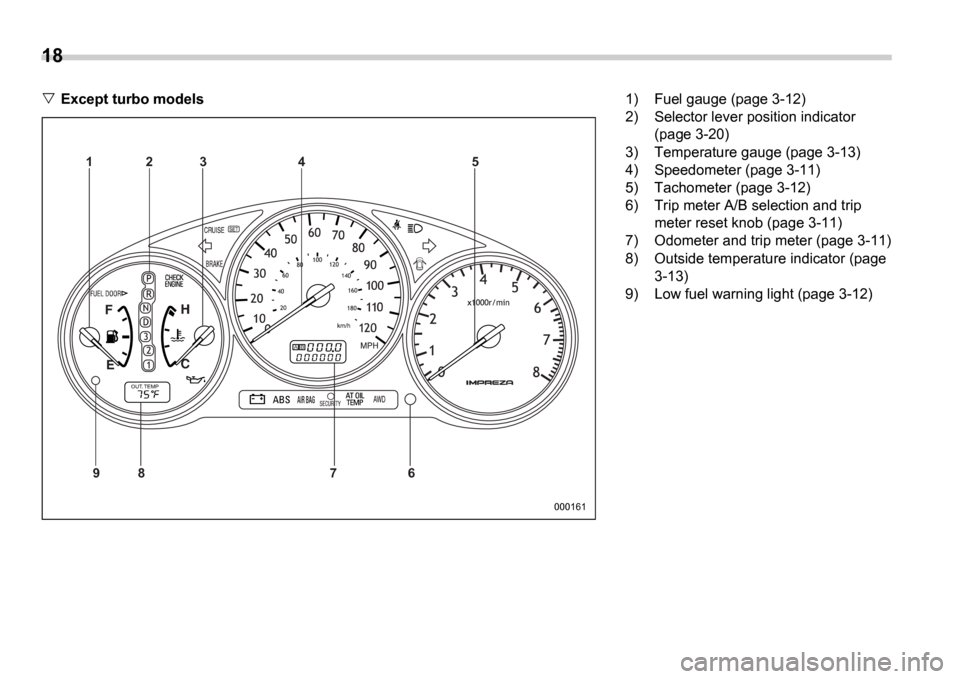

Except turbo models
AB
97 65
4
3
2
1
8
000161
1) Fuel gauge (page 3-12)
2) Selector lever position indicator (page 3-20)
3) Temperature gauge (page 3-13)
4) Speedometer (page 3-11)
5) Tachometer (page 3-12)
6) Trip meter A/B selection and trip meter reset knob (page 3-11)
7) Odometer and trip meter (page 3-11)
8) Outside temperature indicator (page 3-13)
9) Low fuel warning light (page 3-12)

19
– CONTINUED –

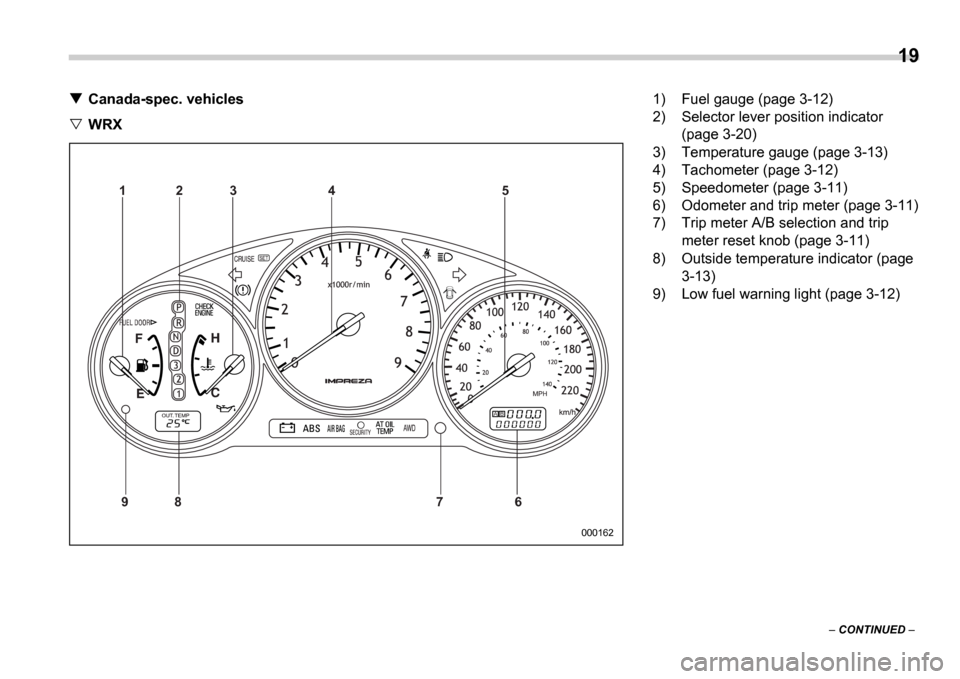

Canada-spec. vehicles
WRX
AB
9 8 7 65
4
3
2
1
000162
1) Fuel gauge (page 3-12)
2) Selector lever position indicator
(page 3-20)
3) Temperature gauge (page 3-13)
4) Tachometer (page 3-12)
5) Speedometer (page 3-11)
6) Odometer and trip meter (page 3-11)
7) Trip meter A/B selection and trip meter reset knob (page 3-11)
8) Outside temperature indicator (page 3-13)
9) Low fuel warning light (page 3-12)

20

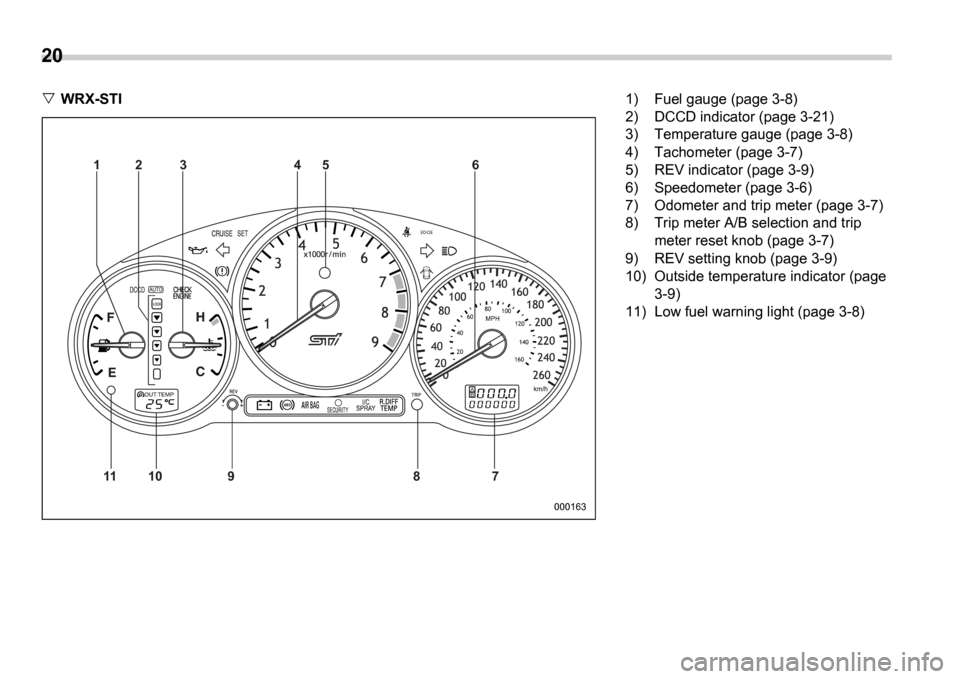

WRX-STI
000163
AB
11 10 9 8 76
5
4
3
2
1
1) Fuel gauge (page 3-8)
2) DCCD indicator (page 3-21)
3) Temperature gauge (page 3-8)
4) Tachometer (page 3-7)
5) REV indicator (page 3-9)
6) Speedometer (page 3-6)
7) Odometer and trip meter (page 3-7)
8) Trip meter A/B selection and trip
meter reset knob (page 3-7)
9) REV setting knob (page 3-9)
10) Outside temperature indicator (page 3-9)
11) Low fuel warning light (page 3-8)

21
– CONTINUED –

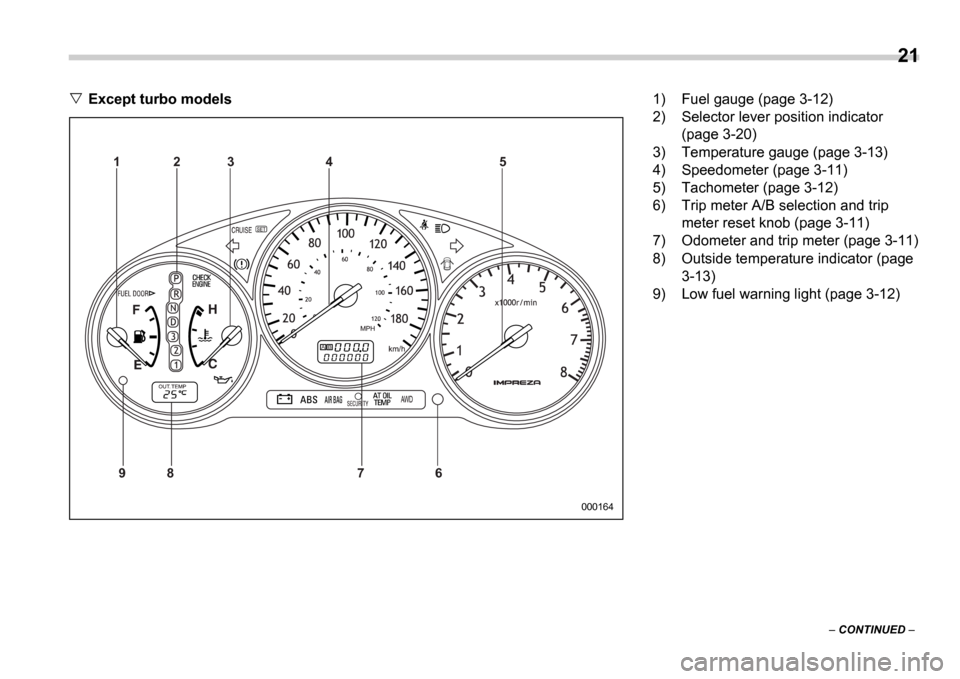

Except turbo models
AB
9 8 7 6 5
4
3
2
1
000164
1) Fuel gauge (page 3-12)
2) Selector lever position indicator
(page 3-20)
3) Temperature gauge (page 3-13)
4) Speedometer (page 3-11)
5) Tachometer (page 3-12)
6) Trip meter A/B selection and trip meter reset knob (page 3-11)
7) Odometer and trip meter (page 3-11)
8) Outside temperature indicator (page 3-13)
9) Low fuel warning light (page 3-12)
