Contents5
Contents
Layout of this Owner's Manual
(explanations). . . . . . . . . . . . . . . . . . . . . . . . . .
Using the system. . . . . . . . . . . . . . . . . . . . . .
Cockpit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . General view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instruments and Indicator/Warning Lights. . . General view of the instrument cluster . . . . . . . . . Engine revolutions counter . . . . . . . . . . . . . . . . . . . . Coolant temperature gauge* . . . . . . . . . . . . . . . . . . Fuel gauge* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Counter for distance driven . . . . . . . . . . . . . . . . . . . Service Interval Display . . . . . . . . . . . . . . . . . . . . . . . Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Multi-functional indicato r (onboard computer)* Information display* . . . . . . . . . . . . . . . . . . . . . . . . . . Auto Check Control . . . . . . . . . . . . . . . . . . . . . . . . . . . Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Unlocking and locking . . . . . . . . . . . . . . . . . . . . . . . . Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Central locking system* . . . . . . . . . . . . . . . . . . . . . . . Remote control* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Anti-theft alarm system* . . . . . . . . . . . . . . . . . . . . . . Interior monitor*  and Towing protection* . . . Power windows* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Electric sliding/tilting roof* . . . . . . . . . . . . . . . . . . . .
Lights and Visibility . . . . . . . . . . . . . . . . . . . . . . . . . . . Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Visibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Windshield wiper and wash system . . . . . . . . . . . . Rear mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seats and Stowage. . . . . . . . . . . . . . . . . . . . . . . . . . . . Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Heating the front seats* . . . . . . . . . . . . . . . . . . . . . . . Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . The roof rack* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Front cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Rear cup holder* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Note holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ashtray* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cigarette lighter* and power sockets* . . . . . . . . . . Storage compartments . . . . . . . . . . . . . . . . . . . . . . . .
Heating and air conditioning system. . . . . . . . . Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Climatic (semi-automatic air conditioning system)* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Climatronic (automatic air conditioning)* . . . . . .
Starting-off and Driving. . . . . . . . . . . . . . . . . . . . . . . Setting steering wheel position* . . . . . . . . . . . . . . . Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . Switching off the engine . . . . . . . . . . . . . . . . . . . . . . . Shifting (manual gearbox) . . . . . . . . . . . . . . . . . . . . . Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Parking aid* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cruise control system (CCS)* . . . . . . . . . . . . . . . . . .
Automatic gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-speed automatic gearbox* . . . . . . . . . . . . . . . . . .
Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Operating the radio . . . . . . . . . . . . . . . . . . . . . . . . . . . Radio and mobile phone operation . . . . . . . . . . . . Universal telephone preinstallation with voice control* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Inserting the mobile phone and adapter . . . . . . . Mobile phone operation . . . . . . . . . . . . . . . . . . . . . . Voice commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Enter PIN code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Select number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Repeat last call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Phone voice phonebook* . . . . . . . . . . . . . . . . . . . . . Bluetooth™* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Mobile phones and two-way radio systems . . . . . Input AUX-IN* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . CD changer* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Passive Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Basic information . . . . . . . . . . . . . . . . . . . . . . . . . . . . Correct seated position . . . . . . . . . . . . . . . . . . . . . . .
Seat belts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Why seat belts? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . The physical principle of a frontal collision . . . . . Important safety information regarding the use of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . How are seat belts correctly fastened? . . . . . . . . . Belt tensioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Airbag system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Description of the airbag system . . . . . . . . . . . . . . . Front airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Side airbags* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8
9
11 11
13 13 14141415161717212326
38 38 4041414748495053
56 56 61
63 6467
69 69 717273757579818182828384
91 91
94 98
103 103 104105106107107108109
112 112
118 118 119
120 121122123124124125125128129130131
133
133 133 135
138 138 139
140 141143
144 144 146148
NKO A05Fabia 20.book Page 5 Tuesday, September 26, 2006 8:38 AM

Instruments and Indicator/Warning Lights17
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
•affix the sticker with the entry of the following service interval to the side of the dash panel on the driver's side.
The Service Interval Display can also be reset with the reset button as follows:
•Switch off the ignition, press the reset button of the trip counter for distance driven and hold it down.
•Switch the ignition on and release the reset button. Now turn the reset button to the right. The service interval display is reset.
Caution
We recommend that you do not reset th e Service Interval Display yourself otherwise this can result in the service interval display being incorrectly set, which may also result in problems with operation of your vehicle.
Note
•Never reset the display between service intervals otherwise this may result in incorrect readouts.
•information is retained in the Service Interval Display also after the battery of the vehicle is disconnected.
•it is necessary to re-code the Servic e Interval Display if a new instrument cluster is installed during repair work. Th is work is carried out by a specialist garage.
•The data displayed is the same after resetting the display with flexible service intervals (QG1) using the reset button as that for a vehicle with fixed service intervals (QG2). We therefore recommend having the Service Interval Display reset only by a Škoda Service Partner who is familiar with the procedure for resetting the display with a vehicle system tester.
•Please refer to the brochure Service schedule for extensive information about the service intervals.
Digital clock
A reset button is installed on the left below beside the speedometer
for adjusting the clock ⇒page 13, fig. 2.
Set hours
– Turn the reset button to the left.
Setting minutes
– Turn the reset button to the right.
WARNING
The clock should not be adjusted while driving for safety reasons but only when the vehicle is stationary.
Multi-functional indicator (onboard
computer)*
Introduction
The multi-functional indicator appears in the display ⇒page 18, fig. 5 or in the information display ⇒page 21, fig. 8 depending on the equipment fitted to your vehicle.
The multi-functional indicator offers you a range of useful information.
A6
NKO A05Fabia 20.book Page 17 Tuesday, September 26, 2006 8:38 AM

Starting-off and Driving103
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Starting-off and Driving
Setting steering wheel position*You can set the height and the forward/back position of the steering
wheel to the desired position.
– Adjust the driver seat ⇒page 69.
– Pull the lever below the steering column ⇒fig. 87 down ⇒.
– Set the steering wheel to the desired position (concerning height
and forward/back position).
– Then push the lever up against the steering column until it locks
into place.
WARNING
•You must not adjust the steering wh eel when the vehicle is moving!
•The driver must maintain a distance of at least 25 cm to the steering wheel ⇒fig. 88. Not maintaining this minimum distance will mean that the airbag system will not be able to properly protect you - hazard!
•For safety reasons the lever must always be firmly pushed up to avoid the steering wheel altering its positi on unintentionally when driving - risk of accident!
•If you adjust the steering wheel fu rther towards the head, you will reduce the protection offered by the driver airbag in the event of an acci- dent. Check that the steering wh eel is aligned to the chest.
•When driving, hold the steering wheel with both hands firmly on the outer edge in the 9 o'clock and 3 o'cl ock position. Never hold the steering wheel firmly in the 12 o'clock position or in another way (e.g. in the middle of the steering wheel or at th e inner steering wheel edge). In such cases, injuries to the arms, the hands and the head can occur when the driver airbag is deployed.
Fig. 87 Adjustable steering wheel: Lever below steering column
Fig. 88 Safe distance to steering wheel
NKO A05Fabia 20.book Page 103 Tuesday, September 26, 2006 8:38 AM

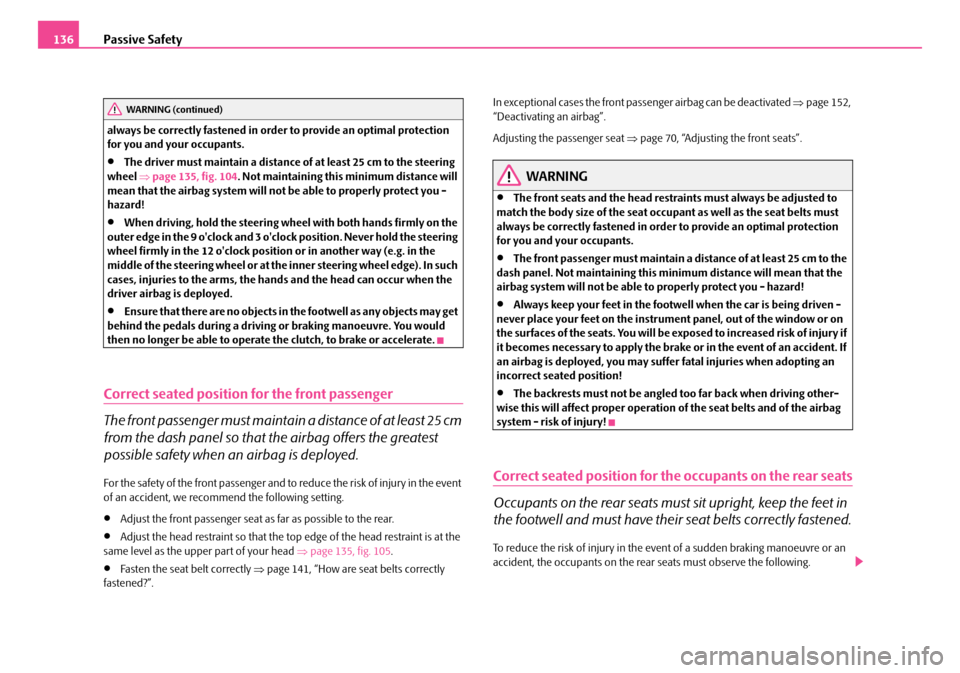

Passive Safety136
always be correctly fastened in order to provide an optimal protection for you and your occupants.
•The driver must maintain a distance of at least 25 cm to the steering wheel ⇒page 135, fig. 104. Not maintaining this minimum distance will mean that the airbag system will not be able to properly protect you - hazard!
•When driving, hold the steering wheel with both hands firmly on the outer edge in the 9 o'clock and 3 o'cl ock position. Never hold the steering wheel firmly in the 12 o'clock position or in another way (e.g. in the middle of the steering wheel or at the inner steering wheel edge). In such cases, injuries to the arms, the hands and the head can occur when the driver airbag is deployed.
•Ensure that there are no objects in the footwell as any objects may get behind the pedals during a driving or braking manoeuvre. You would then no longer be able to operate the clutch, to brake or accelerate.
Correct seated position for the front passenger
The front passenger must maintain a distance of at least 25 cm
from the dash panel so that the airbag offers the greatest
possible safety when an airbag is deployed.
For the safety of the front passenger and to reduce the risk of injury in the event of an accident, we recommend the following setting.
•Adjust the front passenger seat as far as possible to the rear.
•Adjust the head restraint so that the top edge of the head restraint is at the same level as the upper part of your head ⇒page 135, fig. 105.
•Fasten the seat belt correctly ⇒page 141, “How are seat belts correctly fastened?”.
In exceptional cases the front pass enger airbag can be deactivated ⇒page 152, “Deactivating an airbag”.
Adjusting the passenger seat ⇒page 70, “Adjusting the front seats”.
WARNING
•The front seats and the head restraints must always be adjusted to match the body size of the seat occupant as well as the seat belts must always be correctly fastened in order to provide an optimal protection for you and your occupants.
•The front passenger must maintain a distance of at least 25 cm to the dash panel. Not maintaining this minimum distance will mean that the airbag system will not be able to properly protect you - hazard!
•Always keep your feet in the footwe ll when the car is being driven - never place your feet on the instrument panel, out of the window or on the surfaces of the seats. You will be exposed to increased risk of injury if it becomes necessary to apply the brake or in the event of an accident. If an airbag is deployed, you may suffer fatal injuries when adopting an incorrect seated position!
•The backrests must not be angled too far back when driving other- wise this will affect proper operation of the seat belts and of the airbag system - risk of injury!
Correct seated position for the occupants on the rear seats
Occupants on the rear seats must sit upright, keep the feet in
the footwell and must have their seat belts correctly fastened.
To reduce the risk of injury in the event of a sudden braking manoeuvre or an accident, the occupants on the rear seats must observe the following.
WARNING (continued)
NKO A05Fabia 20.book Page 136 Tuesday, September 26, 2006 8:38 AM

Index250
Child safety seat
on the front passenger seat . . . . . . . . . . . . . . . 156
Safety information . . . . . . . . . . . . . . . . . . . . . . . 155
Child seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Classification into groups . . . . . . . . . . . . . . . . . 159
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Children and safety . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Chrome parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Climatronic
Air outlet vents . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Defrosting windows . . . . . . . . . . . . . . . . . . . . . . 101
Recirculated air mode . . . . . . . . . . . . . . . . . . . . 101
Setting temperature . . . . . . . . . . . . . . . . . . . . . . 101
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Clothes hooks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Cockpit
General view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Compartments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Convenience operation . . . . . . . . . . . . . . . . . . . . . . . 52
Converting/masking over headlights . . . . . . . . . . 180
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
replenishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Coolant level
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Coolant temperature gauge . . . . . . . . . . . . . . . . . . . 14
Coolant temperature/coolant level
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Cornering lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Correct seated position . . . . . . . . . . . . . . . . . . . . . . 135
Counter for distance driven . . . . . . . . . . . . . . . . . . . . 15
Cruise control system . . . . . . . . . . . . . . . . . . . . . . . . 109
Cup holder
front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
D
Deactivating an airbag . . . . . . . . . . . . . . . . . . . . . . . 152
Defrosting rear window . . . . . . . . . . . . . . . . . . . . . . . . 63
Defrosting windows . . . . . . . . . . . . . . . . . . . . . . . 92, 96
De-icing the windows . . . . . . . . . . . . . . . . . . . . . . . 188
Diesel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Diesel engines
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . 106
Diesel particle filter
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Direction indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Distance driven . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Door
Child safety lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Door, tailgate and bonnet ajar warning . . . . . . . . . . 23
Driving economically . . . . . . . . . . . . . . . . . . . . . . . . 175
Driving time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
E
EDL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Electric power-operated window
Operational faults . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Electric sliding/tilting roof . . . . . . . . . . . . . . . . . . . . . . 53
Electrically adjustable rear mirror . . . . . . . . . . . . . . . 67
Electronic Differential Lock . . . . . . . . . . . . . . . . . . . 167
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Electronic Differential Lock (EDL) . . . . . . . . . . . . . 167
Electronic immobiliser . . . . . . . . . . . . . . . . . . . . . 31, 40
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Electronic stability programme (ESP) . . . . . . . . . . 165
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Emergency locking of the door . . . . . . . . . . . . . . . . . 45
Engine
starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
switching off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Engine compartment
Safety information . . . . . . . . . . . . . . . . . . . . . . . 198
Engine electronics
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
replenishing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Engine revolutions counter . . . . . . . . . . . . . . . . . . . . 14
NKO A05Fabia 20.book Page 250 Tuesday, September 26, 2006 8:38 AM

Index253
R
Radiator fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Radio
Operating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Radio systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Raise vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Rear mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Rear window heater . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Recharge battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Recirculated air mode
Air conditioning system . . . . . . . . . . . . . . . . . . . . 97
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Refuelling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Synchronisation . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Replacing bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
Replacing fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Replacing the wiper blades . . . . . . . . . . . . . . . . . . . . 66
Roof aerial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Running in the car . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
S
Safe securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Safety information
Engine compartment . . . . . . . . . . . . . . . . . . . . . 198
Saving electrical energy . . . . . . . . . . . . . . . . . . . . . . 175
Seat belt height adjuster . . . . . . . . . . . . . . . . . . . . . 142
Seat belt warning light . . . . . . . . . . . . . . . . . . . . . . . 141
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
fastening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Height adjustment . . . . . . . . . . . . . . . . . . . . . . . 142
Safety information . . . . . . . . . . . . . . . . . . . . . . . 140
taking off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Selector lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Selector lever positions . . . . . . . . . . . . . . . . . . . . . . 113
Service Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Service Interval Display . . . . . . . . . . . . . . . . . . . . . . . 16
Setting temperature
Air conditioning system . . . . . . . . . . . . . . . . . . . 95
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Shifting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Side airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Side lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Stability programme (ESP) . . . . . . . . . . . . . . . . . . . . 165
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Diesel engines . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Petrol engines . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Steering force assistance . . . . . . . . . . . . . . . . . . . . . 170
Storage compartment
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Storage compartments . . . . . . . . . . . . . . . . . . . . . . . . 84
Storage facilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Switch in the driver door
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Switching lights on and off . . . . . . . . . . . . . . . . . . . . 56
Switching off the engine . . . . . . . . . . . . . . . . . . . . . 106
T
Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Taking care of your vehicle . . . . . . . . . . . . . . . . . . . 185
TCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Temperature
outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
the first 1 500 kilometres . . . . . . . . . . . . . . . . . . . . . 173
The roof luggage rack system . . . . . . . . . . . . . . . . . . 79
Thickness of brake pads
Warning light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Tilting roof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Tiptronic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
NKO A05Fabia 20.book Page 253 Tuesday, September 26, 2006 8:38 AM
