2006 SKODA FABIA display

2
Quick operation
Left-hand press/turn knob
- ON/OFF switch (press) . . . . . . . .4
- Volume control (turn) . . . . . . . . .4
Right-hand press/turn knob
- Frequency/title scan
(short press) . . . . . . . . . . . . . .6, 8
- manual frequency/title search
(turn) . . . . . . . . . . . . . . . . . . . .6, 8
- Call up Setup menu
(long press) . . . . . . . . . . . . . . . . .9
- Additional setting functions in
various menus
1....6
- Radio station buttons . . . . . . . . .6
- CD selection buttons . . . . . . . . . .8
- code input . . . . . . . . . . . . . . .3, 11
CD
- Call up CD playback . . . . . . . . . .8

- Browse backwards . . . . . . . . .6, 8

- Browse forwards . . . . . . . . . . .6, 8
AM/FM
- AM/FM change-over . . . . . . . . . .5
- Memory area change-over . . . . .5
TP
- traffic radio . . . . . . . . . . . . . . .5, 7
AS
- Automatic storing . . . . . . . . . . . . 6
Note
- sound setting
(Treble, Bass, Balance, Fader) . .4
Displays:
TP: Traffic programme set. . . 5, 7
FM1 UKW pre-sets 1 - 6 . . . . . . 5
FM2 UKW pre-sets 7 - 12 . . . . . 5
AM1 LW/MW pre-sets 1 - 6 . . . . 5
AM2 LW/MW pre-sets 7 - 12. . . . 5
Station number . . . . . . . . . . . . . 6
Programme name/frequency . . 7 Pos. Function Page Pos. Function Page Pos. Function Page
1
2
3
4
5
11
12
12
12
12
13
14
6
7
8
9
10
bed_anl_Skoda-Beat_A05 rz.QXP 02.03.2006 16:27 Uhr Seite 2

4

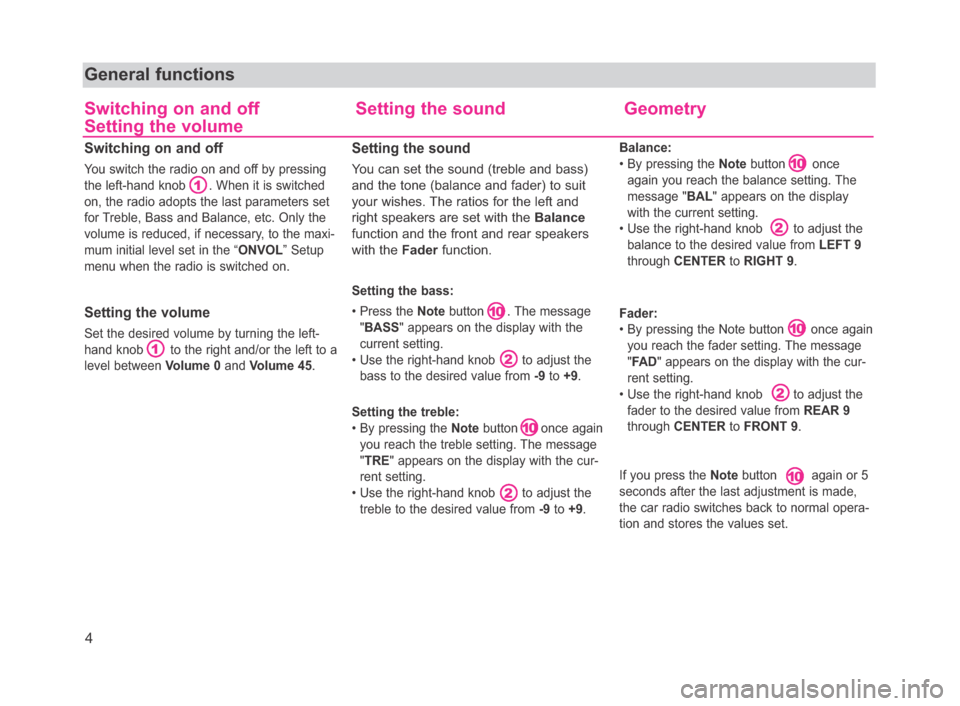

General functions
Switching on and off
You switch the radio on and off by pressing
the left-hand knob . When it is switched
on, the radio adopts the last parameters set
for Treble, Bass and Balance, etc. Only the
volume is reduced, if necessary, to the maxi-
mum initial level set in the “ONVOL” Setup
menu when the radio is switched on.
Setting the volume
Set the desired volume by turning the left-
hand knob to the right and/or the left to a
level between Volume 0and Volume 45.
Setting the sound
You can set the sound (treble and bass)
and the tone (balance and fader) to suit
your wishes. The ratios for the left and
right speakers are set with the Balance
function and the front and rear speakers
with the Faderfunction.
Setting the bass:
• Press the Notebutton . The message
"BASS" appears on the display with the
current setting.
• Use the right-hand knob to adjust the
bass to the desired value from -9to +9.
Setting the treble:
• By pressing the Notebutton once again
you reach the treble setting. The message
"TRE" appears on the display with the cur-
rent setting.
• Use the right-hand knob to adjust the
treble to the desired value from -9to +9. Balance:
• By pressing the Notebutton once
again you reach the balance setting. The
message "BAL" appears on the display
with the current setting.
• Use the right-hand knob to adjust the
balance to the desired value from LEFT 9
through CENTERto RIGHT 9.
Fader:
• By pressing the Note button once again
you reach the fader setting. The message
"FA D" appears on the display with the cur-
rent setting.
• Use the right-hand knob to adjust the
fader to the desired value from REAR 9
through CENTERto FRONT 9.
If you press the Notebutton again or 5
seconds after the last adjustment is made,
the car radio switches back to normal opera-
tion and stores the values set.
Switching on and off Setting the sound Geometry
Setting the volume
1
1
10
10
10
10
10
2
2
2
2
bed_anl_Skoda-Beat_A05 rz.QXP 02.03.2006 16:27 Uhr Seite 4

Radio mode

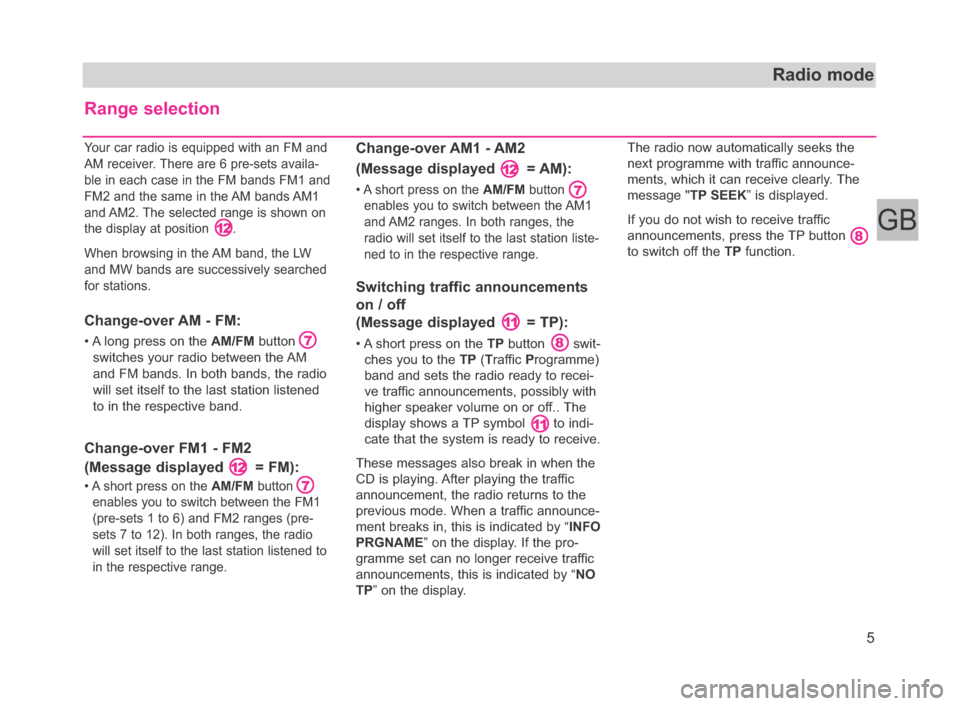

Range selection
Your car radio is equipped with an FM and
AM receiver. There are 6 pre-sets availa-
ble in each case in the FM bands FM1 and
FM2 and the same in the AM bands AM1
and AM2. The selected range is shown on
the display at position .
When browsing in the AM band, the LW
and MW bands are successively searched
for stations.
Change-over AM - FM:
• A long press on the AM/FM button
switches your radio between the AM
and FM bands. In both bands, the radio
will set itself to the last station listened
to in the respective band.
Change-over FM1 - FM2
(Message displayed = FM):
• A short press on the AM/FMbutton
enables you to switch between the FM1
(pre-sets 1 to 6) and FM2 ranges (pre-
sets 7 to 12). In both ranges, the radio
will set itself to the last station listened to
in the respective range.
Change-over AM1 - AM2
(Message displayed = AM):
• A short press on the AM/FMbutton
enables you to switch between the AM1
and AM2 ranges. In both ranges, the
radio will set itself to the last station liste-
ned to in the respective range.
Switching traffic announcements
on / off
(Message displayed = TP):
• A short press on the TPbutton swit-
ches you to the TP(Traffic Programme)
band and sets the radio ready to recei-
ve traffic announcements, possibly with
higher speaker volume on or off.. The
display shows a TP symbol to indi-
cate that the system is ready to receive.
These messages also break in when the
CD is playing. After playing the traffic
announcement, the radio returns to the
previous mode. When a traffic announce-
ment breaks in, this is indicated by “INFO
PRGNAME” on the display. If the pro-
gramme set can no longer receive traffic
announcements, this is indicated by “NO
TP” on the display. The radio now automatically seeks the
next programme with traffic announce-
ments, which it can receive clearly. The
message "TP SEEK” is displayed.
If you do not wish to receive traffic
announcements, press the TP button
to switch off the TPfunction.
11
11
7
7
7
12
12
12
8
8
5
GB
bed_anl_Skoda-Beat_A05 rz.QXP 02.03.2006 16:27 Uhr Seite 5

6
Radio mode
Selecting a programme Storing
Via the station buttons
• A short press on a station button
sets the stored programme. The selec-
ted station is indicated on the display
.
Browsing
• A short press on the
or
button initiates searching in the
selected direction. The radio now seeks
the next programme receivable in the
set band: FM or AM.
Manual tuning
• Turn the right-hand knob in the
clockwise direction to tune to a higher
frequency or counterclockwise for a
lower frequency.
Scan
• A short press on the right-hand knob
briefly plays all the receivable program-
mes in the set range one after another. Pressing the knob again terminates this
function and the current programme
remains set.
Storing
You can store a maximum of 24 program-
mes using the six station buttons in the
respective ranges:
AM1 + AM2 range = 12 programmes
FM1 + FM2 range = 12 programmes
The stored programmes can be called up
by pressing the appropriate station button
Storing manually
• A longer press on the desired station
button stored the set programme on
the appropriate memory pre-set in the
set range: AM1, AM2, FM1 or FM2.
If you have activated "BEEP” in the
Setup menu, there will be an audible
beep when the radio’s memory ack-
nowledges the setting. The stored pro-
gramme can now be called up whenever
desired by pressing the corresponding
station button .
Storing automatically
(only applies to the AM2 and FM2
ranges)
• A longer press on the ASbutton
initiates the automatic storage function.
The radio then stores the six strongest
programmes in the selected range (FM2
or AM2). This function is indicated on
the display by the message “STORE”.
13
9
2
2
5
6
3
3
3
bed_anl_Skoda-Beat_A05 rz.QXP 02.03.2006 16:27 Uhr Seite 6

Radio mode

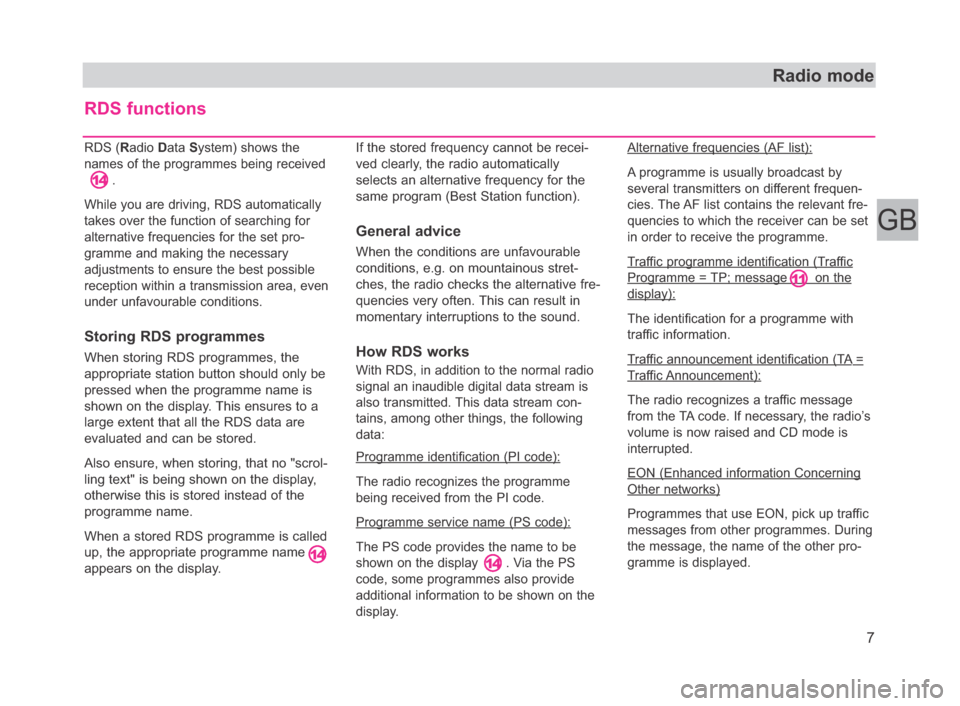

RDS functions
RDS (Radio Data System) shows the
names of the programmes being received
.
While you are driving, RDS automatically
takes over the function of searching for
alternative frequencies for the set pro-
gramme and making the necessary
adjustments to ensure the best possible
reception within a transmission area, even
under unfavourable conditions.
Storing RDS programmes
When storing RDS programmes, the
appropriate station button should only be
pressed when the programme name is
shown on the display. This ensures to a
large extent that all the RDS data are
evaluated and can be stored.
Also ensure, when storing, that no "scrol-
ling text" is being shown on the display,
otherwise this is stored instead of the
programme name.
When a stored RDS programme is called
up, the appropriate programme name
appears on the display. If the stored frequency cannot be recei-
ved clearly, the radio automatically
selects an alternative frequency for the
same program (Best Station function).
General advice
When the conditions are unfavourable
conditions, e.g. on mountainous stret-
ches, the radio checks the alternative fre-
quencies very often. This can result in
momentary interruptions to the sound.
How RDS works
With RDS, in addition to the normal radio
signal an inaudible digital data stream is
also transmitted. This data stream con-
tains, among other things, the following
data:
Programme identification (PI code):
The radio recognizes the programme
being received from the PI code.
Programme service name (PS code):
The PS code provides the name to be
shown on the display . Via the PS
code, some programmes also provide
additional information to be shown on the
display.Alternative frequencies (AF list):
A programme is usually broadcast by
several transmitters on different frequen-
cies. The AF list contains the relevant fre-
quencies to which the receiver can be set
in order to receive the programme.
T
raffic programme identification (Traffic
Programme = TP; message on the
display):
The identification for a programme with
traffic information.
T
raffic announcement identification (TA=
Traffic Announcement):
The radio recognizes a traffic message
from the TA code. If necessary, the radio’s
volume is now raised and CD mode is
interrupted.
EON (Enhanced information Concerning
Other networks)
Programmes that use EON, pick up traffic
messages from other programmes. During
the message, the name of the other pro-
gramme is displayed.
1414
14
11
7
GB
bed_anl_Skoda-Beat_A05 rz.QXP 02.03.2006 16:27 Uhr Seite 7

8
CD mode
Play Title selection Shuffle mode
CD selection Browsing forwards / backwards Back to Radio mode
Play
Pressing the CD button switches the
radio to CD mode. The message "CD” is
inserted on the display. The last CD
selected is played.
CD selection
Use the buttons numbered 1-6 to
select the CD you want. This CD will be
loaded in the player from the magazine.
As soon as the CD’s contents have been
read it starts to play.
Title selection
Turn the right-hand button clockwise
to select the next title. To go back to the
previous title, turn the right-hand knob
counterclockwise.
Browsing forwards/backwards
Pressing the
button (browsing
backwards) or the
 button
(browsing forwards) while the CD is play-
ing, plays the current title rapidly back-
wards or forwards respectively.
Title scan
Briefly pressing the right-hand knob
starts the Title Scan function. All the titles
on the CD are played one after another
for a few seconds.
Shuffle mode
In Shuffle mode. All the titles on a CD are
played in random order. You can switch
on Shuffle mode from the Setup menu as
described on page 11 in the CD section.
Return to Radio mode
Pressing the AM/FMbutton switches
the radio back to Radio mode.5
6
2
2
73
4
bed_anl_Skoda-Beat_A05 rz.QXP 02.03.2006 16:27 Uhr Seite 8

A longer press on the right-hand knob
brings you to the Setup menu. Here you
can parameter special setting, such as
using the radio in combination with a tele-
phone.
The individual menu options are selected
by pressing the right-hand knob brief-
ly. Unless you have switched off “BEEP”
in the Setup menu, switching from one
menu option to another is acknowledged
by an audible signal.
Changes to the selected menu option are
made by turning the right-hand knob
and are stored when you move on to the
next menu option.
A longer press on the right-hand button
enables you to leave the Setup
menu without storing any changes to the
last menu option. Warning:
Any changes in the Setup menu
affect your radio’s general operati-
on and therefore , for safety rea-
sons, should only be made when
the vehicle is stationary!!!
The following functions can be set in the
Setup menu:
• GALA speed-dependent volume
adjustment
• ONVOL maximum volume on
switching on
• PHONE telephone function
ON/OFF switch
• AUX function external audio
source ON/OFF switch
• BEEP beep tone ON/OFF
• CD selection of the CD
playing sequence
• LOUD loudness ON/OFFGALA
The noise level in the vehicle increases
as your driving speed increases. The
GALA function enables you to increase
the radio’s volume as your speed increa-
ses.
The amount of increase can be selected
from 1to 7. When the GALA function is
set to NO, it is switched off.
• Select GALAin the Setup menu.
“GALA” is shown on the display, with
the current setting.
• Use the right-hand knob to set
the option to the desired value from NO
to 7.
ONVOL
This menu option sets the maximum
volume level you wish when the radio is
switched on. Normally, when you switch
on the radio, it returns to the last volume
level set. However, if this level is above
the level set in the Setup menu, the volu-
me is reduced to the set level.
Setup menu
2
2
22
2
9
GB
bed_anl_Skoda-Beat_A05 rz.QXP 02.03.2006 16:27 Uhr Seite 9

10
Setup menu
• Select ONVOLin the Setup menu.
“ONVOL” is shown on the display, with
the current setting.
• Use the right-hand knob to set the
option to the desired setting from 1to
45.
PHONE
You can use this menu option to switch
playing your telephone conversations
through your vehicle’s speakers on and
off.
• Selecting PHONEin the Setup menu.
“PHONE” is shown on the display, with
the current setting.
• Use the right-hand knob to set the
option to NO(OFF) or ON(ON).
AUX
Use this menu option to switch on the
operation of an additional external audio
source. • Select AUXin the Setup menu. “AUX”
is shown on the display, with the current
setting.
• Use the right-hand knob to set the
option to OFF(OFF) or LEV1– LEV 3
(ON).
BEEP
This menu option lets you decide whet-
her you want to hear an audible signal in
the Setup menu and, for instance, when
storing programmes.
• Select BEEPin the Setup menu.
“BEEP” is shown on the display, with
the current setting.
• Use the right-hand knob to set the
Loudness function to ONor OFF.
CD
This menu option enables you to select
whether in CD mode a CD will play the
titles in sequence or in random order. • Select CDin the Setup menu. “CD” is
shown on the display, with the current
setting.
• Use the right-hand knob to set
PLAY(in sequence) or SHFFL(random
order).
LOUD
The human ear hears extremely high
and/or low frequencies poorer than fre-
quencies in the middle of the audible
range. The Loudness function enables
you to raise the higher and lower fre-
quencies to some extent to compensate
for this deficiency, particularly when liste-
ning to quieter music.
• Select LOUDin the Setup menu.
“LOUD” is shown on the display, with
the current setting.
• Use the right-hand knob to set the
Loudness function to ONor OFF.
• A longer press on the right-hand knob
enables you to leave the Setup
menu.
2
2
2
2
2
2
2
bed_anl_Skoda-Beat_A05 rz.QXP 02.03.2006 16:27 Uhr Seite 10
