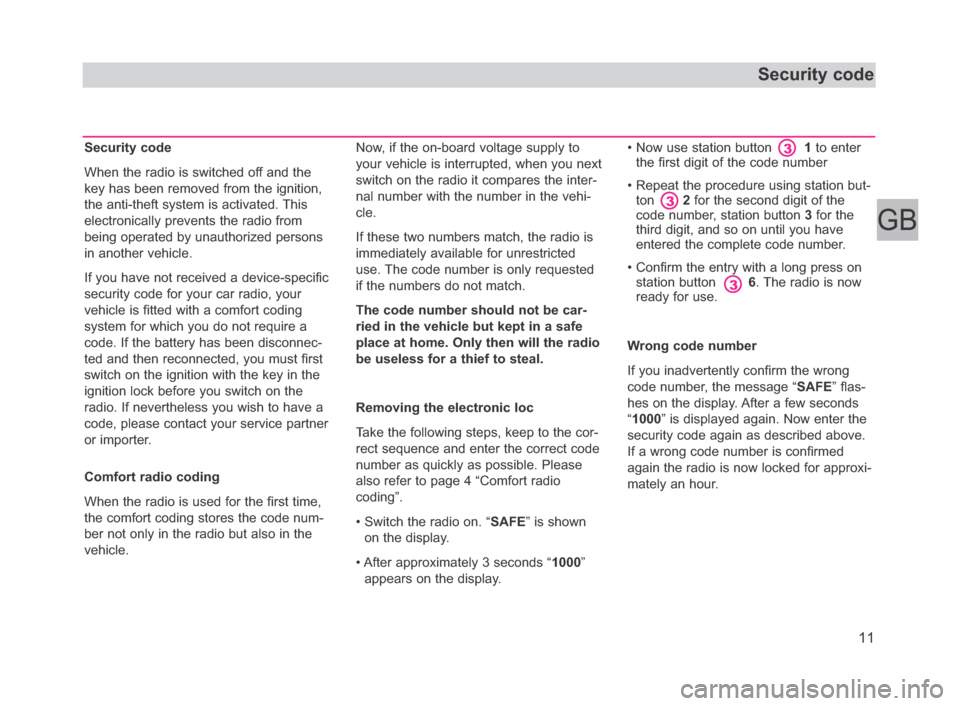

Security code
When the radio is switched off and the
key has been removed from the ignition,
the anti-theft system is activated. This
electronically prevents the radio from
being operated by unauthorized persons
in another vehicle.
If you have not received a device-specific
security code for your car radio, your
vehicle is fitted with a comfort coding
system for which you do not require a
code. If the battery has been disconnec-
ted and then reconnected, you must first
switch on the ignition with the key in the
ignition lock before you switch on the
radio. If nevertheless you wish to have a
code, please contact your service partner
or importer.
Comfort radio coding
When the radio is used for the first time,
the comfort coding stores the code num-
ber not only in the radio but also in the
vehicle.Now, if the on-board voltage supply to
your vehicle is interrupted, when you next
switch on the radio it compares the inter-
nal number with the number in the vehi-
cle.
If these two numbers match, the radio is
immediately available for unrestricted
use. The code number is only requested
if the numbers do not match.
The code number should not be car-
ried in the vehicle but kept in a safe
place at home. Only then will the radio
be useless for a thief to steal.
Removing the electronic loc
Take the following steps, keep to the cor-
rect sequence and enter the correct code
number as quickly as possible. Please
also refer to page 4 “Comfort radio
coding”.
• Switch the radio on. “SAFE” is shown
on the display.
• After approximately 3 seconds “1000”
appears on the display. • Now use station button 1to enter
the first digit of the code number
• Repeat the procedure using station but-
ton 2for the second digit of the
code number, station button 3for the
third digit, and so on until you have
entered the complete code number.
• Confirm the entry with a long press on
station button 6. The radio is now
ready for use.
Wrong code number
If you inadvertently confirm the wrong
code number, the message “SAFE” flas-
hes on the display. After a few seconds
“1000” is displayed again. Now enter the
security code again as described above.
If a wrong code number is confirmed
again the radio is now locked for approxi-
mately an hour.
Security code
3
3
3
11
GB
bed_anl_Skoda-Beat_A05 rz.QXP 02.03.2006 16:27 Uhr Seite 11

OBSAH
14
Short technical description
General
Connections
Active antenna, mobile telephone, AUX
Indications
Wave band, transmitter name, frequency,
station button, traffic programme (TP),
CD mode, telephone mode, AUX
Lighting
Glare-free internal lighting (Night design)
of the controls and the display when the
vehicle’s lights are switched on.
Brightness adjustable with the instrument
lighting. switched on vehicle lighting
glare-free lights up
Anti-theft system
Electronic equipment lock. If the radio is
installed in another vehicle it cannot be
operated unless the correct code number
is entered.
Screening
Specially adapted interference suppres-
sors to a large extent eliminate all interfe-
rence from the engine and other components in the electrical system, e.g.
heating fan, windshield wipers, ventilation
fan, etc.
Radio
Reception ranges
FM (UKW), AM (MW and LW)
Six station buttons for each segment:
AM1, AM2, FM1 and FM2.
Manual tuning forwards and backwards,
PLL Tuning.
Source selection
When the radio is switched on, the last
source (radio receiver or CD player) is
set again. In Radio mode, the last pro-
gramme set before the radio was swit-
ched off is automatically reset (Last
Station Memory).
Traffic channel system
Automatic transmitter search, automatic
announcementsCD mode
Automatic stop and switchover to radio
when traffic announcements are recei-
ved.
Audio
Maximum output 4 x 20 Watts
Reproduction
Stereo (radio and CD), active tone con-
trol, loudness, electronic fade-in/fade-out
control built into the radio.
Alterations and errors excluded.
Any reproduction, duplication or translati-
on permitted without the consent of
ŠkodaAuto a.s.
Short technical description
bed_anl_Skoda-Beat_A05 rz.QXP 02.03.2006 16:27 Uhr Seite 14

A
Alternative frequencies (AF list) . . . . . . 7
AM . . . . . . . . . . . . . . . . . . . . . 5, 12, 14
Anti-theft system . . . . . . . . . . . . . . . 3, 14
B
Balance . . . . . . . . . . . . . . . . . . . . . . . . . 4
Bass . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Beep . . . . . . . . . . . . . . . . . . . . . . 6, 9, 10
Browsing . . . . . . . . . . . . . . . . . . . 6, 8, 12
C
CD functions . . . . . . . . . . 5, 8, 10, 12, 14
Code number . . . . . . . . . . . . 3, 11-12, 14
Connections . . . . . . . . . . . . . . . . . . . . 14
D
Display messages . . . . . . . . . . . . . 2, 14
E
External audio source . . . . . . . . . . . . . . 9
F
Fader . . . . . . . . . . . . . . . . . . . . . . . . . . 4
FM . . . . . . . . . . . . . . . . . . . . . 5, 12, 14G
GALA (speed dependent
volume adjustment) . . . . . . . . . . . . . . . 9
General functions . . . . . . . . . . . . . . . . . 4
Guarantee . . . . . . . . . . . . . . . . . . . . . . 13
I
Important advice . . . . . . . . . . . . . . . . . . 3
L
Loudness . . . . . . . . . . . . . . . . . . . . . 9-10
M
Manual tuning . . . . . . . . . . . . . . . . . . . . 7
Maximum volume level on
switching on . . . . . . . . . . . . . . . . . . . 9-10
MFL Multi-function steering wheel . . . 12
P
Programme id (pi code) . . . . . . . . . . . . 8
Programme service name (HP code) . . 7
Q
Quick operation. . . . . . . . . . . . . . . . . . . 2R
Radio mode . . . . . . . . . . . . . . 5-7, 12, 14
Radio coding . . . . . . . . . . . . . . . . . . 3, 11
RDS (Radio Data System) . . . . . . . . . . 7
S
Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Screening . . . . . . . . . . . . . . . . . . . . . . 14
Setup menu . . . . . . . . . . . . . . . . . 3, 8-10
Short technical description . . . . . . . . . 14
Storing . . . . . . . . . . . . . . . . . . . . . . . . . 6
Station buttons . . . . . . . . . . . 6, 8, 11, 14
Switching ON and OFF. . . . . . . . . . . . . 4
T
Telephone mode . . . . . . . . . . . . . . . 9-10
Tone adjustment . . . . . . . . . . . . . . . . . . 4
Traffic announcements (TA code) . . . . . 7
Traffic announcements system . 5, 87 14
Traffic programme (TP code) . . . 5, 7, 12
Treble . . . . . . . . . . . . . . . . . . . . . . . . . . 4
V
Volume . . . . . . . . . . . . . . . . . . 3-4, 9, 12
Index
