2006 SKODA FABIA buttons

2

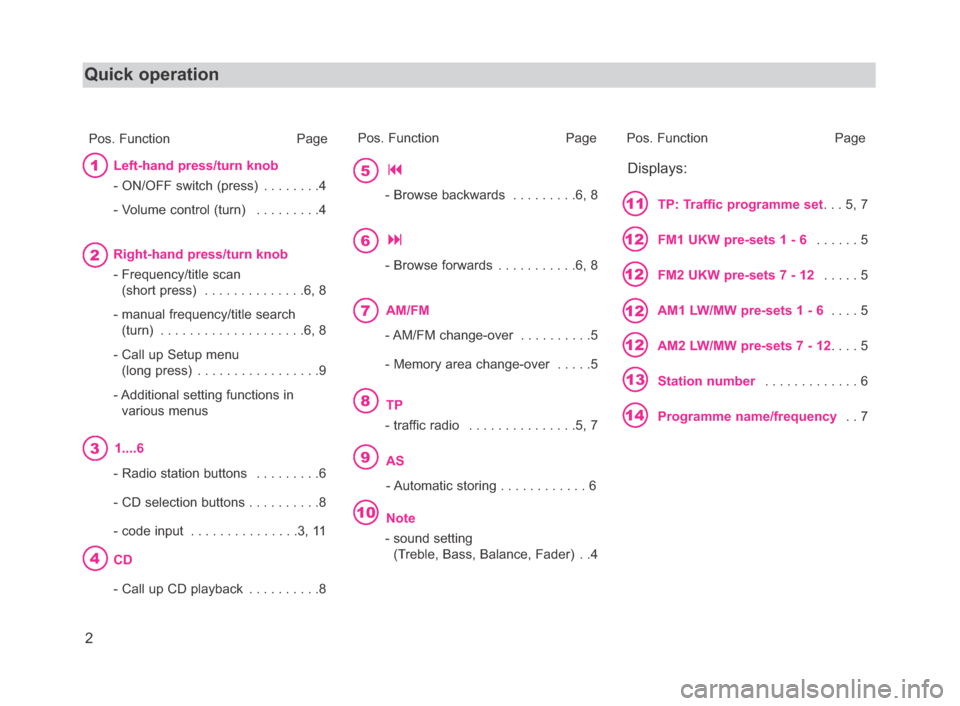

Quick operation
Left-hand press/turn knob
- ON/OFF switch (press) . . . . . . . .4
- Volume control (turn) . . . . . . . . .4
Right-hand press/turn knob
- Frequency/title scan
(short press) . . . . . . . . . . . . . .6, 8
- manual frequency/title search
(turn) . . . . . . . . . . . . . . . . . . . .6, 8
- Call up Setup menu
(long press) . . . . . . . . . . . . . . . . .9
- Additional setting functions in
various menus
1....6
- Radio station buttons . . . . . . . . .6
- CD selection buttons . . . . . . . . . .8
- code input . . . . . . . . . . . . . . .3, 11
CD
- Call up CD playback . . . . . . . . . .8

- Browse backwards . . . . . . . . .6, 8

- Browse forwards . . . . . . . . . . .6, 8
AM/FM
- AM/FM change-over . . . . . . . . . .5
- Memory area change-over . . . . .5
TP
- traffic radio . . . . . . . . . . . . . . .5, 7
AS
- Automatic storing . . . . . . . . . . . . 6
Note
- sound setting
(Treble, Bass, Balance, Fader) . .4
Displays:
TP: Traffic programme set. . . 5, 7
FM1 UKW pre-sets 1 - 6 . . . . . . 5
FM2 UKW pre-sets 7 - 12 . . . . . 5
AM1 LW/MW pre-sets 1 - 6 . . . . 5
AM2 LW/MW pre-sets 7 - 12. . . . 5
Station number . . . . . . . . . . . . . 6
Programme name/frequency . . 7 Pos. Function Page Pos. Function Page Pos. Function Page
1
2
3
4
5
11
12
12
12
12
13
14
6
7
8
9
10
bed_anl_Skoda-Beat_A05 rz.QXP 02.03.2006 16:27 Uhr Seite 2

6
Radio mode
Selecting a programme Storing
Via the station buttons
• A short press on a station button
sets the stored programme. The selec-
ted station is indicated on the display
.
Browsing
• A short press on the
or
button initiates searching in the
selected direction. The radio now seeks
the next programme receivable in the
set band: FM or AM.
Manual tuning
• Turn the right-hand knob in the
clockwise direction to tune to a higher
frequency or counterclockwise for a
lower frequency.
Scan
• A short press on the right-hand knob
briefly plays all the receivable program-
mes in the set range one after another. Pressing the knob again terminates this
function and the current programme
remains set.
Storing
You can store a maximum of 24 program-
mes using the six station buttons in the
respective ranges:
AM1 + AM2 range = 12 programmes
FM1 + FM2 range = 12 programmes
The stored programmes can be called up
by pressing the appropriate station button
Storing manually
• A longer press on the desired station
button stored the set programme on
the appropriate memory pre-set in the
set range: AM1, AM2, FM1 or FM2.
If you have activated "BEEP” in the
Setup menu, there will be an audible
beep when the radio’s memory ack-
nowledges the setting. The stored pro-
gramme can now be called up whenever
desired by pressing the corresponding
station button .
Storing automatically
(only applies to the AM2 and FM2
ranges)
• A longer press on the ASbutton
initiates the automatic storage function.
The radio then stores the six strongest
programmes in the selected range (FM2
or AM2). This function is indicated on
the display by the message “STORE”.
13
9
2
2
5
6
3
3
3
bed_anl_Skoda-Beat_A05 rz.QXP 02.03.2006 16:27 Uhr Seite 6

8
CD mode
Play Title selection Shuffle mode
CD selection Browsing forwards / backwards Back to Radio mode
Play
Pressing the CD button switches the
radio to CD mode. The message "CD” is
inserted on the display. The last CD
selected is played.
CD selection
Use the buttons numbered 1-6 to
select the CD you want. This CD will be
loaded in the player from the magazine.
As soon as the CD’s contents have been
read it starts to play.
Title selection
Turn the right-hand button clockwise
to select the next title. To go back to the
previous title, turn the right-hand knob
counterclockwise.
Browsing forwards/backwards
Pressing the
button (browsing
backwards) or the
 button
(browsing forwards) while the CD is play-
ing, plays the current title rapidly back-
wards or forwards respectively.
Title scan
Briefly pressing the right-hand knob
starts the Title Scan function. All the titles
on the CD are played one after another
for a few seconds.
Shuffle mode
In Shuffle mode. All the titles on a CD are
played in random order. You can switch
on Shuffle mode from the Setup menu as
described on page 11 in the CD section.
Return to Radio mode
Pressing the AM/FMbutton switches
the radio back to Radio mode.5
6
2
2
73
4
bed_anl_Skoda-Beat_A05 rz.QXP 02.03.2006 16:27 Uhr Seite 8

OBSAH
12
After approximately an hour, during which
time the radio must remain switched on,
you can again enter the code number, as
described above.
This cycle continues until the correct
code number has been entered.
If you no longer know the code num-
ber, please contact your service part-
ner or importer.
Multi-function steering wheel (MFL)
If your vehicle is equipped with a multi-
function steering wheel (MFL) as an opti-
on, some of the radio’s functions can also
be operated from the buttons on this
steering wheel.
Depending on the version of the wheel,
the following buttons are available.VOL+, VOL- button
Press these buttons to set the volume to
the desired level between Volume 0and
Volume 45.
or
Pressing these buttons when in Radio
mode, calls up the next higher or lower
station in the set range. Station 1 follows
station 6 and station 6 follows station 1 in
the reverse direction.
In CD mode, pressing these buttons
moves you respectively forward to the
next title or back to the preceding title.
 button
Pressing the
button briefly initiates
browsing in Radio mode. The radio now
seeks the next receivable programme in
the set range: FM, AM or TP.
In CD mode, pressing the
button
briefly selects the next CD. Holding down
the
button starts a forwards search.MUTE button
Pressing the MUTEbutton in Radio and
in CD mode switches muting on or off.
Turning the left-hand knob also can-
cels muting.
Operation with the multi-function steering wheel





1
bed_anl_Skoda-Beat_A05 rz.QXP 02.03.2006 16:27 Uhr Seite 12

OBSAH
14
Short technical description
General
Connections
Active antenna, mobile telephone, AUX
Indications
Wave band, transmitter name, frequency,
station button, traffic programme (TP),
CD mode, telephone mode, AUX
Lighting
Glare-free internal lighting (Night design)
of the controls and the display when the
vehicle’s lights are switched on.
Brightness adjustable with the instrument
lighting. switched on vehicle lighting
glare-free lights up
Anti-theft system
Electronic equipment lock. If the radio is
installed in another vehicle it cannot be
operated unless the correct code number
is entered.
Screening
Specially adapted interference suppres-
sors to a large extent eliminate all interfe-
rence from the engine and other components in the electrical system, e.g.
heating fan, windshield wipers, ventilation
fan, etc.
Radio
Reception ranges
FM (UKW), AM (MW and LW)
Six station buttons for each segment:
AM1, AM2, FM1 and FM2.
Manual tuning forwards and backwards,
PLL Tuning.
Source selection
When the radio is switched on, the last
source (radio receiver or CD player) is
set again. In Radio mode, the last pro-
gramme set before the radio was swit-
ched off is automatically reset (Last
Station Memory).
Traffic channel system
Automatic transmitter search, automatic
announcementsCD mode
Automatic stop and switchover to radio
when traffic announcements are recei-
ved.
Audio
Maximum output 4 x 20 Watts
Reproduction
Stereo (radio and CD), active tone con-
trol, loudness, electronic fade-in/fade-out
control built into the radio.
Alterations and errors excluded.
Any reproduction, duplication or translati-
on permitted without the consent of
ŠkodaAuto a.s.
Short technical description
bed_anl_Skoda-Beat_A05 rz.QXP 02.03.2006 16:27 Uhr Seite 14

A
Alternative frequencies (AF list) . . . . . . 7
AM . . . . . . . . . . . . . . . . . . . . . 5, 12, 14
Anti-theft system . . . . . . . . . . . . . . . 3, 14
B
Balance . . . . . . . . . . . . . . . . . . . . . . . . . 4
Bass . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Beep . . . . . . . . . . . . . . . . . . . . . . 6, 9, 10
Browsing . . . . . . . . . . . . . . . . . . . 6, 8, 12
C
CD functions . . . . . . . . . . 5, 8, 10, 12, 14
Code number . . . . . . . . . . . . 3, 11-12, 14
Connections . . . . . . . . . . . . . . . . . . . . 14
D
Display messages . . . . . . . . . . . . . 2, 14
E
External audio source . . . . . . . . . . . . . . 9
F
Fader . . . . . . . . . . . . . . . . . . . . . . . . . . 4
FM . . . . . . . . . . . . . . . . . . . . . 5, 12, 14G
GALA (speed dependent
volume adjustment) . . . . . . . . . . . . . . . 9
General functions . . . . . . . . . . . . . . . . . 4
Guarantee . . . . . . . . . . . . . . . . . . . . . . 13
I
Important advice . . . . . . . . . . . . . . . . . . 3
L
Loudness . . . . . . . . . . . . . . . . . . . . . 9-10
M
Manual tuning . . . . . . . . . . . . . . . . . . . . 7
Maximum volume level on
switching on . . . . . . . . . . . . . . . . . . . 9-10
MFL Multi-function steering wheel . . . 12
P
Programme id (pi code) . . . . . . . . . . . . 8
Programme service name (HP code) . . 7
Q
Quick operation. . . . . . . . . . . . . . . . . . . 2R
Radio mode . . . . . . . . . . . . . . 5-7, 12, 14
Radio coding . . . . . . . . . . . . . . . . . . 3, 11
RDS (Radio Data System) . . . . . . . . . . 7
S
Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Screening . . . . . . . . . . . . . . . . . . . . . . 14
Setup menu . . . . . . . . . . . . . . . . . 3, 8-10
Short technical description . . . . . . . . . 14
Storing . . . . . . . . . . . . . . . . . . . . . . . . . 6
Station buttons . . . . . . . . . . . 6, 8, 11, 14
Switching ON and OFF. . . . . . . . . . . . . 4
T
Telephone mode . . . . . . . . . . . . . . . 9-10
Tone adjustment . . . . . . . . . . . . . . . . . . 4
Traffic announcements (TA code) . . . . . 7
Traffic announcements system . 5, 87 14
Traffic programme (TP code) . . . 5, 7, 12
Treble . . . . . . . . . . . . . . . . . . . . . . . . . . 4
V
Volume . . . . . . . . . . . . . . . . . . 3-4, 9, 12
Index
15
