2006 Peugeot 607 Dag Owner's Manual

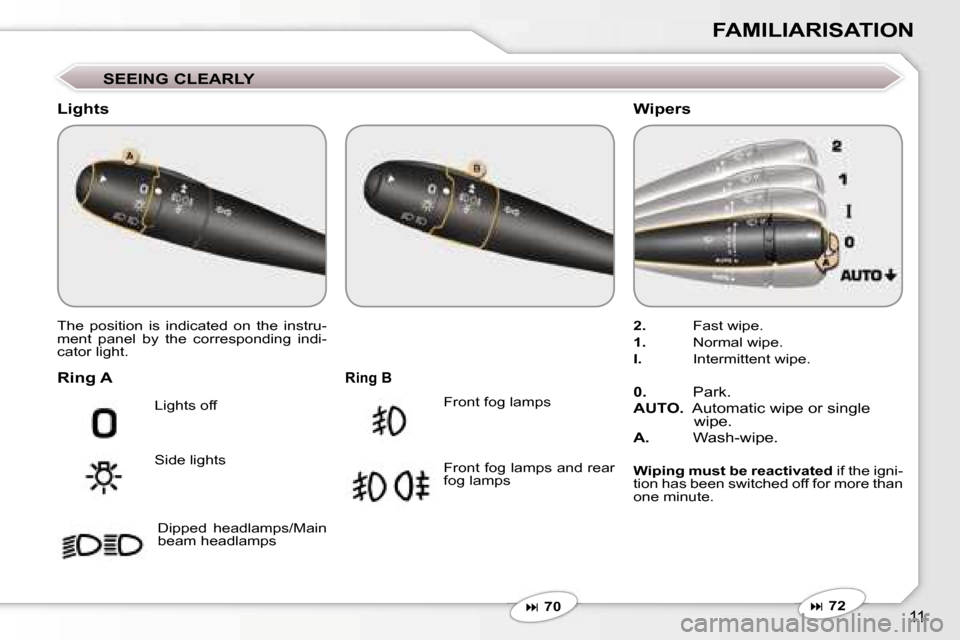

11
FAMILIARISATION
The position is indicated on the instru-
ment panel by the corresponding indi-
cator light.
Ring A
Lights off
Side lightsDipped headlamps/Main
beam headlamps
Ring B
Front fog lamps
Front fog lamps and rear
fog lamps 2.
Fast wipe.
1. Normal wipe.
I. Intermittent wipe.0. Park.
AUTO. Automatic wipe or single
wipe.
A. Wash-wipe.
Wiping must be reactivated if the igni-
tion has been switched off for more than
one minute.
SEEING CLEARLY
Lights Wipers
 70 
72

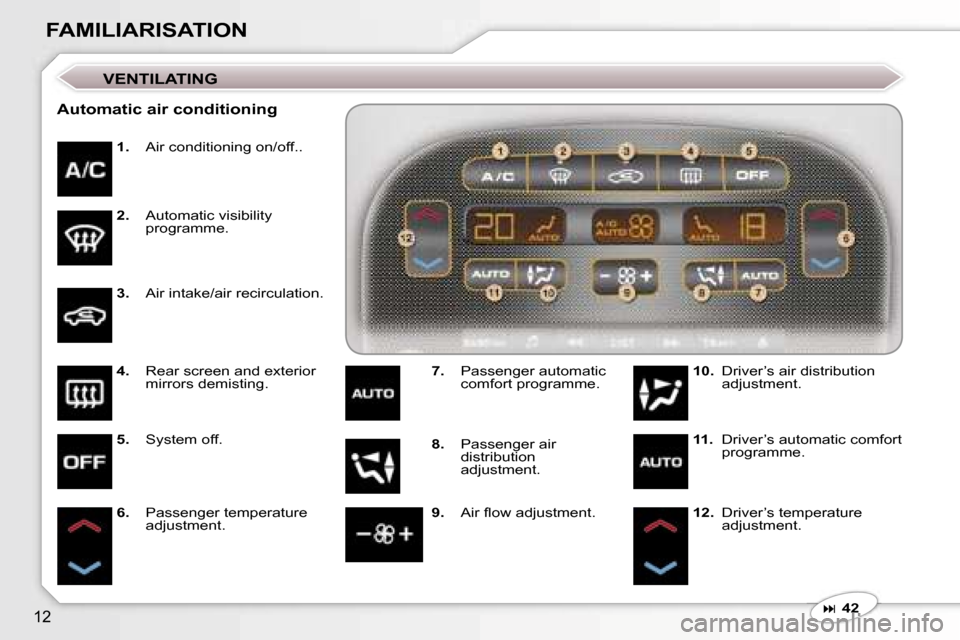

12
FAMILIARISATION
1. Air conditioning on/off..
2. Automatic visibility
programme.
3. Air intake/air recirculation.
4. Rear screen and exterior
mirrors demisting.
5. System off.
6. Passenger temperature
adjustment. 7.
Passenger automatic
comfort programme.
8. Passenger air
distribution
adjustment.
9. Air flow adjustment. 10.
Driver’s air distribution
adjustment.
11. Driver’s automatic comfort
programme.
12. Driver’s temperature
adjustment.

42
VENTILATING
Automatic air conditioning

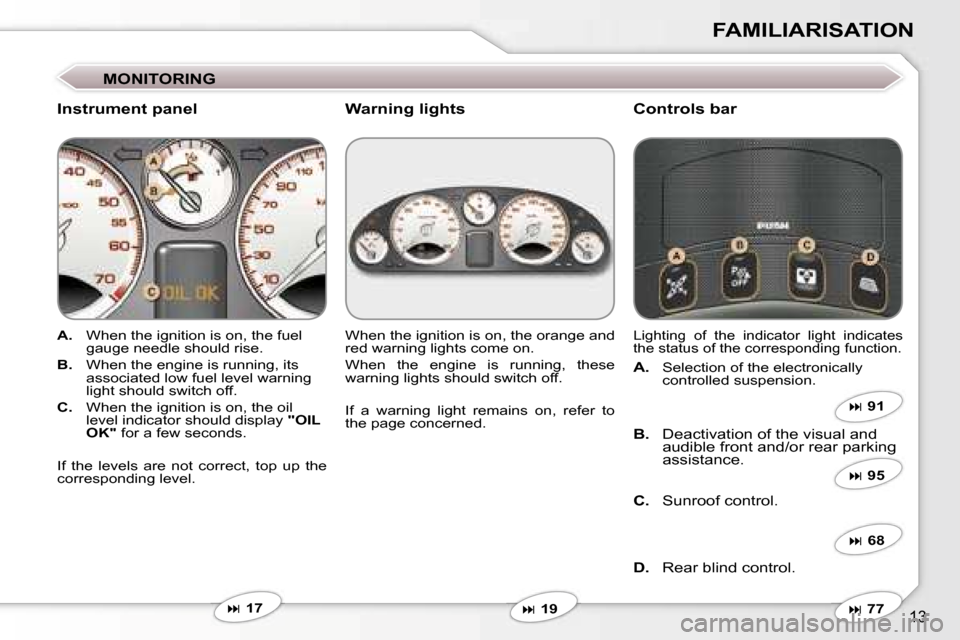

13
FAMILIARISATION
MONITORING
Instrument panelControls bar
A. When the ignition is on, the fuel
gauge needle should rise.
B. When the engine is running, its
associated low fuel level warning
light should switch off.
C. When the ignition is on, the oil
level indicator should display "OIL
OK" for a few seconds.
If the levels are not correct, top up the
corresponding level.Lighting of the indicator light indicates
the status of the corresponding function.When the ignition is on, the orange and
red warning lights come on.
When the engine is running, these
warning lights should switch off.
If a warning light remains on, refer to
the page concerned.
Warning lights
 17
 19 
91
A. Selection of the electronically
controlled suspension.
B. Deactivation of the visual and
audible front and/or rear parking
assistance
.
C. Sunroof control.
D. Rear blind control. 
95
 68
 77

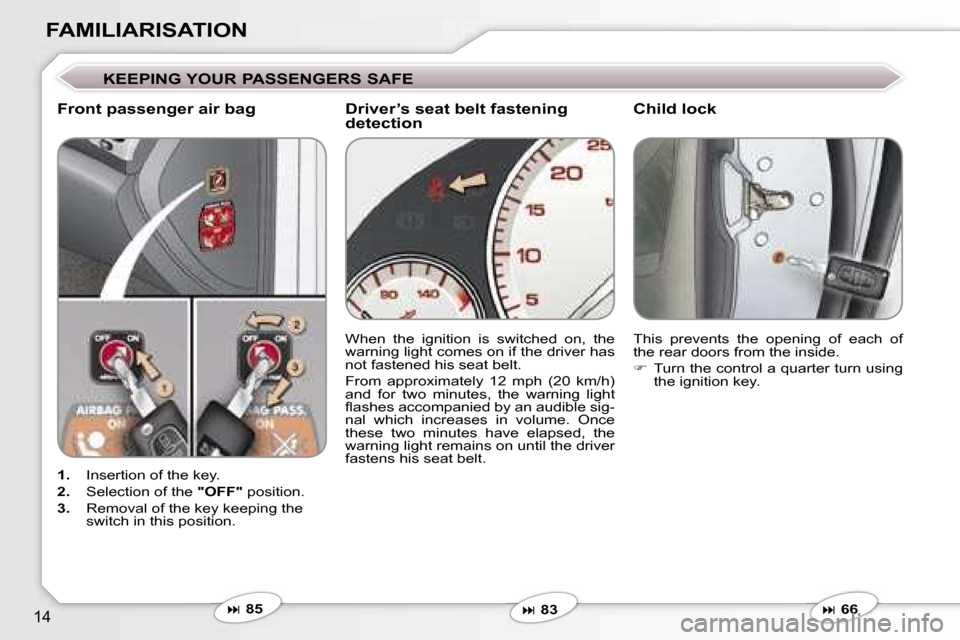

14
FAMILIARISATION
KEEPING YOUR PASSENGERS SAFE
Front passenger air bagChild lock
1. Insertion of the key.
2. Selection of the "OFF" position.
3. Removal of the key keeping the
switch in this position. This prevents the opening of each of
the rear doors from the inside.

Turn the control a quarter turn using
the ignition key.
When the ignition is switched on, the
warning light comes on if the driver has
not fastened his seat belt.
From approximately 12 mph (20 km/h)
and for two minutes, the warning light
flashes accompanied by an audible sig-
nal which increases in volume. Once
these two minutes have elapsed, the
warning light remains on until the driver
fastens his seat belt.
Driver’s seat belt fastening
detection

85
 83 
66

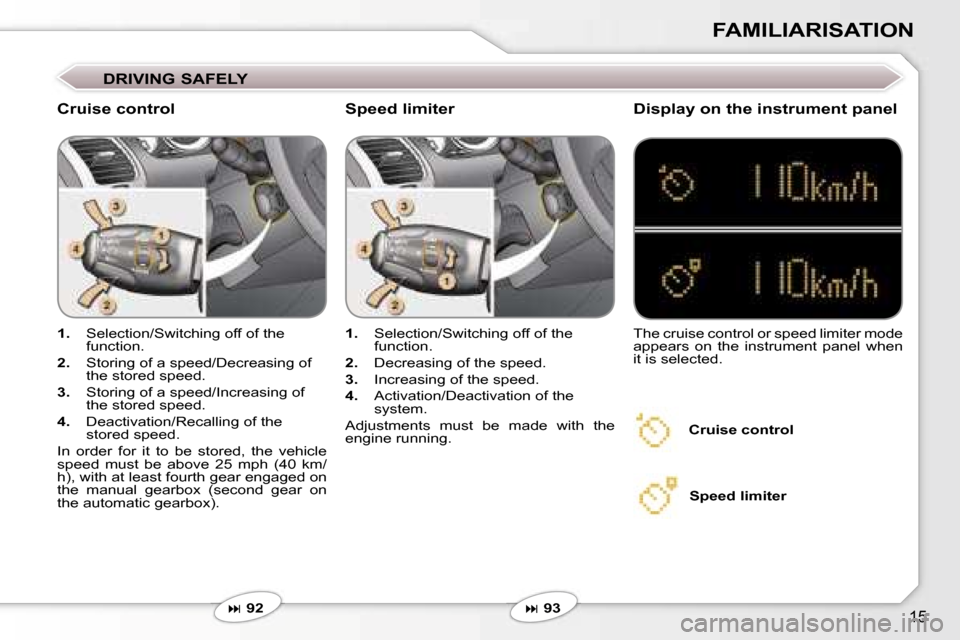

15
FAMILIARISATION
1. Selection/Switching off of the
function.
2. Storing of a speed/Decreasing of
the stored speed.
3. Storing of a speed/Increasing of
the stored speed.
4. Deactivation/Recalling of the
stored speed.
In order for it to be stored, the vehicle
speed must be above 25 mph (40 km/
h), with at least fourth gear engaged on
the manual gearbox (second gear on
the automatic gearbox). 1.
Selection/Switching off of the
function.
2. Decreasing of the speed.
3. Increasing of the speed.
4. Activation/Deactivation of the
system.
Adjustments must be made with the
engine running.
 92  93
DRIVING SAFELY
Cruise control Display on the instrument panel
The cruise control or speed limiter mode
appears on the instrument panel when
it is selected.
Speed limiter
Cruise control
Speed limiter

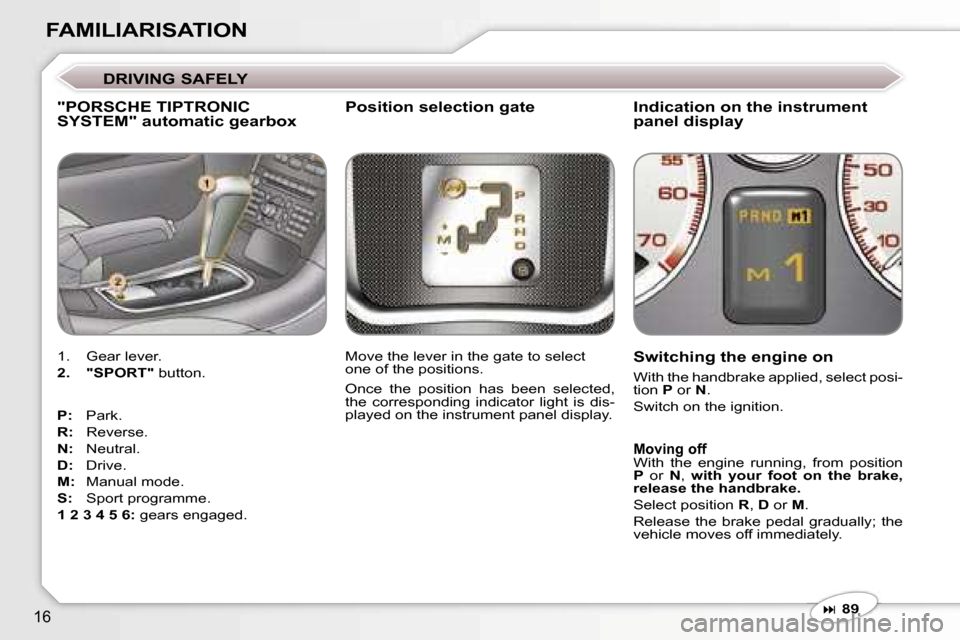

16
FAMILIARISATION
"PORSCHE TIPTRONIC
SYSTEM" automatic gearbox
1. Gear lever.
2. "SPORT" button.
P: Park.
R: Reverse.
N: Neutral.
D: Drive.
M: Manual mode.
S: Sport programme.
1 2 3 4 5 6: gears engaged.
Position selection gate
 89
Switching the engine on
With the handbrake applied, select posi-
tion P or N.
Switch on the ignition.
Moving offWith the engine running, from position P or N, with your foot on the brake,
release the handbrake.
Select position R, D or M.
Release the brake pedal gradually; the
vehicle moves off immediately.
Indication on the instrument
panel display
DRIVING SAFELY
Move the lever in the gate to select
one of the positions.
Once the position has been selected,
the corresponding indicator light is dis-
played on the instrument panel display.

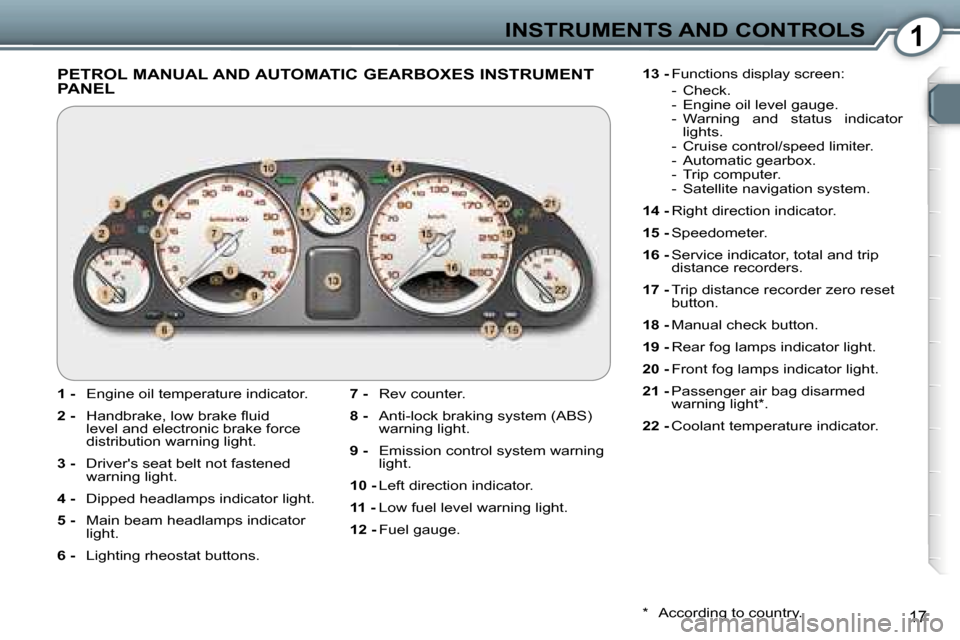

1INSTRUMENTS AND CONTROLS
17
PETROL MANUAL AND AUTOMATIC GEARBOXES INSTRUMENT
PANEL
1 - Engine oil temperature indicator.
2 - Handbrake, low brake fluid
level and electronic brake force
distribution warning light.
3 - Driver's seat belt not fastened
warning light.
4 - Dipped headlamps indicator light.
5 - Main beam headlamps indicator
light.
6 - Lighting rheostat buttons. 7 -
Rev counter.
8 - Anti-lock braking system (ABS)
warning light.
9 - Emission control system warning
light.
10 - Left direction indicator.
11 - Low fuel level warning light.
12 - Fuel gauge. 13 -

Functions display screen:
- Check.
- Engine oil level gauge.
- Warning and status indicator
lights.
- Cruise control/speed limiter.
- Automatic gearbox.
- Trip computer.
- Satellite navigation system.
14 - Right direction indicator.
15 - Speedometer.
16 - Service indicator, total and trip
distance recorders.
17 - Trip distance recorder zero reset
button.
18 - Manual check button.
19 - Rear fog lamps indicator light.
20 - Front fog lamps indicator light.
21 - Passenger air bag disarmed
warning light*.
22 - Coolant temperature indicator.
* According to country.

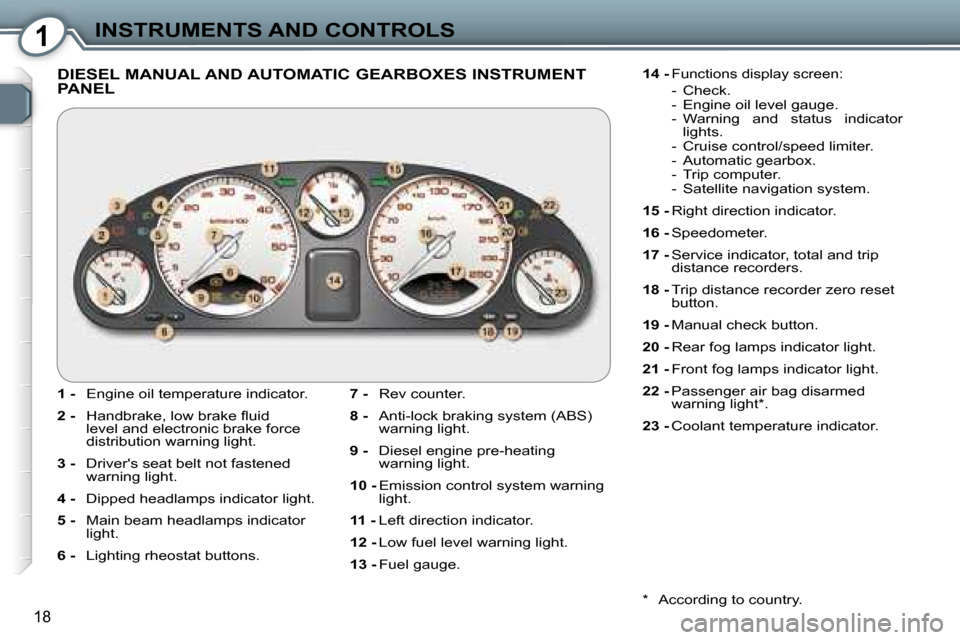

1INSTRUMENTS AND CONTROLS
18
DIESEL MANUAL AND AUTOMATIC GEARBOXES INSTRUMENT
PANEL
1 - Engine oil temperature indicator.
2 - Handbrake, low brake fluid
level and electronic brake force
distribution warning light.
3 - Driver's seat belt not fastened
warning light.
4 - Dipped headlamps indicator light.
5 - Main beam headlamps indicator
light.
6 - Lighting rheostat buttons. 7 -
Rev counter.
8 - Anti-lock braking system (ABS)
warning light.
9 - Diesel engine pre-heating
warning light.
10 - Emission control system warning
light.
11 - Left direction indicator.
12 - Low fuel level warning light.
13 - Fuel gauge. 14 -

Functions display screen:
- Check.
- Engine oil level gauge.
- Warning and status indicator
lights.
- Cruise control/speed limiter.
- Automatic gearbox.
- Trip computer.
- Satellite navigation system.
15 - Right direction indicator.
16 - Speedometer.
17 - Service indicator, total and trip
distance recorders.
18 - Trip distance recorder zero reset
button.
19 - Manual check button.
20 - Rear fog lamps indicator light.
21 - Front fog lamps indicator light.
22 - Passenger air bag disarmed
warning light*.
23 - Coolant temperature indicator.
* According to country.
