2006 Peugeot 607 Dag Owner's Manual

5VISIBILITY
71

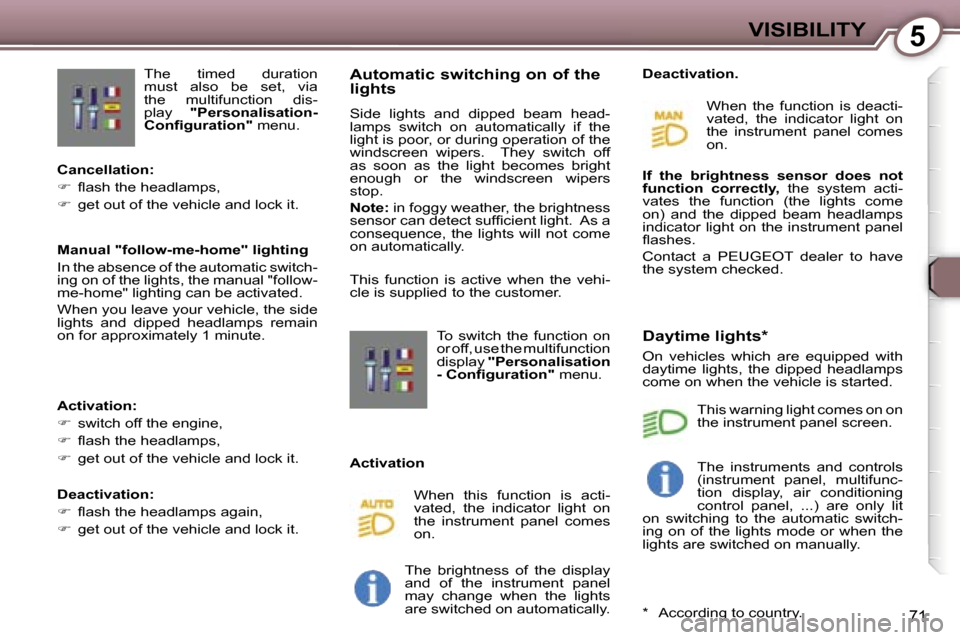

The timed duration
must also be set, via
the multifunction dis-
play "Personalisation-
Configuration" menu.Automatic switching on of the
lights
Side lights and dipped beam head-
lamps switch on automatically if the
light is poor, or during operation of the
windscreen wipers. They switch off
as soon as the light becomes bright
enough or the windscreen wipers
stop.
Note: in foggy weather, the brightness
sensor can detect sufficient light. As a
consequence, the lights will not come
on automatically.
This function is active when the vehi-
cle is supplied
to the customer.
To switch the function on
or off, use the multifunction
display "Personalisation
- Configuration" menu.
Activation Deactivation.
When this function is acti-
vated, the indicator light on
the instrument panel comes
on. When the function is deacti-
vated, the indicator light on
the instrument panel comes
on.
Cancellation:
 flash the headlamps,
 get out of the vehicle and lock it.
Manual "follow-me-home" lighting
In the absence of the automatic switch-
ing on of the lights, the manual "follow-
me-home" lighting can be activated.
When you leave your vehicle, the side
lights and dipped headlamps remain
on for approximately 1 minute.
Activation:
 switch off the engine,
 flash the headlamps,
 get out of the vehicle and lock it.
Deactivation:
 flash the headlamps again,
 get out of the vehicle and lock it. If the brightness sensor does not
function correctly,
the system acti-
vates the function (the lights come
on) and the dipped beam headlamps
indicator light on the instrument panel
flashes.
Contact a PEUGEOT dealer to have
the system checked.
Daytime lights*
On vehicles which are equipped with
daytime lights, the dipped headlamps
come on when the vehicle is started.
This warning light comes on on
the instrument panel screen.
The instruments and controls
(instrument panel, multifunc-
tion display, air conditioning
control panel, ...) are only lit
on switching to the automatic switch-
ing on of the lights mode or when the
lights are switched on manually.
* According to country.
The brightness of the display
and of the instrument panel
may change when the lights
are switched on automatically.

5VISIBILITY
71
The timed duration
must also be set, via
the multifunction dis-
play "Personalisation-
Configuration" menu.Automatic switching on of the
lights
Side lights and dipped beam head-
lamps switch on automatically if the
light is poor, or during operation of the
windscreen wipers. They switch off
as soon as the light becomes bright
enough or the windscreen wipers
stop.
Note: in foggy weather, the brightness
sensor can detect sufficient light. As a
consequence, the lights will not come
on automatically.
This function is active when the vehi-
cle is supplied
to the customer.
To switch the function on
or off, use the multifunction
display "Personalisation
- Configuration" menu.
Activation Deactivation.
When this function is acti-
vated, the indicator light on
the instrument panel comes
on. When the function is deacti-
vated, the indicator light on
the instrument panel comes
on.
Cancellation:
 flash the headlamps,
 get out of the vehicle and lock it.
Manual "follow-me-home" lighting
In the absence of the automatic switch-
ing on of the lights, the manual "follow-
me-home" lighting can be activated.
When you leave your vehicle, the side
lights and dipped headlamps remain
on for approximately 1 minute.
Activation:
 switch off the engine,
 flash the headlamps,
 get out of the vehicle and lock it.
Deactivation:
 flash the headlamps again,
 get out of the vehicle and lock it. If the brightness sensor does not
function correctly,
the system acti-
vates the function (the lights come
on) and the dipped beam headlamps
indicator light on the instrument panel
flashes.
Contact a PEUGEOT dealer to have
the system checked.
Daytime lights*
On vehicles which are equipped with
daytime lights, the dipped headlamps
come on when the vehicle is started.
This warning light comes on on
the instrument panel screen.
The instruments and controls
(instrument panel, multifunc-
tion display, air conditioning
control panel, ...) are only lit
on switching to the automatic switch-
ing on of the lights mode or when the
lights are switched on manually.
* According to country.
The brightness of the display
and of the instrument panel
may change when the lights
are switched on automatically.

5VISIBILITY
72

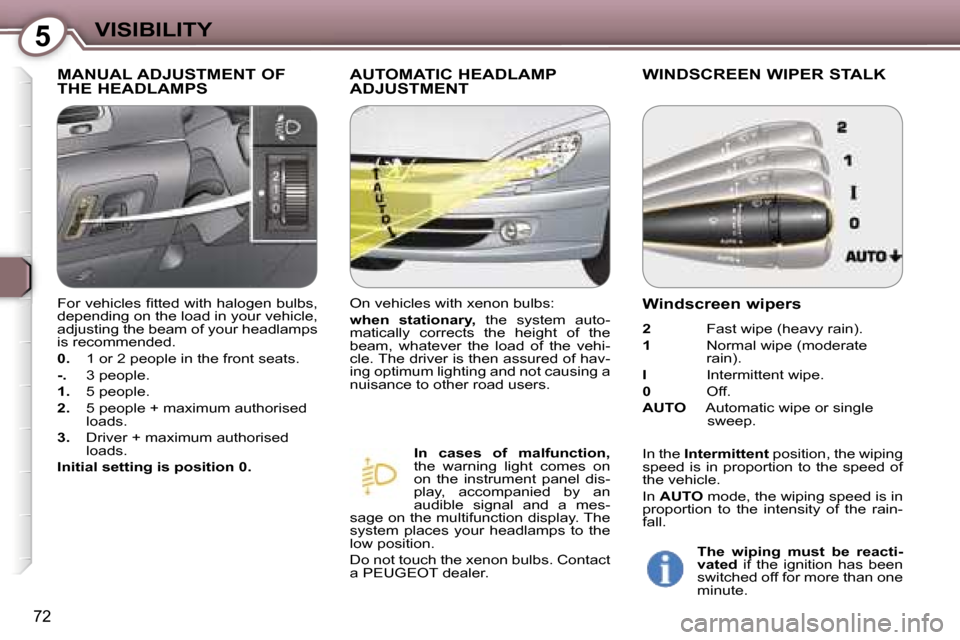

MANUAL ADJUSTMENT OF
THE HEADLAMPSAUTOMATIC HEADLAMP
ADJUSTMENTWINDSCREEN WIPER STALK
In cases of malfunction,

the warning light comes on
on the instrument panel dis-
play, accompanied by an
audible signal and a mes-
sage on the multifunction display. The
system places your headlamps to the
low position.
Do not touch the xenon bulbs. Contact
a PEUGEOT dealer.
For vehicles fitted with halogen bulbs,
depending on the load in your vehicle,
adjusting the beam of your headlamps
is recommended.
0.
1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
2. 5 people + maximum authorised
loads.
3. Driver + maximum authorised
loads.
Initial setting is position 0. On vehicles with xenon bulbs:
when stationary,
the system auto-
matically corrects the height of the
beam, whatever the load of the vehi-
cle. The driver is then assured of hav-
ing optimum lighting and not causing a
nuisance to other road users.
Windscreen wipers
2 Fast wipe (heavy rain).
1 Normal wipe (moderate
rain).
I Intermittent wipe.
0 Off.
AUTO Automatic wipe or single
sweep.
In the Intermittent position, the wiping
speed is in proportion to the speed of
the vehicle.
In AUTO mode, the wiping speed is in
proportion to the intensity of the rain-
fall.
The wiping must be reacti-
vated if the ignition has been
switched off for more than one
minute.

5VISIBILITY
72
MANUAL ADJUSTMENT OF
THE HEADLAMPSAUTOMATIC HEADLAMP
ADJUSTMENTWINDSCREEN WIPER STALK
In cases of malfunction,

the warning light comes on
on the instrument panel dis-
play, accompanied by an
audible signal and a mes-
sage on the multifunction display. The
system places your headlamps to the
low position.
Do not touch the xenon bulbs. Contact
a PEUGEOT dealer.
For vehicles fitted with halogen bulbs,
depending on the load in your vehicle,
adjusting the beam of your headlamps
is recommended.
0.
1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
2. 5 people + maximum authorised
loads.
3. Driver + maximum authorised
loads.
Initial setting is position 0. On vehicles with xenon bulbs:
when stationary,
the system auto-
matically corrects the height of the
beam, whatever the load of the vehi-
cle. The driver is then assured of hav-
ing optimum lighting and not causing a
nuisance to other road users.
Windscreen wipers
2 Fast wipe (heavy rain).
1 Normal wipe (moderate
rain).
I Intermittent wipe.
0 Off.
AUTO Automatic wipe or single
sweep.
In the Intermittent position, the wiping
speed is in proportion to the speed of
the vehicle.
In AUTO mode, the wiping speed is in
proportion to the intensity of the rain-
fall.
The wiping must be reacti-
vated if the ignition has been
switched off for more than one
minute.

5VISIBILITY
73

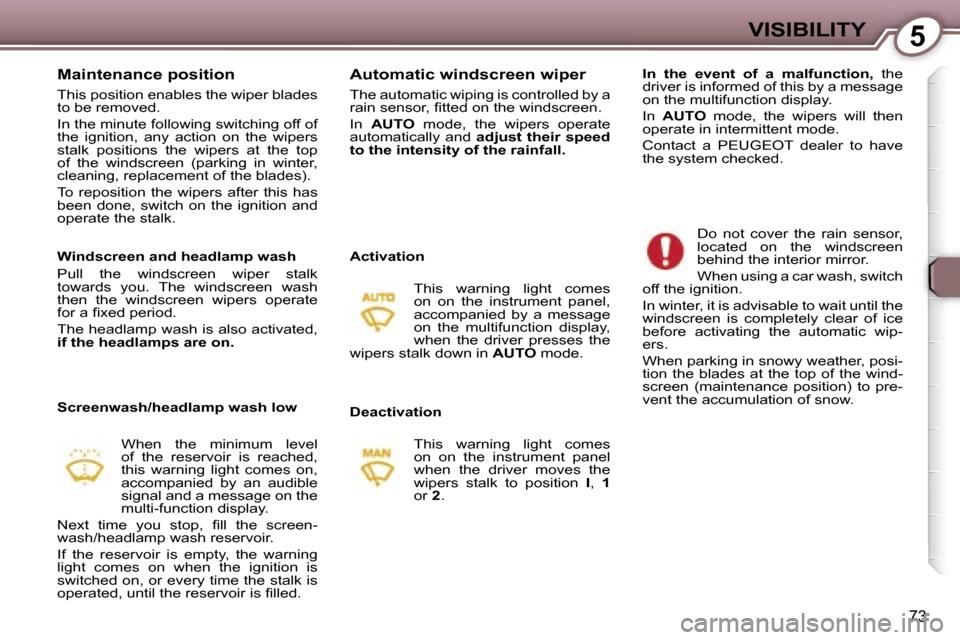

Maintenance position
This position enables the wiper blades
to be removed.
In the minute following switching off of
the ignition, any action on the wipers
stalk positions the wipers at the top
of the windscreen (parking in winter,
cleaning, replacement of the blades).
To reposition the wipers after this has
been done, switch on the ignition and
operate the stalk.
Windscreen and headlamp wash
Pull the windscreen wiper stalk
towards you. The windscreen wash
then the windscreen wipers operate
for a fixed period.
The headlamp wash is also activated,
if the headlamps are on.
Screenwash/headlamp wash lowWhen the minimum level
of the reservoir is reached,
this warning light comes on,
accompanied by an audible
signal and a message on the
multi-function display.
Next time you stop, fill the screen-
wash/headlamp wash reservoir.
If the reservoir is empty, the warning
light comes on when the ignition is
switched on, or every time the stalk is
operated, until the reservoir is filled.
Automatic windscreen wiper
The automatic wiping is controlled by a
rain sensor, fitted on the windscreen.
In AUTO mode, the wipers operate
automatically and adjust their speed
to the intensity of the rainfall.
Activation
Deactivation This warning light comes
on on the instrument panel,
accompanied by a message
on the multifunction display,
when the driver presses the
wipers stalk down in AUTO mode.
This warning light comes
on on the instrument panel
when the driver moves the
wipers stalk to position I, 1
or 2. In the event of a malfunction,
the
driver is informed of this by a message
on the multifunction display.
In AUTO mode, the wipers will then
operate in intermittent mode.
Contact a PEUGEOT dealer to have
the system checked.
Do not cover the rain sensor,
located on the windscreen
behind the interior mirror.
When using a car wash, switch
off the ignition.
In winter, it is advisable to wait until the
windscreen is completely clear of ice
before activating the automatic wip-
ers.
When parking in snowy weather, posi-
tion the blades at the top of the wind-
screen (maintenance position) to pre-
vent the accumulation of snow.

5VISIBILITY
73
Maintenance position
This position enables the wiper blades
to be removed.
In the minute following switching off of
the ignition, any action on the wipers
stalk positions the wipers at the top
of the windscreen (parking in winter,
cleaning, replacement of the blades).
To reposition the wipers after this has
been done, switch on the ignition and
operate the stalk.
Windscreen and headlamp wash
Pull the windscreen wiper stalk
towards you. The windscreen wash
then the windscreen wipers operate
for a fixed period.
The headlamp wash is also activated,
if the headlamps are on.
Screenwash/headlamp wash lowWhen the minimum level
of the reservoir is reached,
this warning light comes on,
accompanied by an audible
signal and a message on the
multi-function display.
Next time you stop, fill the screen-
wash/headlamp wash reservoir.
If the reservoir is empty, the warning
light comes on when the ignition is
switched on, or every time the stalk is
operated, until the reservoir is filled.
Automatic windscreen wiper
The automatic wiping is controlled by a
rain sensor, fitted on the windscreen.
In AUTO mode, the wipers operate
automatically and adjust their speed
to the intensity of the rainfall.
Activation
Deactivation This warning light comes
on on the instrument panel,
accompanied by a message
on the multifunction display,
when the driver presses the
wipers stalk down in AUTO mode.
This warning light comes
on on the instrument panel
when the driver moves the
wipers stalk to position I, 1
or 2. In the event of a malfunction,
the
driver is informed of this by a message
on the multifunction display.
In AUTO mode, the wipers will then
operate in intermittent mode.
Contact a PEUGEOT dealer to have
the system checked.
Do not cover the rain sensor,
located on the windscreen
behind the interior mirror.
When using a car wash, switch
off the ignition.
In winter, it is advisable to wait until the
windscreen is completely clear of ice
before activating the automatic wip-
ers.
When parking in snowy weather, posi-
tion the blades at the top of the wind-
screen (maintenance position) to pre-
vent the accumulation of snow.

5VISIBILITY
74

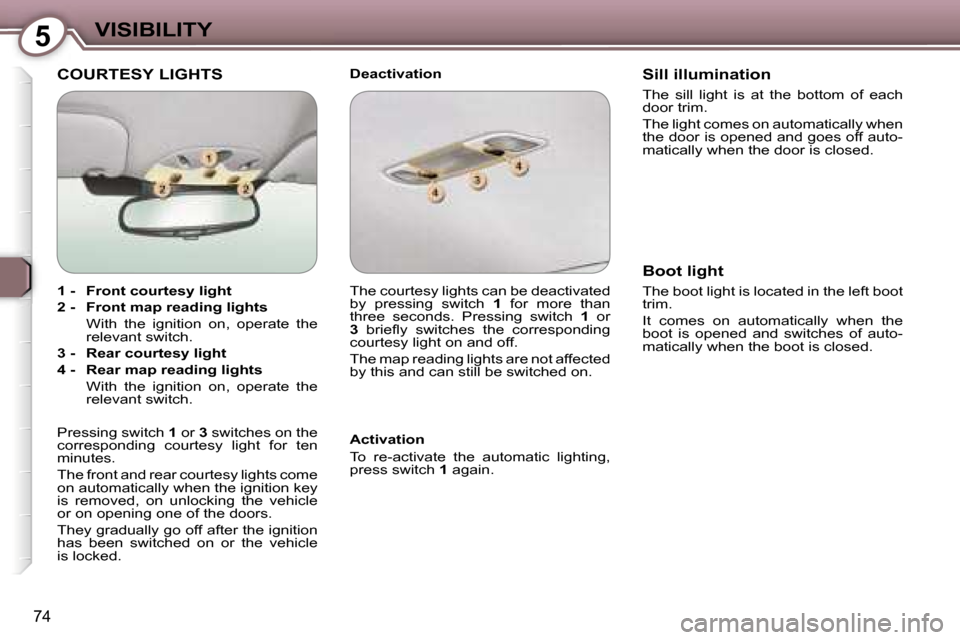

COURTESY LIGHTSDeactivation
Activation
To re-activate the automatic lighting,
press switch 1 again. Sill illumination
The sill light is at the bottom of each
door trim.
The light comes on automatically when
the door is opened and goes off auto-
matically when the door is closed.
Boot light
The boot light is located in the left boot
trim.
It comes on automatically when the
boot is opened and switches of auto-
matically when the boot is closed.
1 -
Front courtesy light
2 - Front map reading lights
With the ignition on, operate the relevant switch.
3 - Rear courtesy light
4 - Rear map reading lights
With the ignition on, operate the relevant switch.
Pressing switch 1 or 3 switches on the
corresponding courtesy light for ten
minutes.
The front and rear courtesy lights come
on automatically when the ignition key
is removed, on unlocking the vehicle
or on opening one of the doors.
They gradually go off after the ignition
has been switched on or the vehicle
is locked. The courtesy lights can be deactivated
by pressing switch
1 for more than
three seconds. Pressing switch 1 or
3 briefly switches the corresponding
courtesy light on and off.
The map reading lights are not affected
by this and can still be switched on.

6LAYOUT
75
SUN VISOR WITH ILLUMINATED
COURTESY MIRRORAREAS FOR TOLL CARDS/
CAR PARK TICKETSAIR CONDITIONED
GLOVE BOX
* DT colour screen only.
With the ignition on, the mirror is
automatically lit up when the flap is
opened.
The athermic windscreen has two non-
reflective zones located either side of
the base of the interior mirror.
They are intended for affixing toll cards
and/or car park tickets. This is fitted with a lock.
To open the glove box, lift the handle.
The glove box is lit up when the cover
is opened.
The glove box has a vent
A that can
be closed, which produces the same
conditioned air as the vents in the pas-
senger compartment.
It also has a pen holder B and three
sockets* C for connecting video equip-
ment.
