2006 Peugeot 607 Dag Owner's Manual

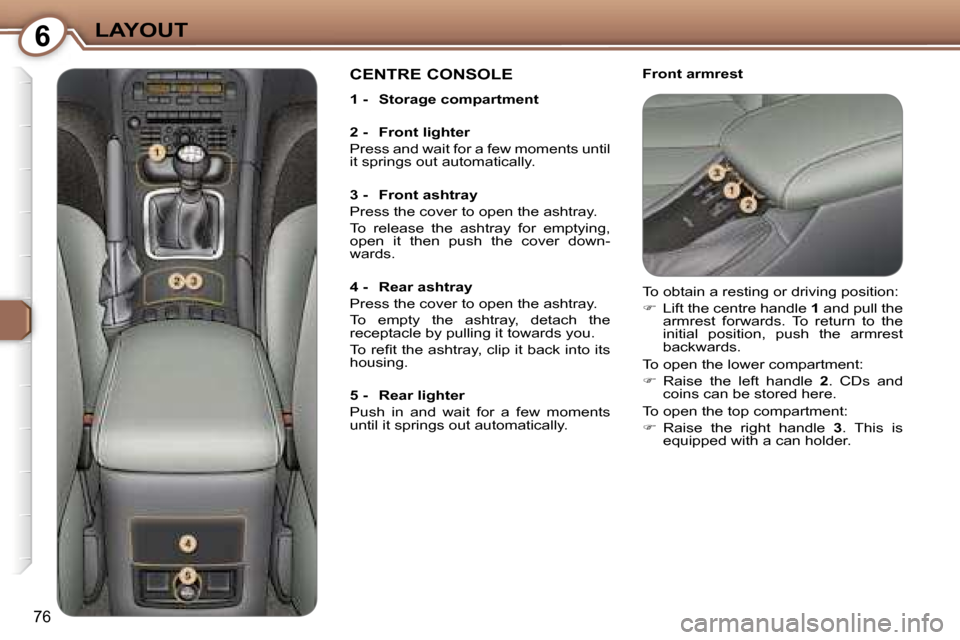

6LAYOUT
76
Front armrestCENTRE CONSOLE
1 - Storage compartment
2 - Front lighter
Press and wait for a few moments until
it springs out automatically.
3 - Front ashtray
Press the cover to open the ashtray.
To release the ashtray for emptying,
open it then push the cover down-
wards.

4 - Rear ashtray
Press the cover to open the ashtray.
To empty the ashtray, detach the
receptacle by pulling it towards you.
To refit the ashtray, clip it back into its
housing.
5 - Rear lighter
Push in and wait for a few moments
until it springs out automatically.To obtain a resting or driving position:

Lift the centre handle 1 and pull the
armrest forwards. To return to the
initial position, push the armrest
backwards.
To open the lower compartment:
 Raise the left handle 2. CDs and
coins can be stored here.
To open the top compartment:
 Raise the right handle 3. This is
equipped with a can holder.

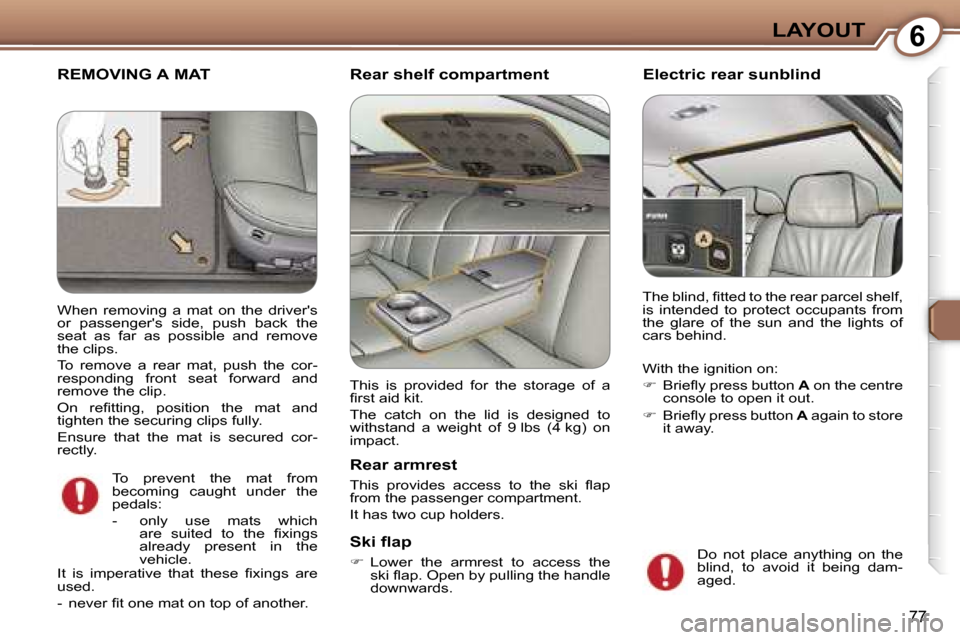

6LAYOUT
77
REMOVING A MATRear shelf compartment
Rear armrest
This provides access to the ski flap
from the passenger compartment.
It has two cup holders.
Ski flap
 Lower the armrest to access the
ski flap. Open by pulling the handle
downwards.
Electric rear sunblind
To prevent the mat from
becoming caught under the
pedals:
- only use mats which
are suited to the fixings
already present in the
vehicle.
It is imperative that these fixings are
used.
- never fit one mat on top of another. Do not place anything on the
blind, to avoid it being dam-
aged.
When removing a mat on the driver's
or passenger's side, push back the
seat as far as possible and remove
the clips.
To remove a rear mat, push the cor-
responding front seat forward and
remove the clip.
On refitting, position the mat and
tighten the securing clips fully.
Ensure that the mat is secured cor-
rectly.
This is provided for the storage of a
first aid kit.
The catch on the lid is designed to
withstand a weight of 9 lbs (4 kg) on
impact.The blind, fitted to the rear parcel shelf,
is intended to protect occupants from
the glare of the sun and the lights of
cars behind.
With the ignition on:

Briefly press button A on the centre
console to open it out.
 Briefly press button A again to store
it away.

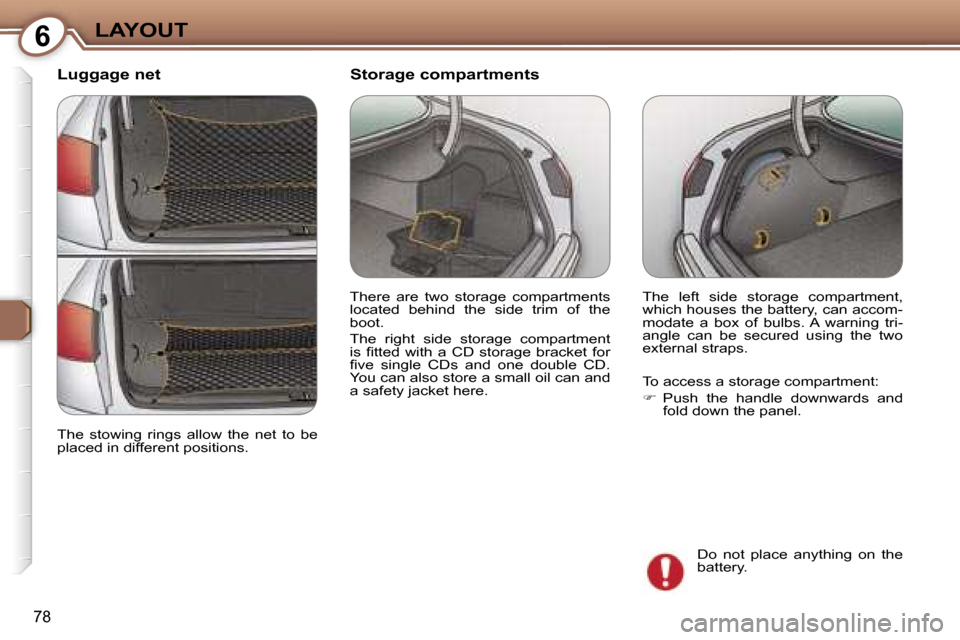

6LAYOUT
78
Luggage net
The left side storage compartment,
which houses the battery, can accom-
modate a box of bulbs. A warning tri-
angle can be secured using the two
external straps.
To access a storage compartment:
 Push the handle downwards and
fold down the panel.
Storage compartments
Do not place anything on the
battery.
The stowing rings allow the net to be
placed in different positions. There are two storage compartments
located behind the side trim of the
boot.
The right side storage compartment
is fitted with a CD storage bracket for
five single CDs and one double CD.
You can also store a small oil can and
a safety jacket here.

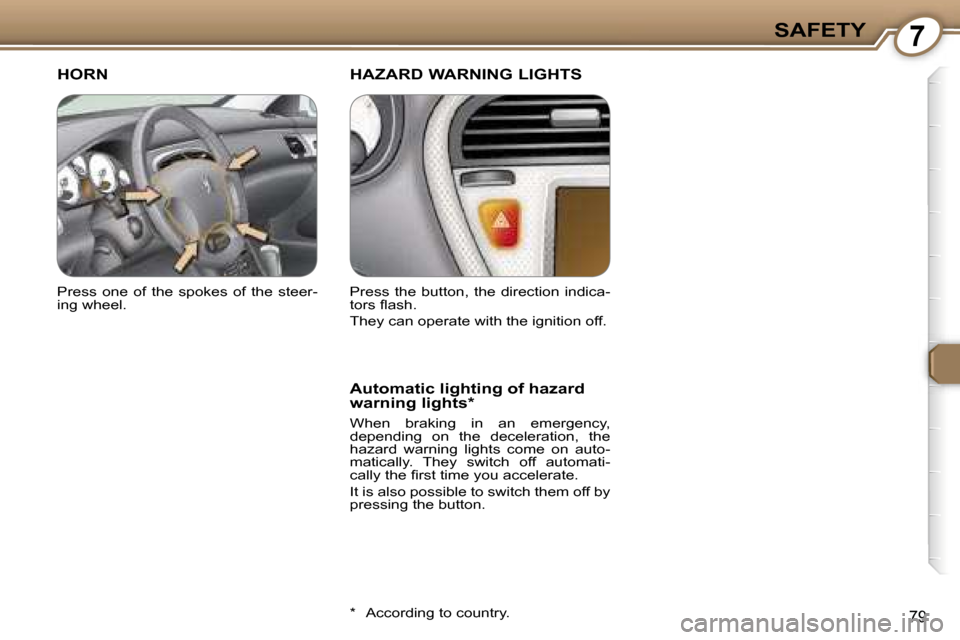

7SAFETY
79
HORN HAZARD WARNING LIGHTS
Automatic lighting of hazard
warning lights*
When braking in an emergency,
depending on the deceleration, the
hazard warning lights come on auto-
matically. They switch off automati-
cally the first time you accelerate.
It is also possible to switch them off by
pressing the button.
* According to country.
Press one of the spokes of the steer-
ing wheel.
Press the button, the direction indica-
tors flash.
They can operate with the ignition off.

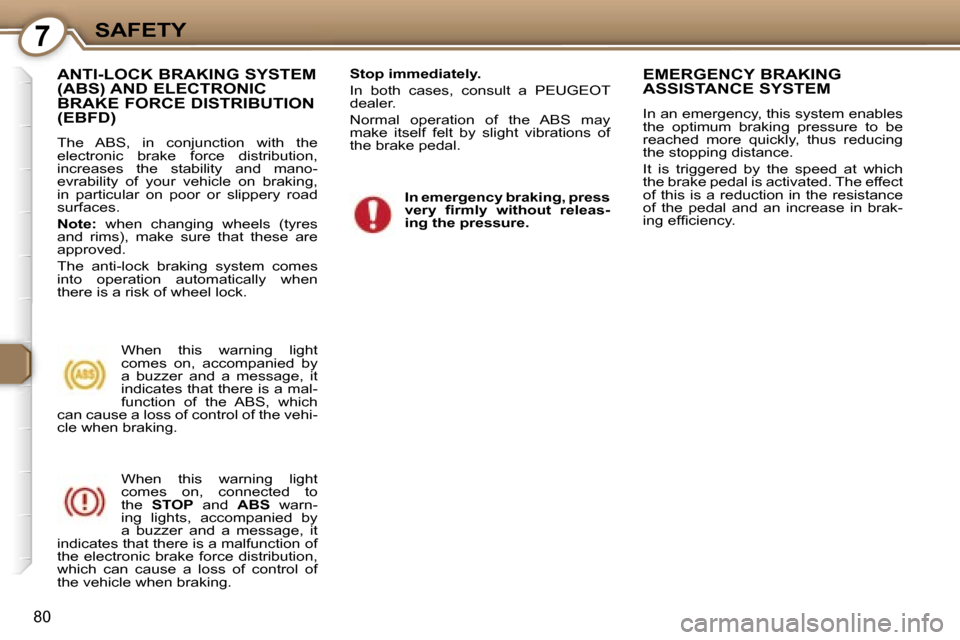

7SAFETY
80
ANTI-LOCK BRAKING SYSTEM
(ABS) AND ELECTRONIC
BRAKE FORCE DISTRIBUTION
(EBFD)
The ABS, in conjunction with the
electronic brake force distribution,
increases the stability and mano-
evrability of your vehicle on braking,
in particular on poor or slippery road
surfaces.
Note: when changing wheels (tyres
and rims), make sure that these are
approved.
The anti-lock braking system comes
into operation automatically when
there is a risk of wheel lock.
When this warning light
comes on, accompanied by
a buzzer and a message, it
indicates that there is a mal-
function of the ABS, which
can cause a loss of control of the vehi-
cle when braking.
When this warning light
comes on, connected to
the STOP and ABS warn-
ing lights, accompanied by
a buzzer and a message, it
indicates that there is a malfunction of
the electronic brake force distribution,
which can cause a loss of control of
the vehicle when braking. Stop immediately.
In both cases, consult a PEUGEOT
dealer.
Normal operation of the ABS may
make itself felt by slight vibrations of
the brake pedal.
EMERGENCY BRAKING
ASSISTANCE SYSTEM
In an emergency, this system enables
the optimum braking pressure to be
reached more quickly, thus reducing
the stopping distance.
It is triggered by the speed at which
the brake pedal is activated. The effect
of this is a reduction in the resistance
of the pedal and an increase in brak-
ing efficiency.
In emergency braking, press
very firmly without releas-
ing the pressure.

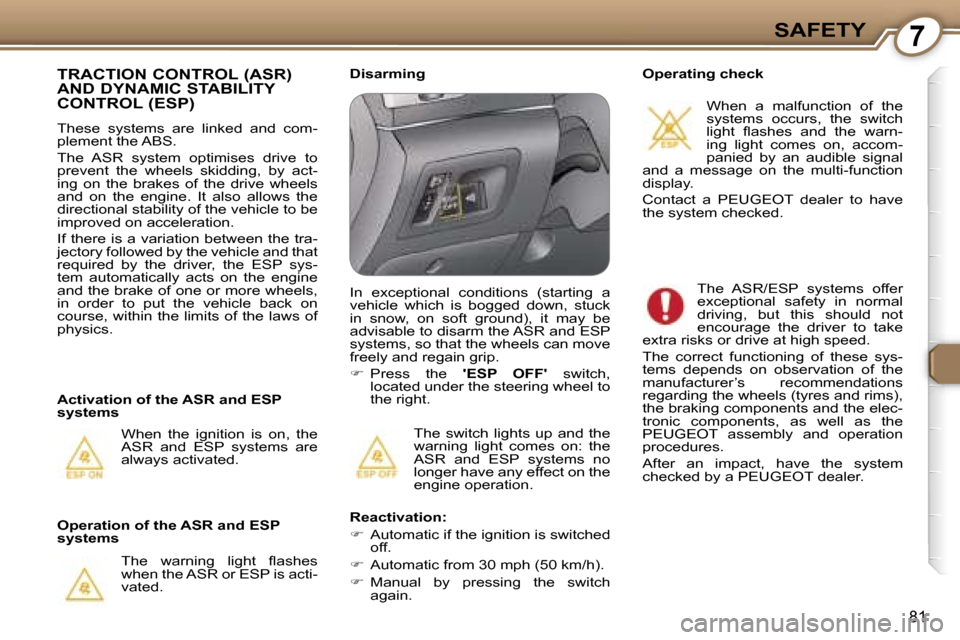

7SAFETY
81
The switch lights up and the
warning light comes on: the
ASR and ESP systems no
longer have any effect on the
engine operation.
TRACTION CONTROL (ASR)
AND DYNAMIC STABILITY
CONTROL (ESP)
These systems are linked and com-
plement the ABS.
The ASR system optimises drive to
prevent the wheels skidding, by act-
ing on the brakes of the drive wheels
and on the engine. It also allows the
directional stability of the vehicle to be
improved on acceleration.
If there is a variation between the tra-
jectory followed by the vehicle and that
required by the driver, the ESP sys-
tem automatically acts on the engine
and the brake of one or more wheels,
in order to put the vehicle back on
course, within the limits of the laws of
physics.
Operation of the ASR and ESP
systemsThe warning light flashes
when the ASR or ESP is acti-
vated. Disarming
Reactivation:

Automatic if the ignition is switched
off.
 Automatic from 30 mph (50 km/h).
 Manual by pressing the switch
again. When a malfunction of the
systems occurs, the switch
light flashes and the warn-
ing light comes on, accom-
panied by an audible signal
and a message on the multi-function
display.
Contact a PEUGEOT dealer to have
the system checked.
The ASR/ESP systems offer
exceptional safety in normal
driving, but this should not
encourage the driver to take
extra risks or drive at high speed.
The correct functioning of these sys-
tems depends on observation of the
manufacturer’s recommendations
regarding the wheels (tyres and rims),
the braking components and the elec-
tronic components, as well as the
PEUGEOT assembly and operation
procedures.
After an impact, have the system
checked by a PEUGEOT dealer.
When the ignition is on, the
ASR and ESP systems are
always activated. Operating check
Activation of the ASR and ESP
systems In exceptional conditions (starting a
vehicle which is bogged down, stuck
in snow, on soft ground), it may be
advisable to disarm the ASR and ESP
systems, so that the wheels can move
freely and regain grip.

Press the 'ESP OFF' switch,
located under the steering wheel to
the right.

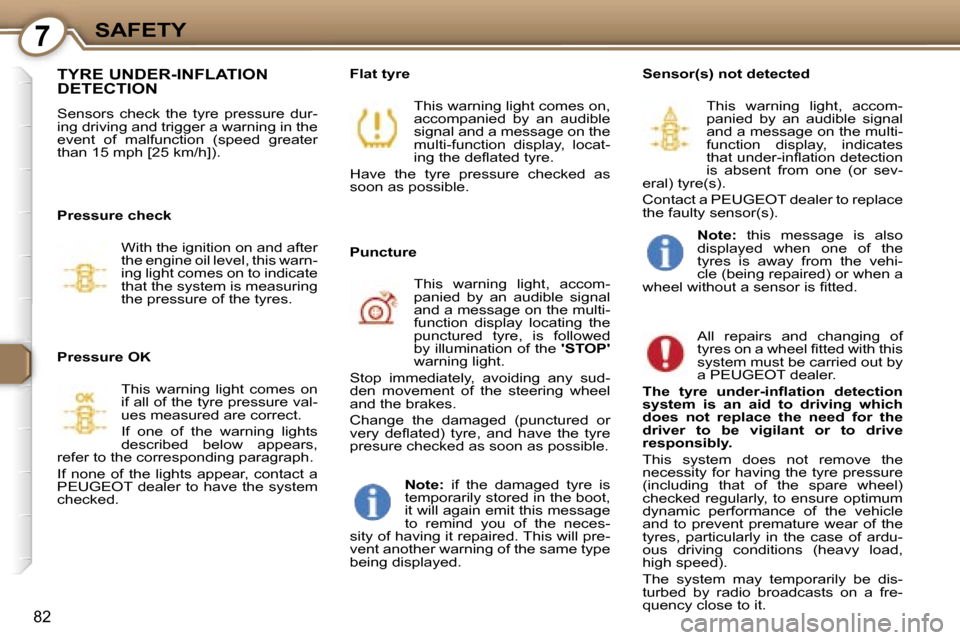

7SAFETY
82
TYRE UNDER-INFLATION
DETECTION
Sensors check the tyre pressure dur-
ing driving and trigger a warning in the
event of malfunction (speed greater
than 15 mph [25 km/h]).Sensor(s) not detected
This warning light, accom-
panied by an audible signal
and a message on the multi-
function display, indicates
that under-inflation detection
is absent from one (or sev-
eral) tyre(s).
Contact a PEUGEOT dealer to replace
the faulty sensor(s).
Pressure check
With the ignition on and after
the engine oil level, this warn-
ing light comes on to indicate
that the system is measuring
the pressure of the tyres.
Pressure OK This warning light comes on
if all of the tyre pressure val-
ues measured are correct.
If one of the warning lights
described below appears,
refer to the corresponding paragraph.
If none of the lights appear, contact a
PEUGEOT dealer to have the system
checked. Flat tyre
This warning light comes on,
accompanied by an audible
signal and a message on the
multi-function display, locat-
ing the deflated tyre.
Have the tyre pressure checked as
soon as possible.
Puncture
This warning light, accom-
panied by an audible signal
and a message on the multi-
function display locating the
punctured tyre, is followed
by illumination of the 'STOP'
warning light.
Stop immediately, avoiding any sud-
den movement of the steering wheel
and the brakes.
Change the damaged (punctured or
very deflated) tyre, and have the tyre
presure checked as soon as possible. All repairs and changing of
tyres on a wheel fitted with this
system must be carried out by
a PEUGEOT dealer.
The tyre under-inflation detection
system is an aid to driving which
does not replace the need for the
driver to be vigilant or to drive
responsibly.
This system does not remove the
necessity for having the tyre pressure
(including that of the spare wheel)
checked regularly, to ensure optimum
dynamic performance of the vehicle
and to prevent premature wear of the
tyres, particularly in the case of ardu-
ous driving conditions (heavy load,
high speed).
The system may temporarily be dis-
turbed by radio broadcasts on a fre-
quency close to it.
Note:
if the damaged tyre is
temporarily stored in the boot,
it will again emit this message
to remind you of the neces-
sity of having it repaired. This will pre-
vent another warning of the same type
being displayed. Note:
this message is also
displayed when one of the
tyres is away from the vehi-
cle (being repaired) or when a
wheel without a sensor is fitted.

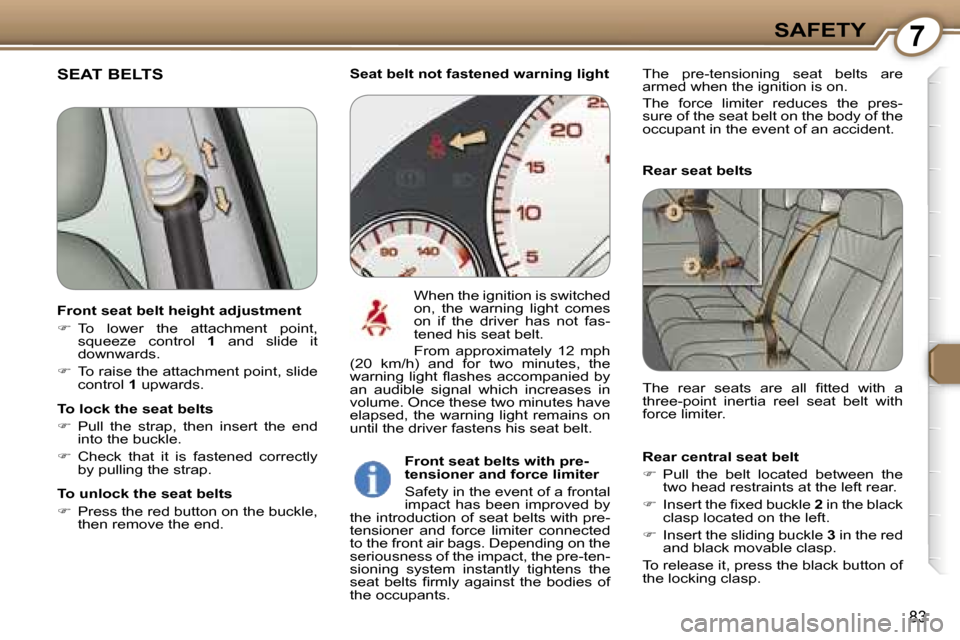

7SAFETY
83
SEAT BELTS
Rear seat belts
Rear central seat belt
 Pull the belt located between the
two head restraints at the left rear.
 Insert the fixed buckle 2 in the black
clasp located on the left.
 Insert the sliding buckle 3 in the red
and black movable clasp.
To release it, press the black button of
the locking clasp.
When the ignition is switched
on, the warning light comes
on if the driver has not fas-
tened his seat belt.
From approximately 12 mph
(20 km/h) and for two minutes, the
warning light flashes accompanied by
an audible signal which increases in
volume. Once these two minutes have
elapsed, the warning light remains on
until the driver fastens his seat belt.
Front seat belts with pre-
tensioner and force limiter
Safety in the event of a frontal
impact has been improved by
the introduction of seat belts with pre-
tensioner and force limiter connected
to the front air bags. Depending on the
seriousness of the impact, the pre-ten-
sioning system instantly tightens the
seat belts firmly against the bodies of
the occupants.
Seat belt not fastened warning lightThe pre-tensioning seat belts are
armed when the ignition is on.
The force limiter reduces the pres-
sure of the seat belt on the body of the
occupant in the event of an accident.
Front seat belt height adjustment
 To lower the attachment point,
squeeze control 1 and slide it
downwards.
 To raise the attachment point, slide
control 1 upwards.
To lock the seat belts
 Pull the strap, then insert the end
into the buckle.
 Check that it is fastened correctly
by pulling the strap.
To unlock the seat belts
 Press the red button on the buckle,
then remove the end. The rear seats are all fitted with a
three-point inertia reel seat belt with
force limiter.
