2006 Peugeot 307 CC Owner's Manual

52
The remote control permits remote locking, deadlocking and unlocking of the vehicle, locating of the vehicle, folding and unfolding of the exterior mirrors and partial opening of the boot.
The key allows you to switch on the ignition and mechanically and inde-pendently operate the lock on the glove box, the fuel filler cap, the pas-senger air bag disarming switch and the boot opening button disarming switch.
Locking
Using the remote control
Press button B to lock the vehicle.
This action is confirmed by fixed lighting of the direction indicators for approximately two seconds.
At the same time, the exterior mirrors fold back.
- fold and unfold the mirrors.
The boot can only be unlocked by pressing the locking/unlocking button from inside the vehicle, with the key in the switch (refer to the correspond-ing section).
If one of the doors or the boot is open, the central locking will not work.
Unlocking
Press button C to unlock the vehicle.
This action is confirmed by rapid flashing of the direction indicators for approximately two seconds.
At the same time, the exterior mirrors unfold.
Deadlocking
This renders the exterior and interior door controls inoperative.
It also disarms the interior central locking/unlocking button.
Using the key
 Turn the key in the lock on the driver's door to lock the vehicle.
Each action is confirmed by fixed lighting of the direction indicators for approximately two seconds.
At the same time, the exterior mirrors fold back.
Using the remote control
Pressing button B locks the vehi-cle.
A second press within five sec-onds deadlocks the vehicle.
Each action is confirmed by fixed lighting of the direction indicators for approximately two seconds.
Unfolding / Folding the key
To unfold or fold the key, first press button A.
Using the key
 Turn the key in the lock on the driver's door to lock the vehicle.
 Turn the key a second time within five seconds to deadlock the vehi-cle.
Each action is confirmed by fixed lighting of the direction indicators for approximately two seconds.
Central locking / Unlocking
From the driver's door, the key allows you to:
- lock / deadlock the doors and boot simultaneously,- unlock the driver's door. Opening this door unlocks the passenger door,
THE REMOTE CONTROL KEY

53
ELECTRONIC ENGINE
IMMOBILISER
This locks the engine control system a few moments after the ignition has been switched off and therefore pre-vents starting of the vehicle by anyone who does not have the key.
The ignition key has an electronic chip which has a special code. When the ignition is switched on, the code is rec-ognised and starting is possible.
If the system does not function cor-rectly,the service warning light comes on, accompanied by an audible signal and a message on the multifunction display.
In this case, your vehicle will not start.
Contact a PEUGEOT dealer as soon as possible.
Battery ref.: CR1620 / 3 volts.
The information "battery flat" is given by displaying of the service warning light, accompanied by an audible signal and a message on the multi-function display.
To replace the battery, unclip the cas-ing using a coin at the notch.
If the remote control does not work after the battery has been changed, re-programme the remote control.
Key in ignition
A buzzer sounds on opening the driv-er's door, if the key has been left in the ignition.
Reprogramming the remote control
Following disconnection of the vehi-cle's battery, replacement of the remote control battery or in the event of a remote control malfunction, the remote control must be reinitialised.Switch off the ignition.
 Switch the ignition on again.
 Press the remote control locking button immediately for a few sec-onds.
 Switch off the ignition and remove the remote control key from the ignition lock.
The remote control is now working ain.
Locating your vehicle
To locate your vehicle, if you have locked it, in a car park:
 press button B, the courtesy lights come on and the direction indica-tors flash for a few seconds.
When the vehicle is locked, if unlocking is activated inad-vertently without a door being opened within 30 seconds, the vehicle will lock automatically.
The folding and unfolding of the mirrors can be deactivated by a PEUGEOT dealer.
 Press button D to unlock and par-tially open the boot.
This action also unlocks the doors.
Partial opening of the boot
Changing the remote control battery

54
Make a careful note of the number on each key. The key number is coded on the label attached to the key.
If the keys are lost, your PEUGEOT dealer can rapidly supply you with new keys.
The high frequency remote con-trol is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle, without you being aware of it.
The remote control does not oper-ate when the key is in the ignition, even when the ignition is switched off, except for reprogramming.
Do not operate the deadlocking function if there is anyone inside the vehicle.
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emer-gency.
As a safety precaution (with chil-dren on board), remove the igni-tion key when you leave the vehi-cle, even for a short time.
Do not repeatedly press the but-ton of your remote control out of range and out of sight of your vehicle. You run the risk of stop-ping it from working and the remote control would have to be reprogrammed.
When purchasing a second-hand vehicle:
- ensure that you are given the confidential card;- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones which can start the vehicle.
Do not make any modifications to the electronic engine immobiliser system.
This is given to you on delivery of your vehicle with the duplicate keys.
It contains the identification code necessary for any work carried out by a PEUGEOT dealer on the elec-tronic immobiliser system. This code is hidden by a film, which should be removed only if necessary.
Keep your card in a safe place, never inside the vehicle.
When undertaking a long trip or jour-ney, however, it is advisable to take it with you along with your personal papers.
Do not throw the remote con-trol batteries away, they con-tain metals which are harm-ful to the environment.
Take them to an approved collection point.
CONFIDENTIAL CARD

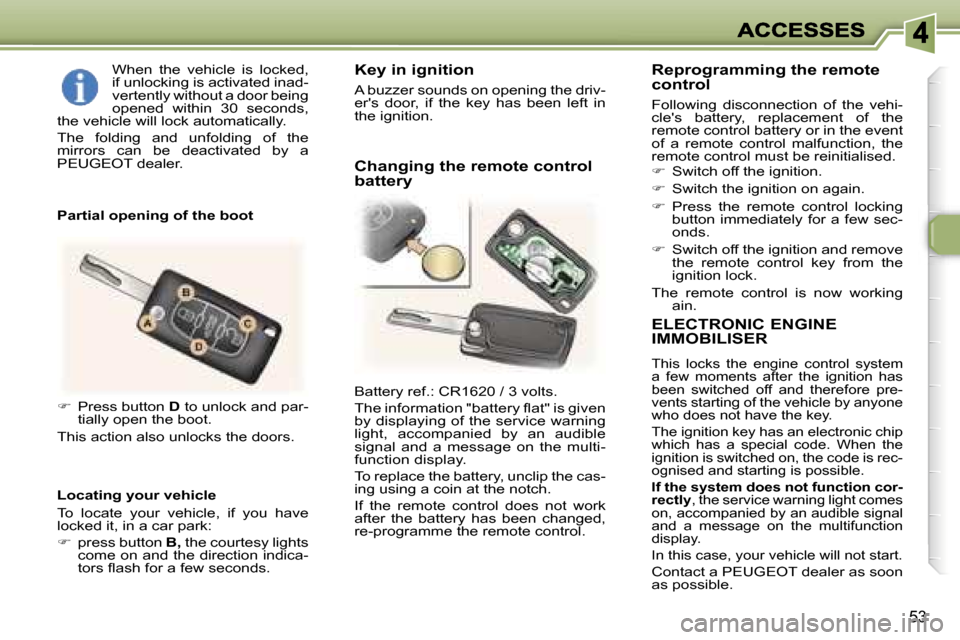

53
ELECTRONIC ENGINE
IMMOBILISER
This locks the engine control system a few moments after the ignition has been switched off and therefore pre-vents starting of the vehicle by anyone who does not have the key.
The ignition key has an electronic chip which has a special code. When the ignition is switched on, the code is rec-ognised and starting is possible.
If the system does not function cor-rectly,the service warning light comes on, accompanied by an audible signal and a message on the multifunction display.
In this case, your vehicle will not start.
Contact a PEUGEOT dealer as soon as possible.
Battery ref.: CR1620 / 3 volts.
The information "battery flat" is given by displaying of the service warning light, accompanied by an audible signal and a message on the multi-function display.
To replace the battery, unclip the cas-ing using a coin at the notch.
If the remote control does not work after the battery has been changed, re-programme the remote control.
Key in ignition
A buzzer sounds on opening the driv-er's door, if the key has been left in the ignition.
Reprogramming the remote control
Following disconnection of the vehi-cle's battery, replacement of the remote control battery or in the event of a remote control malfunction, the remote control must be reinitialised.Switch off the ignition.
 Switch the ignition on again.
 Press the remote control locking button immediately for a few sec-onds.
 Switch off the ignition and remove the remote control key from the ignition lock.
The remote control is now working ain.
Locating your vehicle
To locate your vehicle, if you have locked it, in a car park:
 press button B, the courtesy lights come on and the direction indica-tors flash for a few seconds.
When the vehicle is locked, if unlocking is activated inad-vertently without a door being opened within 30 seconds, the vehicle will lock automatically.
The folding and unfolding of the mirrors can be deactivated by a PEUGEOT dealer.
 Press button D to unlock and par-tially open the boot.
This action also unlocks the doors.
Partial opening of the boot
Changing the remote control battery

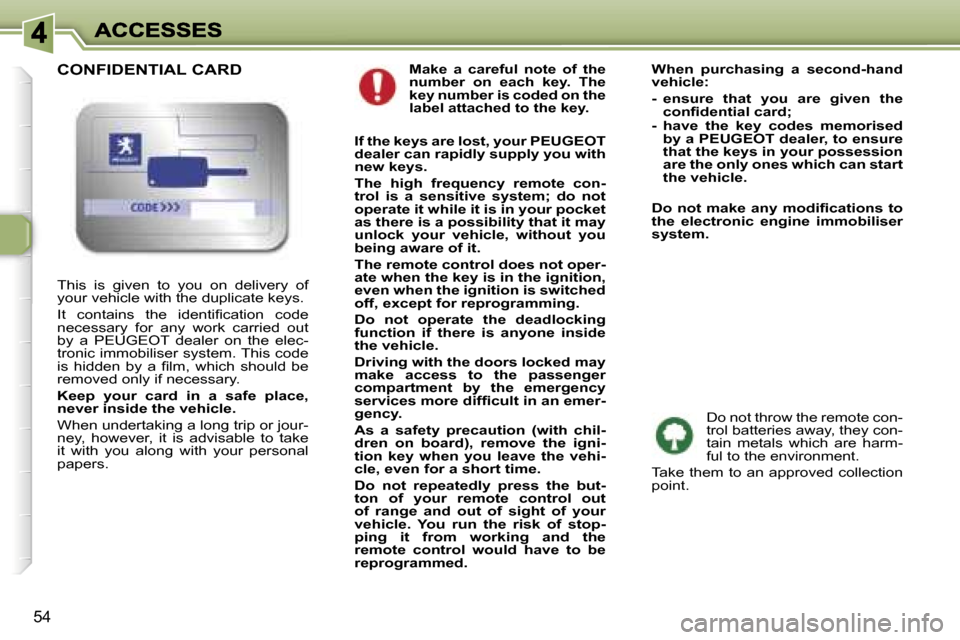

54
Make a careful note of the number on each key. The key number is coded on the label attached to the key.
If the keys are lost, your PEUGEOT dealer can rapidly supply you with new keys.
The high frequency remote con-trol is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock your vehicle, without you being aware of it.
The remote control does not oper-ate when the key is in the ignition, even when the ignition is switched off, except for reprogramming.
Do not operate the deadlocking function if there is anyone inside the vehicle.
Driving with the doors locked may make access to the passenger compartment by the emergency services more difficult in an emer-gency.
As a safety precaution (with chil-dren on board), remove the igni-tion key when you leave the vehi-cle, even for a short time.
Do not repeatedly press the but-ton of your remote control out of range and out of sight of your vehicle. You run the risk of stop-ping it from working and the remote control would have to be reprogrammed.
When purchasing a second-hand vehicle:
- ensure that you are given the confidential card;- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones which can start the vehicle.
Do not make any modifications to the electronic engine immobiliser system.
This is given to you on delivery of your vehicle with the duplicate keys.
It contains the identification code necessary for any work carried out by a PEUGEOT dealer on the elec-tronic immobiliser system. This code is hidden by a film, which should be removed only if necessary.
Keep your card in a safe place, never inside the vehicle.
When undertaking a long trip or jour-ney, however, it is advisable to take it with you along with your personal papers.
Do not throw the remote con-trol batteries away, they con-tain metals which are harm-ful to the environment.
Take them to an approved collection point.
CONFIDENTIAL CARD

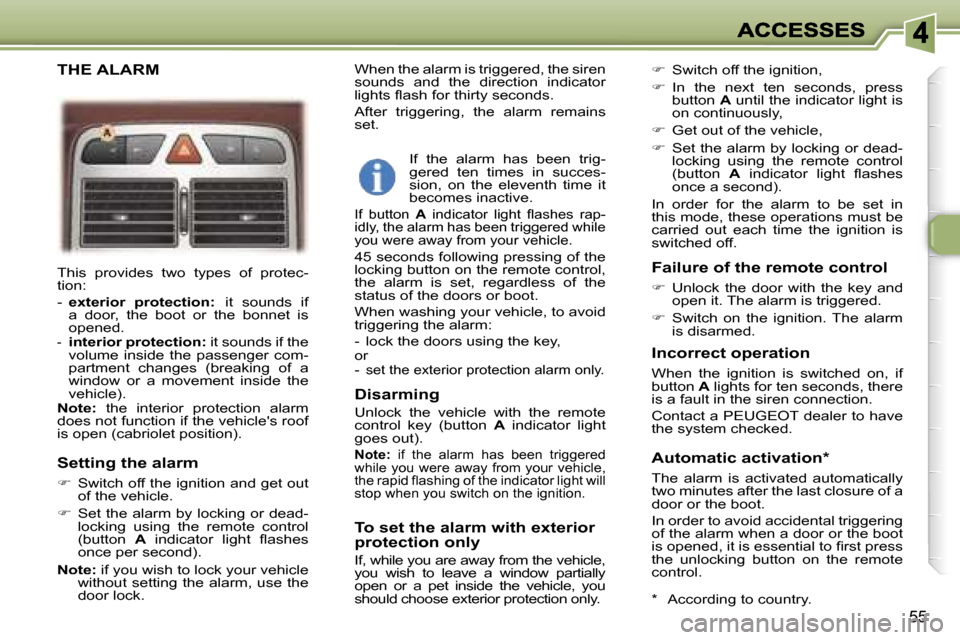

55
This provides two types of protec-tion:
- exterior protection:it sounds if a door, the boot or the bonnet is opened.- interior protection: it sounds if the volume inside the passenger com-partment changes (breaking of a window or a movement inside the vehicle).Note: the interior protection alarm does not function if the vehicle's roof is open (cabriolet position).
When the alarm is triggered, the siren sounds and the direction indicator lights flash for thirty seconds.
After triggering, the alarm remains set.
 Switch off the ignition,
 In the next ten seconds, press button A until the indicator light is on continuously,
 Get out of the vehicle,
 Set the alarm by locking or dead-locking using the remote control (button A indicator light flashes once a second).
In order for the alarm to be set in this mode, these operations must be carried out each time the ignition is switched off.
Setting the alarm
 Switch off the ignition and get out of the vehicle.
 Set the alarm by locking or dead-locking using the remote control (button A indicator light flashes once per second).
Note: if you wish to lock your vehicle without setting the alarm, use the door lock.
Disarming
Unlock the vehicle with the remote control key (button A indicator light goes out).
Note: if the alarm has been triggered while you were away from your vehicle, the rapid flashing of the indicator light will stop when you switch on the ignition.
To set the alarm with exterior protection only
If, while you are away from the vehicle, you wish to leave a window partially open or a pet inside the vehicle, you should choose exterior protection only.
Incorrect operation
When the ignition is switched on, if button A lights for ten seconds, there is a fault in the siren connection.
Contact a PEUGEOT dealer to have the system checked.
Automatic activation*
The alarm is activated automatically two minutes after the last closure of a door or the boot.
In order to avoid accidental triggering of the alarm when a door or the boot is opened, it is essential to first press the unlocking button on the remote control.
* According to country.
If the alarm has been trig-gered ten times in succes-sion, on the eleventh time it becomes inactive.
If button A indicator light flashes rap-idly, the alarm has been triggered while you were away from your vehicle.
45 seconds following pressing of the locking button on the remote control, the alarm is set, regardless of the status of the doors or boot.
When washing your vehicle, to avoid triggering the alarm:
- lock the doors using the key,or- set the exterior protection alarm only.
Failure of the remote control
 Unlock the door with the key and open it. The alarm is triggered.
 Switch on the ignition. The alarm is disarmed.
THE ALARM

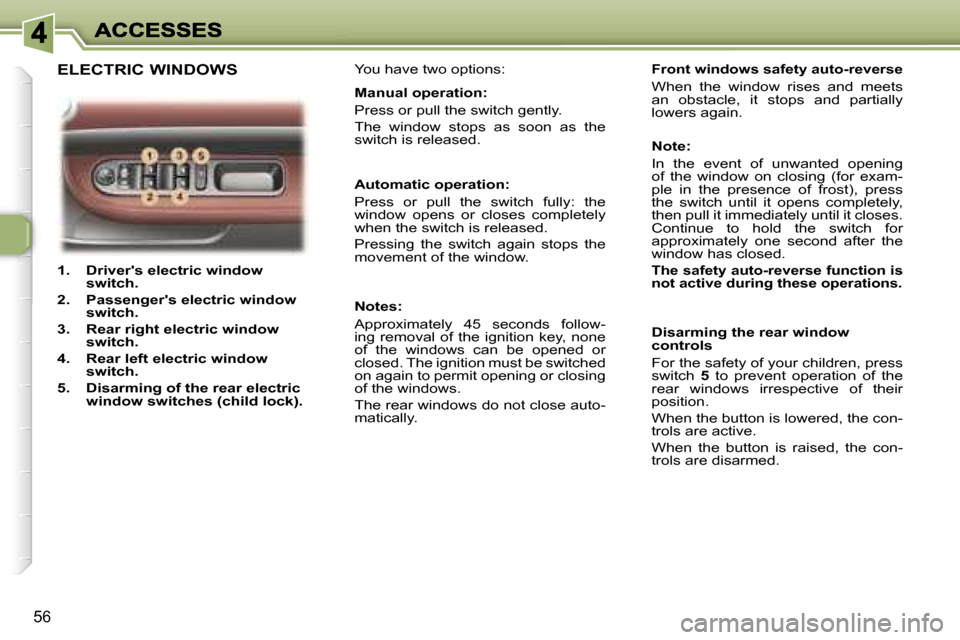

56
1. Driver's electric window switch.
2. Passenger's electric window switch.
3. Rear right electric window switch.
4. Rear left electric window switch.
5. Disarming of the rear electric window switches (child lock).
You have two options:
Manual operation:
Press or pull the switch gently.
The window stops as soon as the switch is released.
Automatic operation:
Press or pull the switch fully: the window opens or closes completely when the switch is released.
Pressing the switch again stops the movement of the window.
Front windows safety auto-reverse
When the window rises and meets an obstacle, it stops and partially lowers again.
Disarming the rear window controls
For the safety of your children, press switch 5 to prevent operation of the rear windows irrespective of their position.
When the button is lowered, the con-trols are active.
When the button is raised, the con-trols are disarmed.
Notes:
Approximately 45 seconds follow-ing removal of the ignition key, none of the windows can be opened or closed. The ignition must be switched on again to permit opening or closing of the windows.
The rear windows do not close auto-matically.
Note:
In the event of unwanted opening of the window on closing (for exam-ple in the presence of frost), press the switch until it opens completely, then pull it immediately until it closes. Continue to hold the switch for approximately one second after the window has closed.
The safety auto-reverse function is not active during these operations.
ELECTRIC WINDOWS

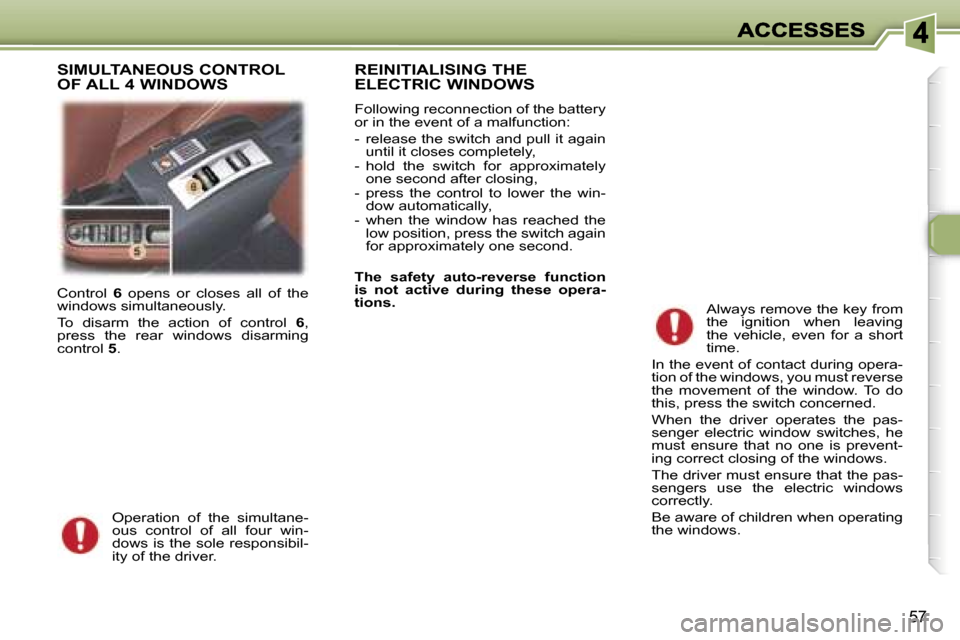

57
Control 6 opens or closes all of the windows simultaneously.
To disarm the action of control 6, press the rear windows disarming control 5.
Operation of the simultane-ous control of all four win-dows is the sole responsibil-ity of the driver.
REINITIALISING THE
ELECTRIC WINDOWS
Following reconnection of the battery or in the event of a malfunction:
- release the switch and pull it again until it closes completely,- hold the switch for approximately one second after closing,- press the control to lower the win-dow automatically,- when the window has reached the low position, press the switch again for approximately one second.
The safety auto-reverse function is not active during these opera-tions.Always remove the key from the ignition when leaving the vehicle, even for a short time.
In the event of contact during opera-tion of the windows, you must reverse the movement of the window. To do this, press the switch concerned.
When the driver operates the pas-senger electric window switches, he must ensure that no one is prevent-ing correct closing of the windows.
The driver must ensure that the pas-sengers use the electric windows correctly.
Be aware of children when operating the windows.
SIMULTANEOUS CONTROL
OF ALL 4 WINDOWS
