2006 Peugeot 307 CC Owner's Manual

10
108

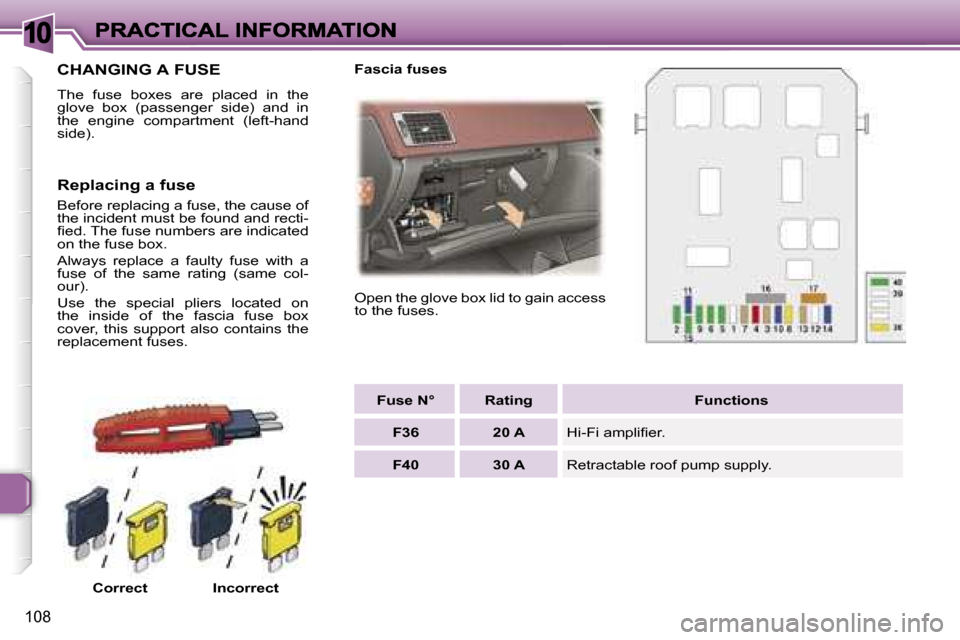

CHANGING A FUSE
The fuse boxes are placed in the glove box (passenger side) and in the engine compartment (left-hand side).
CorrectIncorrect
Open the glove box lid to gain access to the fuses.
Replacing a fuse
Before replacing a fuse, the cause of the incident must be found and recti-fied. The fuse numbers are indicated on the fuse box.
Always replace a faulty fuse with a fuse of the same rating (same col-our).
Use the special pliers located on the inside of the fascia fuse box cover, this support also contains the replacement fuses.
Fascia fuses
Fuse N°RatingFunctions
F3620 AHi-Fi amplifier.
F4030 ARetractable roof pump supply.

10
109

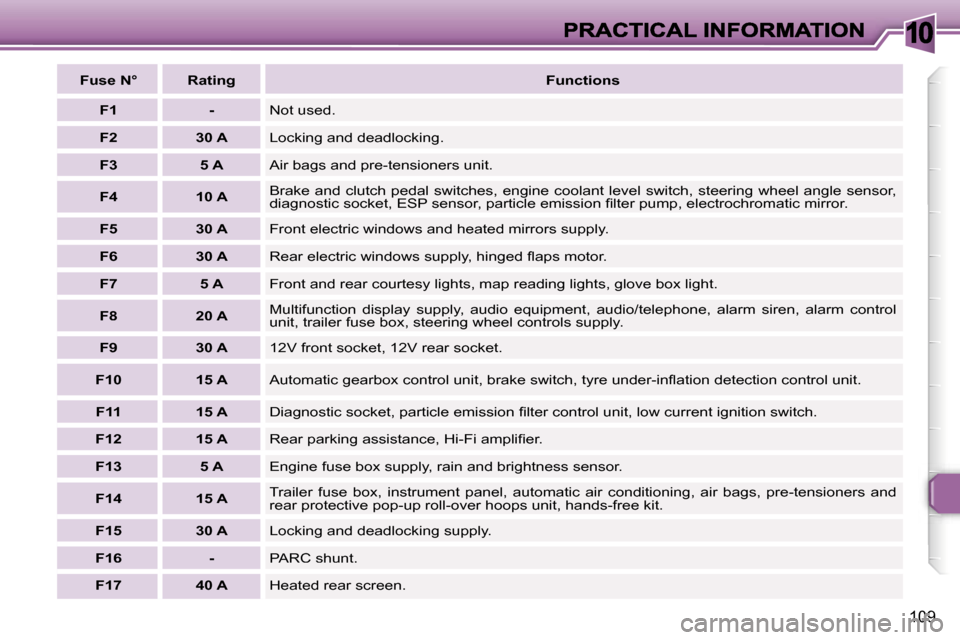

Fuse N°RatingFunctions
F1-Not used.
F230 ALocking and deadlocking.
F35 AAir bags and pre-tensioners unit.
F410 ABrake and clutch pedal switches, engine coolant level switch, steering wheel angle sensor, diagnostic socket, ESP sensor, particle emission filter pump, electrochro matic mirror.
F530 AFront electric windows and heated mirrors supply.
F630 ARear electric windows supply, hinged flaps motor.
F75 AFront and rear courtesy lights, map reading lights, glove box light.
F820 AMultifunction display supply, audio equipment, audio/telephone, alarm siren, alarm control unit, trailer fuse box, steering wheel controls supply.
F930 A12V front socket, 12V rear socket.
F1015 AAutomatic gearbox control unit, brake switch, tyre under-inflation d etection control unit.
F1115 ADiagnostic socket, particle emission filter control unit, low current ignition switch.
F1215 ARear parking assistance, Hi-Fi amplifier.
F135 AEngine fuse box supply, rain and brightness sensor.
F1415 ATrailer fuse box, instrument panel, automatic air conditioning, air bags, pre-tensioners and rear protective pop-up roll-over hoops unit, hands-free kit.
F1530 ALocking and deadlocking supply.
F16-PARC shunt.
F1740 AHeated rear screen.

10
113

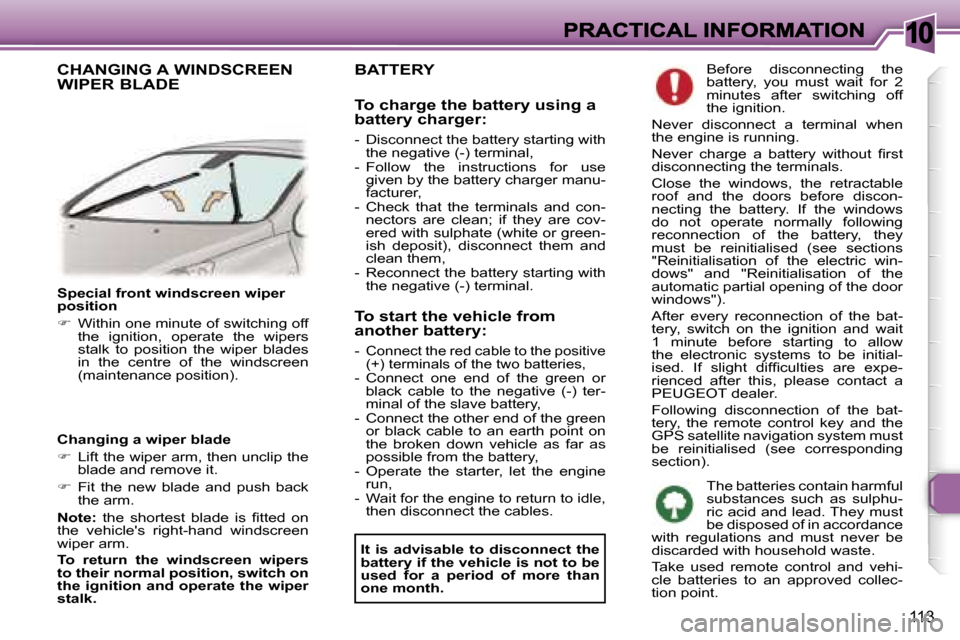

Special front windscreen wiper position
 Within oneminute of switching off the ignition, operate the wipers stalk to position the wiper blades in the centre of the windscreen (maintenance position).
Changing a wiper blade
 Lift the wiper arm, then unclip the blade and remove it.
 Fit the new blade and push back the arm.
Note: the shortest blade is fitted on the vehicle's right-hand windscreen wiper arm.
To return the windscreen wipers to their normal position, switch on the ignition and operate the wiper stalk.
BATTERY
To charge the battery using a battery charger:
- Disconnect the battery starting with the negative (-) terminal,- Follow the instructions for use given by the battery charger manu-facturer,- Check that the terminals and con-nectors are clean; if they are cov-ered with sulphate (white or green-ish deposit), disconnect them and clean them,- Reconnect the battery starting with the negative (-) terminal.
Before disconnecting the battery, you must wait for 2 minutes after switching off the ignition.
Never disconnect a terminal when the engine is running.
Never charge a battery without first disconnecting the terminals.
Close the windows, the retractable roof and the doors before discon-necting the battery. If the windows do not operate normally following reconnection of the battery, they must be reinitialised (see sections "Reinitialisation of the electric win-dows" and "Reinitialisation of the automatic partial opening of the door windows").
After every reconnection of the bat-tery, switch on the ignition and wait 1 minute before starting to allow the electronic systems to be initial-ised. If slight difficulties are expe-rienced after this, please contact a PEUGEOT dealer.
Following disconnection of the bat-tery, the remote control key and the GPS satellite navigation system must be reinitialised (see corresponding section).
It is advisable to disconnect the battery if the vehicle is not to be used for a period of more than one month.
To start the vehicle from another battery:
- Connect the red cable to the positive (+) terminals of the two batteries,- Connect one end of the green or black cable to the negative (-) ter-minal of the slave battery,- Connect the other end of the green or black cable to an earth point on the broken down vehicle as far as possible from the battery,- Operate the starter, let the engine run,- Wait for the engine to return to idle, then disconnect the cables.
The batteries contain harmful substances such as sulphu-ric acid and lead. They must be disposed of in accordance with regulations and must never be discarded with household waste.
Take used remote control and vehi-cle batteries to an approved collec-tion point.
CHANGING A WINDSCREEN
WIPER BLADE

10
114

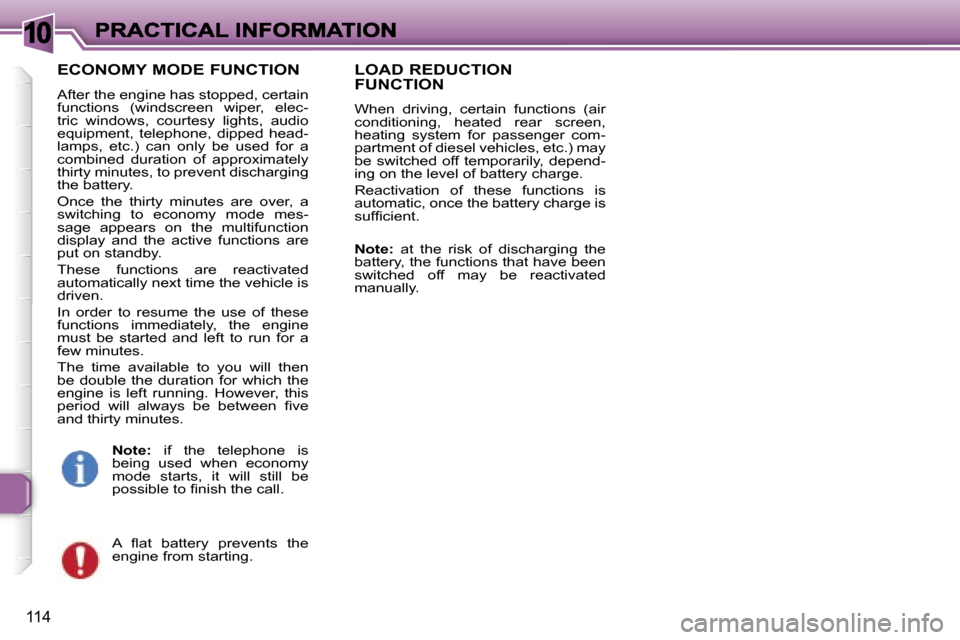

ECONOMY MODE FUNCTION
After the engine has stopped, certain functions (windscreen wiper, elec-tric windows, courtesy lights, audio equipment, telephone, dipped head-lamps, etc.) can only be used for a combined duration of approximately thirty minutes, to prevent discharging the battery.
Once the thirty minutes are over, a switching to economy mode mes-sage appears on the multifunction display and the active functions areput on standby.
These functions are reactivated automatically next time the vehicle is driven.
In order to resume the use of these functions immediately, the engine must be started and left to run for a few minutes.
The time available to you will then be double the duration for which the engine is left running. However, this period will always be between five and thirty minutes.
A flat battery prevents the engine from starting.
LOAD REDUCTION
FUNCTION
When driving, certain functions (air conditioning, heated rear screen, heating system for passenger com-partment of diesel vehicles, etc.) may be switched off temporarily, depend-ing on the level of battery charge.
Reactivation of these functions is automatic, once the battery charge is sufficient.
Note: at the risk of discharging the battery, the functions that have been switched off may be reactivated manually.
Note: if the telephone is being used when economy mode starts, it will still be possible to finish the call.

10
115

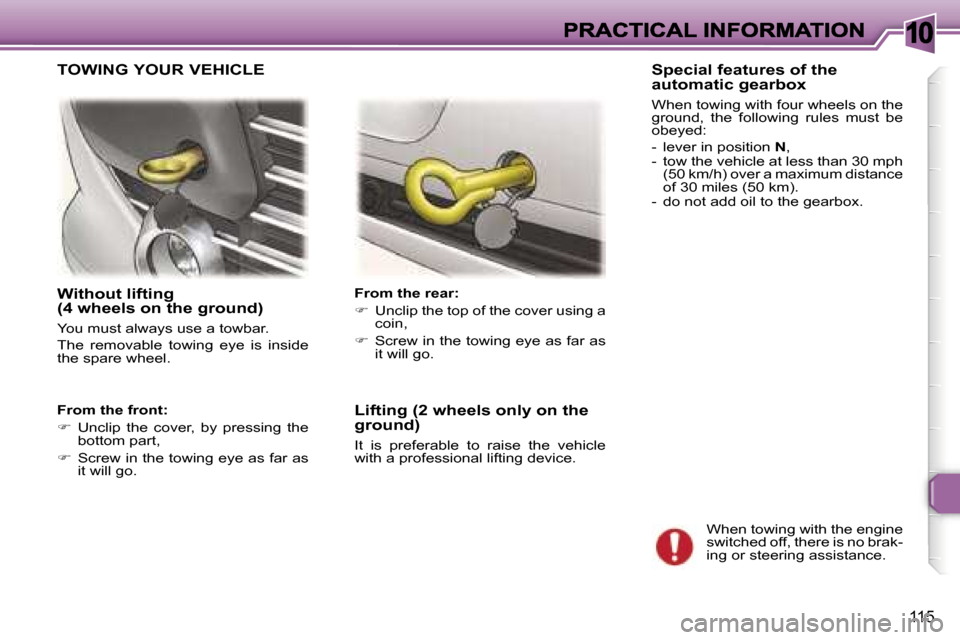

Without lifting (4 wheels on the ground)
You must always use a towbar.
The removable towing eye is inside the spare wheel.
From the rear:
 Unclip the top of the cover using a coin,
 Screw in the towing eye as far as it will go.
Special features of the automatic gearbox
When towing with four wheels on the ground, the following rules must be obeyed:
- lever in position N,- tow the vehicle at less than 30 mph (50 km/h) over a maximum distance of 30 miles (50 km).- do not add oil to the gearbox.
When towing with the engine switched off, there is no brak-ing or steering assistance.
TOWING YOUR VEHICLE
Lifting (2 wheels only on the ground)
It is preferable to raise the vehicle with a professional lifting device.
From the front:
Unclip the cover, by pressing the bottom part,
 Screw in the towing eye as far as it will go.

10
116

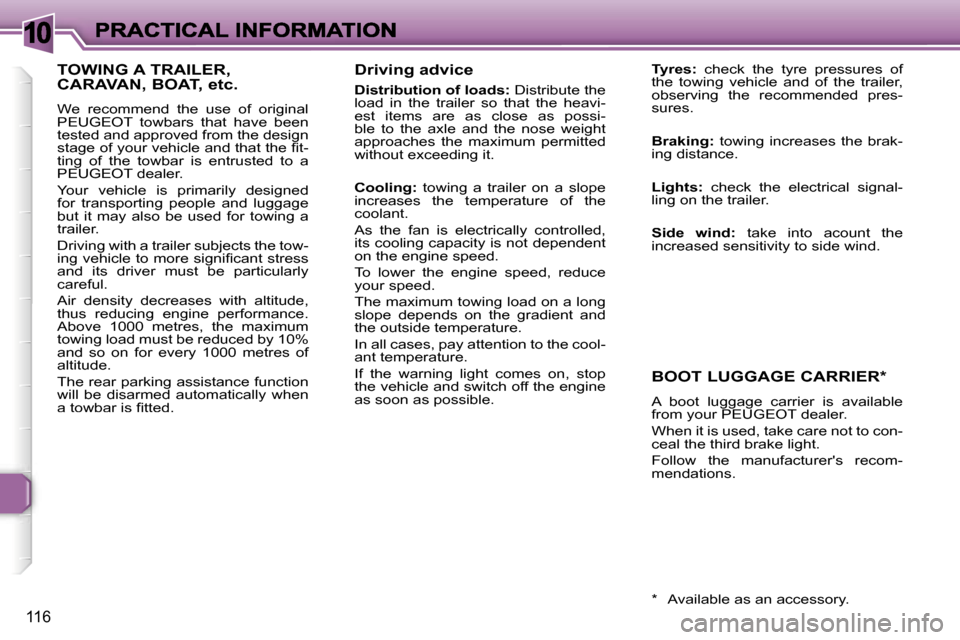

Driving advice
Distribution of loads: Distribute the load in the trailer so that the heavi-est items are as close as possi-ble to the axle and the nose weight approaches the maximum permitted without exceeding it.
Cooling: towing a trailer on a slope increases the temperature of the coolant.
As the fan is electrically controlled, its cooling capacity is not dependent on the engine speed.
To lower the engine speed, reduce your speed.
The maximum towing load on a long slope depends on the gradient and the outside temperature.
In all cases, pay attention to the cool-ant temperature.
If the warning light comes on, stop the vehicle and switch off the engine as soon as possible.
Tyres: check the tyre pressures of the towing vehicle and of the trailer, observing the recommended pres-sures.
Braking: towing increases the brak-ing distance.
Lights: check the electrical signal-ling on the trailer.
Side wind: take into acount the increased sensitivity to side wind.
TOWING A TRAILER,
CARAVAN, BOAT, etc.
We recommend the use of original PEUGEOT towbars that have been tested and approved from the design stage of your vehicle and that the fit-ting of the towbar is entrusted to a PEUGEOT dealer.
Your vehicle is primarily designed for transporting people and luggage but it may also be used for towing a trailer.
Driving with a trailer subjects the tow-ing vehicle to more significant stress and its driver must be particularly careful.
Air density decreases with altitude, thus reducing engine performance. Above 1000 metres, the maximum towing load must be reduced by 10% and so on for every 1000 metres of altitude.
The rear parking assistance function will be disarmed automatically when a towbar is fitted.
BOOT LUGGAGE CARRIER*
A boot luggage carrier is available from your PEUGEOT dealer.
When it is used, take care not to con-ceal the third brake light.
Follow the manufacturer's recom-mendations.
* Available as an accessory.

10
117

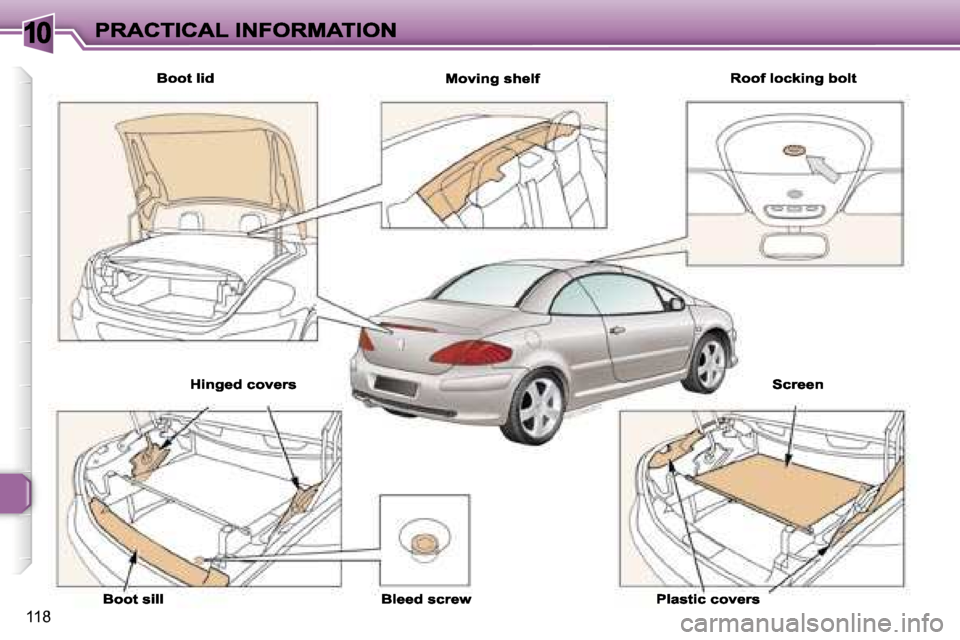

ROOF EMERGENCY MODE

10
118
