2006 Peugeot 307 CC Dag Owner's Manual

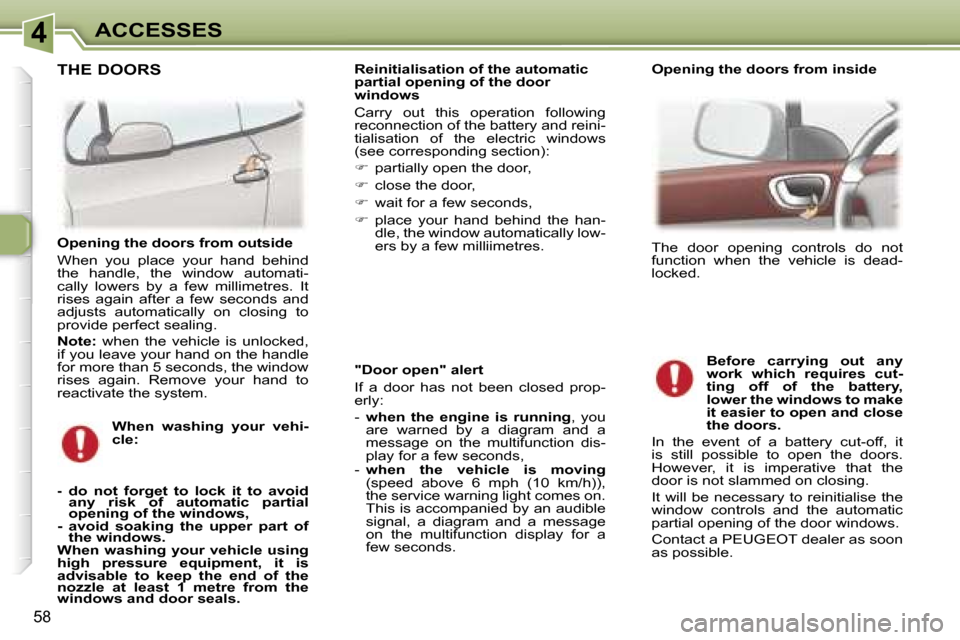

4ACCESSES
58
"Door open" alert
If a door has not been closed prop-
erly: - when the engine is running , you
are warned by a diagram and a
message on the multifunction dis-
play for a few seconds,
- when the vehicle is moving
(speed above 6 mph (10 km/h)),
the service warning light comes on.
This is accompanied by an audible
signal, a diagram and a message
on the multifunction display for a
few seconds. The door opening controls do not
function when the vehicle is dead-
locked.
Opening the doors from outside
When you place your hand behind
the handle, the window automati-
cally lowers by a few millimetres. It
rises again after a few seconds and
adjusts automatically on closing to
provide perfect sealing.
Note:
when the vehicle is unlocked,
if you leave your hand on the handle
for more than 5 seconds, the window
rises again. Remove your hand to
reactivate the system. Reinitialisation of the automatic
partial opening of the door
windows
Carry out this operation following
reconnection of the battery and reini-
tialisation of the electric windows
(see corresponding section):

partially open the door,
 close the door,
 wait for a few seconds,
 place your hand behind the han-
dle, the window automatically low-
ers by a few milliimetres.
Before carrying out any
work which requires cut-
ting off of the battery,
lower the windows to make
it easier to open and close
the doors.
In the event of a battery cut-off, it
is still possible to open the doors.
However, it is imperative that the
door is not slammed on closing.
It will be necessary to reinitialise the
window controls and the automatic
partial opening of the door windows.
Contact a PEUGEOT dealer as soon
as possible.
When washing your vehi-
cle:
- do not forget to lock it to avoid
any risk of automatic partial
opening of the windows,
- avoid soaking the upper part of the windows.
When washing your vehicle using
high pressure equipment, it is
advisable to keep the end of the
nozzle at least 1 metre from the
windows and door seals.
THE DOORSOpening the doors from inside

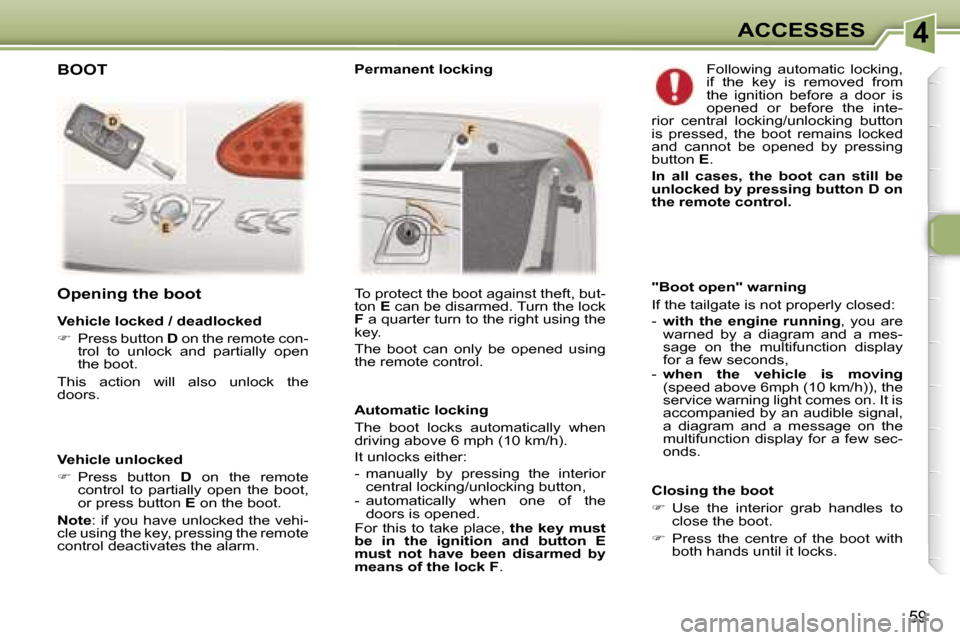

4ACCESSES
59
Vehicle unlocked
 Press button D on the remote
control to partially open the boot,
or press button E on the boot.
Note : if you have unlocked the vehi-
cle using the key, pressing the remote
control deactivates the alarm. To protect the boot against theft, but-
ton
E can be disarmed. Turn the lock
F a quarter turn to the right using the
key.
The boot can only be opened using
the remote control.
Opening the boot
Vehicle locked / deadlocked
 Press button D on the remote con-
trol to unlock and partially open
the boot.
This action will also unlock the
doors. "Boot open" warning
If the tailgate is not properly closed:
-
with the engine running , you are
warned by a diagram and a mes-
sage on the multifunction display
for a few seconds,
- when the vehicle is moving
(speed above 6mph (10 km/h)), the
service warning light comes on. It is
accompanied by an audible signal,
a diagram and a message on the
multifunction display for a few sec-
onds.
Closing the boot
 Use the interior grab handles to
close the boot.
 Press the centre of the boot with
both hands until it locks.
BOOTPermanent locking
Automatic locking
The boot locks automatically when
driving above 6 mph (10 km/h).
It unlocks either:
- manually by pressing the interior
central locking/unlocking button,
- automatically when one of the doors is opened.
For this to take place, the key must
be in the ignition and button E
must not have been disarmed by
means of the lock F . Following automatic locking,
if the key is removed from
the ignition before a door is
opened or before the inte-
rior central locking/unlocking button
is pressed, the boot remains locked
and cannot be opened by pressing
button E.
In all cases, the boot can still be
unlocked by pressing button D on
the remote control.

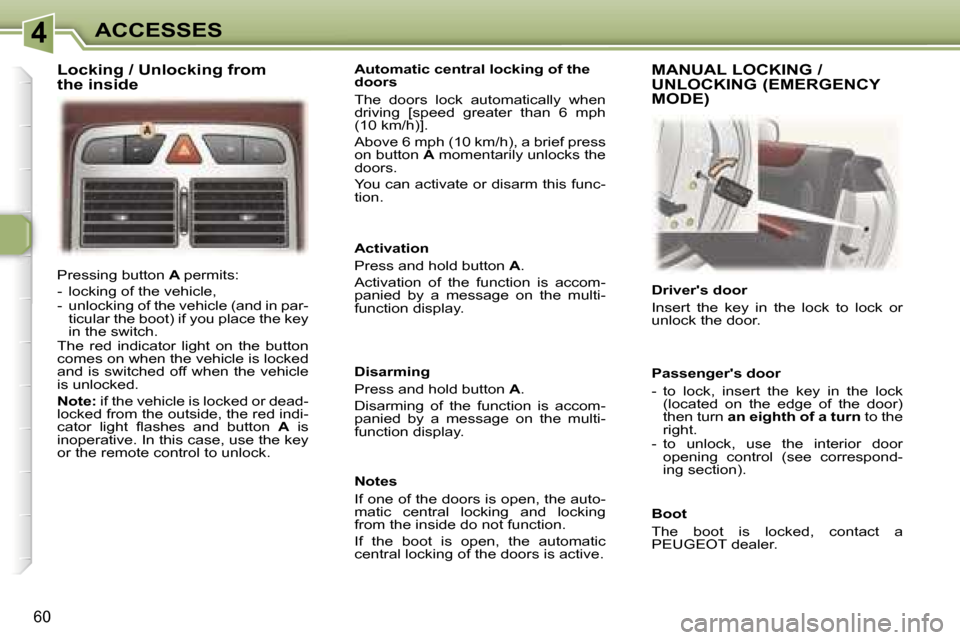

4ACCESSES
60
Pressing button A permits:
- locking of the vehicle,
- unlocking of the vehicle (and in par- ticular the boot) if you place the key
in the switch.
The red indicator light on the button
comes on when the vehicle is locked
and is switched off when the vehicle
is unlocked.
Note: if the vehicle is locked or dead-
locked from the outside, the red indi-
cator light flashes and button A is
inoperative. In this case, use the key
or the remote control to unlock. Automatic central locking of the
doors
The doors lock automatically when
driving [speed greater than 6 mph
(10 km/h)].
Above 6 mph (10 km/h), a brief press
on button
A momentarily unlocks the
doors.
You can activate or disarm this func-
tion.
Activation
Press and hold button A.
Activation of the function is accom-
panied by a message on the multi-
function display.
Disarming
Press and hold button A.
Disarming of the function is accom-
panied by a message on the multi-
function display.
Notes
If one of the doors is open, the auto-
matic central locking and locking
from the inside do not function.
If the boot is open, the automatic
central locking of the doors is active. Driver's door
Insert the key in the lock to lock or
unlock the door.
Passenger's door
- to lock, insert the key in the lock
(located on the edge of the door)
then turn an eighth of a turn to the
right.
- to unlock, use the interior door opening control (see correspond-
ing section).
Boot
The boot is locked, contact a
PEUGEOT dealer.
MANUAL LOCKING /
UNLOCKING (EMERGENCY
MODE)Locking / Unlocking from
the inside

4ACCESSES
59
Vehicle unlocked
 Press button D on the remote
control to partially open the boot,
or press button E on the boot.
Note : if you have unlocked the vehi-
cle using the key, pressing the remote
control deactivates the alarm. To protect the boot against theft, but-
ton
E can be disarmed. Turn the lock
F a quarter turn to the right using the
key.
The boot can only be opened using
the remote control.
Opening the boot
Vehicle locked / deadlocked
 Press button D on the remote con-
trol to unlock and partially open
the boot.
This action will also unlock the
doors. "Boot open" warning
If the tailgate is not properly closed:
-
with the engine running , you are
warned by a diagram and a mes-
sage on the multifunction display
for a few seconds,
- when the vehicle is moving
(speed above 6mph (10 km/h)), the
service warning light comes on. It is
accompanied by an audible signal,
a diagram and a message on the
multifunction display for a few sec-
onds.
Closing the boot
 Use the interior grab handles to
close the boot.
 Press the centre of the boot with
both hands until it locks.
BOOTPermanent locking
Automatic locking
The boot locks automatically when
driving above 6 mph (10 km/h).
It unlocks either:
- manually by pressing the interior
central locking/unlocking button,
- automatically when one of the doors is opened.
For this to take place, the key must
be in the ignition and button E
must not have been disarmed by
means of the lock F . Following automatic locking,
if the key is removed from
the ignition before a door is
opened or before the inte-
rior central locking/unlocking button
is pressed, the boot remains locked
and cannot be opened by pressing
button E.
In all cases, the boot can still be
unlocked by pressing button D on
the remote control.

4ACCESSES
60
Pressing button A permits:
- locking of the vehicle,
- unlocking of the vehicle (and in par- ticular the boot) if you place the key
in the switch.
The red indicator light on the button
comes on when the vehicle is locked
and is switched off when the vehicle
is unlocked.
Note: if the vehicle is locked or dead-
locked from the outside, the red indi-
cator light flashes and button A is
inoperative. In this case, use the key
or the remote control to unlock. Automatic central locking of the
doors
The doors lock automatically when
driving [speed greater than 6 mph
(10 km/h)].
Above 6 mph (10 km/h), a brief press
on button
A momentarily unlocks the
doors.
You can activate or disarm this func-
tion.
Activation
Press and hold button A.
Activation of the function is accom-
panied by a message on the multi-
function display.
Disarming
Press and hold button A.
Disarming of the function is accom-
panied by a message on the multi-
function display.
Notes
If one of the doors is open, the auto-
matic central locking and locking
from the inside do not function.
If the boot is open, the automatic
central locking of the doors is active. Driver's door
Insert the key in the lock to lock or
unlock the door.
Passenger's door
- to lock, insert the key in the lock
(located on the edge of the door)
then turn an eighth of a turn to the
right.
- to unlock, use the interior door opening control (see correspond-
ing section).
Boot
The boot is locked, contact a
PEUGEOT dealer.
MANUAL LOCKING /
UNLOCKING (EMERGENCY
MODE)Locking / Unlocking from
the inside

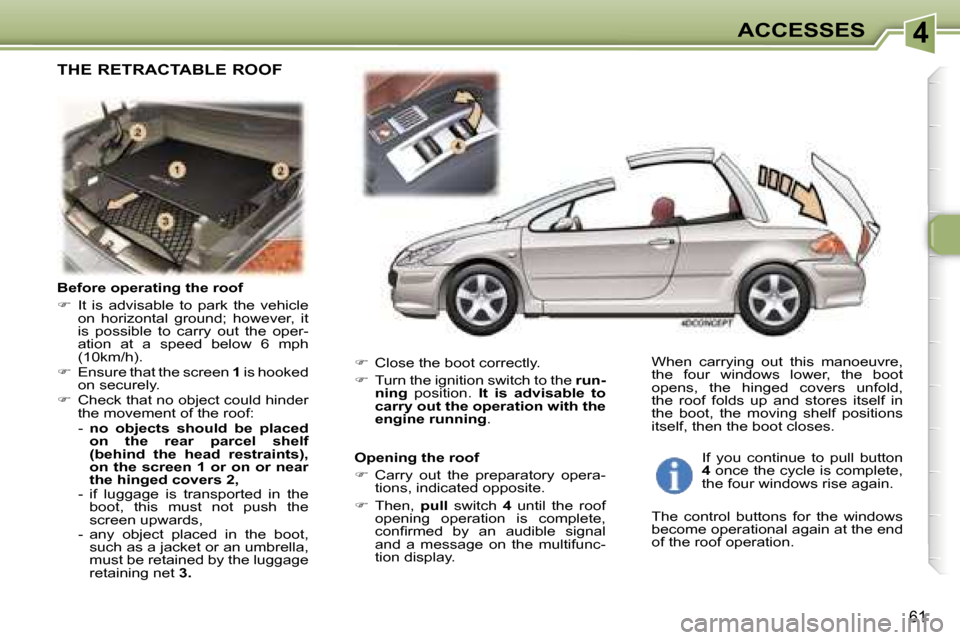

4ACCESSES
61
Before operating the roof
 It is advisable to park the vehicle
on horizontal ground; however, it
is possible to carry out the oper-
ation at a speed below 6 mph
(10km/h).
 Ensure that the screen 1 is hooked
on securely.
 Check that no object could hinder
the movement of the roof:
- no objects should be placed
on the rear parcel shelf
(behind the head restraints),
on the screen 1 or on or near
the hinged covers 2,
- if luggage is transported in the boot, this must not push the
screen upwards,
- any object placed in the boot, such as a jacket or an umbrella,
must be retained by the luggage
retaining net 3. 
Close the boot correctly.
 Turn the ignition switch to the run-
ning position. It is advisable to
carry out the operation with the
engine running . When carrying out this manoeuvre,
the four windows lower, the boot
opens, the hinged covers unfold,
the roof folds up and stores itself in
the boot, the moving shelf positions
itself, then the boot closes.
Opening the roof
 Carry out the preparatory opera-
tions, indicated opposite.
 Then, pull switch 4 until the roof
opening operation is complete,
confirmed by an audible signal
and a message on the multifunc-
tion display.
THE RETRACTABLE ROOF
If you continue to pull button
4 once the cycle is complete,
the four windows rise again.
The control buttons for the windows
become operational again at the end
of the roof operation.

4ACCESSES
62
Closing the roof
 Carry out the preparatory opera-
tions, indicated on the previous
page.
 Then, press button 4 until the roof
closing operation is complete,
confirmed by an audible signal
and a message on the multifunc-
tion display.
When carrying out this manoeuvre,
the four windows lower, the boot
opens, the moving shelf and the roof
unfold and position themselves, the
hinged covers fold, then the boot
closes. If you continue to press but-
ton
4 once the cycle is com-
plete, the four windows rise
again. During roof opening and
closing operations, to avoid
any risk of injury, ensure that
there is no-one in the prox-
imity of the moving parts.
Operation of the roof is the sole
responsibility of the driver.
Carry out one complete roof manoeu-
vre at least once a month to keep it in
perfect working order.
After rain or washing the vehicle, it is
advisable to wait for the roof to dry
before opening it.
To guarantee correct operation,
do not release button 4 when the
roof is in an intermediate position
(neither completely open nor com-
pletely closed). However, in the
event of danger, release the con-
trol knob and the operation will
stop instantly. Once the danger
has been eliminated, complete the
operation.
The control buttons for the windows
become operational again at the end
of the roof operation.
In the case of an electric or hydraulic
malfunction of the roof, switch off the
ignition, restart the engine, then start
the required operation again.
If the problem persists, it is possible
to close the roof manually.
To do this, please consult the
breakdown procedure described
at the end of this handbook (roof
emergency mode).

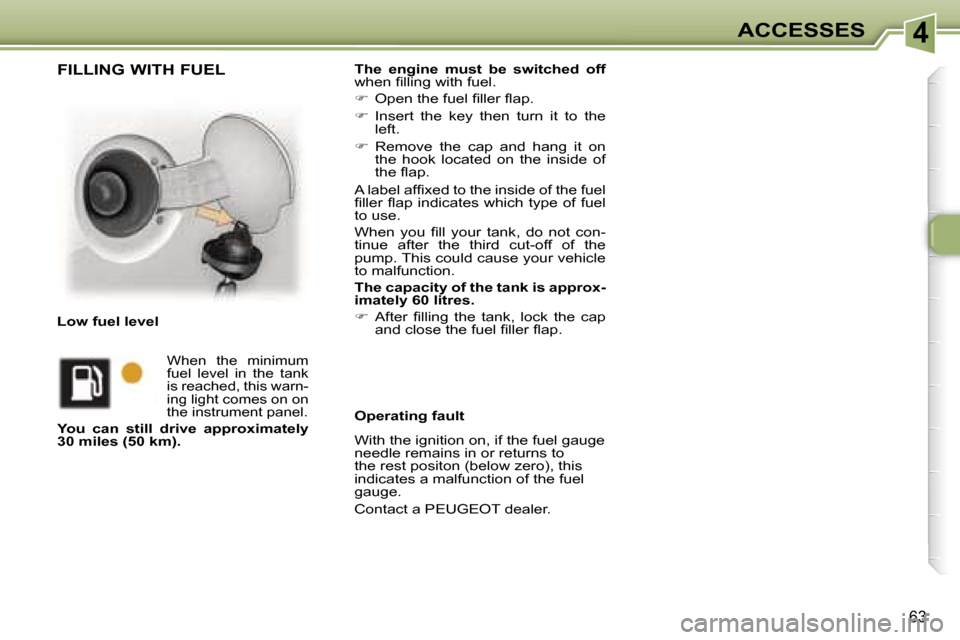

4ACCESSES
63
The engine must be switched off
when filling with fuel.
 Open the fuel filler flap.
 Insert the key then turn it to the
left.
 Remove the cap and hang it on
the hook located on the inside of
the flap.
A label affixed to the inside of the fuel
filler flap indicates which type of fuel
to use.
When you fill your tank, do not con-
tinue after the third cut-off of the
pump. This could cause your vehicle
to malfunction.
The capacity of the tank is approx-
imately 60 litres.
 After filling the tank, lock the cap
and close the fuel filler flap.
Low fuel level
When the minimum
fuel level in the tank
is reached, this warn-
ing light comes on on
the instrument panel.
You can still drive approximately
30 miles (50 km).
Operating fault
With the ignition on, if the fuel gauge
needle remains in or returns to
the rest positon (below zero), this
indicates a malfunction of the fuel
gauge.
Contact a PEUGEOT dealer.
FILLING WITH FUEL
