11TECHNICAL DATA
127

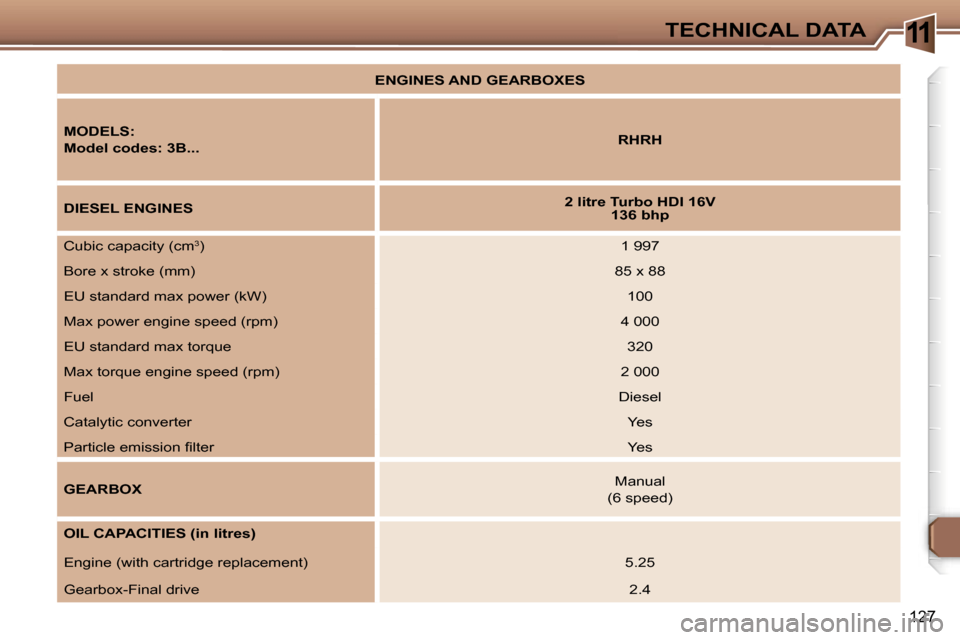

ENGINES AND GEARBOXES
MODELS:
Model codes: 3B... RHRH
DIESEL ENGINES 2 litre Turbo HDI 16V
136 bhp
Cubic capacity (cm
3) 1 997
Bore x stroke (mm) 85 x 88
EU standard max power (kW) 100
Max power engine speed (rpm) 4 000
EU standard max torque 320
Max torque engine speed (rpm) 2 000
Fuel Diesel
Catalytic converter Yes
Particle emission filter Yes
GEARBOX Manual
(6 speed)
OIL CAPACITIES (in litres)
Engine (with cartridge replacement) 5.25
Gearbox-Final drive 2.4

11TECHNICAL DATA
128

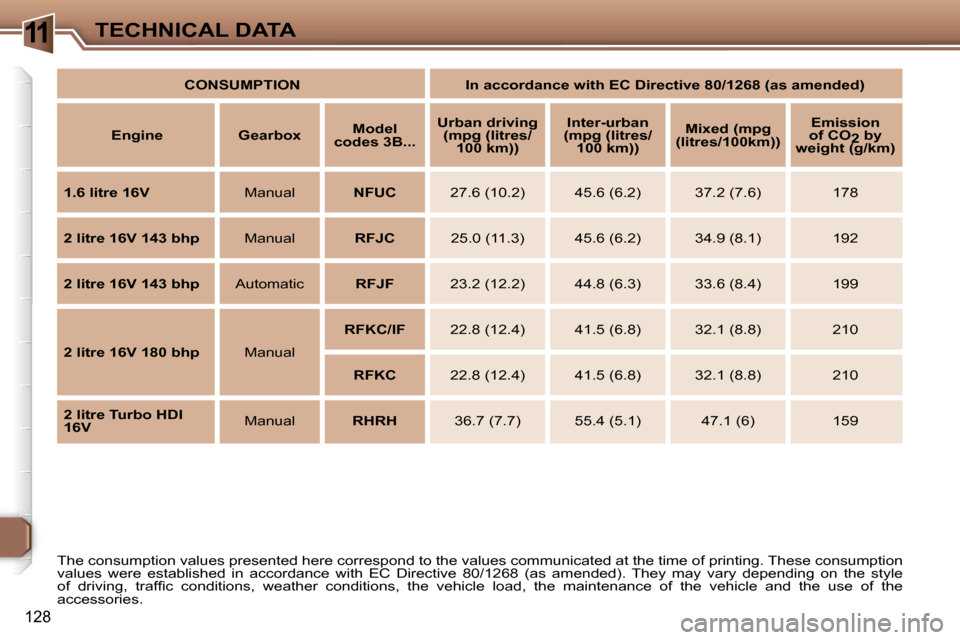

The consumption values presented here correspond to the values communicated at the time of printing. These consumption
values were established in accordance with EC Directive 80/1268 (as amended). They may vary depending on the style
of driving, traffic conditions, weather conditions, the vehicle load, the maintenance of the vehicle and the use of the
accessories. CONSUMPTION In accordance with EC Directive 80/1268 (as ame
nded)
Engine Gearbox Model
codes 3B... Urban driving
(mpg (litres/ 100 km)) Inter-urban
(mpg (litres/ 100 km)) Mixed (mpg
(litres/100km)) Emission
of CO 2 by
weight (g/km)
1.6 litre 16V ManualNFUC27.6 (10.2) 45.6 (6.2) 37.2 (7.6) 178
2 litre 16V 143 bhp ManualRFJC25.0 (11.3) 45.6 (6.2) 34.9 (8.1) 192
2 litre 16V 143 bhp AutomaticRFJF23.2 (12.2) 44.8 (6.3) 33.6 (8.4) 199
2 litre 16V 180 bhp ManualRFKC/IF
22.8 (12.4) 41.5 (6.8) 32.1 (8.8) 210
RFKC 22.8 (12.4) 41.5 (6.8) 32.1 (8.8) 210
2 litre Turbo HDI
16V Manual
RHRH36.7 (7.7) 55.4 (5.1) 47.1 (6) 159

11TECHNICAL DATA
129

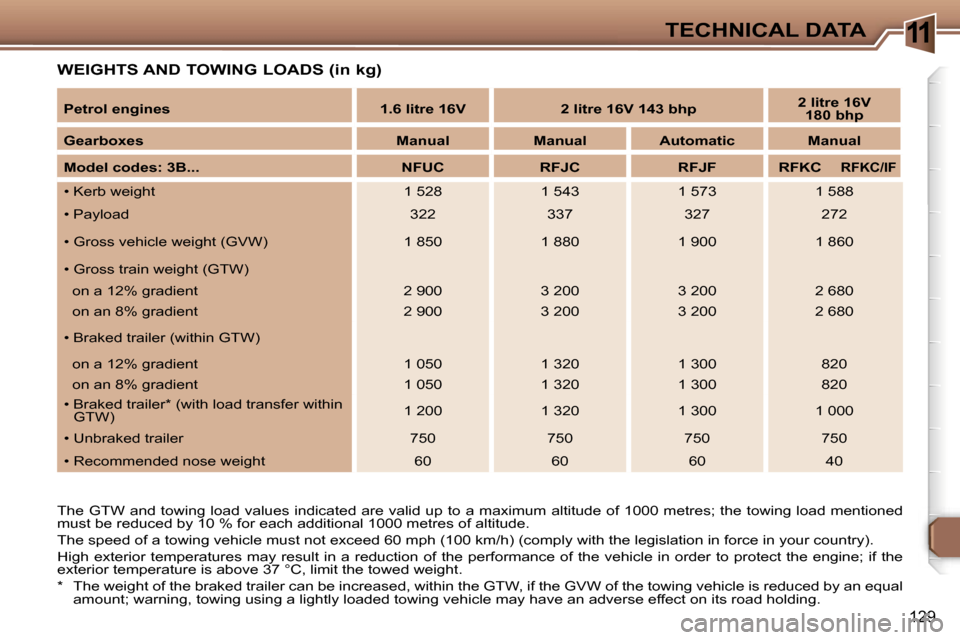

WEIGHTS AND TOWING LOADS (in kg)
The GTW and towing load values indicated are valid up to a maximum altitude of 1000 metres; the towing load mention ed
must be reduced by 10 % for each additional 1000 metres of al titude.
The speed of a towing vehicle must not exceed 60 mph (100 km/ h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction of the perfo rmance of the vehicle in order to protect the engine; if the
exterior temperature is above 37 °C, limit the towed weight.
* The weight of the braked trailer can be increased, within the GTW, if the GVW of the towing vehicle is reduced by a n equal
amount; warning, towing using a lightly loaded towing ve hicle may have an adverse effect on its road holding.
Petrol engines 1.6 litre 16V 2 litre 16V 143 bhp
2 litre 16V
180 bhp
Gearboxes Manual Manual Automatic Manual
Model codes: 3B... NFUC RFJC RFJF RFKC
RFKC/IF
• Kerb weight 1 528 1 543 1 573 1 588
• Payload 322 337 327 272
• Gross vehicle weight (GVW) 1 850 1 880 1 900 1 860
• Gross train weight (GTW)
on a 12% gradient 2 900 3 200 3 200 2 680
on an 8% gradient 2 900 3 200 3 200 2 680
• Braked trailer (within GTW)
on a 12% gradient 1 050 1 320 1 300 820
on an 8% gradient 1 050 1 320 1 300 820
• Braked trailer* (with load transfer within GTW) 1 200 1 320 1 300 1 000
• Unbraked trailer 750 750 750 750
• Recommended nose weight 60 60 60 40

11TECHNICAL DATA
130

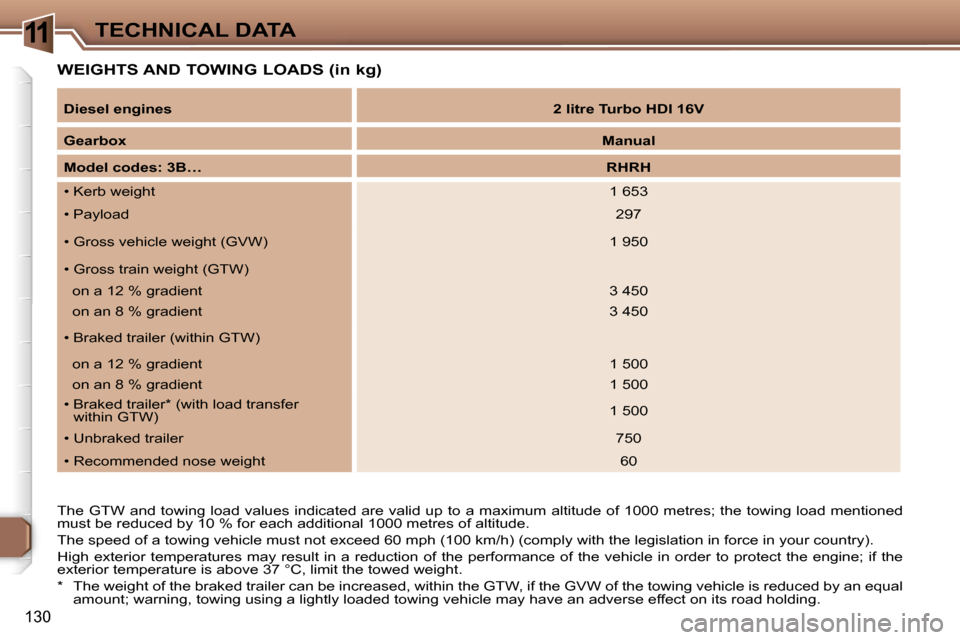

WEIGHTS AND TOWING LOADS (in kg)
The GTW and towing load values indicated are valid up to a maximum altitude of 1000 metres; the towing load mention ed
must be reduced by 10 % for each additional 1000 metres of al titude.
The speed of a towing vehicle must not exceed 60 mph (100 km/ h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction of the perfo rmance of the vehicle in order to protect the engine; if the
exterior temperature is above 37 °C, limit the towed weight.
* The weight of the braked trailer can be increased, within the GTW, if the GVW of the towing vehicle is reduced by a n equal
amount; warning, towing using a lightly loaded towing ve hicle may have an adverse effect on its road holding.
Diesel engines
2 litre Turbo HDI 16V
Gearbox Manual
Model codes: 3B… RHRH
• Kerb weight 1 653
• Payload 297
• Gross vehicle weight (GVW) 1 950
• Gross train weight (GTW)
on a 12 % gradient 3 450
on an 8 % gradient 3 450
• Braked trailer (within GTW)
on a 12 % gradient 1 500
on an 8 % gradient 1 500
• Braked trailer* (with load transfer within GTW) 1 500
• Unbraked trailer 750
• Recommended nose weight 60

11TECHNICAL DATA
131

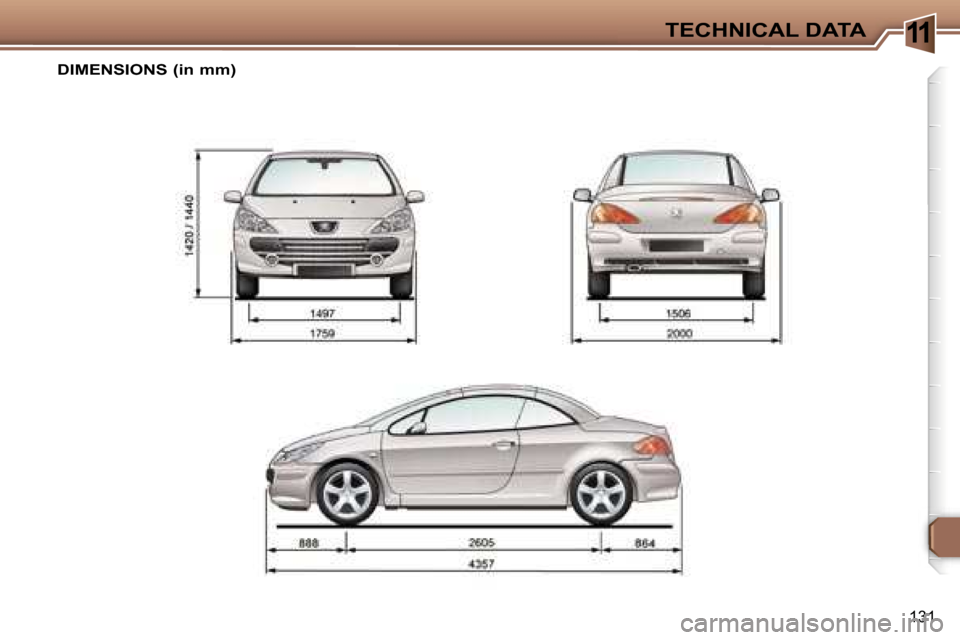

DIMENSIONS (in mm)

11TECHNICAL DATA
132
THE IDENTIFICATION FEATURES OF YOUR 307 CC
D. Tyres and paint colour reference.
The label D on the driver's door pillar,
near the hinges, indicates:
- the wheel and tyre sizes,
- the brands of tyres approved by the manufacturer,
- the tyre pressures ,
- the paint colour reference. The tyre pressure must be
checked when the tyre is
cold, at least once a month.
If the tyre pressure is too low,
this increases the fuel con-
sumption.
A. Manufacturer's plate.
B. Serial number on the
bodywork.
C. Serial number on the fascia.

133
RT3
AUDIO EQUIPMENT / TELEPONE / GPS
CONTENTS
• 01 First steps pg. 134
• 02 General menu pg. 135
• 03 GPS pg. 136
• 04 Audio pg. 143
• 05 Telephone pg. 145
• 06 Control short-cuts pg. 148
• 07 Configuration pg. 150
• 08 Display flow charts pg. 152
The INFOTEC internet site provides additional
animated information on the RT3. It can be consulte
d
at the following address: http://public.infotec.peu geot.
com
Simple registration permits access and free consultation of
the handbook.
The RT3 GPS audio/telephone is coded in such a
way that it will only operate in your vehicle. If i t is to be
installed in another vehicle, contact your PEUGEOT
dealer for configuration of the system.
For safety reasons, the driver must carry out
operations which require prolonged attention while
the vehicle is stationary.

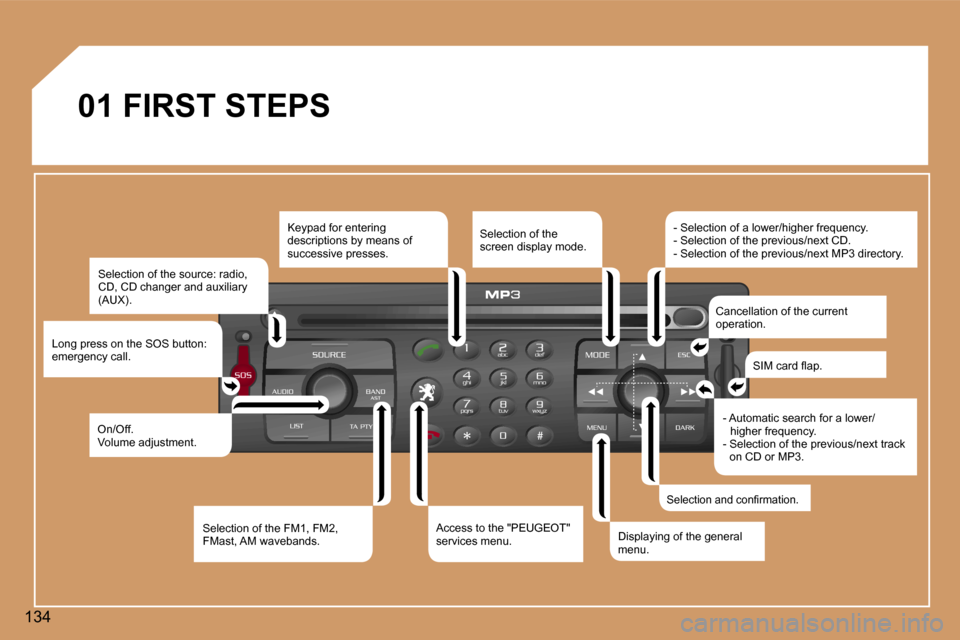

13401 FIRST STEPS
Selection of the source: radio,
CD, CD changer and auxiliary
(AUX).
Long press on the SOS button:
emergency call.
On/Off.
Volume adjustment.
Selection of the FM1, FM2,
FMast, AM wavebands.Keypad for entering
descriptions by means of
successive presses.
Access to the "PEUGEOT"
services menu. Displaying of the general
menu.SIM card flap.
Cancellation of the current
operation.
- Selection of a lower/higher frequency.
- Selection of the previous/next CD.
- Selection of the previous/next MP3 directory.
- Automatic search for a lower/higher frequency.
- Selection of the previous/next track on CD or MP3.
Selection and confirmation.
Selection of the
screen display mode.
