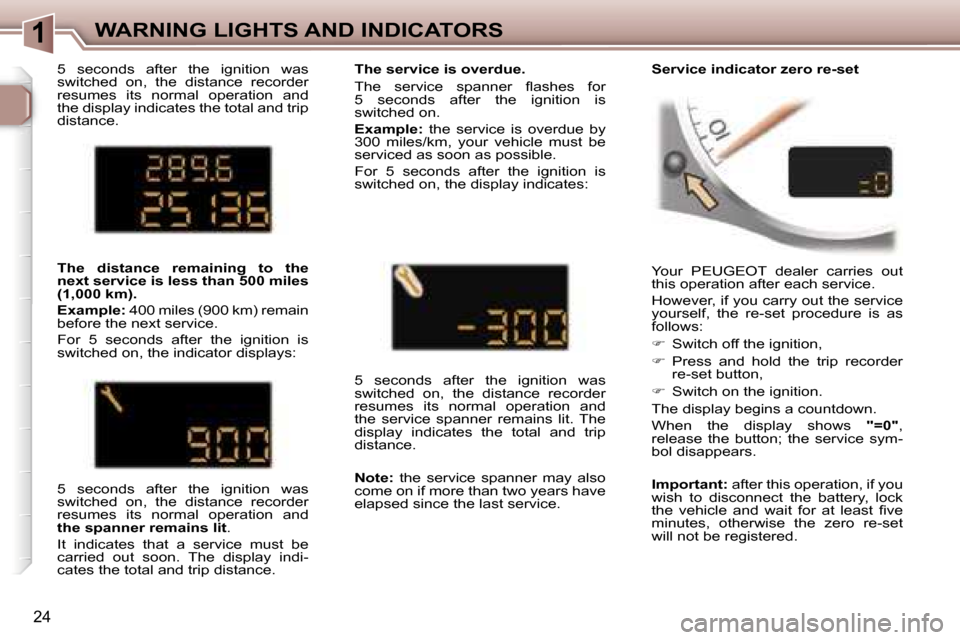

1WARNING LIGHTS AND INDICATORS
24
Your PEUGEOT dealer carries out
this operation after each service.
However, if you carry out the service
yourself, the re-set procedure is as
follows:
 Switch off the ignition,
 Press and hold the trip recorder
re-set button,
 Switch on the ignition.
The display begins a countdown.
When the display shows "=0",
release the button; the service sym-
bol disappears.
Important: after this operation, if you
wish to disconnect the battery, lock
the vehicle and wait for at least five
minutes, otherwise the zero re-set
will not be registered.
The service is overdue.
The service spanner flashes for
5 seconds after the ignition is
switched on.
Example:
the service is overdue by
300 miles/km, your vehicle must be
serviced as soon as possible.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition was
switched on, the distance recorder
resumes its normal operation and
the service spanner remains lit. The
display indicates the total and trip
distance.
Note: the service spanner may also
come on if more than two years have
elapsed since the last service.
The distance remaining to the
next service is less than 500 miles
(1,000 km).
Example:
400 miles (900 km) remain
before the next service.
For 5 seconds after the ignition is
switched on, the indicator displays:
5 seconds after the ignition was
switched on, the distance recorder
resumes its normal operation and
the spanner remains lit .
It indicates that a service must be
carried out soon. The display indi-
cates the total and trip distance.
5 seconds after the ignition was
switched on, the distance recorder
resumes its normal operation and
the display indicates the total and trip
distance.
Service indicator zero re-set

1WARNING LIGHTS AND INDICATORS
24
Your PEUGEOT dealer carries out
this operation after each service.
However, if you carry out the service
yourself, the re-set procedure is as
follows:
 Switch off the ignition,
 Press and hold the trip recorder
re-set button,
 Switch on the ignition.
The display begins a countdown.
When the display shows "=0",
release the button; the service sym-
bol disappears.
Important: after this operation, if you
wish to disconnect the battery, lock
the vehicle and wait for at least five
minutes, otherwise the zero re-set
will not be registered.
The service is overdue.
The service spanner flashes for
5 seconds after the ignition is
switched on.
Example:
the service is overdue by
300 miles/km, your vehicle must be
serviced as soon as possible.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition was
switched on, the distance recorder
resumes its normal operation and
the service spanner remains lit. The
display indicates the total and trip
distance.
Note: the service spanner may also
come on if more than two years have
elapsed since the last service.
The distance remaining to the
next service is less than 500 miles
(1,000 km).
Example:
400 miles (900 km) remain
before the next service.
For 5 seconds after the ignition is
switched on, the indicator displays:
5 seconds after the ignition was
switched on, the distance recorder
resumes its normal operation and
the spanner remains lit .
It indicates that a service must be
carried out soon. The display indi-
cates the total and trip distance.
5 seconds after the ignition was
switched on, the distance recorder
resumes its normal operation and
the display indicates the total and trip
distance.
Service indicator zero re-set

1WARNING LIGHTS AND INDICATORS
25

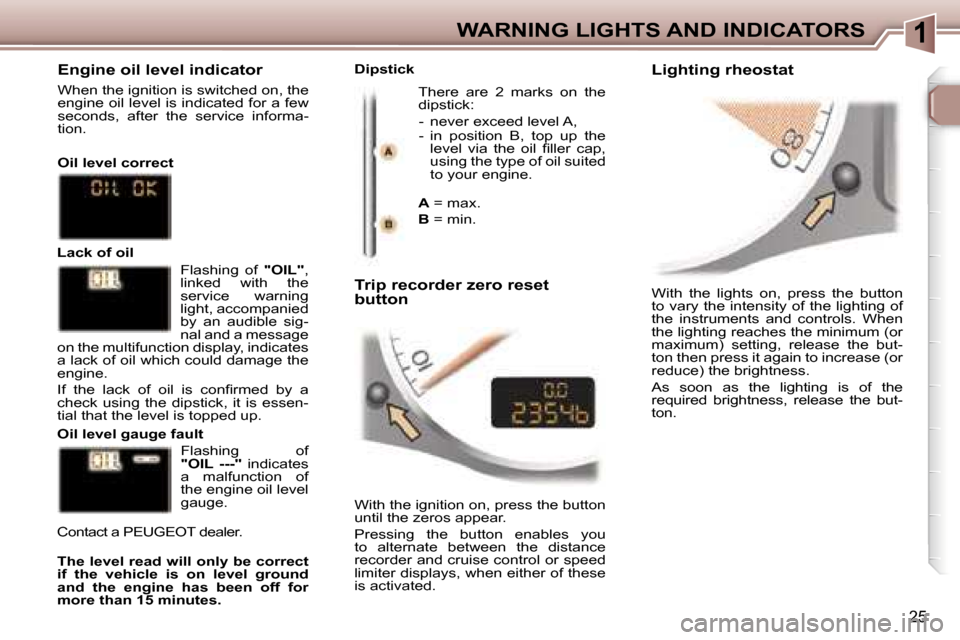

With the lights on, press the button
to vary the intensity of the lighting of
the instruments and controls. When
the lighting reaches the minimum (or
maximum) setting, release the but-
ton then press it again to increase (or
reduce) the brightness.
As soon as the lighting is of the
required brightness, release the but-
ton.
With the ignition on, press the button
until the zeros appear.
Pressing the button enables you
to alternate between the distance
recorder and cruise control or speed
limiter displays, when either of these
is activated.
Engine oil level indicator
When the ignition is switched on, the
engine oil level is indicated for a few
seconds, after the service informa-
tion.
Oil level correct
Oil level gauge fault Flashing of
"OIL ---" indicates
a malfunction of
the engine oil level
gauge.
Contact a PEUGEOT dealer.
The level read will only be correct
if the vehicle is on level ground
and the engine has been off for
more than 15 minutes.
Flashing of
"OIL",
linked with the
service warning
light, accompanied
by an audible sig-
nal and a message
on the multifunction display, indicates
a lack of oil which could damage the
engine.
If the lack of oil is confirmed by a
check using the dipstick, it is essen-
tial that the level is topped up.
Lack of oil Dipstick
There are 2 marks on the
dipstick:- never exceed level A,
- in position B, top up the level via the oil filler cap,
using the type of oil suited
to your engine.
A = max.
B = min.
Lighting rheostat
Trip recorder zero reset
button

1WARNING LIGHTS AND INDICATORS
26

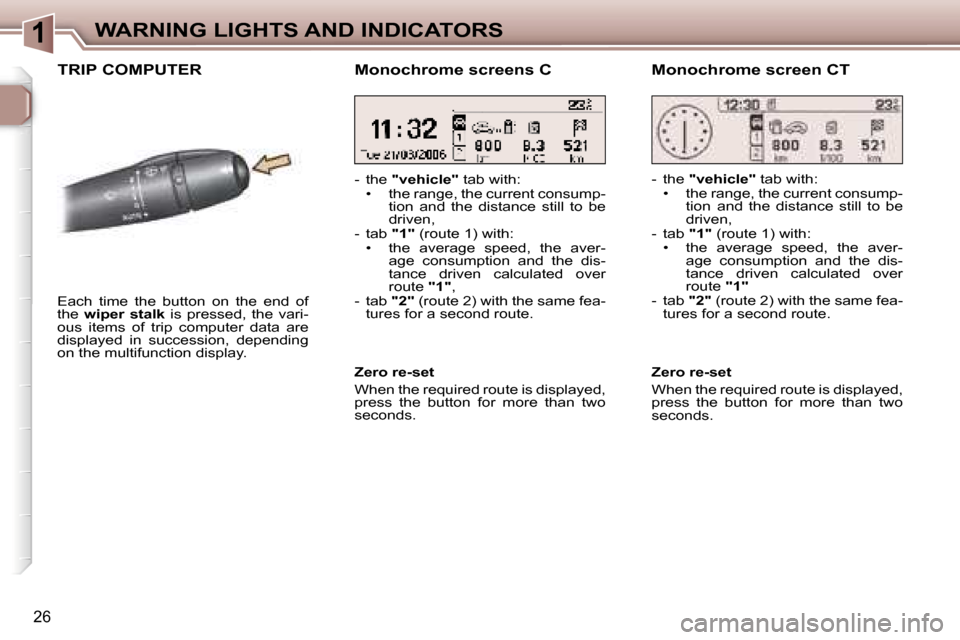

TRIP COMPUTER
Each time the button on the end of
the wiper stalk is pressed, the vari-
ous items of trip computer data are
displayed in succession, depending
on the multifunction display.
Monochrome screen CT
- the "vehicle" tab with:
• the range, the current consump- tion
and the distance still to be
driven,
- tab "1" (route 1) with:
• the average speed, the aver- age consumption and the dis-
tance driven calculated over
route "1"
- tab "2" (route 2) with the same fea-
tures for a second route.
Zero re-set
When the required route is displayed,
press the button for more than two
seconds.
Monochrome screens C
- the "vehicle" tab with:
• the range, the current consump- tion and the distance still to be
driven,
- tab "1" (route 1) with:
• the average speed, the aver- age consumption and the dis-
tance driven calculated over
route "1",
- tab "2" (route 2) with the same fea-
tures for a second route.
Zero re-set
When the required route is displayed,
press the button for more than two
seconds.

1WARNING LIGHTS AND INDICATORS
27

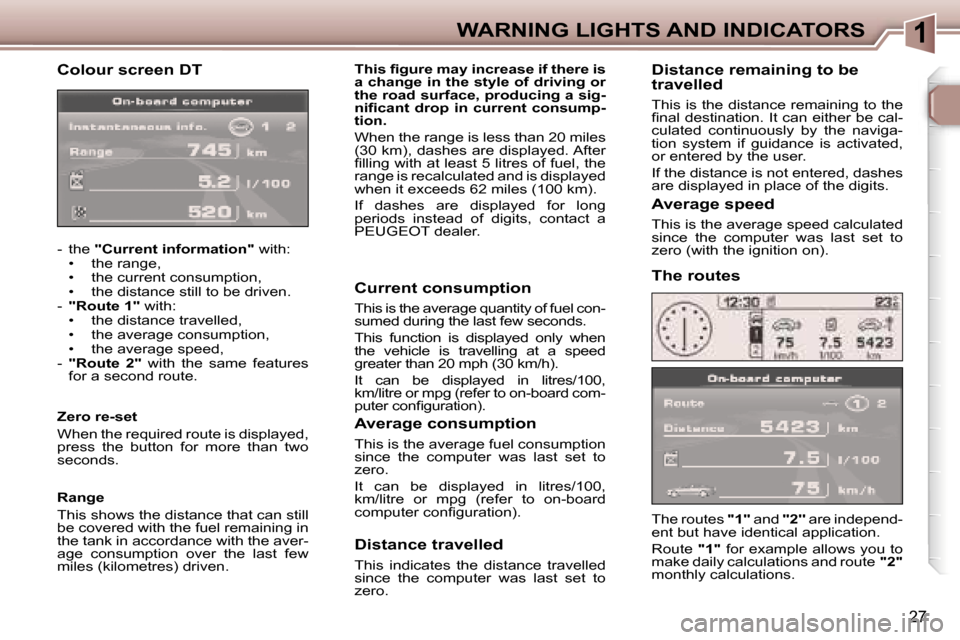

Colour screen DT
- the "Current information" with:
• the range,
• the current consumption,
• the distance still to be driven.
- "Route 1" with:
• the distance travelled,
• the average consumption,
• the average speed,
- "Route 2" with the same features
for a second route.
Zero re-set
When the required route is displayed,
press the button for more than two
seconds. This figure may increase if there is
a change in the style of driving or
the road surface, producing a sig-
nificant drop in current consump-
tion.
When the range is less than 20 miles
(30 km), dashes are displayed. After
filling with at least 5 litres of fuel, the
range is recalculated and is displayed
when it exceeds 62 miles (100 km).
If dashes are displayed for long
periods instead of digits, contact a
PEUGEOT dealer.
Current consumption
This is the average quantity of fuel con-
sumed during the last few seconds.
This function is displayed only when
the vehicle is travelling at a speed
greater than 20 mph (30 km/h).
It can be displayed in litres/100,
km/litre or mpg (refer to on-board com-
puter configuration).
Average consumption
This is the average fuel consumption
since the computer was last set to
zero.
It can be displayed in litres/100,
km/litre or mpg (refer to on-board
computer configuration).
Distance travelled
This indicates the distance travelled
since the computer was last set to
zero.
The routes
"1" and ''2'' are independ-
ent but have identical application.
Route "1" for example allows you to
make daily calculations and route "2"
monthly calculations.
Distance remaining to be
travelled
This is the distance remaining to the
final destination. It can either be cal-
culated continuously by the naviga-
tion system if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
Average speed
This is the average speed calculated
since the computer was last set to
zero (with the ignition on).
The routes
Range
This shows the distance that can still
be covered with the fuel remaining in
the tank in accordance with the aver-
age consumption over the last few
miles (kilometres) driven.

1WARNING LIGHTS AND INDICATORS
28

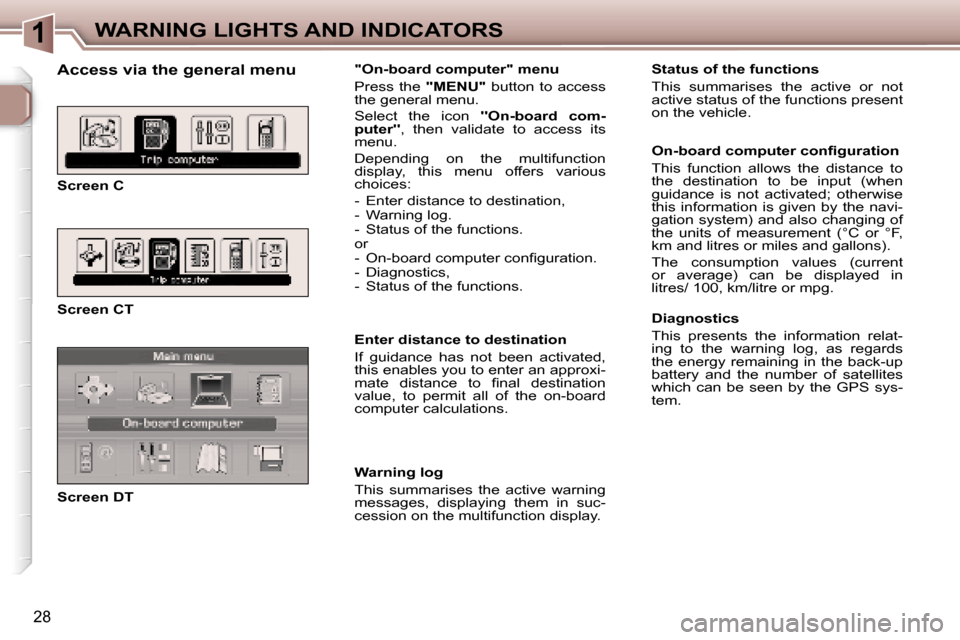

Access via the general menu
Screen C
Screen CT
Screen DT"On-board computer" menu
Press the
"MENU" button to access
the general menu.
Select the icon ''On-board com-
puter'' , then validate to access its
menu.
Depending on the multifunction
display, this menu offers various
choices:
- Enter distance to destination,
- Warning log.
- Status of the functions.
or
- On-board computer configuration.
- Diagnostics,
- Status of the functions.
Enter distance to destination
If guidance has not been activated,
this enables you to enter an approxi-
mate distance to final destination
value, to permit all of the on-board
computer calculations.
Warning log
This summarises the active warning
messages, displaying them in suc-
cession on the multifunction display. Status of the functions
This summarises the active or not
active status of the functions present
on the vehicle.
On-board computer configuration
This function allows the distance to
the destination to be input (when
guidance is not activated; otherwise
this information is given by the navi-
gation system) and also changing of
the units of measurement (°C or °F,
km and litres or miles and gallons).
The consumption values (current
or average) can be displayed in
litres/ 100, km/litre or mpg.
Diagnostics
This presents the information relat-
ing to the warning log, as regards
the energy remaining in the back-up
battery and the number of satellites
which can be seen by the GPS sys-
tem.

2MULTIFUNCTION DISPLAYS
29

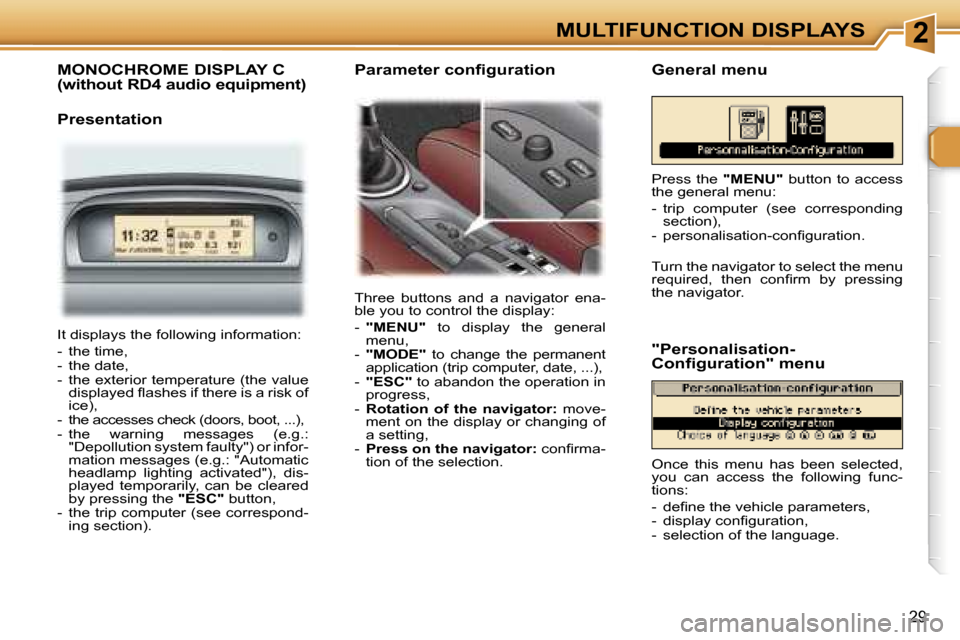

MONOCHROME DISPLAY C
(without RD4 audio equipment)
Presentation
Three buttons and a navigator ena-
ble you to control the display:
- "MENU" to display the general
menu,
- "MODE" to change the permanent
application (trip computer, date, ...),
- "ESC" to abandon the operation in
progress,
- Rotation of the navigator: move-
ment on the display or changing of
a setting,
- Press on the navigator: confirma-
tion of the selection.
It displays the following information:
- the time,
- the date,
- the exterior temperature (the value
displayed flashes if there is a risk of
ice),
- the accesses check (doors, boot, ...),
- the warning messages (e.g.: "Depollution system faulty") or infor-
mation messages (e.g.: "Automatic
headlamp lighting activated"), dis-
played temporarily, can be cleared
by pressing the "ESC" button,
- the trip computer (see correspond- ing section). Press the
"MENU" button to access
the general menu:
- trip computer (see corresponding section),
- personalisation-configuration.
Turn the navigator to select the menu
required, then confirm by pressing
the navigator.
Once this menu has been selected,
you can access the following func-
tions:
- define the vehicle parameters,
- display configuration,
- selection of the language.
Parameter configuration General menu
"Personalisation-
Configuration" menu

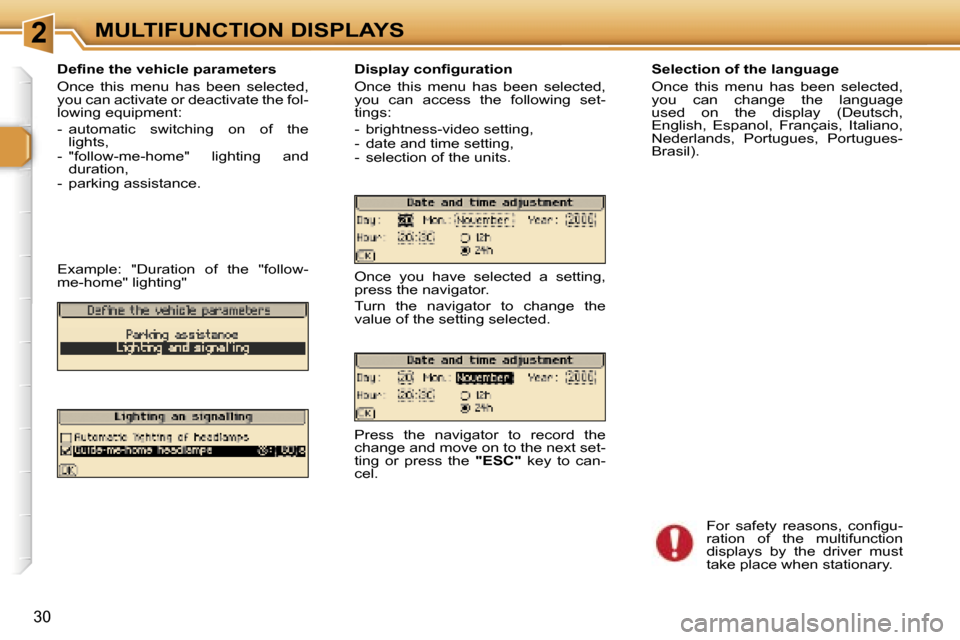

2MULTIFUNCTION DISPLAYS
30
Define the vehicle parameters
Once this menu has been selected,
you can activate or deactivate the fol-
lowing equipment:
- automatic switching on of the lights,
- "follow-me-home" lighting and duration,
- parking assistance. Selection of the language
Once this menu has been selected,
you can change the language
used on the display (Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil).
Display configuration
Once this menu has been selected,
you can access the following set-
tings:
- brightness-video setting,
- date and time setting,
- selection of the units.
Once you have selected a setting,
press the navigator.
Turn the navigator to change the
value of the setting selected.
Press the navigator to record the
change and move on to the next set-
ting or press the
"ESC" key to can-
cel.Example: "Duration of the "follow-
me-home" lighting"
For safety reasons, configu-
ration of the multifunction
displays by the driver must
take place when stationary.
