2006 Peugeot 206 SW Dag Owner's Manual

Accesses102 -
ELECTRONIC ENGINE
IMMOBILISER
This locks the engine control sys-
tem as soon as the ignition has been
switched off and therefore prevents
starting of the vehicle by anyone who
does not have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code
must be recognised for starting to be
possible.

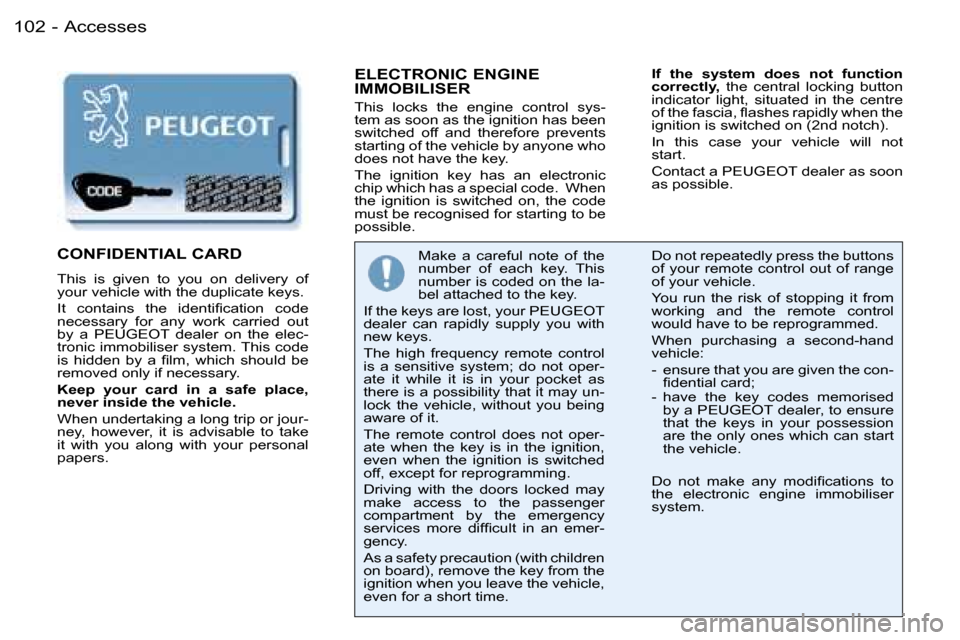

CONFIDENTIAL CARD
This is given to you on delivery of
your vehicle with the duplicate keys.
It contains the identification code
necessary for any work carried out
by a PEUGEOT dealer on the elec-
tronic immobiliser system. This code
is hidden by a film, which should be
removed only if necessary.
Keep your card in a safe place,
never inside the vehicle.

When undertaking a long trip or jour-
ney, however, it is advisable to take
it with you along with your personal
papers.Make a careful note of the
number of each key. This
number is coded on the la-
bel attached to the key.
If the keys are lost, your PEUGEOT
dealer can rapidly supply you with
new keys.
The high frequency remote control
is a sensitive system; do not oper-
ate it while it is in your pocket as
there is a possibility that it may un-
lock the vehicle, without you being
aware of it.
The remote control does not oper-
ate when the key is in the ignition,
even when the ignition is switched
off, except for reprogramming.
Driving with the doors locked may
make access to the passenger
compartment by the emergency
services more difficult in an emer-
gency.
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time. Do not repeatedly press the buttons
of your remote control out of range
of your vehicle.
You run the risk of stopping it from
working and the remote control
would have to be reprogrammed.
When purchasing a second-hand
vehicle:
- ensure that you are given the con-
fidential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure
that the keys in your possession
are the only ones which can start
the vehicle.
Do not make any modifications to
the electronic engine immobiliser
system.
If the system does not function
correctly,
the central locking button
indicator light, situated in the centre
of the fascia, flashes rapidly when the
ignition is switched on (2nd notch).
In this case your vehicle will not
start.
Contact a PEUGEOT dealer as soon
as possible.

Accesses102 -
ELECTRONIC ENGINE
IMMOBILISER
This locks the engine control sys-
tem as soon as the ignition has been
switched off and therefore prevents
starting of the vehicle by anyone who
does not have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code
must be recognised for starting to be
possible.
CONFIDENTIAL CARD
This is given to you on delivery of
your vehicle with the duplicate keys.
It contains the identification code
necessary for any work carried out
by a PEUGEOT dealer on the elec-
tronic immobiliser system. This code
is hidden by a film, which should be
removed only if necessary.
Keep your card in a safe place,
never inside the vehicle.

When undertaking a long trip or jour-
ney, however, it is advisable to take
it with you along with your personal
papers.Make a careful note of the
number of each key. This
number is coded on the la-
bel attached to the key.
If the keys are lost, your PEUGEOT
dealer can rapidly supply you with
new keys.
The high frequency remote control
is a sensitive system; do not oper-
ate it while it is in your pocket as
there is a possibility that it may un-
lock the vehicle, without you being
aware of it.
The remote control does not oper-
ate when the key is in the ignition,
even when the ignition is switched
off, except for reprogramming.
Driving with the doors locked may
make access to the passenger
compartment by the emergency
services more difficult in an emer-
gency.
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time. Do not repeatedly press the buttons
of your remote control out of range
of your vehicle.
You run the risk of stopping it from
working and the remote control
would have to be reprogrammed.
When purchasing a second-hand
vehicle:
- ensure that you are given the con-
fidential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure
that the keys in your possession
are the only ones which can start
the vehicle.
Do not make any modifications to
the electronic engine immobiliser
system.
If the system does not function
correctly,
the central locking button
indicator light, situated in the centre
of the fascia, flashes rapidly when the
ignition is switched on (2nd notch).
In this case your vehicle will not
start.
Contact a PEUGEOT dealer as soon
as possible.

103Accesses-

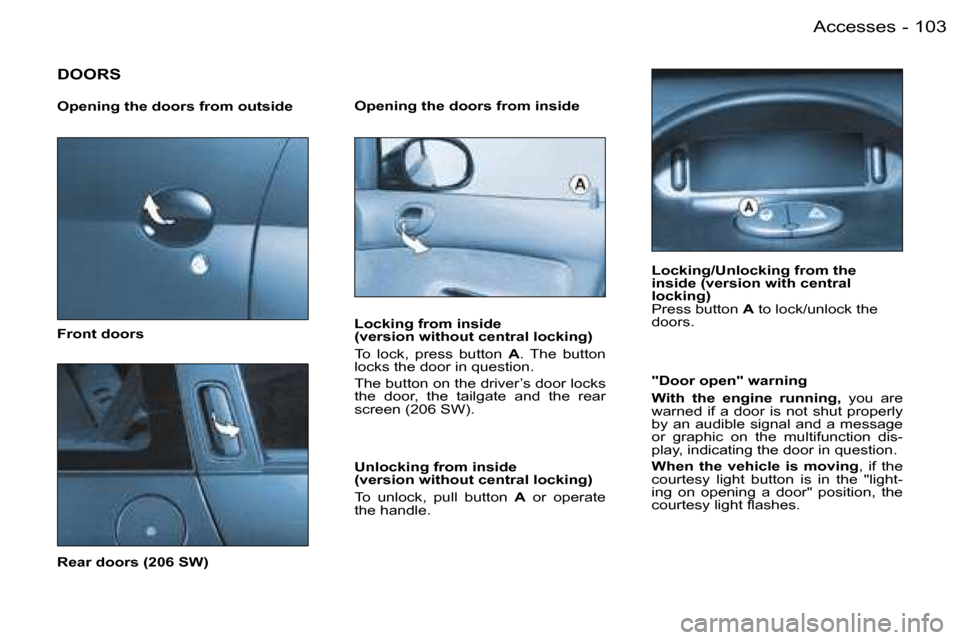

DOORS
Opening the doors from outside
Front doors
Rear doors (206 SW)Opening the doors from inside
"Door open" warning
With the engine running, you are
warned if a door is not shut properly
by an audible signal and a message
or graphic on the multifunction dis-
play, indicating the door in question.
When the vehicle is moving , if the
courtesy light button is in the "light-
ing on opening a door" position, the
courtesy light flashes.
Locking from inside
(version without central locking)
To lock, press button
A. The button
locks the door in question.
The button on the driver’s door locks
the door, the tailgate and the rear
screen (206 SW).
Unlocking from inside
(version without central locking)
To unlock, pull button A or operate
the handle. Locking/Unlocking from the
inside (version with central
locking)
Press button
A to lock/unlock the
doors.

Accesses104 -

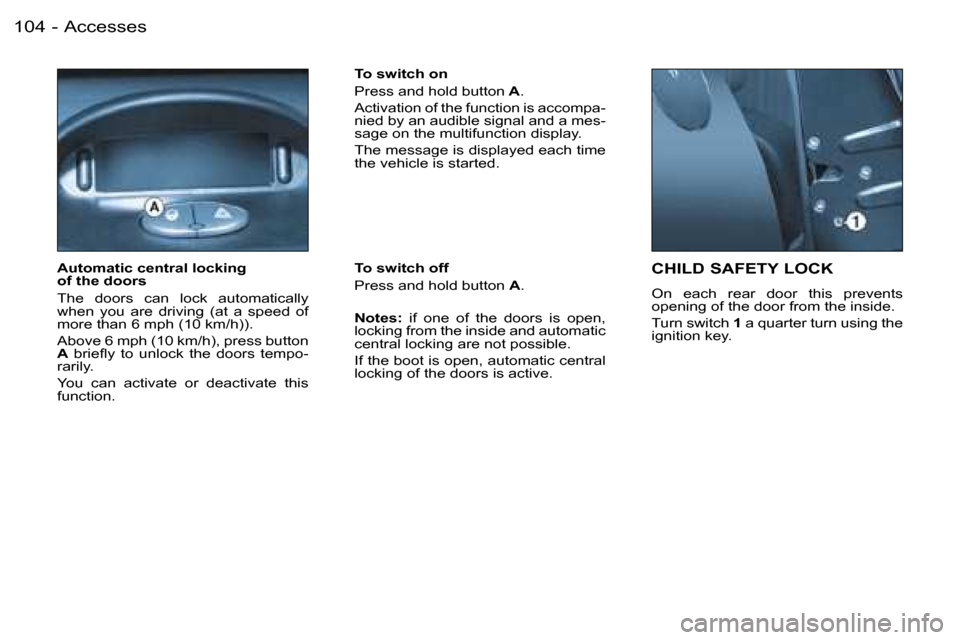

CHILD SAFETY LOCK
On each rear door this prevents
opening of the door from the inside.
Turn switch 1 a quarter turn using the
ignition key.
Automatic central locking
of the doors
The doors can lock automatically
when you are driving (at a speed of
more than 6 mph (10 km/h)).
Above 6 mph (10 km/h), press button
A
briefly to unlock the doors tempo-
rarily.
You can activate or deactivate this
function. To switch off
Press and hold button
A.
Notes: if one of the doors is open,
locking from the inside and automatic
central locking are not possible.
If the boot is open, automatic central
locking of the doors is active.
To switch on
Press and hold button
A.
Activation of the function is accompa-
nied by an audible signal and a mes-
sage on the multifunction display.
The message is displayed each time
the vehicle is started.

105Accesses-

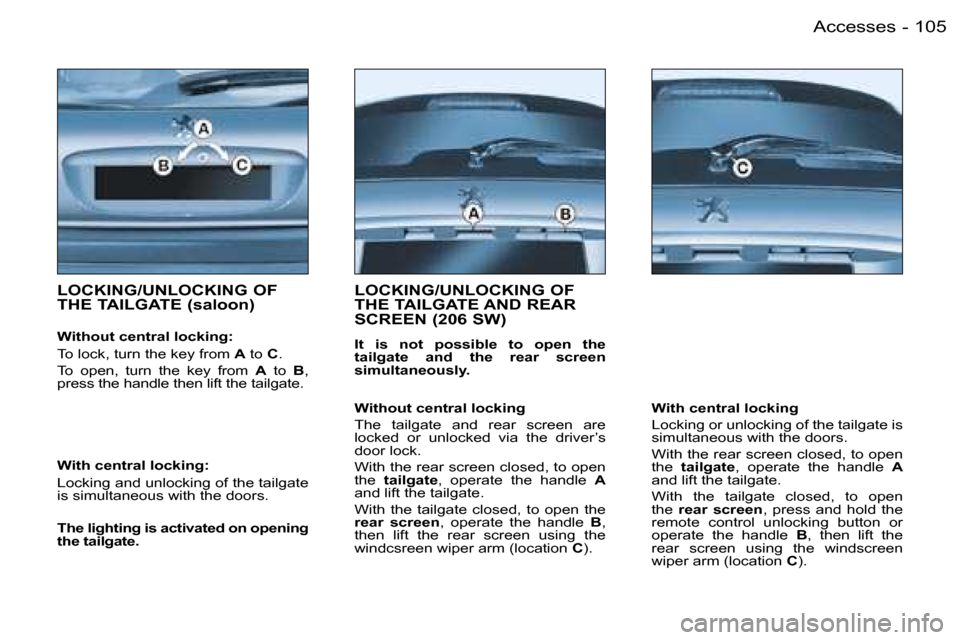

LOCKING/UNLOCKING OF
THE TAILGATE (saloon)
Without central locking:
To lock, turn the key from A to C.
To open, turn the key from A to B,
press the handle then lift the tailgate.
LOCKING/UNLOCKING OF
THE TAILGATE AND REAR
SCREEN (206 SW)
It is not possible to open the
tailgate and the rear screen
simultaneously.
With central locking
Locking or unlocking of the tailgate is
simultaneous with the doors.
With the rear screen closed, to open
the tailgate , operate the handle A
and lift the tailgate.
With the tailgate closed, to open
the rear screen , press and hold the
remote control unlocking button or
operate the handle B, then lift the
rear screen using the windscreen
wiper arm (location C).
Without central locking
The tailgate and rear screen are
locked or unlocked via the driver’s
door lock.
With the rear screen closed, to open
the
tailgate , operate the handle A
and lift the tailgate.
With the tailgate closed, to open the
rear screen , operate the handle B,
then lift the rear screen using the
windcsreen wiper arm (location C).
With central locking:
Locking and unlocking of the tailgate
is simultaneous with the doors.
The lighting is activated on opening
the tailgate.

Accesses106 -
The lighting is activated on open-
ing the tailgate or the rear screen.
Notes: the tailgate and the rear
screen lock automatically while driving
(above 6 mph (10 km/h)) and unlock
when one of the doors is opened.
When the rear windscreen wiper is
in a wiping position, the rear screen
can only be opened at the end of the
cycle.
Close the rear screen using the wind-
screen wiper arm or by pressing the
centre of the glass.
While driving , if the tail-
gate or the rear screen is not
properly closed, the courtesy
light flashes if the button is in
this position.

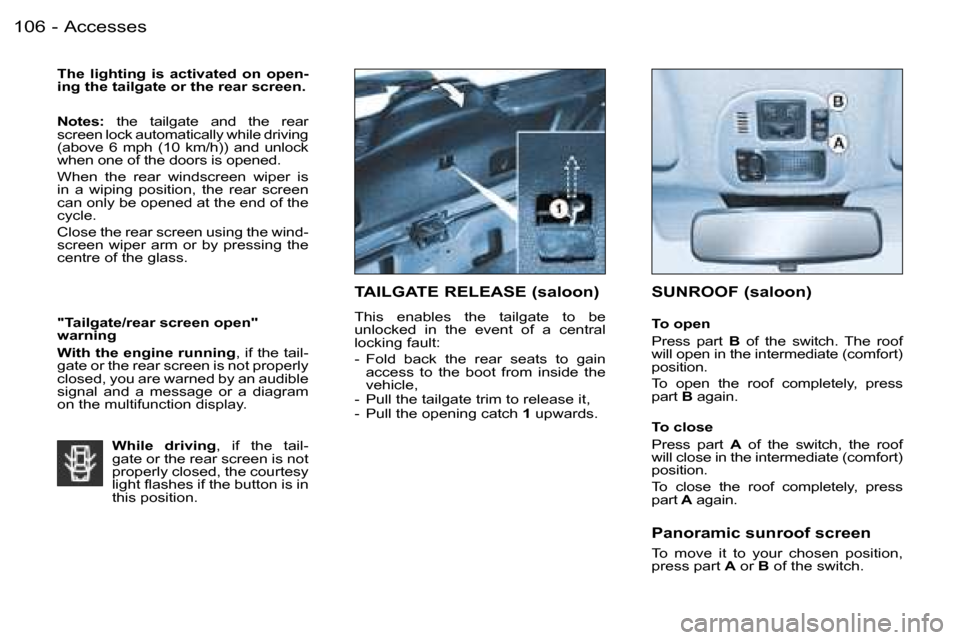

TAILGATE RELEASE (saloon)
This enables the tailgate to be
unlocked in the event of a central
locking fault:
- Fold back the rear seats to gain access to the boot from inside the
vehicle,
- Pull the tailgate trim to release it,
- Pull the opening catch 1 upwards.
SUNROOF (saloon)
To open
Press part B of the switch. The roof
will open in the intermediate (comfort)
position.
To open the roof completely, press
part B again.
Panoramic sunroof screen
To move it to your chosen position,
press part A or B of the switch.
"Tailgate/rear screen open"
warning
With the engine running
, if the tail-
gate or the rear screen is not properly
closed, you are warned by an audible
signal and a message or a diagram
on the multifunction display.
To close
Press part A of the switch, the roof
will close in the intermediate (comfort)
position.
To close the roof completely, press
part A again.

Accesses106 -
The lighting is activated on open-
ing the tailgate or the rear screen.
Notes: the tailgate and the rear
screen lock automatically while driving
(above 6 mph (10 km/h)) and unlock
when one of the doors is opened.
When the rear windscreen wiper is
in a wiping position, the rear screen
can only be opened at the end of the
cycle.
Close the rear screen using the wind-
screen wiper arm or by pressing the
centre of the glass.
While driving , if the tail-
gate or the rear screen is not
properly closed, the courtesy
light flashes if the button is in
this position.
TAILGATE RELEASE (saloon)
This enables the tailgate to be
unlocked in the event of a central
locking fault:
- Fold back the rear seats to gain access to the boot from inside the
vehicle,
- Pull the tailgate trim to release it,
- Pull the opening catch 1 upwards.
SUNROOF (saloon)
To open
Press part B of the switch. The roof
will open in the intermediate (comfort)
position.
To open the roof completely, press
part B again.
Panoramic sunroof screen
To move it to your chosen position,
press part A or B of the switch.
"Tailgate/rear screen open"
warning
With the engine running
, if the tail-
gate or the rear screen is not properly
closed, you are warned by an audible
signal and a message or a diagram
on the multifunction display.
To close
Press part A of the switch, the roof
will close in the intermediate (comfort)
position.
To close the roof completely, press
part A again.

107Accesses-

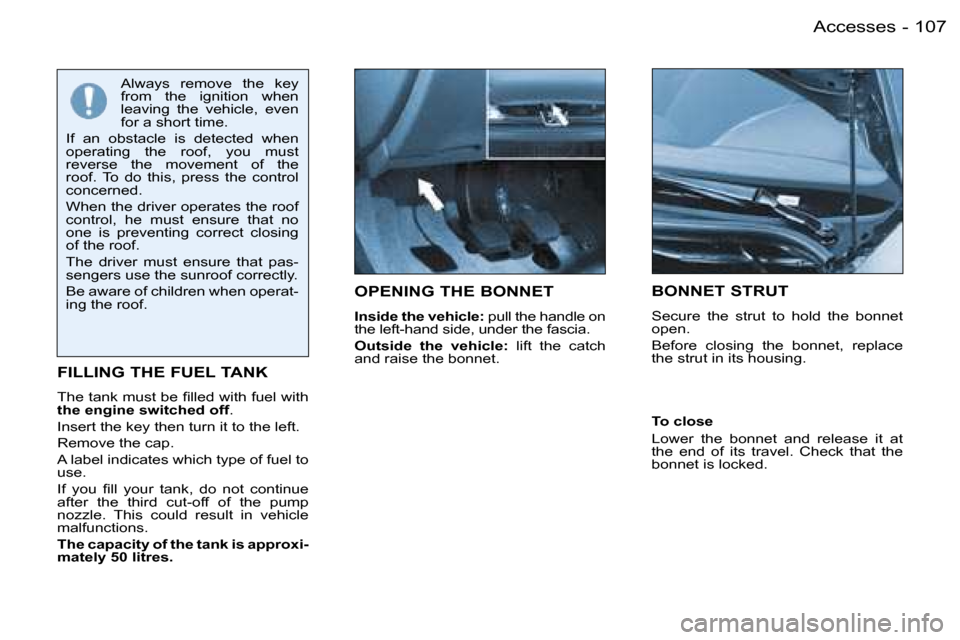

OPENING THE BONNET
Inside the vehicle: pull the handle on
the left-hand side, under the fascia.
Outside the vehicle: lift the catch
and raise the bonnet.
BONNET STRUT
Secure the strut to hold the bonnet
open.
Before closing the bonnet, replace
the strut in its housing.
Always remove the key
from the ignition when
leaving the vehicle, even
for a short time.
If an obstacle is detected when
operating the roof, you must
reverse the movement of the
roof. To do this, press the control
concerned.
When the driver operates the roof
control, he must ensure that no
one is preventing correct closing
of the roof.
The driver must ensure that pas-
sengers use the sunroof correctly.
Be aware of children when operat-
ing the roof.
FILLING THE FUEL TANK
The tank must be filled with fuel with
the engine switched off .
Insert the key then turn it to the left.
Remove the cap.
A label indicates which type of fuel to
use.
If you fill your tank, do not continue
after the third cut-off of the pump
nozzle. This could result in vehicle
malfunctions.
The capacity of the tank is approxi-
mately 50 litres. To close
Lower the bonnet and release it at
the end of its travel. Check that the
bonnet is locked.
