188 Controls in detailAutomatic climate controlDefrosting the windshield
Activating
Press button P (
page 184).
The indicator lamp on the button
comes on.
Deactivating

Press button P (
page 184).
The indicator lamp on the button goes
out. Defrosting is turned off.
Air recirculation mode
Switch to air recirculation mode to prevent
unpleasant odors from entering the vehicle
from the outside. This setting cuts off the
intake of outside air and recirculates the
air in the passenger compartment.Activating

Press button , (
page 184).
The indicator lamp on the button
comes on.
iThese settings should only be selected
for a short time.
Warning!
G
When the outside temperature is below
41°F (5°C), only switch to air recirculation
mode for short periods to prevent window
fogging.
Warning!
G
Never operate the windows if there is the
possibility of anyone being harmed by the
closing procedure.
In the event that the procedure causes po-
tential danger, the closing of the windows
can be immediately halted by releasing the ,
button or by pressing or pulling the re-
spective window switch.

193 Controls in detail
Power windows
Power windows
Opening and closing the windows
The door windows are opened and closed
electrically. The switches for the windows
are located on the door sill on the driver’s
side (
page 34). The switch for the pas-
senger side is located on the door sill on
the passenger side.
1Left window
2Right window

Switch on the ignition (
page 40).
Warning!
G
When closing the windows, make sure there
is no danger of anyone being harmed by the
closing procedure.
The closing of the windows can be immedi-
ately halted by releasing the switch or, if
switch was pulled past the resistance point
and released, by either pressing or pulling
the respective switch.
If the window encounters an obstruction
that blocks its path in a circumstance where
you pulled the switch past the resistance
point and released it to close the window,
the automatic reversal function will stop the
window and open it slightly.
If the window encounters an obstruction
that blocks its path in a circumstance where
you are closing the window by pulling and
holding the switch, or by pressing and hold-
ing button‹ on the SmartKey, or by
pressing and holding the ,button on the
climate control panel, the automatic rever-
sal function will not operate.
When leaving the vehicle, always remove the
SmartKey from starter switch, take it with
you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment can cause an
accident and/or serious personal injury.

194 Controls in detailPower windowsOpening the windows
Press switch1 or2 to the resistance
point.
The corresponding window will move
downwards until you release the
switch.Closing the windows

Pull switch1 or2 to the resistance
point.
The corresponding window will move
upwards until you release the switch.Fully opening the windows
(Express-open)

Press switch1 or2 past the resis-
tance point and release.
The corresponding window opens com-
pletely.
Fully closing the windows
(Express-close)

Pull switch1 or2 past the
resistance point and release.
The corresponding window closes
completely.
iWith the SmartKey in starter switch po-
sition 0 or removed from the starter
switch, the front power windows can
be operated:

until you open the driver’s or pas-
senger door


for at least 5 minutes
Warning!
G
If you pull and hold the switch up when
closing the window, and upward movement
of the window is blocked by some obstruc-
tion including but not limited to arms, hands,
fingers, etc., the automatic reversal will not
operate.
Warning!
G
Driver’s door only:
If within 5 seconds you again pull the switch
past the resistance point and release, the
automatic reversal will not function.

196 Controls in detailPower windowsConvenience closing feature
When you lock the vehicle, you can close
the side windows.
Aim transmitter eye of the SmartKey at
the rear quarter window.
The SmartKey must be in close proxim-
ity to the rear quarter window.

Press and hold button ‹ until the
side windows are completely closed.

Release button ‹ to interrupt pro-
cedure.
Warning!
G
When closing the side windows, make sure
that there is no danger of anyone being
harmed by the closing procedure.
If potential danger exists, release
button‹ to stop the closing procedure.
To open, press and hold button Œ. To
continue the closing after making sure that
there is no danger of anyone being harmed
by the closing procedure, press and hold
button‹.

197 Controls in detail
Driving systems
Driving systems
The driving system of your vehicle is
described on the following pages:

Cruise control, with which the vehicle
can maintain a preset speed
For information on the BAS, ABS and ESP
®
driving systems, (
page 79).
Cruise control
Cruise control automatically maintains the
speed you set for your vehicle.
Use of cruise control is recommended for
driving at a constant speed for extended
periods of time. You can set or resume
cruise control at any speed over 20 mph
(30 km/h).
The cruise control function is operated by
means of the cruise control lever.
The cruise control lever is the uppermost
lever on the left-hand side of the steering
column (
page 30).
Warning!
G
Cruise control is a convenience system de-
signed to assist the driver during vehicle op-
eration. The driver is and must remain at all
times responsible for the vehicle speed and
for safe brake operation.
Only use cruise control if the road, traffic
and weather conditions make it advisable to
travel at a steady speed.

The use of cruise control can be danger-
ous on winding roads or in heavy traffic
because conditions do not allow safe
driving at a steady speed.


The use of cruise control can be danger-
ous on slippery roads. Rapid changes in
tire traction can result in wheel spin and
loss of control.


Deactivate cruise control when driving
in fog.
The “Resume” function should only be oper-
ated if the driver is fully aware of the previ-
ously set speed and wishes to resume this
particular preset speed.

199 Controls in detail
Driving systems
Setting a higher speed
Lift cruise control lever to position1
and hold it up until the desired speed is
reached.

Release cruise control lever.
The new speed is set.
Setting a lower speed

Depress cruise control lever to
position2 and hold it down until the
desired speed is reached.

Release cruise control lever.
The new speed is set.Fine adjustment in 1 mph
(Canada: 1 km/h) increments
Faster

Briefly tip cruise control lever in
direction of arrow1.
Slower

Briefly tip cruise control lever in
direction of arrow2.Setting to last stored speed
(“Resume” function)

Briefly push cruise control lever to
position4.
The cruise control resumes the last set
speed.

Remove your foot from the accelerator
pedal.
iDepressing the accelerator pedal does
not deactivate cruise control. After
brief acceleration (e.g. for passing),
cruise control will resume the last
speed set.
iWhen you use the cruise control lever
to decelerate, the transmission will
automatically downshift if the engine’s
braking power does not brake the
vehicle sufficiently.
Warning!
G
The speed stored in memory should only be
set again if prevailing road conditions per-
mit. Possible acceleration or deceleration
differences arising from returning to preset
speed could cause an accident and/or seri-
ous injury to you and others.

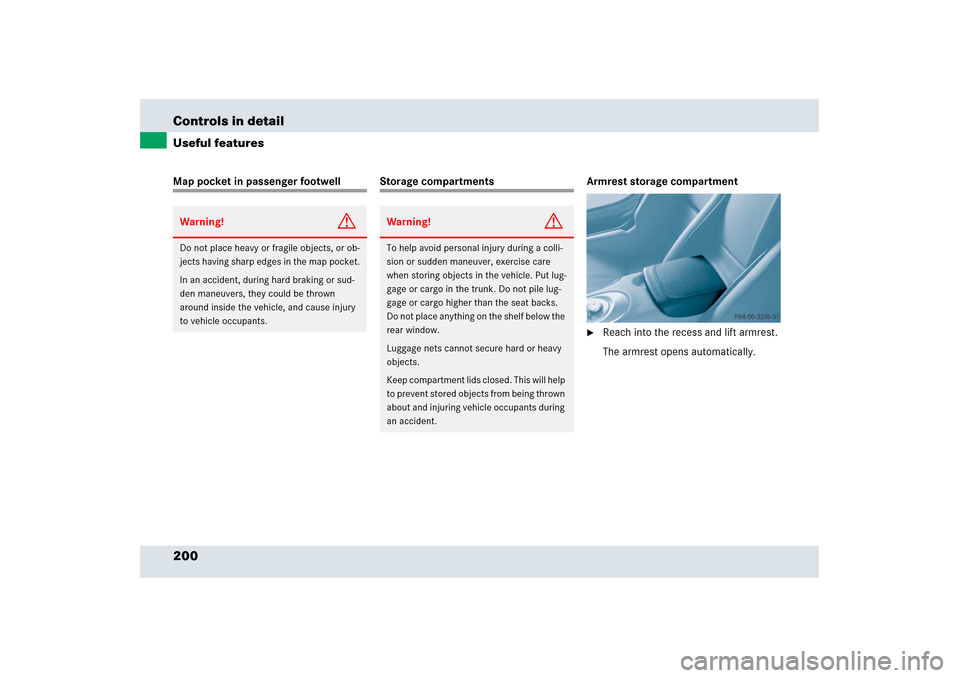

200 Controls in detailUseful featuresMap pocket in passenger footwell
Storage compartments Armrest storage compartment

Reach into the recess and lift armrest.
The armrest opens automatically.
Warning!
G
Do not place heavy or fragile objects, or ob-
jects having sharp edges in the map pocket.
In an accident, during hard braking or sud-
den maneuvers, they could be thrown
around inside the vehicle, and cause injury
to vehicle occupants.
Warning!
G
To help avoid personal injury during a colli-
sion or sudden maneuver, exercise care
when storing objects in the vehicle. Put lug-
gage or cargo in the trunk. Do not pile lug-
gage or cargo higher than the seat backs.
Do not place anything on the shelf below the
rear window.
Luggage nets cannot secure hard or heavy
objects.
Keep compartment lids closed. This will help
to prevent stored objects from being thrown
about and injuring vehicle occupants during
an accident.

202 Controls in detailUseful featuresAshtray and cigarette lighter
The ashtray and the cigarette lighter are lo-
cated in the storage compartment under
the armrest.
1Cigarette lighter
2Ashtray insertAshtray
Removing ashtray insert

Pull insert 2 upwards.
Replacing ashtray insert

Press the insert into the holder until
you hear it click into place.Cigarette lighter

Switch on the ignition (
page 40).

Push in cigarette lighter 1.
The cigarette lighter pops out automat-
ically when hot.
Warning!
G
Remove front ashtray only with vehicle
standing still.
Warning!
G
Never touch the heating element or sides of
the lighter; they are extremely hot. Hold the
knob only.
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.
